ASME BPE 180 Degree Weld Elbow

Donjoy ASME BPE 180 Degree Weld Elbow and fittings compliant with ASME BPE standard, constructed from sanitary stainless steel 304 or 316L, provide solid, durability, problem-free for weld or assemble, available in ASME BPE, 3-A, DIN, SMS, ISO, I-line standard. ASME BPE Elbow and fittings special used in pharmaceutical and biotech industries.

Details about ASME BPE 180 Degree Weld Elbow

Specification

Material

1.4404 (316L)

Heat Lot

Marked with Heat Lot Number

Connection type

Butt Weld, Tri-clamp

Connection Size

1/2" to 6"

Certifcation

ASME BPE Automatic tube weld DT-4.1.1-1

ASME BPE 180 Degree Weld Elbow

Donjoy ASME BPE 180 Degree Weld Elbow and fittings compliant with ASME BPE standard, constructed from sanitary stainless steel 304 or 316L, provide solid, durability, problem-free for weld or assemble, available in ASME BPE, 3-A, DIN, SMS, ISO, I-line standard. ASME BPE Elbow and fittings special used in pharmaceutical and biotech industries.

ASME BPE standard

Standard provides the requirements applicable to the design of equipment used in the bioprocessing, pharmaceutical, and personal care product industries, including aspects related to sterility and cleanability, materials, dimensions and tolerances, surface finish, material joining, and seals.

Sanitary Stainless Steel Surface Finish

Available in Mechanical polishing and electropolishing finish.

Mechanical polishing with 4 grades from SF0 to SF3, default SF 1 finish is RA 20= 0.51 μm

electropolishing finish with 3 grades from SF4- SF6, default SF4 finish is RA 15=0.38 μm



Sanitary Stainless Steel Surface Finish

Sanitary Pipe Fittings Elbow Manufacturer

Donjoy Technology as a sanitary pipe fittings elbow manufacturer in China, manufacture sanitary pipe fittings, sanitary valve, pump for more than 28 years. Meet USA 3-A, ASME BPE, FDA, EU CE standad.

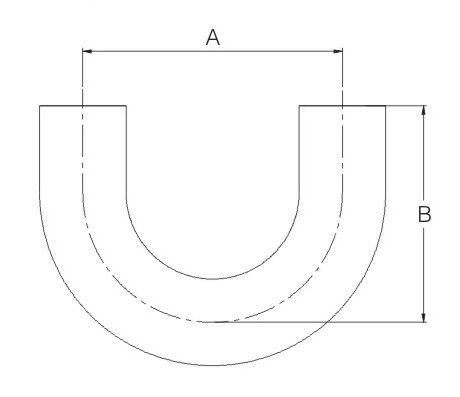

ASME BPE 180 Degree Weld Elbow Dimensions

ASME BPE 180 Degree Weld Elbow



ASME BPE Automatic tube weld DT-4.1.1-7

Size

(inch)

Dimensions
Wall Thickness

(mm)

A

(mm)

B

(mm)

1/2″ 1.65 114.3 76.2
3/4″ 1.65 114.3 76.2
1   “ 1.65 76.2 76.2
1-1/2″ 1.65 114.3 114.3
2   “ 1.65 152.4 127
2-1/2″ 1.65 190.5 146.1
3   “ 1.65 228.6 165.1
4   “ 2.1 304.8 215.9
6   “ 2.8 457.2 292.1

Frequency Ask Question

Please firstly leave message below for product you need and requirement,I will send you quotaion sheet,then choose the transportation way and check cost,we will send you Proforma invoice for confirm,at last make the payment and we will ship the goods to you.

Delivery time depends on quantity and type of products,for valve and pipe fittings regular is about 7-20days. For pump regular is about 15-25days.

We offer 1 year warranty to our products.

For small amount we require 100% before production.For big amount,regularly T/T 30% deposit, 70% before shipment.

By Bank T/T, L/C, By Alibaba Assurance Order accept Credit Card VISA, Mastercard, E-checking, and we could’t accept Paypal.
