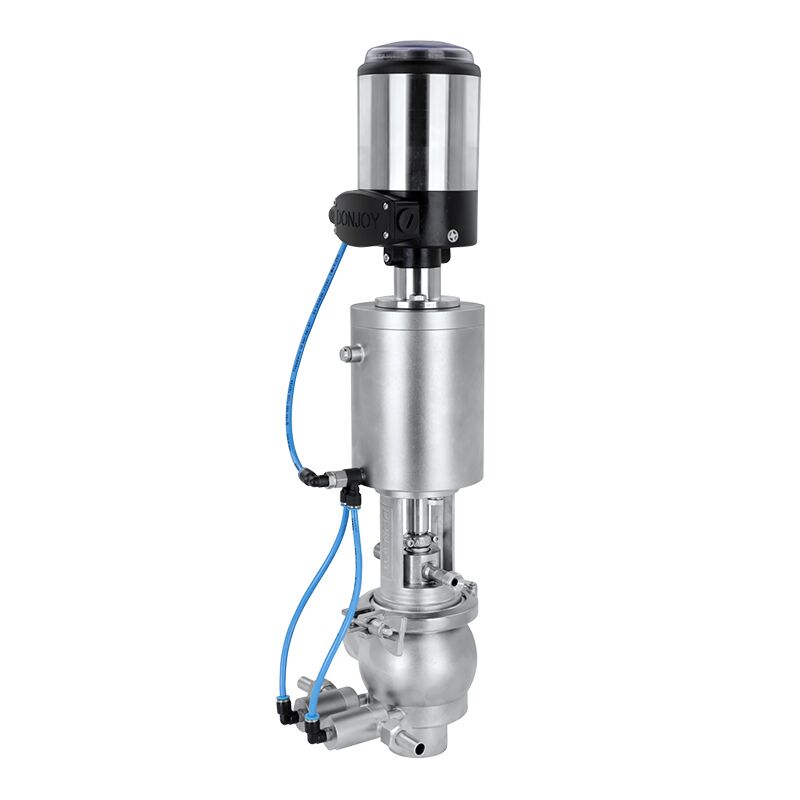

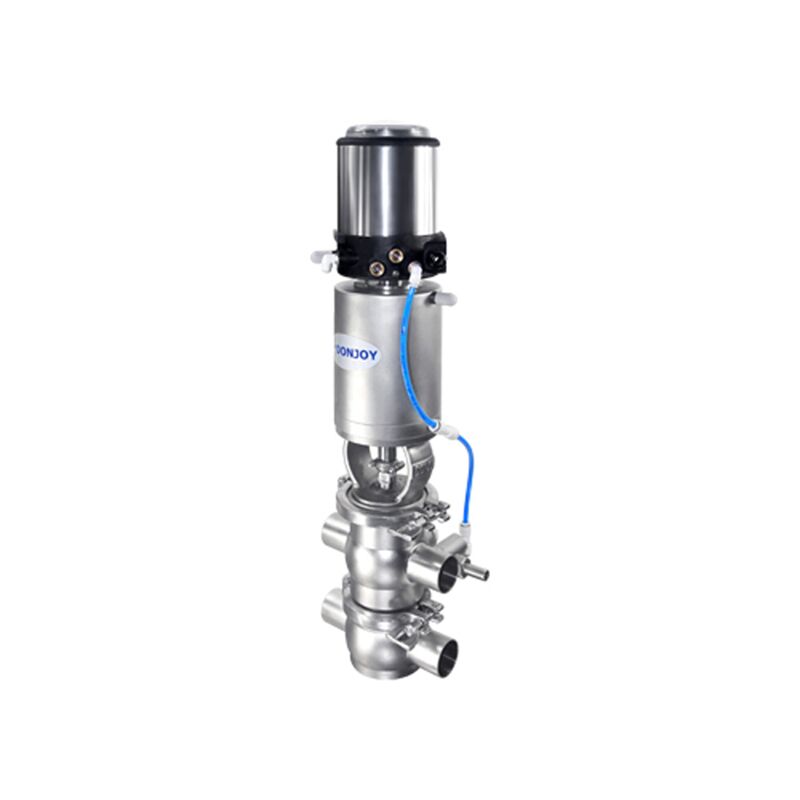

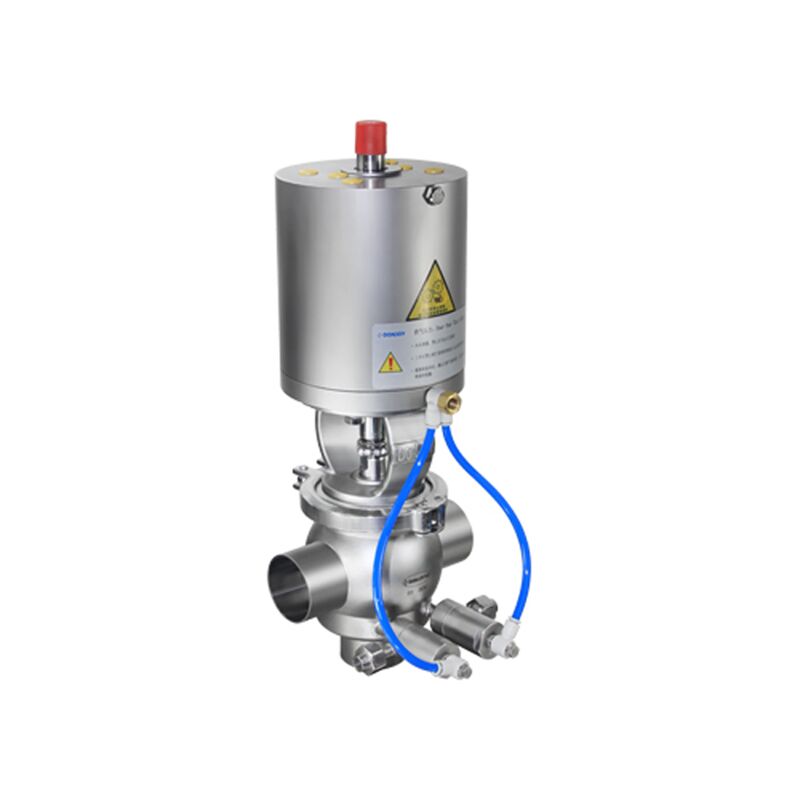

Double Seal Mixproof Valve

DONJOY Double Seal Mixproof Valve E-C with two seals and a leakage chamber designed for safe separation of two different products, preventing the product contamination and convenient for monitoring the working condition. The valve is mostly used in CIP systems.

Details about Double Seal Mixproof Valve

Specification

Size

1.5"-4"/DN40-DN100

Wetted Material

316L/1.4404

Temperature

-10°C to 120°C (150°C optional)

Max pressure

145psi (10bar)

Seal

PTFE+EPDM (FPM option)FDA approved

Surface treatment

Ra<0.8um

Connection type

Weld, Tri-clamp

Certification

US 3-A, FDA, CE PED/2014/68/EC, Certification

Double Seal Mixproof Valve E-C series

DONJOY Double Seal Mixproof Valve E-C with two seals and a leakage chamber designed for safe separation of two different products, preventing the product contamination and convenient for monitoring the working condition. The valve is mostly used in CIP systems. Sanitary design meets US 3-A standard. It is widely used in the food processing industries, e.g. dairy, beverages and pharmaceuticals.

double seal mixproof valve

Double Seal Valve Body Combinations

body combination

Double Seal Mixproof  Valve Working Principle

The E-C series mix proof valve is mainly composed of the actuator, connecting bracket, valve stem and valve body. The valve stem is driven by the actuator to move by rectilinear motion axially. When the valve stem moves upward, the upper and lower pipeline channels are opened; When the valve stem moves downward, the passage is closed. The valve stem is designed with two sealing rings and sealing surface of the valve body to form an independent sealing cavity, which communicates with the CIP valve and can be used for sealing and leak detection; or it can be played a role in anti-mixing monitoring when different media flow through the upper and lower pipelines.

double seal mixproof valve working

Double Seal Valve E-C Configrations

configration



E-C Mixproof Valve Dimension

double seal mixproof valve drawing data
double seal mixproof valve drawing data
double seal mixproof valve with control top drawing data
double seal mixproof valve with control top drawing data

Double Seal Mixproof Valve Curve

double seal mixproof valve curve

Hygienic Valve packing

Sanitary Double Seat Mixproof Valve use for customer’s project

DONJOY valve manifold
