High Pressure Clamp

Donjoy High-Pressure Clamp and fittings compliant with USA 3-A sanitary standard, constructed from sanitary stainless steel, provide solid, durability, fit to assemble with the ferrule, high-pressure rating, available in 3-A, DIN, ISO standard. High-Pressure Clamp widely used in food and beverage, brewing, pharmaceutical industries.

Details about High Pressure Clamp

Specification

Material

Stainless Steel 304

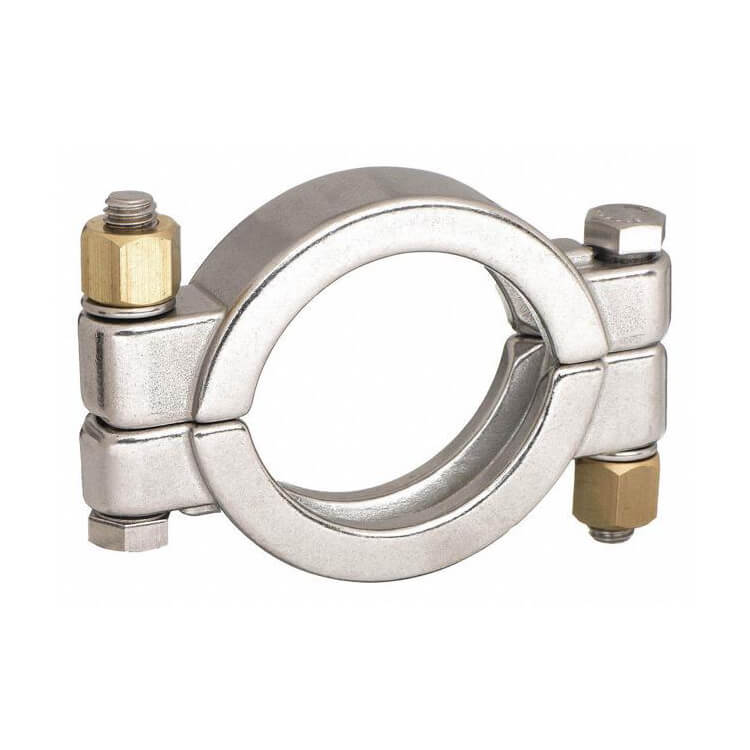

High-Pressure Clamp (13MHP)

Donjoy High-Pressure Clamp and fittings compliant with USA 3-A sanitary standard, constructed from sanitary stainless steel, provide solid, durability, fit to assemble with the ferrule, high-pressure rating, available in 3-A, DIN, ISO standard. High-Pressure Clamp widely used in food and beverage, brewing, pharmaceutical industries.

The High-Pressure Clamp doesn’t contact with processing media, thus we not offered in SS316L option.

High-Pressure Clamp (13MHP) Manufacturer

Donjoy Technology as High-Pressure Clamp Manufacturer in China, manufacture sanitary pipe fittings, sanitary valve for more than 27 years. With USA 3-A, FDA, EU CE certification.

High Pressure Clamp

High-Pressure Clamp (13MHP) Dimensions

Size Dimensions Pressure Rating at 70°F Pressure Rating at 250°F
A
1/2 – 3/4″ 1.062 1500 1200
1″ – 1-1/2″ 2.046 1500 1200
2″ 2.578 1000 800
2-1/2″ 3.11 1000 800
3″ 3.64 1000 800
4″ 4.744 800 600
6″ 6.632 300 200
8″ 8.695 250 150
10″ 10.695 200 125
12″ 12.695 150 100

Frequency Ask Question

Please firstly leave message below for product you need and requirement,I will send you quotaion sheet,then choose the transportation way and check cost,we will send you Proforma invoice for confirm,at last make the payment and we will ship the goods to you.

Delivery time depends on quantity and type of products,for valve and pipe fittings regular is about 7-20days. For pump regular is about 15-25days.

We offer 1 year warranty to our products.

For small amount we require 100% before production.For big amount,regularly T/T 30% deposit, 70% before shipment.

By Bank T/T, L/C, By Alibaba Assurance Order accept Credit Card VISA, Mastercard, E-checking, and we could’t accept Paypal.
