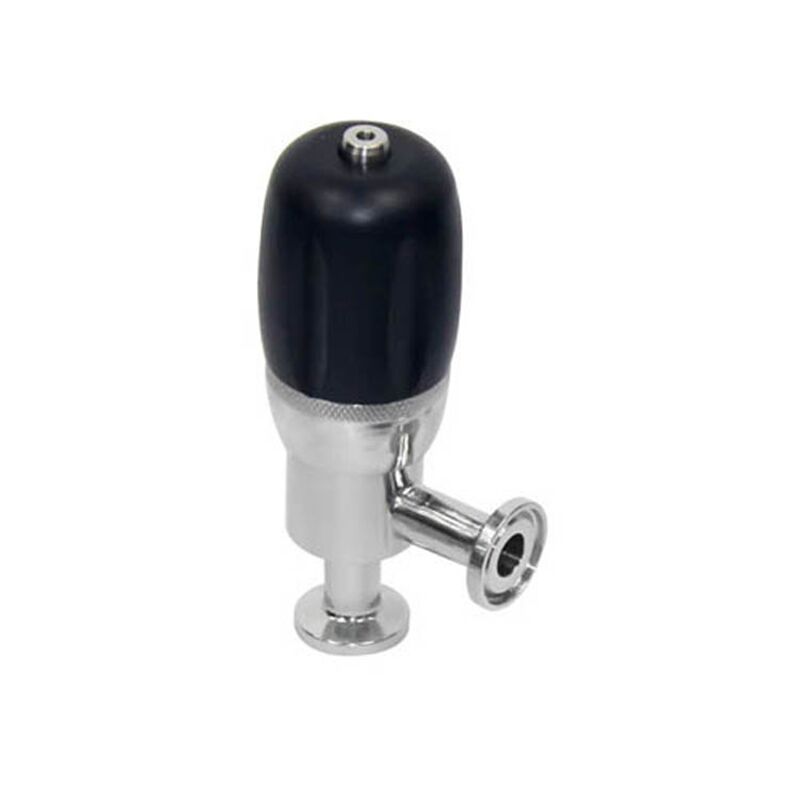

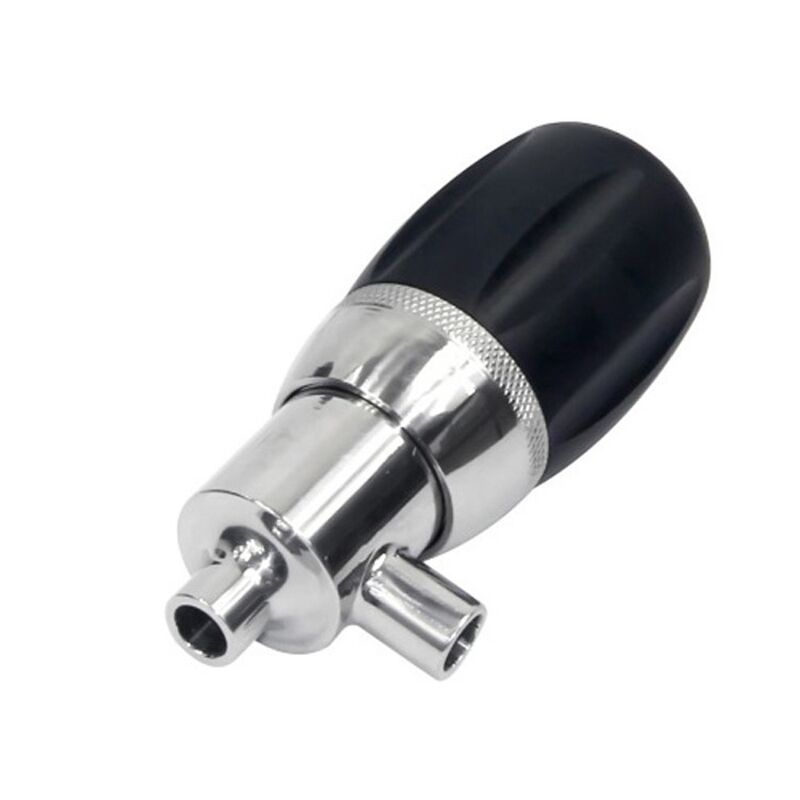

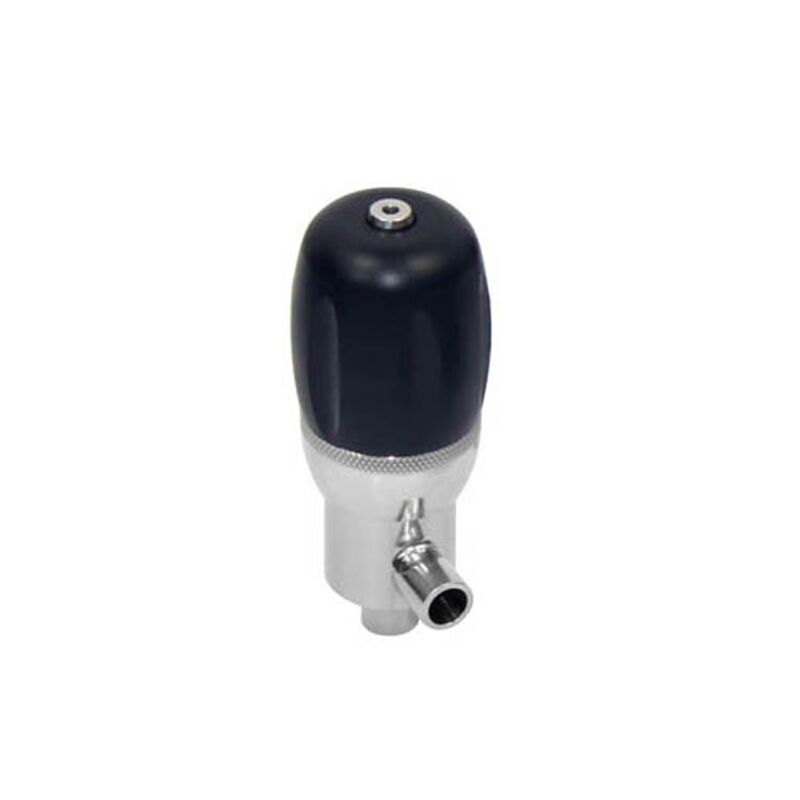

Mini Pressure Relief Valve
Mini type of safety valve for the specific volume is small, exquisite appearance, with a lock nut, especially suitable for micro pressure vessel equipment protection. No retention seal design
Details about Mini Pressure Relief Valve
Specification
| Size | 1/2"-3/4",DN10-DN20 |
|---|---|
| Body Material | AISI 316L |
| Temperature | 14°F to 266°F (-10°C to 130°C) |
| KV valu | 0.9-1.1m3/h |
| Set pressure | 0-43psi (0-3bar), 0-87psi (0-6bar, default), 87-145psi (6-10bar) |
| Seal | EPDM,FDA approved |
| End connection | butt-weld, sanitary clamp, flange, thread |
Mini Pressure Relief Valve
Donjoy Pressure Relief Valve is a type of spring-loaded pressure relief valve, overflow valve, pressure adjustable. It’s a safety valve designed to protect a pressurized vessel, or system during an overpressure event. Hygienic stainless steel design, used in the dairy, food, beverage, pharmaceutical and fine chemical industries.
Mini type of safety valve for the specific volume is small, exquisite appearance, with a lock nut, especially suitable for micro pressure vessel equipment protection. No retention seal design
Operating Principles
●The valve is normally closed.
●By adjusting the spring with pressure nut, the valve is calibrated to a specific pressure.
●When the pressure in the pipe exceeds the specified pressure, the valve open automatically to make the liquid out in order to reduce pressure.
Frequency Ask Question
Please firstly leave message below for product you need and requirement,I will send you quotaion sheet,then choose the transportation way and check cost,we will send you Proforma invoice for confirm,at last make the payment and we will ship the goods to you.
Delivery time depends on quantity and type of products,for valve and pipe fittings regular is about 7-20days. For pump regular is about 15-25days.
For small amount we require 100% before production.For big amount,regularly T/T 30% deposit, 70% before shipment.
By Bank T/T, L/C, By Alibaba Assurance Order accept Credit Card VISA, Mastercard, E-checking, and we could’t accept Paypal.
