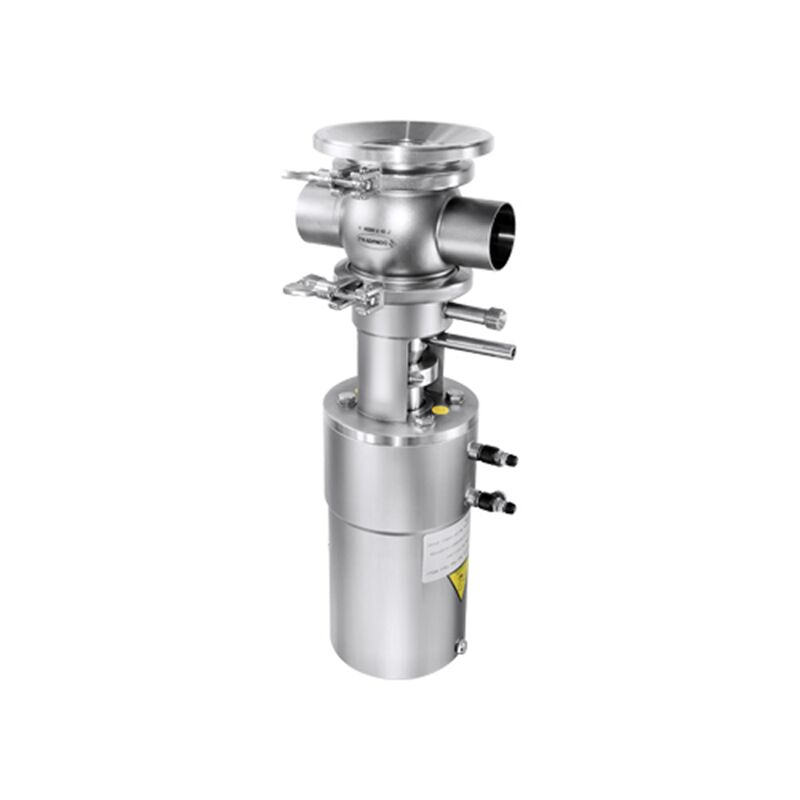

Mixproof Tank Outlet Valve

Donjoy Mixproof Tank Outlet Valve is designed to connect to the tank bottom. This valve is remotely controlled through compressed air, it’s an NC valve.

Details about Mixproof Tank Outlet Valve

Specification

Size

1 1/2" to 4" (DN40-DN100)

Body Material

SS 316L

Temperature

14°F to 266°F (-10 to 130°C) It depends on gasket

Max pressure

145psi (10bar)

Seal

EPDM, Silicone, FKM, FFKM, TEFLON, PTFE, HNBR, NBR, FDA approved

Pipe Joint Systems

DIN 3A

Operation

pneumatic actuator + Control-TOP

Surface treatment

Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.

Certification

US 3-A, FDA, CE PED/2014/68/EC, Certification

Connection type

Flange

Mixproof Tank Outlet Valve

Donjoy Mixproof Tank Outlet Valve is designed to connect to the tank bottom. This valve is remotely controlled through compressed air, it’s an NC valve. The mixing proof valve is constructed with two independent plugs, which will form a leakage chamber that interlinks to the atmosphere under normal working status. When occasional failure of the medium leakage happens, the medium will flow into the chamber and be discharged at the out port, here it will see if any conk out or seat seal detected, preventing the possibility of products contamination due to leakage and conk out. When the valve is open, the leakage chamber is closed. Hygienic design meets US 3-A standard. It is widely used in the food processing industries, mostly in dairy and beverages.

Operations

Control top, C-top (on/off control unit)
IL-top control (Positioner)
AS-I bus connection



Mixproof Tank Outlet Valve Body

Mixproof Tank Outlet Valve Body

Mixproof Tank Outlet Valve working principle

Mixproof Tank Outlet Valve Working Principle



Mixproof Tank Outlet Valve Dimension

Mixproof Tank Outlet Valve Dimension

Hygienic Valve packing

Sanitary Double Seat Mixproof Valve use for customer’s project

DONJOY valve manifold
