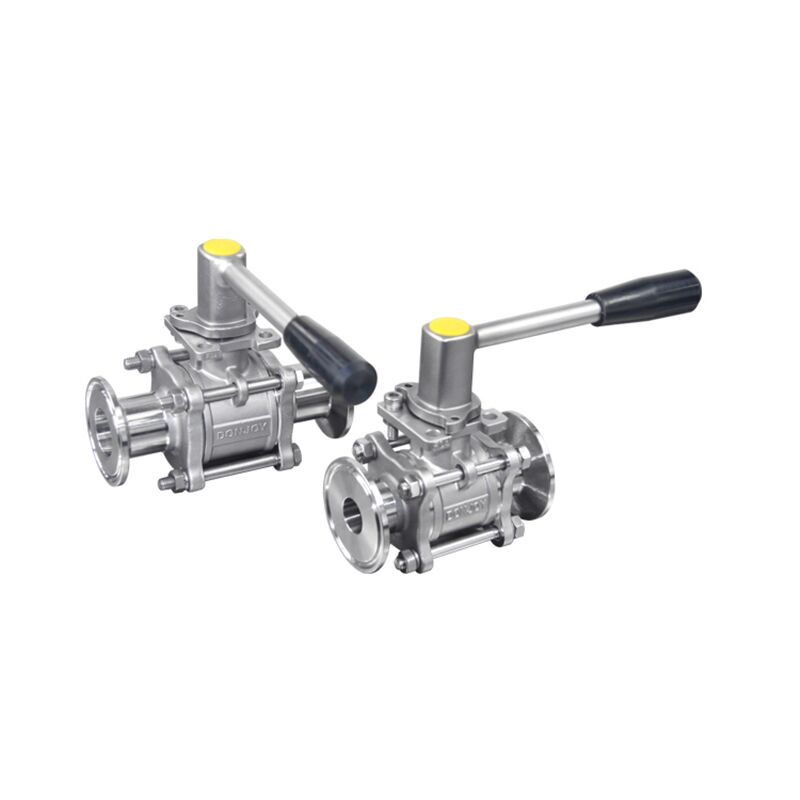

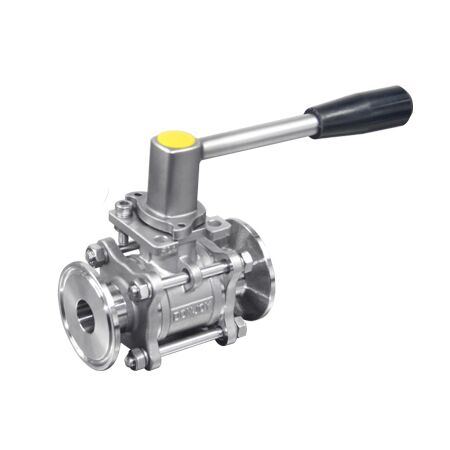

Sanitary Non-retention Three-pieces Ball Valve

Donjoy Sanitary Non-retention Three-pieces Ball Valve with PTFE seat design, no dead angle, full cavity. Body Material with Stainless 304 or 316L. Donjoy offers a variety of ball valves with manual, horizontal actuator and vertical actuator, electric actuator.

Details about Sanitary Non-retention Three-pieces Ball Valve

Specification

Size

DN10-DN100, 1/2" to 4"

Body Material

AISI 304 or 316L, (EN1.4301/EN1.4404).

Temperature

-30℃ to +150 ℃

Max pressure

145psi (10bar)

Seal

Teflon PTFE approved FKM(option)

Pipe Joint Systems

DIN SMS RJT 3A ISO IDF

Operation

Manual, pneumatic, electric all interchange

Surface treatment

Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.

Certification

US 3-A, FDA, CE PED/2014/68/EC, Certification

Connection type

Clamp End, Thread End, Weld End

Sanitary Non-retention Three-pieces Ball Valve

Donjoy Sanitary Non-retention Three-pieces Ball Valve with PTFE seat design, no dead angle, full cavity. Body Material with Stainless 304 or 316L. Donjoy offers a variety of ball valves with manual, horizontal actuator and vertical actuator, electric actuator. Connection End with tri-clover/clamp, weld or thread. Used in water treatment, food & beverage processing, pharmaceutical and daily chemical, industrial fluid applications.



DONJOY Sanitary Ball Valve description:

Donjoy ball valve is designed to meet high requirement of the United States 3-A-68-00 standard, with features of small torque, long lifetime, full degreasing, sealing elastic compensation, small size, no dead angle non-retention. It’s cost-effective, easily maintained, no need additional tools.



Hygienic Ball Valve Feature:

● Full Cavity without dead angle no retention.
● Manufactured 304 or 316L grade stainless steel body.
● FDA-approved seat materials: FDA 21 CFR 177.2600, Teflon PTFE, FKM(optional)
● Sanitary surface finish, available with Ra < 0.4µm or EP (SF1 and SF4).

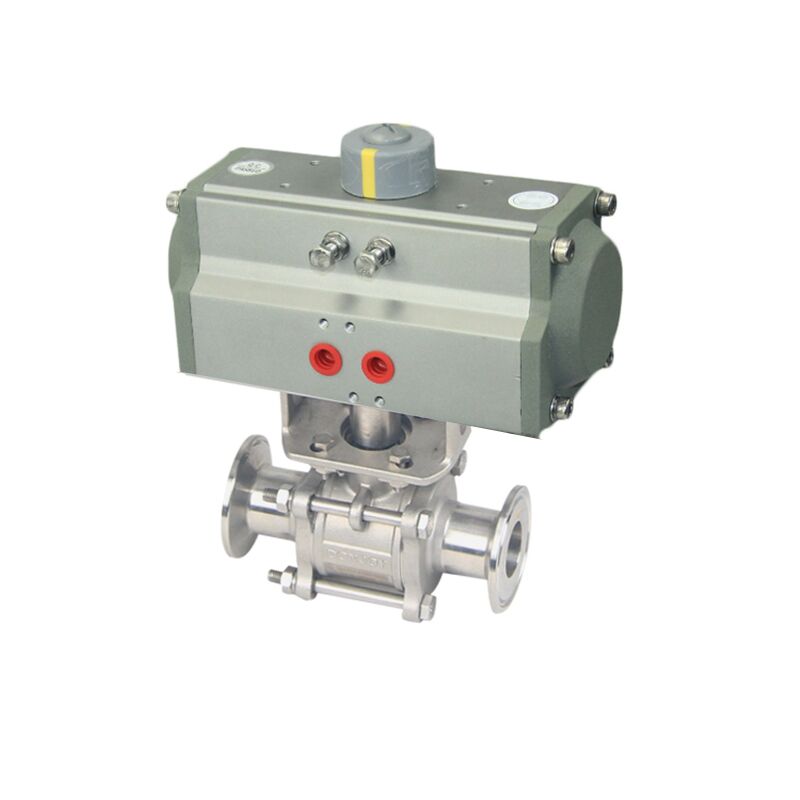

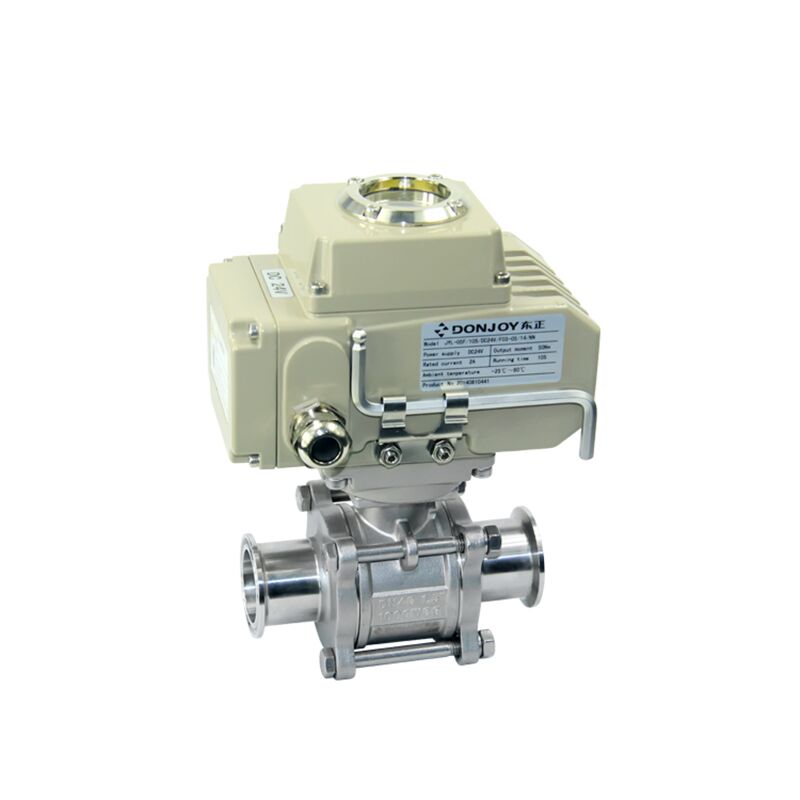

● The manual handle, pneumatic actuator and electric actuator are interchangeable.
● A wide selection of different end connections.
● Suitable for low and medium viscosity fluids.
● Certificates: 3A, FDA, PED 2014/68/EU, ISO9001/2008.
● Standards: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
● 100% hydraulic tested / 100% inspected.
● Repair Kits available consisting of seats and bushings.



Sanitary Ball Valve Advantage

1.We manufacture ball valve for more than 20years, manufactured more than 1million pcs of the ball valve.

2.Updated and optimized ball valve many times, which means we solve the problem in advance, more stable quality, All sealed Non-retention, high precision CNC machined.

3. Super small torque, long lifetime

4.Seal imported from Denmark



Hygienic Full Cavity Ball Valve Construction

DONJOY Sanitary Three-pieces Ball Valve Dimension

The curve for Three-pieces ball valve working pressure and work temperature



Donjoy Sanitary Ball Valve Manufacturer in China

Donjoy as Sanitary Ball Valve Manufacturer in China, produced more than 1 million pcs ball valve. Founded in 1993, more than 27 years of experience manufacturing sanitary valves.



Hygienic valve packing

Our sanitary Ball valve used for customer’s project

Sanitary Ball Valve for Customers projectSanitary Ball Valve use for Customers project

Frequency Ask Question

Please firstly leave message below for product you need and requirement,I will send you quotaion sheet,then choose the transportation way and check cost,we will send you Proforma invoice for confirm,at last make the payment and we will ship the goods to you.

Delivery time depends on quantity and type of products,for valve and pipe fittings regular is about 7-20days. For pump regular is about 15-25days.

For small amount we require 100% before production.For big amount,regularly T/T 30% deposit, 70% before shipment.

By Bank T/T, L/C, By Alibaba Assurance Order accept Credit Card VISA, Mastercard, E-checking, and we could’t accept Paypal.
