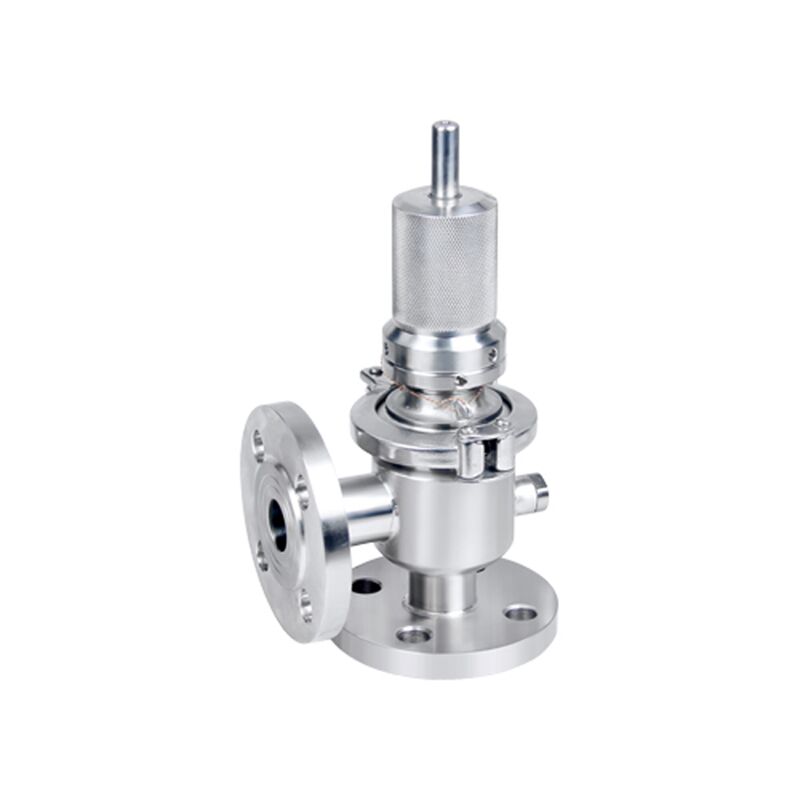

Pneumatic Safety Valve

Donjoy Pressure Relief Valve is a type of spring-loaded pressure relief valve, overflow valve, pressure adjustable. It’s a safety valve designed to protect a pressurized vessel, or system during an overpressure event. Hygienic stainless steel design, used in the dairy, food, beverage, pharmaceutical and fine chemical industries.Pneumatic Safety Valve with air actuator operation.

Details about Pneumatic Safety Valve

Specification

Size

1"-4",DN25-DN100

Body Material

AISI 304 or AISI 316L

Temperature

14°F to 266°F (-10°C to 130°C)

Set pressure

0-43psi (0-3bar), 0-87psi (0-6bar, default), 87-145psi (6-10bar)

Seal

EPDM, silicone or Viton (FPM), FDA approved

Operation

Manual or Pneumatic type

End connection

butt-weld, sanitary clamp, flange, thread

Pneumatic Safety Valve

Donjoy Pressure Relief Valve is a type of spring-loaded pressure relief valve, overflow valve, pressure adjustable. It’s a safety valve designed to protect a pressurized vessel, or system during an overpressure event. Hygienic stainless steel design, used in the dairy, food, beverage, pharmaceutical and fine chemical industries.Pneumatic Safety Valve with air actuator operation.

Pressure Relief Valve work principle

Operating Principles

Manual fast row safety valve features: you can open the valve manually, the spot cleaning (used together with the pump channel) can allow the fluid to pass-through
●Under normal operating conditions, the valve remains closed.
●The specific pressure is set by adjusting the spring pressure nut.
●When the pressure in the pipes is exceeded the specific pressure, the valve will open automatically to make the liquid pass over, so that pressure in the pipeline is reduced.
●The valve can be operated with handle. When the handle remains open on the operation spot, the detergent can flow through the flow valves.

Pneumatic Safety Valve Models

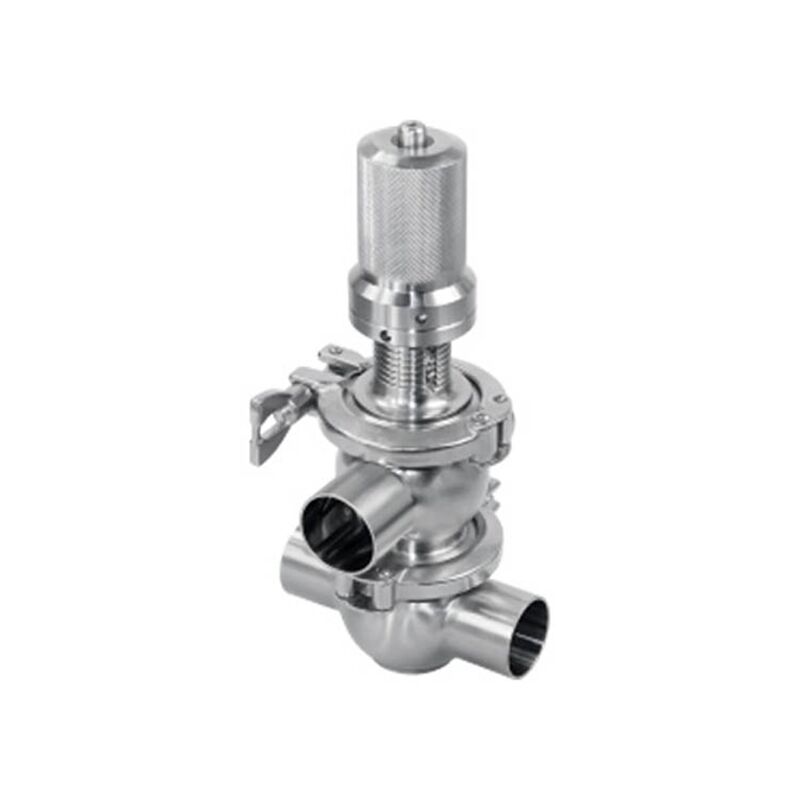

Pressure relief valve models

Pneumatic Safety Valve Dimension

Pressure Relief Valve Dimension
