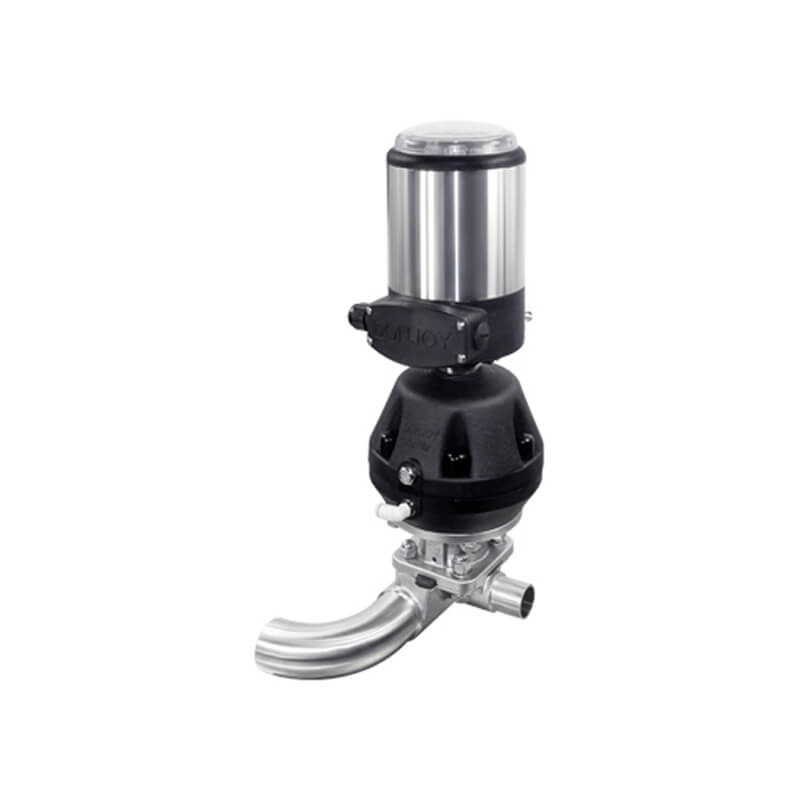

Pneumatic U-type Diaphragm Valve with Positioner

Donjoy Pneumatic U-type Diaphragm Valve with Positioner(or membrane valves) consists of valve positioner, an actuator and U-type valve body with two or more ports, an elastomeric diaphragm, and a “weir or saddle” or seat upon which the diaphragm closes the valve. It provides a body seal and a seat seal. There is no path contact to the outer environment, specifically use for aseptic processes biopharmaceutical industries. The valve body constructed from Stainless steel 316L, all parts that contact with the medium are mirror polished. Connection End available in tri-clover/clamp, butt weld, thread, flange.

Details about Pneumatic U-type Diaphragm Valve with Positioner

Specification

Size

DN6-DN100, 1/4" to 4"

Body Material

AISI 316L, (EN1.4301/EN1.4404).ASME BPE 316L, or 1.4435-BN2 (316L) Fe<0.5% Forged Body

Temperature

-20℃ to +150 ℃

Max pressure

145psi (10bar)

Seal

EPDM+PTFE double seal, EPDM, Teflon PTFE, FPM, Silicon

Pipe Joint Systems

DIN SMS RJT 3A ISO IDF

Operation

Manual, pneumatic, electric all interchange

Surface treatment

Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.

Certification

US 3-A, FDA, CE PED/2014/68/EC, Certification

Connection type

Tri-Clover/ Clamp End, Thread End, Butt Weld End

Pneumatic U-type Diaphragm Valve with Positioner description:

Donjoy Pneumatic U-type Diaphragm Valve with Positioner(or membrane valves) consists of valve positioner, an actuator and U-type valve body with two or more ports, an elastomeric diaphragm, and a “weir or saddle” or seat upon which the diaphragm closes the valve. It provides a body seal and a seat seal. There is no path contact to the outer environment, specifically use for aseptic processes biopharmaceutical industries. The valve body constructed from Stainless steel 316L, all parts that contact with the medium are mirror polished. Connection End available in tri-clover/clamp, butt weld, thread, flange.



Pneumatic U-type Diaphragm Valve

Donjoy diaphragm valve is designed to meet high requirement of the United States 3-A-54-02 standard, ASME BPE standard, Seal EPDM, Teflon PTFE FDA standard. Valve body structure available in straight-through, two-way, three-way, U-type, T-type, tank bottom valve, multi-channel diaphragm valve. It features no dead angle non-retention, cost-effective, easily maintained, no need additional tools.



Sanitary U type Diaphragm Valve

Sanitary U type Diaphragm Valve U B

Diaphragm Valve Positioner Specification

● Support: MODE BUS RS485
● Input:0/4-20mA with feedback version 0–5/10V
● Single-acting (standard), Double acting (option)
● One-touch auto-tuning function valve position
● Support for manual operation
● Power supply: DC 24V ± 10%
● Size: 1″-12″, DN10-DN300
● Material: 304 / 316L
● Pressure: 10bar
● Temperature: 130 ℃
● Inner surface roughness: Ra0.4μm (option)
● Connection: Weld, Clamp, Thread, Flange and Other standards

Model 1831 Valve Positioner

Pneumatic U-type Diaphragm Valve Feature:

● Unique seal design, no dead angles, with U-type B and U-type C option.
● FDA-approved seat materials: FDA 21 CFR 177.2600, EPDM+PTFE double seal, EPDM, Teflon PTFE, FPM, Silicon
● Sanitary surface finish, available with Ra < 0.4µm or EP (SF1 and SF4).Meet ASME BPE standard.
● Manual handle, pneumatic actuator, electric actuator are interchangeable.
● A wide selection of body types for choose from,2 way,3 way U type/T type/Multiport/Tank Bottom
● Certificates: 3A, FDA, PED 2014/68/EU, ISO9001/2008.
● Standards: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
●The upgraded design more in line with GMP, ASME BPE, EHEDG and 3A of the technical requirements of high purity. Especially for handling dead angle reached requirement ≤ 1D to ≤ 3D.
● 100% hydraulic tested / 100% inspected.

Operation:

● Handles
Plastic handwheel
Stainless handwheel
● Actuators
Pneumatic plastic actuator
Pneumatic stainless steel actuator
Electric actuator
● Units for intelligent control and indication:
Proximity Switches (position sensor)
Limit Stroker
C-top control(on/off control)
IL-top control (Positioner)

Sanitary Diaphragm Valve Advantage

1.We manufacture diaphragm valve for more than 20 years, manufactured more than 600,000 pcs.

2.Which means we updated and optimized diaphragm valve for many times, and solve the problem in advance, more stable quality.

3. No dead angle.

4.Seal imported from Denmark



Donjoy Valve Advantage

ASME BPE Diaphragm Valve body surface

Hygienic Diaphragm Valve Construction

Diaphragm Valve Part List

Hygienic U-type Diaphragm Valve Dimension



Sanitary U type Diaphragm Valve dimension

Hygienic valve packing

Our sanitary diaphragm valve use for customer’s pharmaceutical project

Diaphragm Valve Use for Customers ProjectDiaphragm Valve Use for Customers Project 2

Frequency Ask Question

Please firstly leave message below for product you need and requirement,I will send you quotaion sheet,then choose the transportation way and check cost,we will send you Proforma invoice for confirm,at last make the payment and we will ship the goods to you.

Delivery time depends on quantity and type of products,for valve and pipe fittings regular is about 7-20days. For pump regular is about 15-25days.

For small amount we require 100% before production.For big amount,regularly T/T 30% deposit, 70% before shipment.

By Bank T/T, L/C, By Alibaba Assurance Order accept Credit Card VISA, Mastercard, E-checking, and we could’t accept Paypal.
