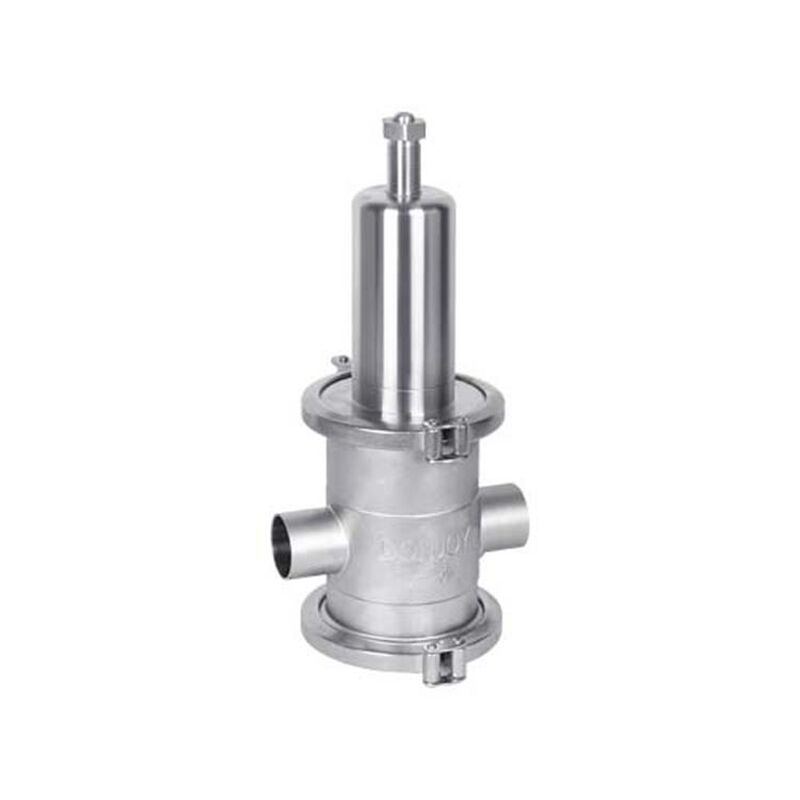

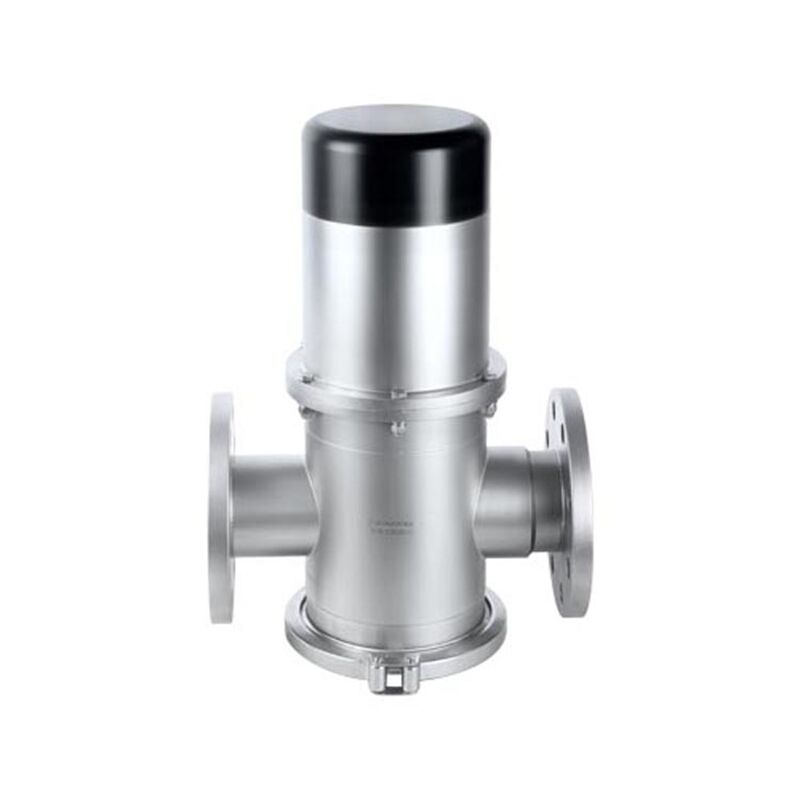

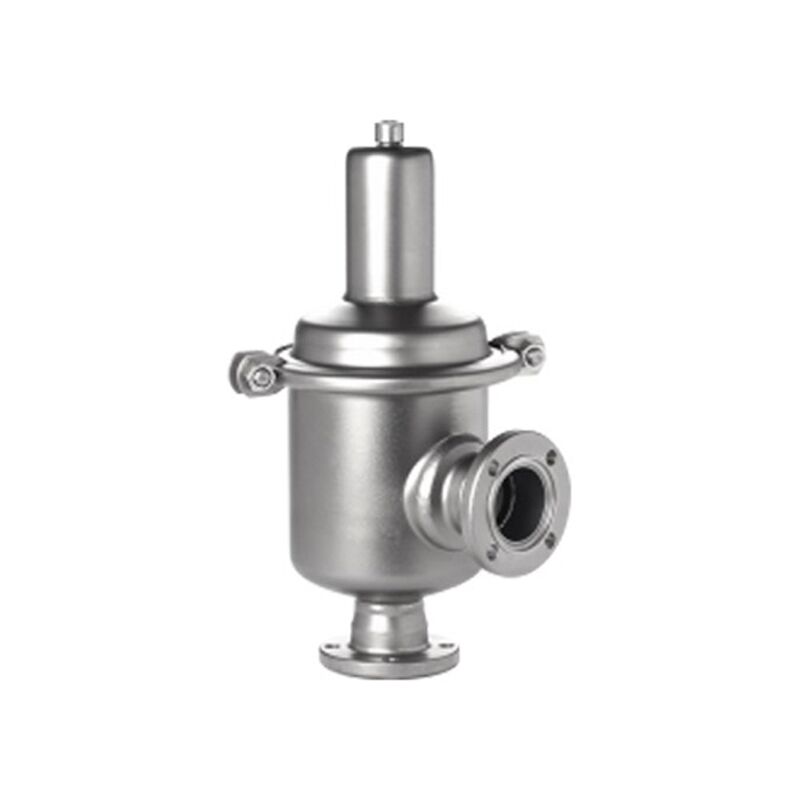

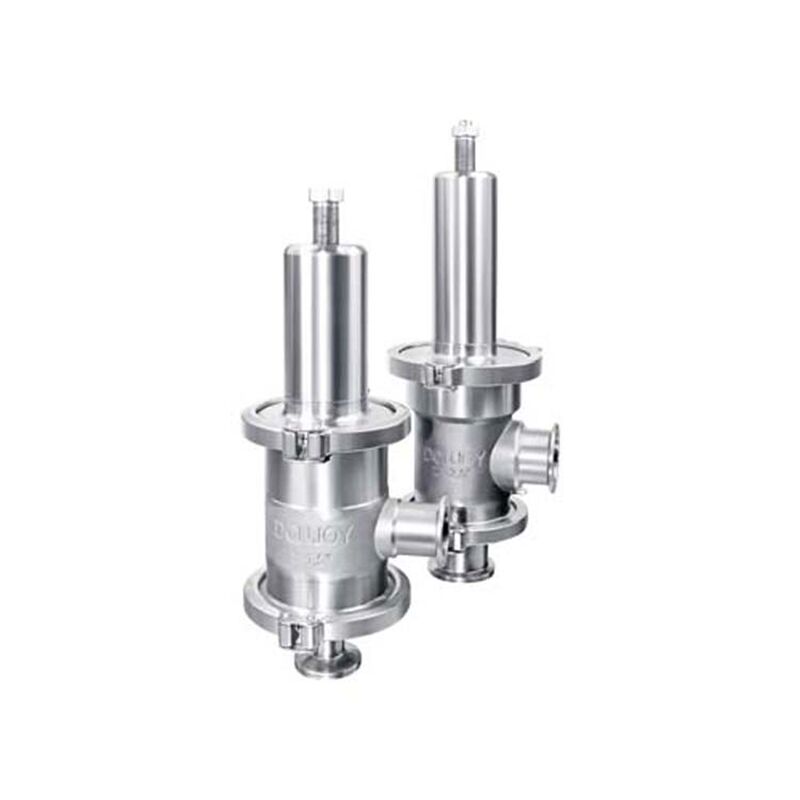

Pressure Reducing Valve

Donjoy Pressure Relief Valve is a type of spring-loaded pressure relief valve, overflow valve, pressure adjustable. It’s a safety valve designed to protect a pressurized vessel, or system during an overpressure event. Hygienic stainless steel design, used in the dairy, food, beverage, pharmaceutical and fine chemical industries.

Details about Pressure Reducing Valve

Specification

Size

1 "-3", DN25-DN80

Body Material

AISI 304 or AISI 316L

Kv Value

4-70m3/h

Temperature

180℃

Nominal pressure

PN2.5-10, Inlet pressure:8bar, Outlet pressure:0.3-5bar

Seal

EPDM, silicone or Viton (FPM), FDA approved

Operation

Manual or Pneumatic type

End connection

butt-weld, sanitary clamp, flange, thread

Pressure Reducing Valve

The pressure reducing valve is a very easy operation of the pressure control valve which provides precise control and easy installation and maintenance. The valve can control the valve after pressure without the need for a pneumatic or electric control element. The pressure relief valve is a two-seat diaphragm controlled spring-loaded proportional control valve which is mainly used in food, beverage, brewery, pharmaceutical, chemical and other industries.



Pressure Reducing Valve 3

Pressure Reducing Valve KV Chart and Dimension

Pressure Reducing Valve kv chart and dimension





Frequency Ask Question

Please firstly leave message below for product you need and requirement,I will send you quotaion sheet,then choose the transportation way and check cost,we will send you Proforma invoice for confirm,at last make the payment and we will ship the goods to you.

Delivery time depends on quantity and type of products,for valve and pipe fittings regular is about 7-20days. For pump regular is about 15-25days.

For small amount we require 100% before production.For big amount,regularly T/T 30% deposit, 70% before shipment.

By Bank T/T, L/C, By Alibaba Assurance Order accept Credit Card VISA, Mastercard, E-checking, and we could’t accept Paypal.
