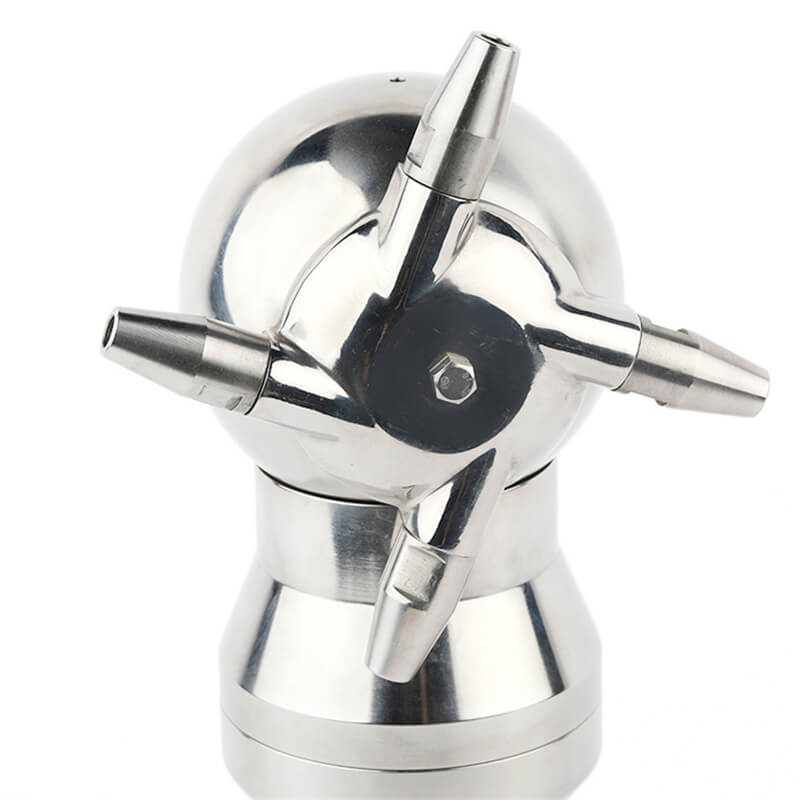

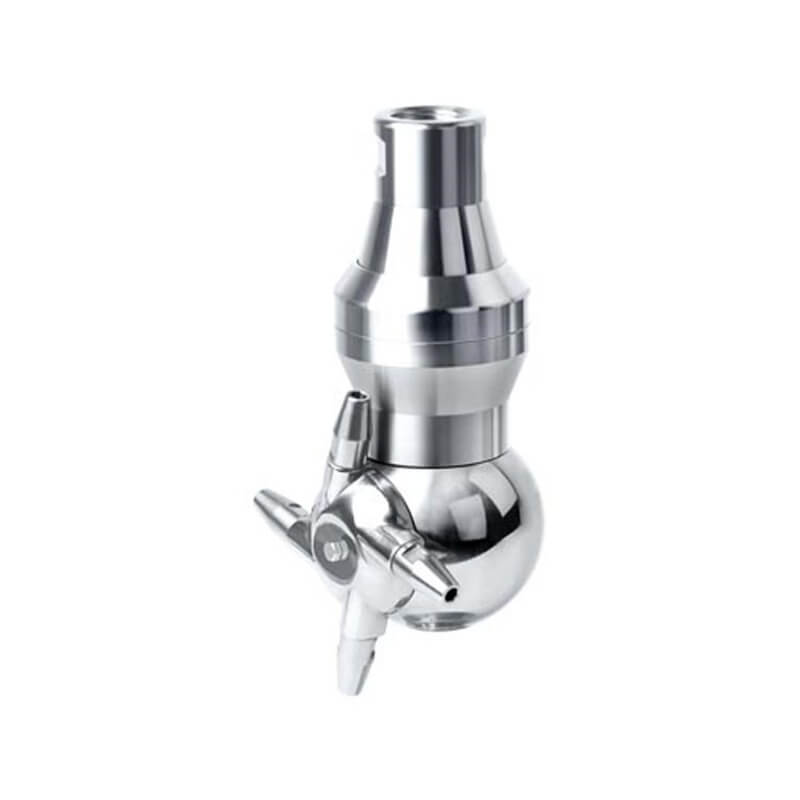

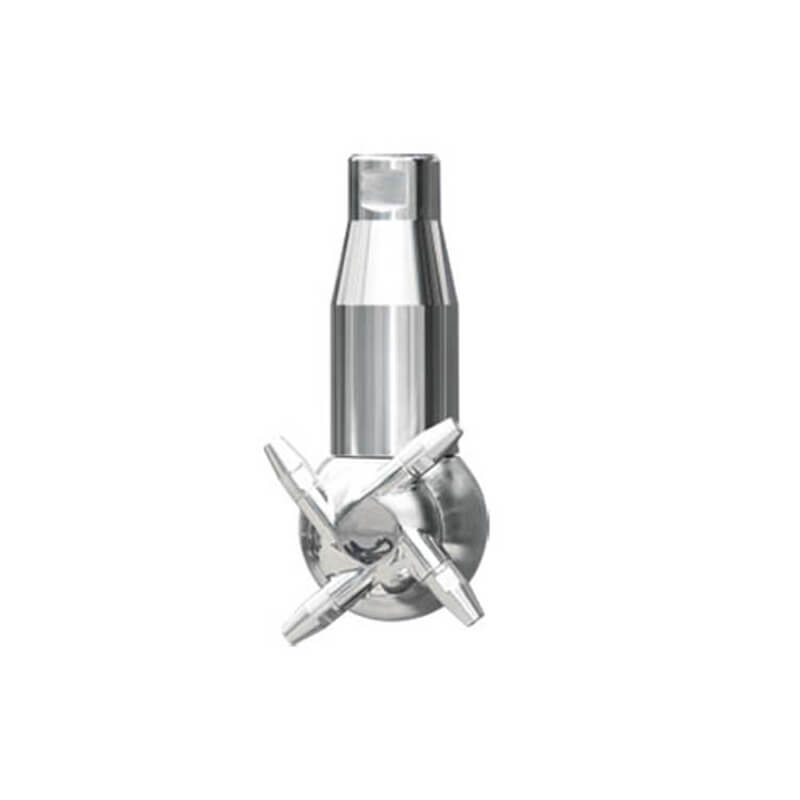

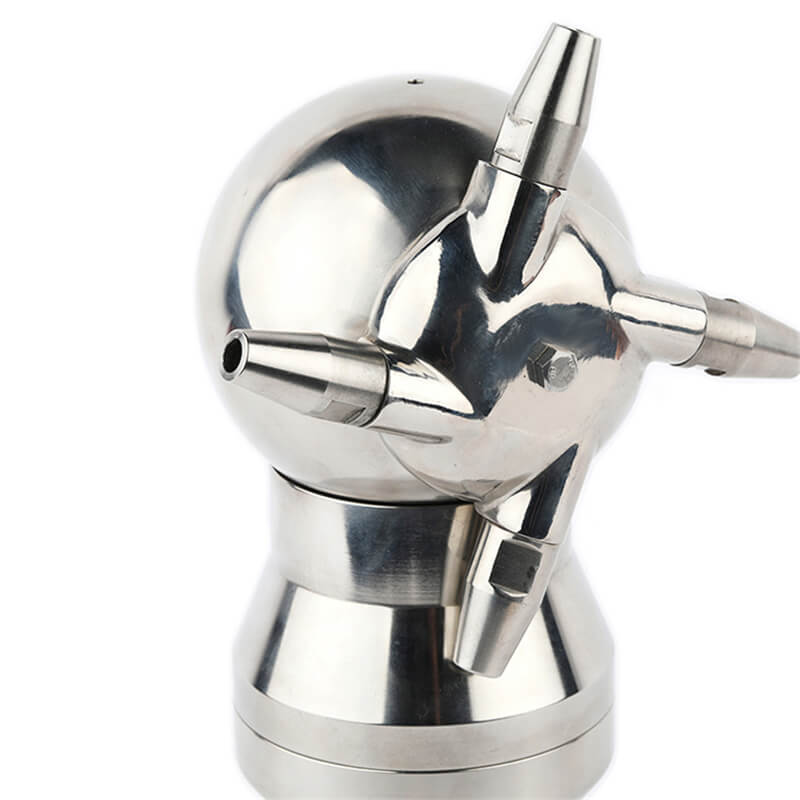

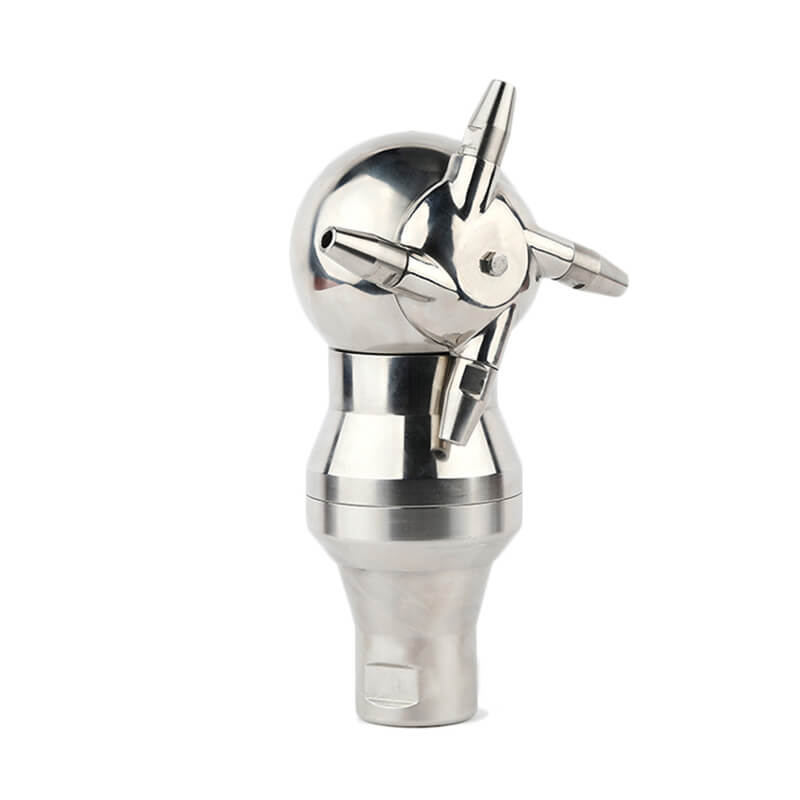

Rotating Spray Nozzle
Donjoy rotating spray nozzle offers an extraordinary strong 360° coverage cleanability, no dead angle, long cleaning distance, with the unique self-cleaning feature. Sanitary stainless steel construction, ideal use for tank and vessels CIP clean.
Details about Rotating Spray Nozzle
Specification
| Nozzle diameter | 5mm, 6mm, 7mm, 8mm, 10mm |
|---|---|
| Connection type | Thread BSP, Tri-clamp |
| Connection Size | 1" to 2"(DN40- DN50) |
| Body Material | AISI 316L |
| Max Temperature | 95°C |
| Inlet pressure | 4-10bar, 6bar recommended |
| Seal | PTFE FDA approved |
Rotating Spray Nozzle
Donjoy rotating spray nozzle offers an extraordinary strong 360° coverage cleanability, no dead angle, long cleaning distance, with the unique self-cleaning feature. Sanitary stainless steel construction, ideal use for tank and vessels CIP clean.
Rotating Spray Nozzle Manufacturer
Donjoy Technology as rotating spray nozzle manufacturer in China, manufacturing sanitary tank cleaning equipment, sight glass, sanitary valve, pump, pipe fittings for more than 28 years. With USA 3-A, FDA, EU CE certification.
Rotary Jet Head Installation
Rotating Spray Nozzle Feature
- Extraordinary strong 360° coverage cleanability.
- Long effective spray distance.
- No dead angles.
- Self-cleaning
- Low liquid consumption
- Clean In Place
Rotary Jet Head Tank Cleaning Curve
Rotary Jet Head Tank Cleaning Software Simulation
Rotary Spray Head Tank Cleaning Equipment Performance
Rotary Jet Head Typical Application
- Fixed installation CIP system
- Process containers and reactor
- Store tank
- Transport tank
- Fermentation
- Yeast Breading
If you are looking for a Fixed Spray Ball Tank Clean Equipment, please check the below product.
If you are looking for a Rotary Spray Ball, please check the below product.
Frequency Ask Question
Please firstly leave message below for product you need and requirement,I will send you quotaion sheet,then choose the transportation way and check cost,we will send you Proforma invoice for confirm,at last make the payment and we will ship the goods to you.
Delivery time depends on quantity and type of products,for valve and pipe fittings regular is about 7-20days. For pump regular is about 15-25days.
We offer 1 year warranty to our products.
For small amount we require 100% before production.For big amount,regularly T/T 30% deposit, 70% before shipment.
By Bank T/T, L/C, By Alibaba Assurance Order accept Credit Card VISA, Mastercard, E-checking, and we could’t accept Paypal.
