Sanitary Pneumatically Actuated Full Cavity Ball Valve

Donjoy Sanitary Ball Valve made from stainless steel 304 or 316L, full cavity non-retention design without dead angle, PTFE seat, 3 piece body easy for maintenance, ideal to use for food & beverage processing, dairy, pharmaceutical and daily chemical hygienic applications.

Details about Sanitary Pneumatically Actuated Full Cavity Ball Valve

Specification

Size

DN10-DN100, 1/2" to 4"

Body Material

AISI 304 or 316L, (EN1.4301/EN1.4404).

Temperature

-30℃ to +150 ℃

Max pressure

145psi (10bar)

Seal

Teflon PTFE approved FKM(option)

Pipe Joint Systems

DIN SMS RJT 3A ISO IDF

Operation

Manual, pneumatic, electric all interchange

Surface treatment

Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.

Certification

US 3-A, FDA, CE PED/2014/68/EC, Certification

Connection type

Clamp End, Thread End, Weld End

Sanitary Pneumatically Actuated Full Cavity 2-Way Ball Valve Stainless Steel

Donjoy Sanitary Ball Valve made from stainless steel 304 or 316L, full cavity non-retention design without dead angle, PTFE seat, 3 piece body easy for maintenance, ideal to use for food & beverage processing, dairy, pharmaceutical and daily chemical hygienic applications.



Type of full cavity three pieces ball valve

1. Manual type ball valve with handle
2. Single acting SS vertical pneumatic actuator with ball valve
3. Double acting SS vertical pneumatic actuator with ball valve
4. Single acting Aluminum horizontal pneumatic actuator with ball valve

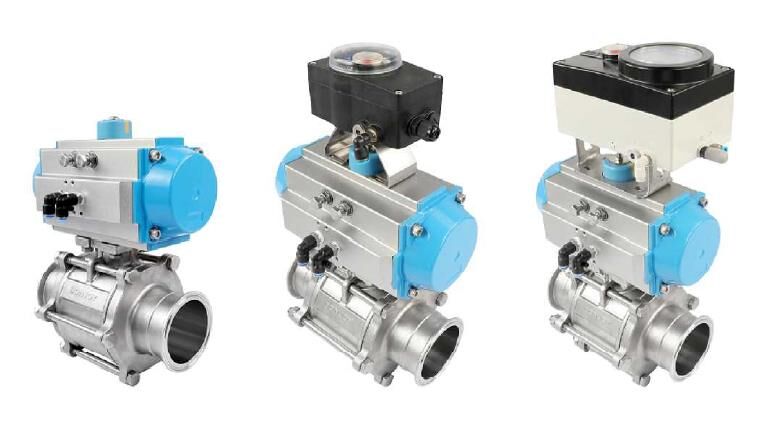

5. Single or double-acting pneumatic actuator with ISO5211 mounting pad with ball valve
6. Single or double pneumatic actuator with positioner with ball valve
7. Single or double pneumatic actuator with C-TOP on/off controller with ball valve
8. Ball valve with Electric actuator

DONJOY Sanitary Ball Valve description:

Donjoy ball valve is designed to meet high requirement of the United States 3-A-68-00 standard, with features of small torque, long lifetime, full degreasing, sealing elastic compensation, small size,full cavity. It’s cost-effective, easily maintained, no need additional tools.



Feature:

● Full Cavity without dead angle no retention.
● Manufactured 304 or 316L grade stainless steel body.
● FDA-approved seat materials: FDA 21 CFR 177.2600, Teflon PTFE, FKM(optional)
● Sanitary surface finish, available with Ra < 0.4µm or EP (SF1 and SF4).
● Manual handle, pneumatic actuator and electric actuator are interchangeable.
● A wide selection of different end connections.
● Certificates: 3A, FDA, PED 2014/68/EU, ISO9001/2008.
● Standards: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
● 100% hydraulic tested / 100% inspected.



Hygienic Full Cavity Ball Valve Construction

Sanitary Ball Valve Dimension

Ball Valve Dimension
Ball Valve Dimension



The curve for ball valve working pressure and work temperature



Donjoy Three Pieces Ball Valve Manufacturer in China

Donjoy as a Three Pieces Ball Valve Manufacturer in China, founded in 1993, with more than 27years experience for sanitary valve, pump and pipe fittings, produced more than 1 million pcs ball valve. The quality approved by customers from the world.



Hygienic valve packing

Our sanitary Ball valve use for customer’s project

Sanitary Ball Valve for Customers projectSanitary Ball Valve use for Customers project
