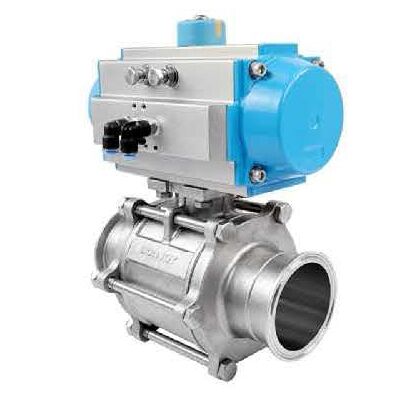

Sanitary Pneumatic Three-piece Ball Valve

Donjoy Sanitary Pneumatic Three-piece Ball Valve with PTFE seat design, no dead angle, full cavity. Body Material with Stainless 304 or 316L. Donjoy offers a variety of ball valves available in manual, horizontal actuator and vertical actuator, electric actuator, two way, three-way, four-way. Can work at a high temperature.

Details about Sanitary Pneumatic Three-piece Ball Valve

Specification

Size

DN10-DN100, 1/2" to 4"

Body Material

AISI 304 or 316L, (EN1.4301/EN1.4404).

Temperature

-30℃ to +150 ℃

Max pressure

145psi (10bar)

Seal

Teflon PTFE approved FKM(option)

Pipe Joint Systems

DIN SMS RJT 3A ISO IDF

Operation

Manual, pneumatic, electric all interchange

Surface treatment

Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.

Certification

US 3-A, FDA, CE PED/2014/68/EC, Certification

Connection type

Clamp End, Thread End, Weld End

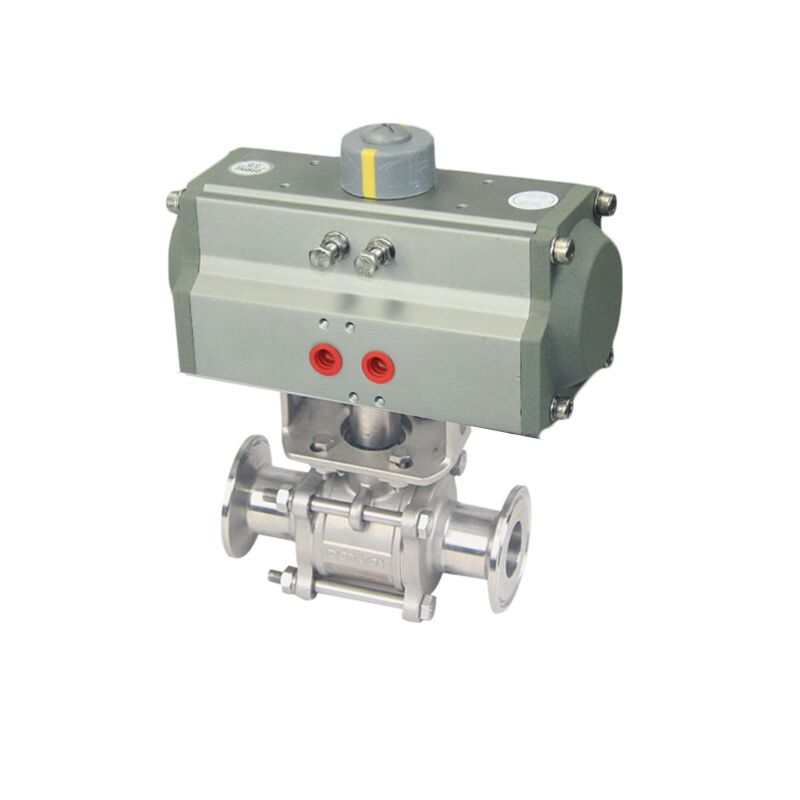

Sanitary Pneumatic Three-piece Ball Valve

Donjoy Sanitary Pneumatic Three-piece Ball Valve with PTFE seat design, no dead angle, full cavity. Body Material with Stainless 304 or 316L. Donjoy offers a variety of ball valves available in manual, horizontal actuator and vertical actuator, electric actuator, two way, three-way, four-way. Can work at a high temperature. Connection End with tri-clover/clamp, weld, thread, flange. Used in water treatment, food & beverage processing, pharmaceutical and daily chemical, industrial fluid applications.

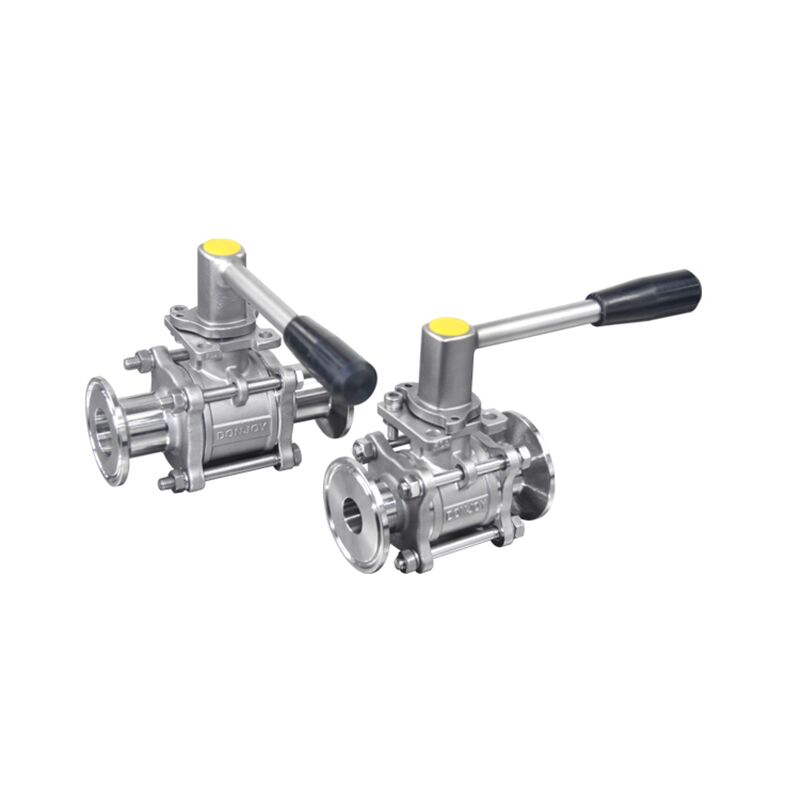

DONJOY Sanitary Ball Valve description:

Donjoy ball valve is designed to meet the high requirements of the United States 3-A-68-00 standard, with features of small torque, long lifetime, full degreasing, sealing elastic compensation, small size, no dead angle non-retention. It’s cost-effective, easily maintained, no need additional tools.

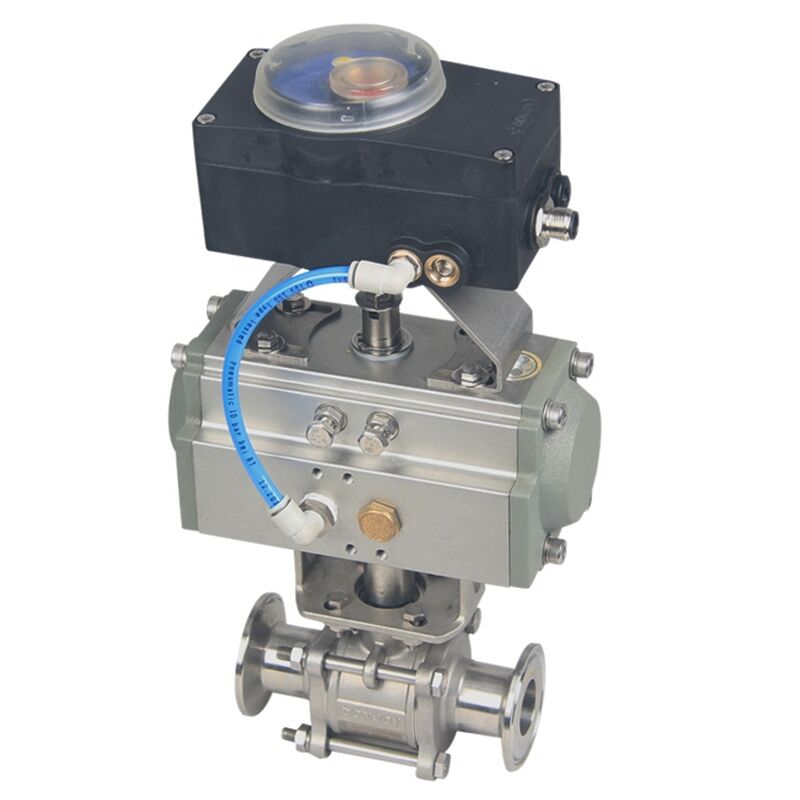

Donjoy offers two options of pneumatic actuator aluminium horizontal actuator and vertical stainless steel vertical actuator. Can work with Control Top and positioner to realize automation control.



Hygienic Ball Valve Feature:

● Full Cavity without dead angle, no retention.
● Manufactured 304 or 316L grade stainless steel body.
● FDA-approved seat materials: FDA 21 CFR 177.2600, Teflon PTFE, FKM(optional)
● Sanitary surface finish, available with Ra < 0.4µm or EP (SF1 and SF4).
● The manual handle, pneumatic actuator and electric actuator are interchangeable.
● A wide selection of different end connections.
● Suitable for low and medium viscosity fluids.
● Certificates: 3A, FDA, PED 2014/68/EU, ISO9001/2008.
● Meet standards: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
● Three-piece is easy to install and maintain.
● 100% hydraulic tested / 100% inspected.



DONJOY Sanitary Ball Valve Advantage

1. Manufacture ball valve for more than 20years, manufactured more than 1million pcs of the ball valve.

2. Updated and optimized ball valve many times, which means we solve the problem in advance, more stable quality, All sealed Non-retention, high precision CNC machined.

3. Super small torque, long lifetime

4. Seal imported from Denmark



Hygienic Full Cavity Ball Valve Construction

DONJOY Sanitary Three-pieces Ball Valve Dimension

The curve for Three-pieces ball valve working pressure and work temperature



Donjoy Sanitary Ball Valve Manufacturer in China

Donjoy as Sanitary Ball Valve Manufacturer in China, produced more than 1 million pcs ball valve. Founded in 1993, more than 27 years of experience manufacturing sanitary valves.



Hygienic valve packing

Our sanitary Ball valve used for customer’s project

Sanitary Ball Valve for Customers projectSanitary Ball Valve use for Customers project
