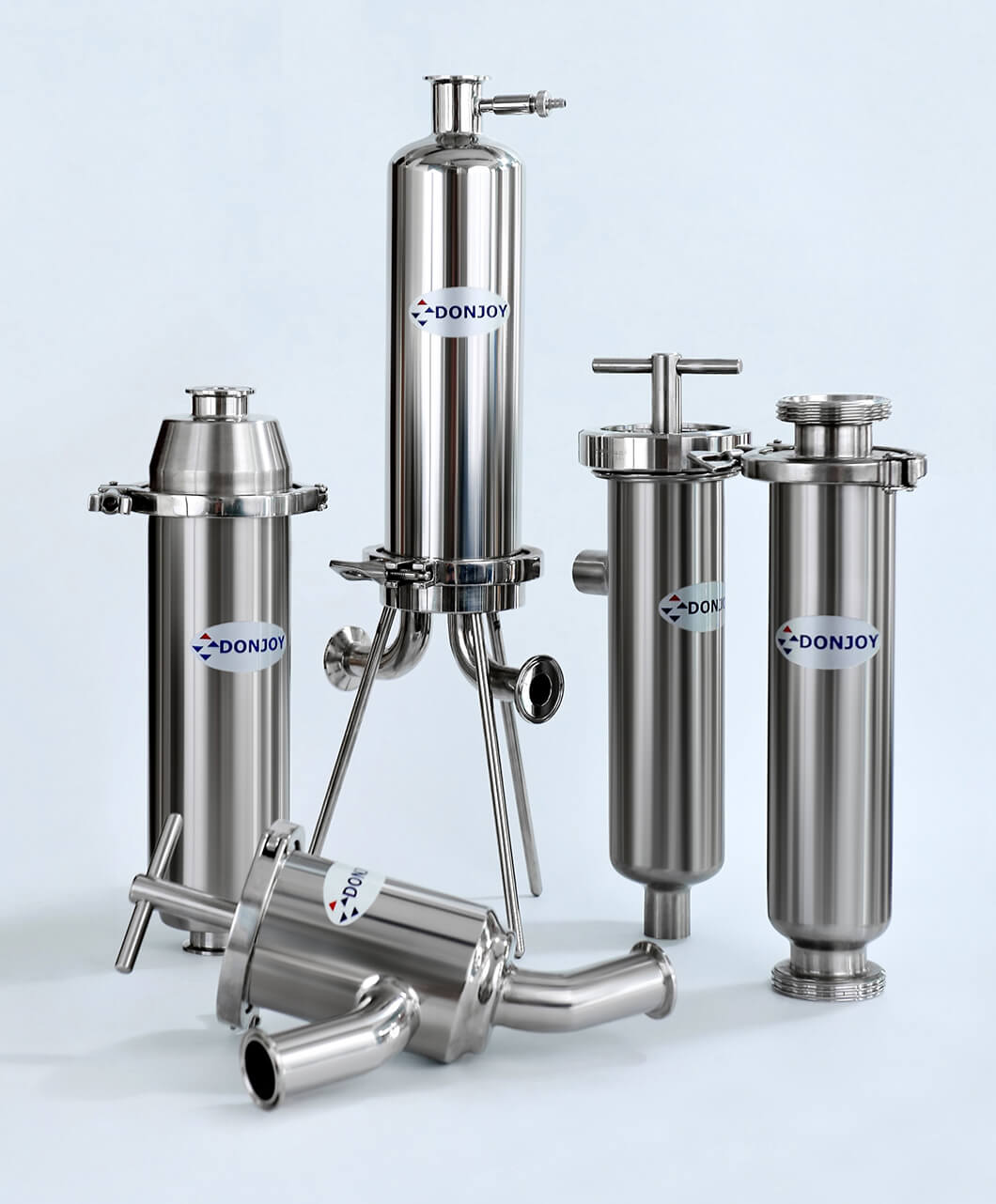

Sanitary Stainless Steel Filter Strainer

Donjoy Sanitary Stainless Steel Filter is widely used in food processing, cosmetic, chemicals and pharmacy industries. With the high hygienic design, it is mainly used to filter the particulates which will damage pumps and some other equipment. The filter basically consists of inlet-outlet housing and inner screen mesh. Filter mesh is installed inside to filter the particles which can’t pass the mesh.

Category:

Sanitary Stainless Steel Filter Strainer

Donjoy Sanitary Stainless Steel Filter is widely used in food processing, cosmetic, chemicals and pharmacy industries. With the high hygienic design, it is mainly used to filter the particulates which will damage pumps and some other equipment. The filter basically consists of inlet-outlet housing and inner screen mesh. Filter mesh is installed inside to filter the particles which can’t pass the mesh.

Sanitary Stainless Steel Filter Strainer

Sanitary Stainless Steel Straight Filter

Sanitary Stainless Steel Straight Filter Strainer

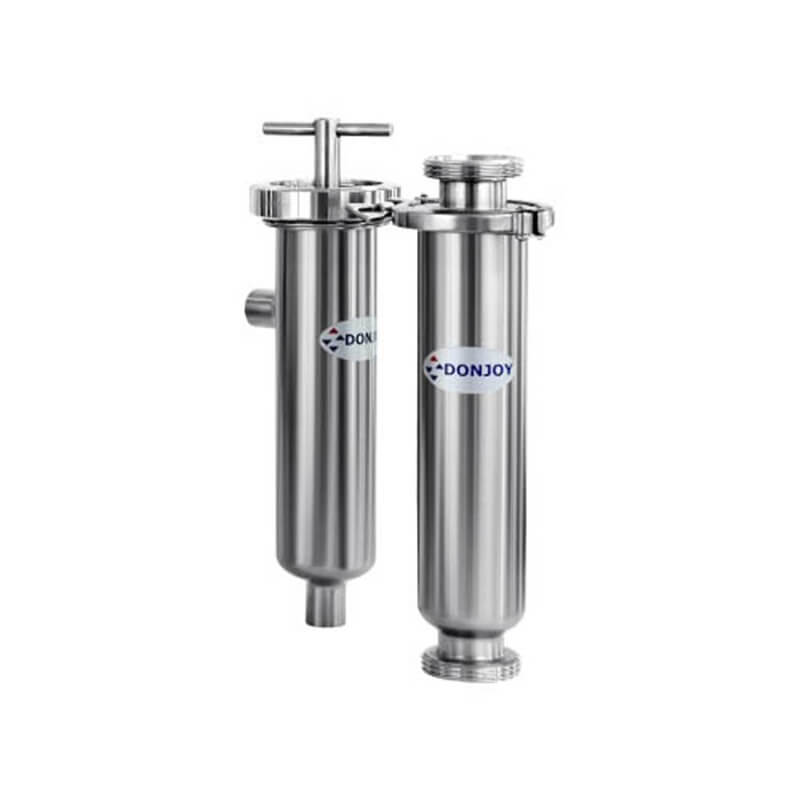

Sanitary Stainless Steel Angle Straight Filter

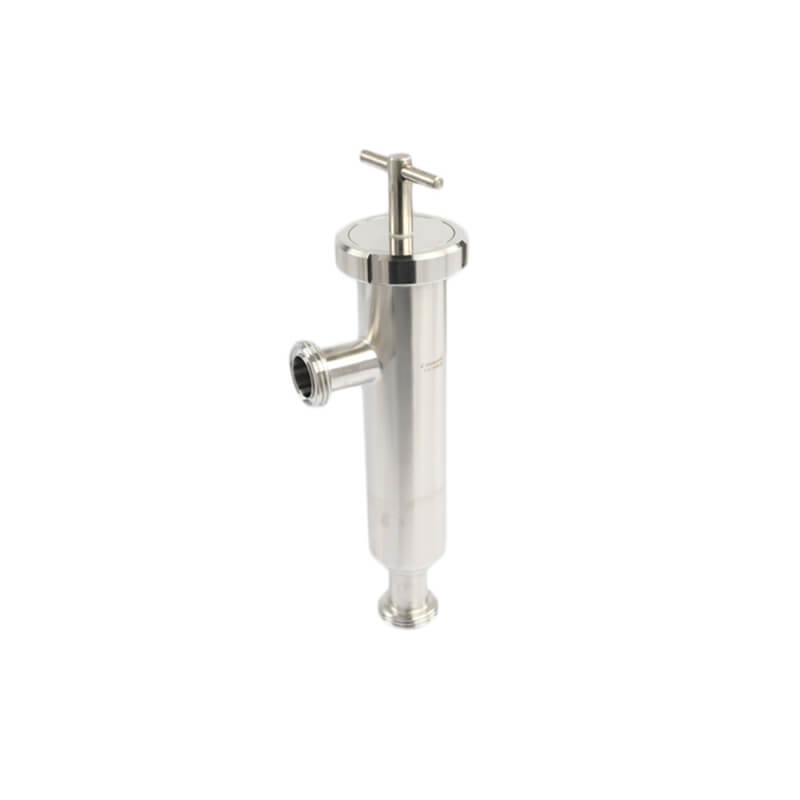

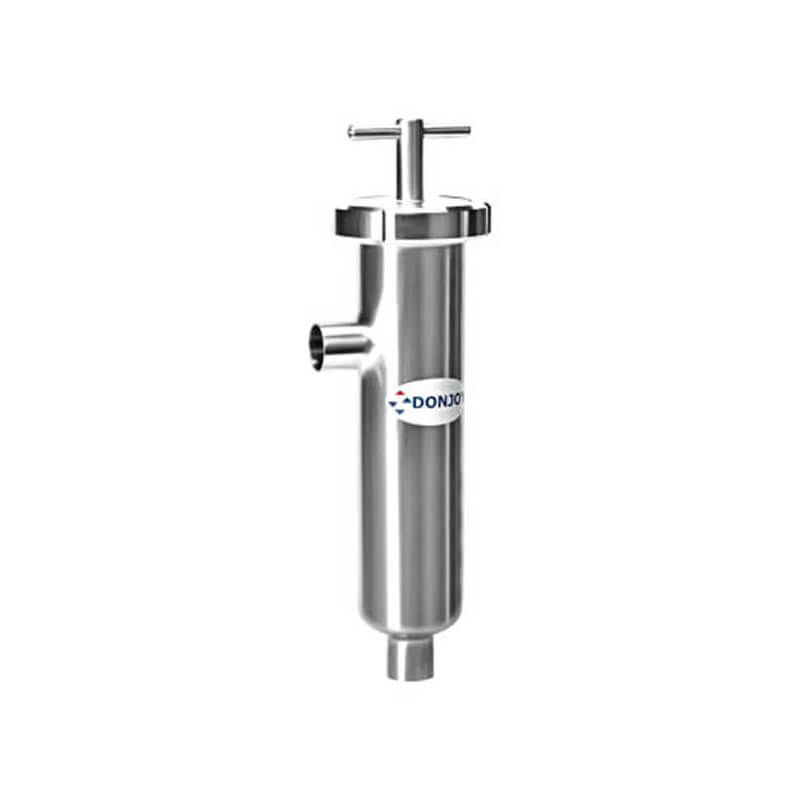

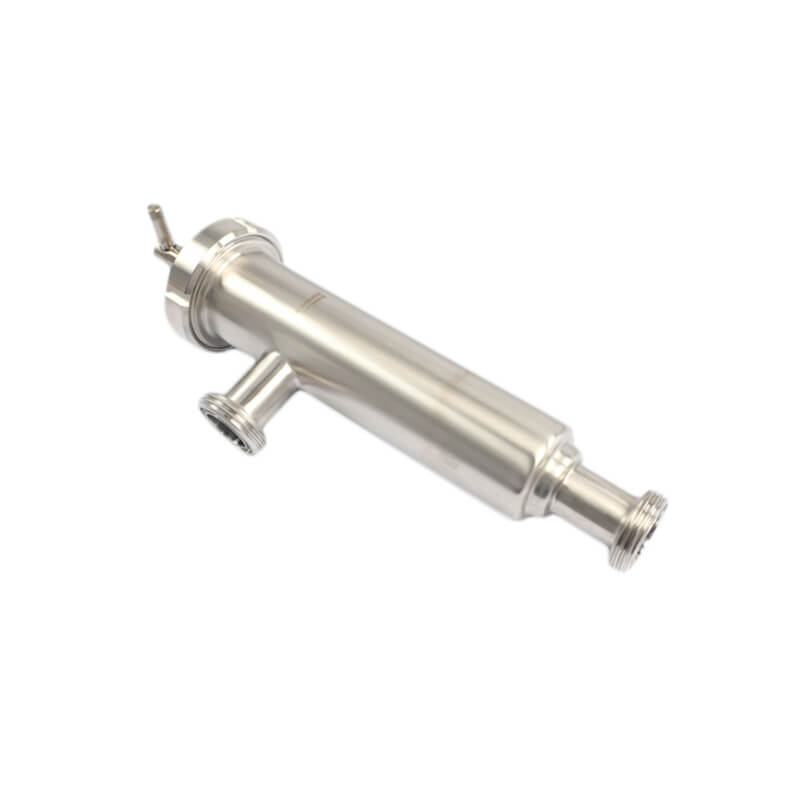

Sanitary Stainless Steel Angle Filter Strainer

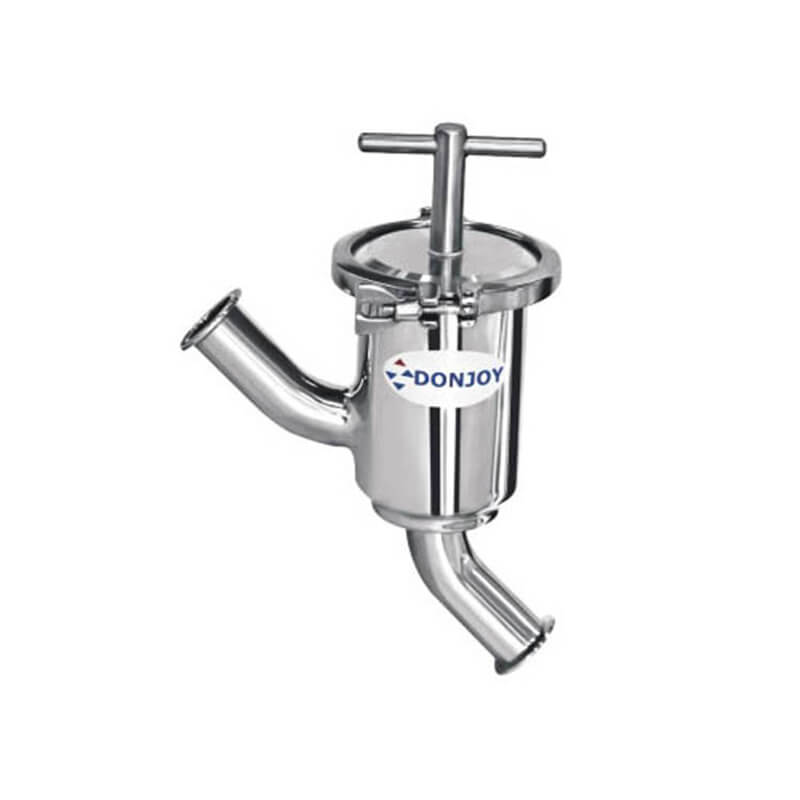

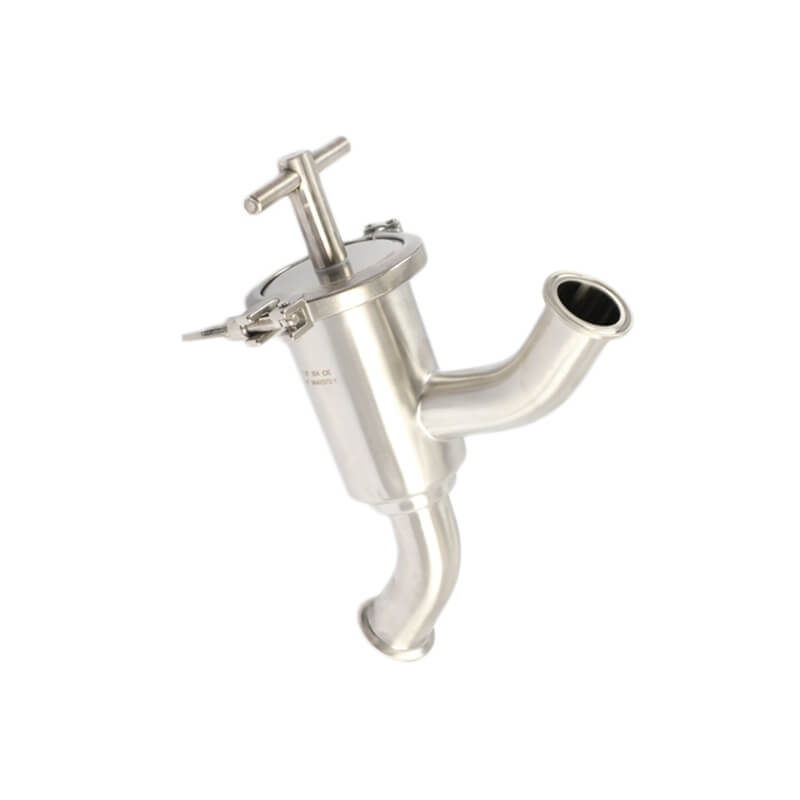

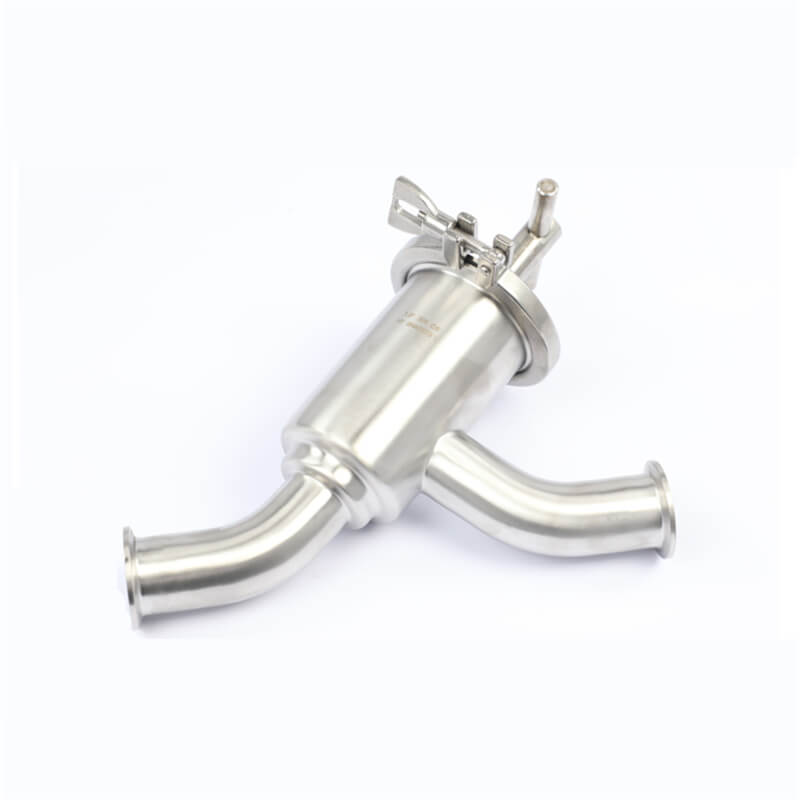

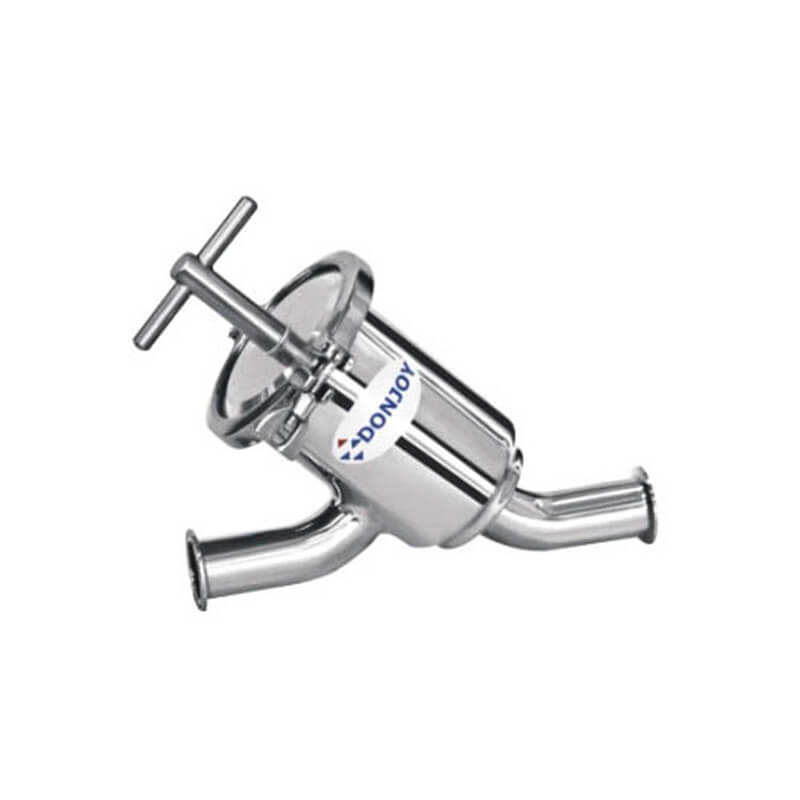

Sanitary Stainless Steel Y Type Filter

Sanitary Stainless Steel Y Type Filter Strainer 1

Sanitary Stainless Steel Y Type Filter Strainer2 1

Sanitary Stainless Steel Straight Filter Manufacturer in China

Donjoy as Sanitary Stainless Steel Straight Filter Manufacturer in China, with hygienic design. Mesh size is customized as per the customer’s request.





Size

DN25-DN150, 1" to 6"

Body Material

AISI 304 or 316L, (EN1.4301/EN1.4404).

Temperature

-10℃ to +120 ℃

Max pressure

145psi (10bar)

Seal

FDA approved EPDM Standard (Silicon FPM)

Pipe Joint Systems

DIN SMS RJT 3A ISO IDF

Surface treatment

Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.

Mesh

30-300mesh

Connection type

Clamp End, Weld End
