Sanitary Tri-Clamp Butterfly Valve

Donjoy provides a variety of Sanitary Tri-Clamp Butterfly Valves, with manual, pull handle, multi-position handle, pneumatic or electric operation, 3 pieces body, mix proof type and so on. The butterfly valve is designed to shut off or regulate flow and is used in a wide range of applications. The FDA-compliant valves provide reliable performance and smooth operation. They are used in food & beverage processing, chemical products, industrial fluid applications.

Details about Sanitary Tri-Clamp Butterfly Valve

Specification

Size

DN10-DN300, 1/2"-12"

Body&Disc Material

AISI 304 or 316L, (EN1.4301/EN1.4404).

Temperature

-20℃ to +130 ℃ (It depends on the seal)

Max pressure

145psi (10bar)

Seal

EPDM, Silicone, FKM, FFKM, TEFLON, PTFE, HNBR, NBR, FDA approved

Pipe Joint Systems

DIN SMS RJT 3A ISO IDF

Manual Operation

Pull handle, Multi-position Plastic handle, Multi-position Stainless Steel Handle

Pneumatic Operation

Compatible with Single-acting or Double-acting Pneumatic actuator

Surface treatment

Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.

Certification

CE PED / 97/23 / EC, FDA Certification

Handle type

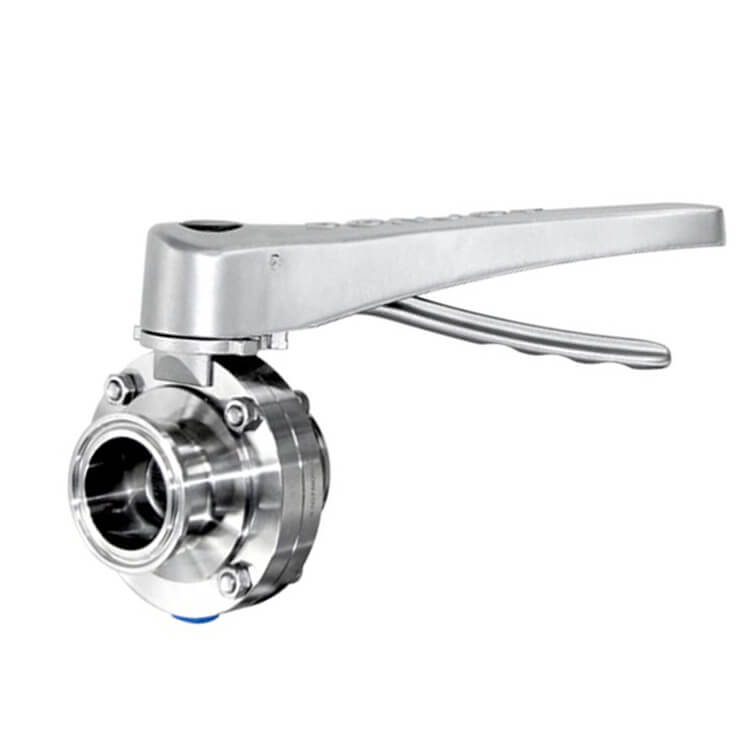

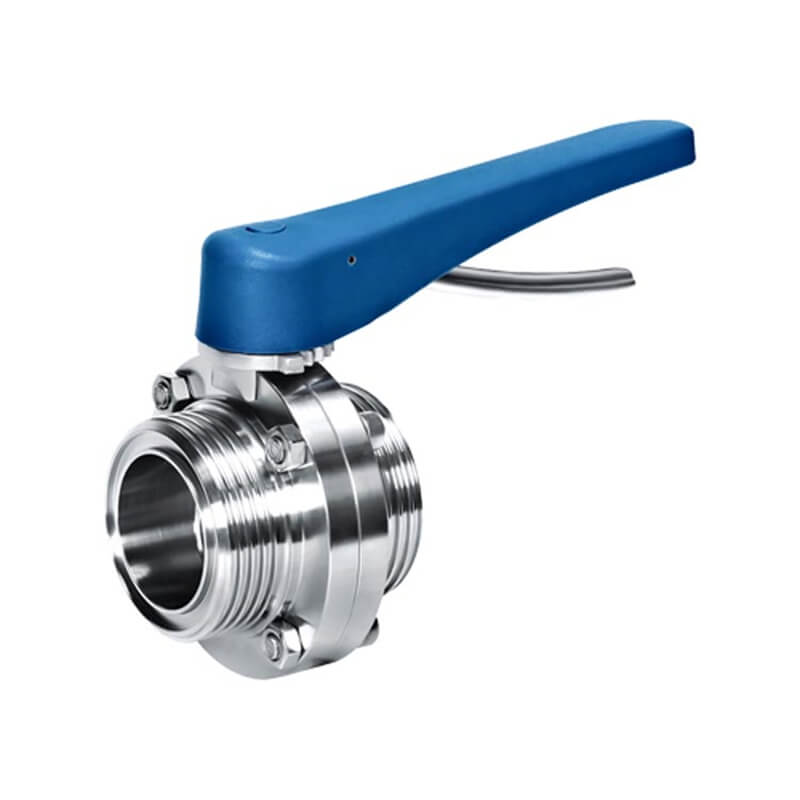

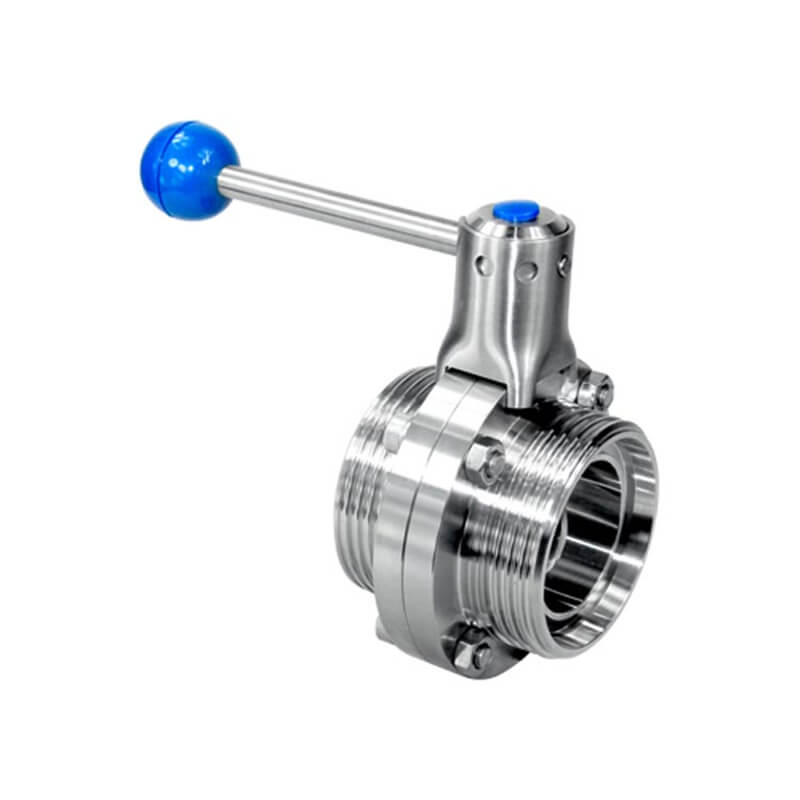

Pull Handle, Plastic Multi-position Trigger Handle, Stainless Steel Multi-position Trigger Handle

Connection type

Clamp End, Thread End, Weld End

Sanitary Tri-Clamp Butterfly Valve

Donjoy provides a variety of Sanitary Tri-Clamp Butterfly Valves, with manual, pull handle, multi-position handle, pneumatic or electric operation, 3 pieces body, mix proof type and so on. The butterfly valve is designed to shut off or regulate flow and is used in a wide range of applications. The FDA-compliant valves provide reliable performance and smooth operation. They are used in food & beverage processing, chemical products, industrial fluid applications.



Sanitary-Butterfly-Valve
Sanitary-Butterfly-Valve

Sanitary Tri-Clamp Butterfly Valve Feature:

● Forged Stainless steel body & disc in ASI 304 or 316L.
● CNC one-time machining ensures machining precision
● FDA-certified seal materials imported from European: FDA 21 CFR 177.2600, EPDM, PTFE, Silicone, Viton (FPM).
● Interchangeable of the manual handle, pneumatic actuator and electric actuator.
● Suitable for low and medium viscosity fluids.
● Sanitary surface finish, available with BPE standard Ra < 0.4µm (SF1 and SF4).
● Certificates: 3A, FDA, CE PED 2014/68/EU, ISO9001/2008.
● Standards: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE.

Hygienic Sanitary Tri-Clamp Butterfly Valve Construction

The hygienic butterfly valve consists of two valve body, a valve disc, bushings for the disc stem, and a gasket seal ring. The valve is assembled by means of screws and nuts.

Muti-position handle sanitary butterfly valve construction

Pull handle sanitary butterfly valve construction

Sanitary Butterfly Valve Dimension

Butterfly Valve Seal gasket performance

butterfly seal gasket
butterfly seal gasket



Hygienic butterfly valve packing

Our sanitary butterfly valve used for customer’s brewing project
