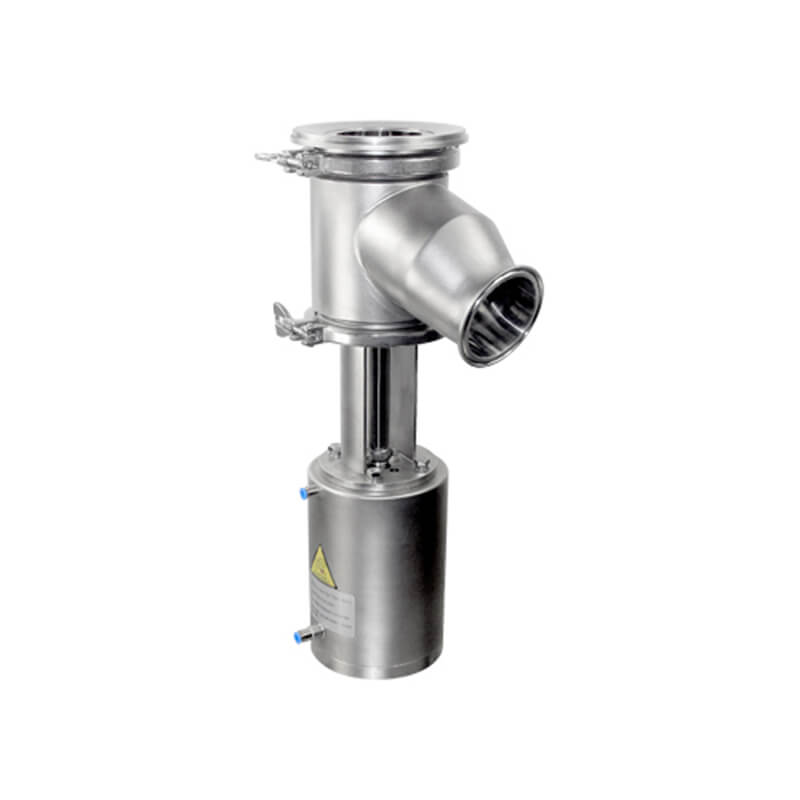

Stainless Steel Tank Bottom Valve

Donjoy Stainless Steel Tank Bottom Valve as the name suggest, made from hygienic stainless steel and suited for vessel and tank bottom,  offer manual and pneumatic type tank bottom valve, specifically used in dairy, food processing, beverage, pharmaceutical and fine chemical industries. Complete discharge system avoids retention. Comply with US 3-A, FDA standard.

Details about Stainless Steel Tank Bottom Valve

Specification

Size

DN25-DN100, 1" to 4"

Body Material

AISI 304, or 316L

Temperature

-10℃ to +120 ℃ (EPDM)

Max pressure

145psi (10bar)

Seal

EPDM, Teflon, PTFE, FPM, Silicon

Pipe Joint Systems

DIN SMS RJT 3A ISO IDF

Operation

Manual, pneumatic, OR with positioner

Surface treatment

Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.

Connection type

Tri-Clover/ Clamp End or Butt Weld End

Certification

US 3-A, FDA, CE PED/2014/68/EC, Certification

Stainless Steel Tank Bottom Valve Description:

Donjoy Stainless Steel Tank Bottom Valve as the name suggest, made from hygienic stainless steel and suited for vessel and tank bottom,  offer manual and pneumatic type tank bottom valve, specifically used in dairy, food processing, beverage, pharmaceutical and fine chemical industries. Complete discharge system avoids retention. Comply with US 3-A, FDA standard.



Hygienic Tank Bottom Valve Feature:

● Complete discharge system avoided retention.
● Normally closed valve(closed by spring)-standard version.
● Normally open valve(opened by spring)by a 180 degree rotating of the pneumatic actuator.
● 360° adjustable body, even after welding the flange to the tank.
● Easy maintenance and low maintenance cost by tri-clamp.
● FDA-approved seat materials: FDA 21 CFR 177.2600, EPDM+PTFE double seal, EPDM, Teflon, Viton, PTFE, FPM, Silicon.
● Sanitary surface finish, available with Ra < 0.4µm or EP (SF1 and SF4). Meet ASME BPE standard.
● Certificates: 3A, FDA, PED 2014/68/EU, ISO9001/2008.
● Standards: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
● 100% hydraulic tested / 100% inspected.

Tank Outlet Valve  Operation:

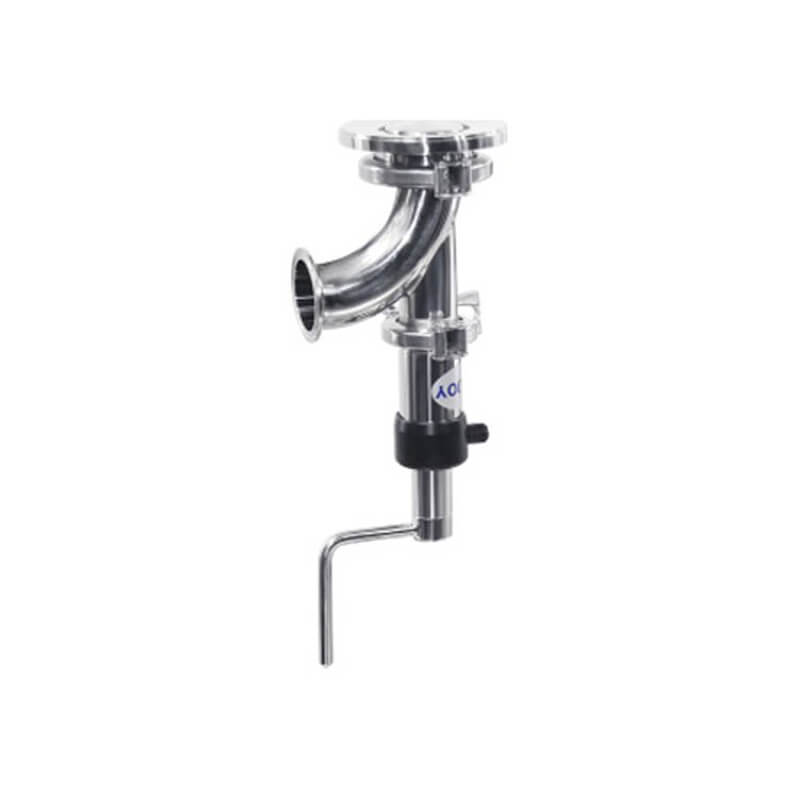

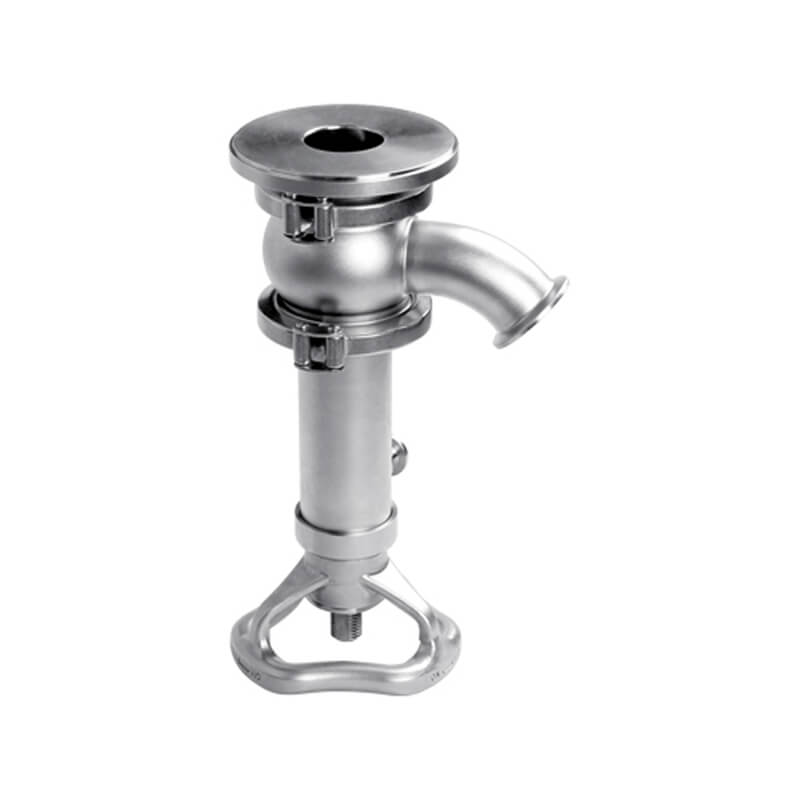

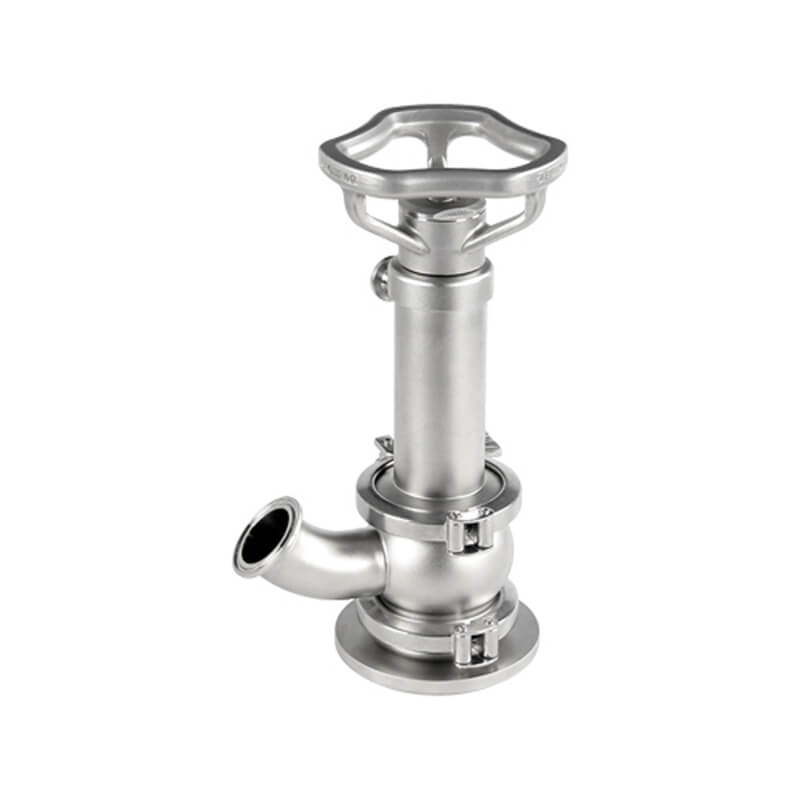

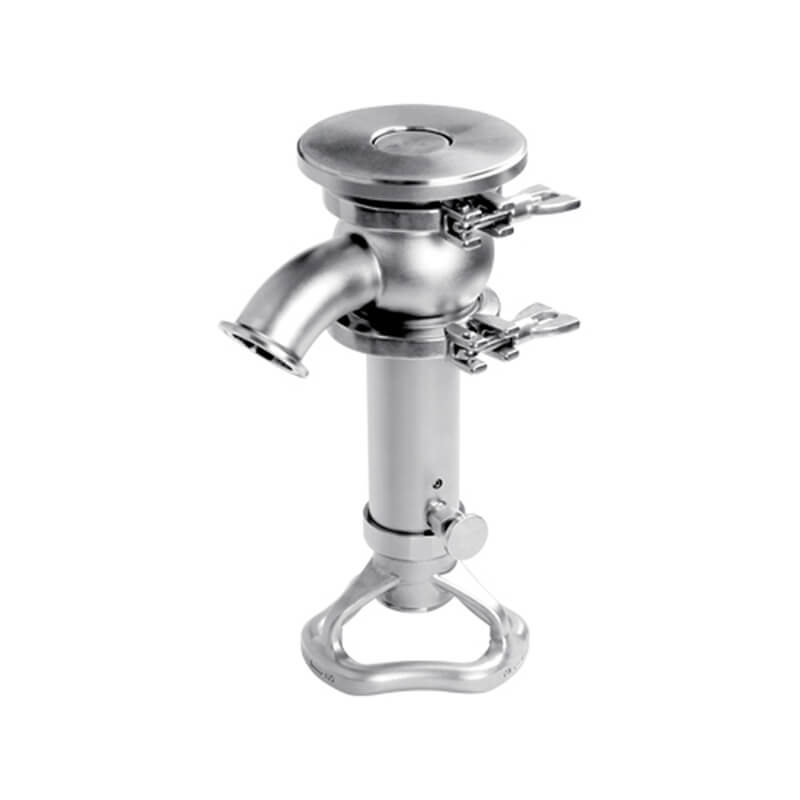

  • Manual tank bottom valve

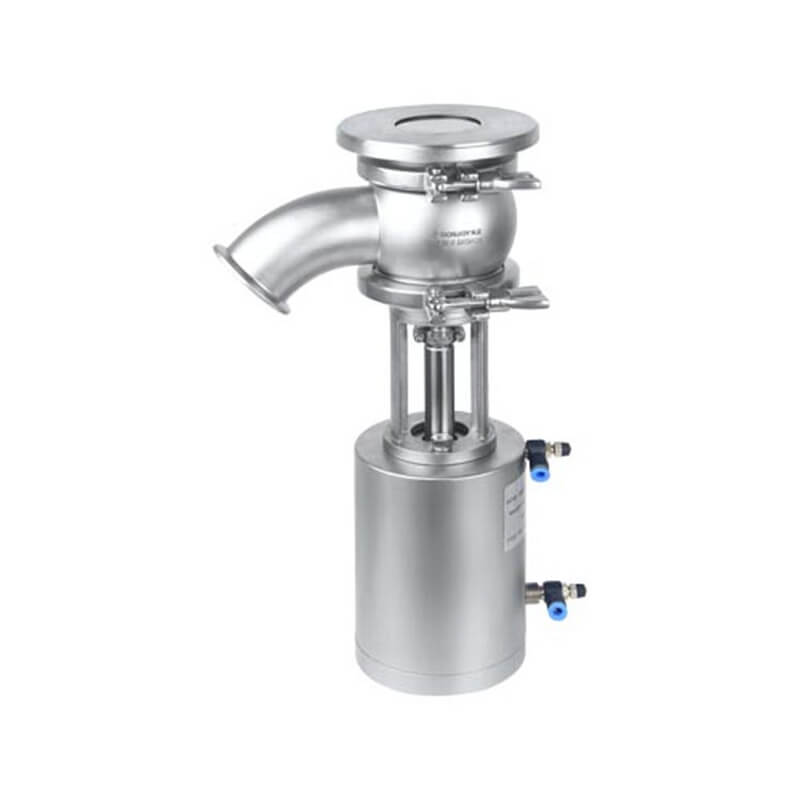

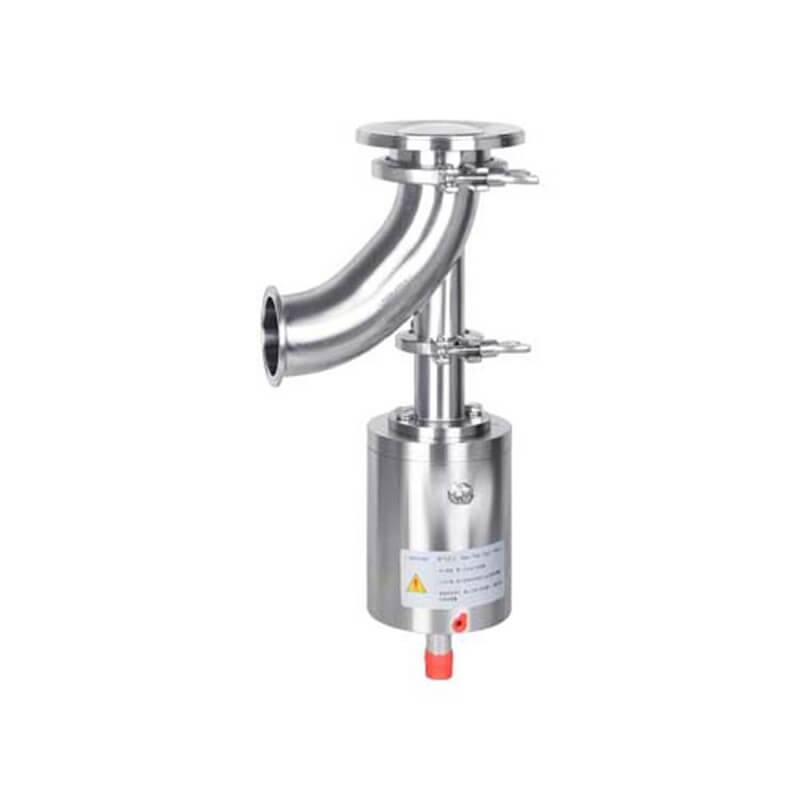

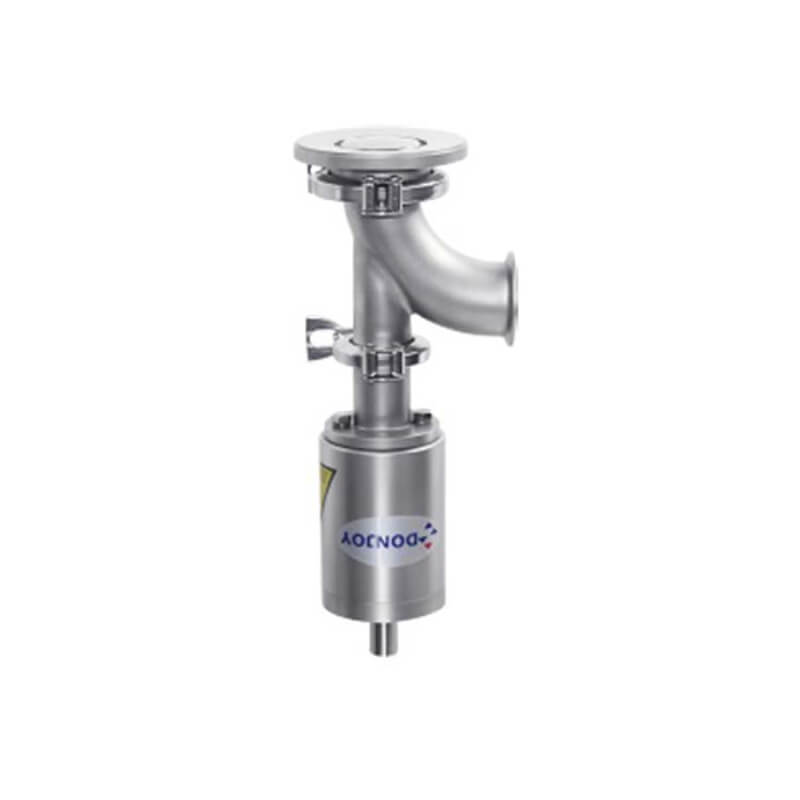

  • Pneumatic tank bottom valve
  • Pneumatic tank bottom valve with positioner IL-TOP control head
  • Pneumatic tank bottom valve with on/off C-TOP control head
  • Pneumatic tank bottom valve with the position sensor

Option:

  • Steam sterilized(if shaft sterilisation is required)
  • Surface trement RA 0.5μm
  • Single action actuator or double action actuator

Sanitary Tank Bottom Valve Dimension

sanitary tank bottom valve dimension

sanitary tank bottom valve dimension2
