Stainless Steel Tank Manway

Donjoy Sanitary Tank Manway is constructed from hygienic stainless steel,  with the sanitary design used for tank or storage vessel, widely the food, dairy, beverage, chemical and pharmaceutical industries. Both Pressure and Non-Pressure manways are available.

Stainless Steel Tank Manway

Donjoy Sanitary Tank Manway is constructed from hygienic stainless steel,  with the sanitary design used for tank or storage vessel, widely the food, dairy, beverage, chemical and pharmaceutical industries. Both Pressure and Non-Pressure manways are available.



Stainless Steel Round Pressure Tank Manway Specification

  • Work pressure 2- 5bar
  • Outward opening manhole cover
  • Material: AISI304(1.4301)/316L(1.4404)
  • Sight glass with flange
  • Union type sight glass
  • Internal surface Ra 0.5 μm-0.8μm
  • External surface polishing finish, matt finish or sand-blasting finish
  • Seal: EPDM, NBR, Silicone, FPM in accordance with FDA 177.1600
  • Height: 100, 120, 150mm

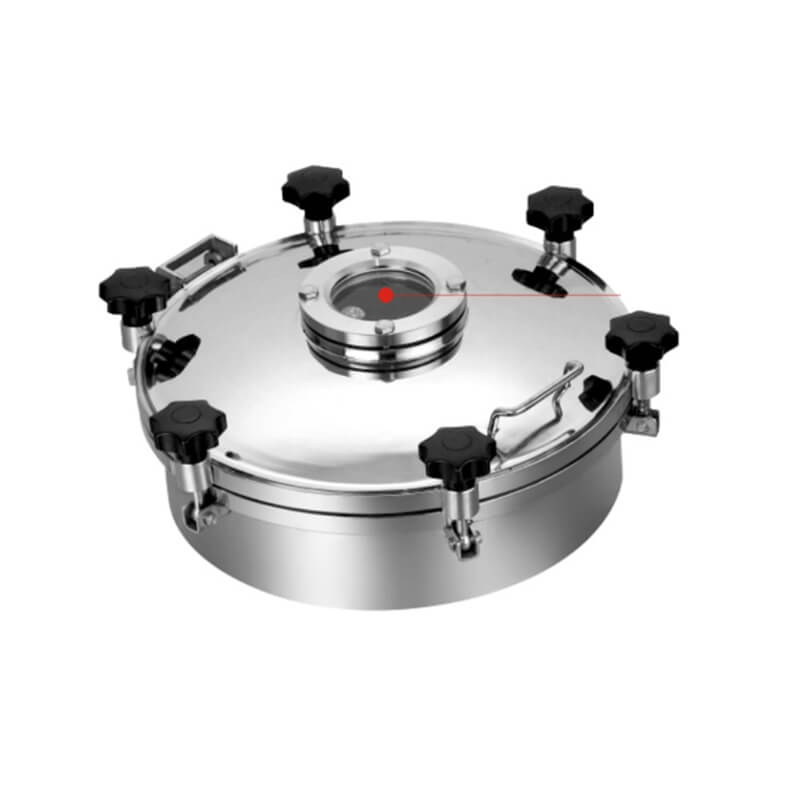

Stainless Steel Round Tank Manway

Stainless Steel Round Pressure Tank Manway with Glass

  • Work pressure 2- 5bar
  • Outward opening manhole cover
  • All glass manhole glass cover
  • Material: AISI304(1.4301)/316L(1.4404)
  • Sight glass with flange
  • Union type sight glass
  • Internal surface Ra 0.5 μm-0.8μm
  • External surface polishing finish, matt finish or sand-blasting finish
  • Seal: EPDM, NBR, Silicone, FPM in accordance with FDA 177.1600
  • Height: 100, 120, 150mm

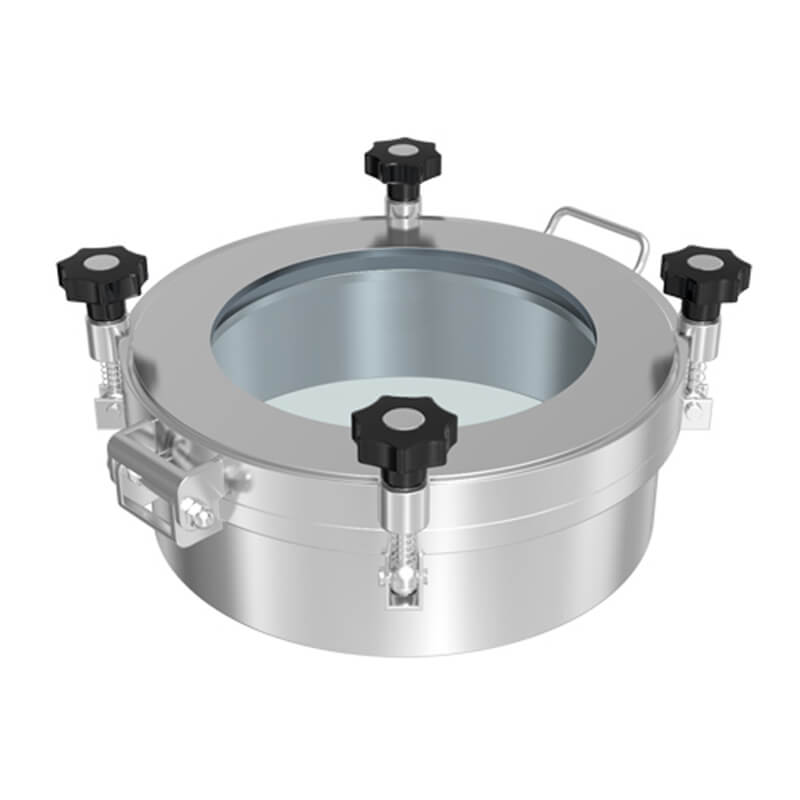

Stainless Steel Round Tank Manway with Glass

Pressure Tank Manway Cover Specification

  • Working pressure up to 10bar
  • Outward opening manhole cover
  • Plastic wheel or stainless steel wheel
  • Material: AISI304(1.4301)/316L(1.4404)
  • Sight glass with flange
  • Union type sight glass
  • Internal surface Ra 0.5 μm-0.8μm
  • External surface polishing finish, matt finish or sand-blasting finish
  • Seal: EPDM, NBR, Silicone, FPM in accordance with FDA 177.1600
  • Height: 100, 120, 150,200,300mm

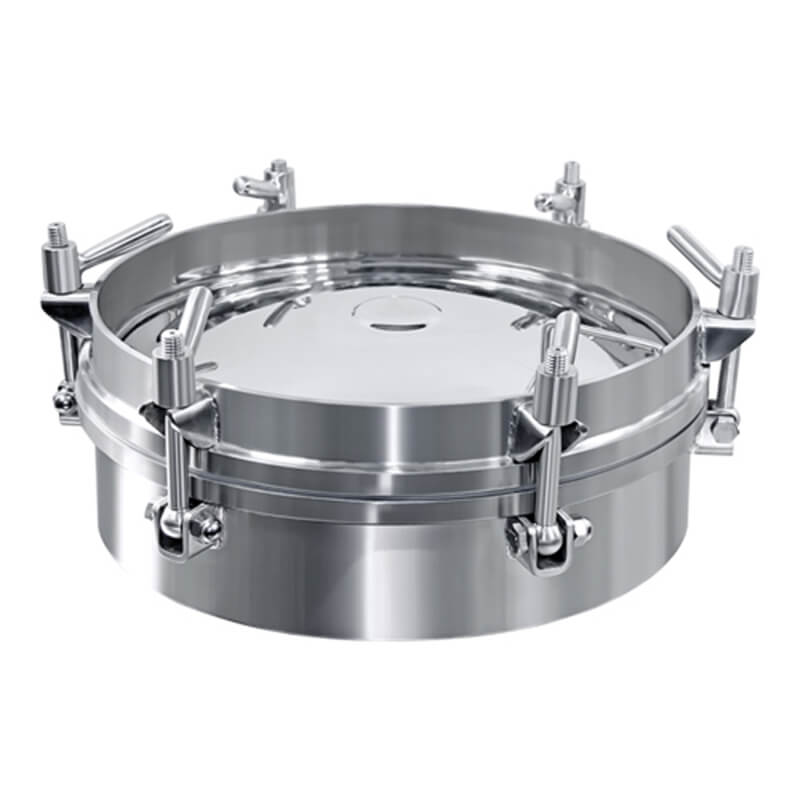

Stainless Steel Round Tank Manway 2

Stainless Steel Square Tank Manway

  • Work pressure 0.2- 1.0 bar
  • Spanner type handle, wheel handle
  • Outward opening manhole cover
  • All glass manhole glass cover
  • Material: AISI304(1.4301)/316L(1.4404)
  • Internal surface Ra 0.5 μm-0.8μm
  • External surface polishing finish, matt finish or sand-blasting finish
  • Seal: EPDM, NBR, Silicone, FPM in accordance with FDA 177.1600
  • Height: 65, 80, 100, 120, 150mm

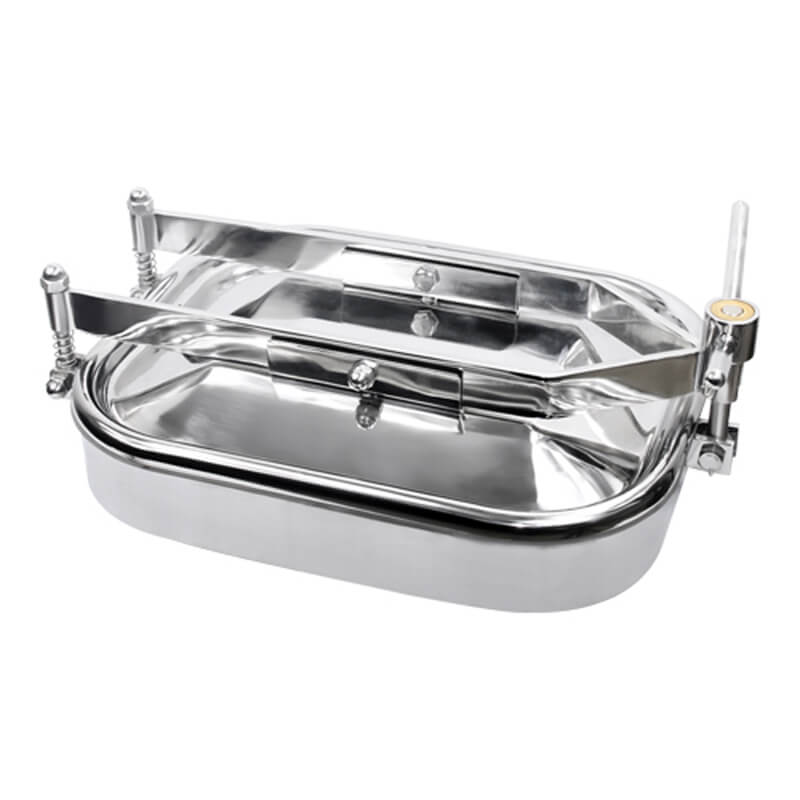

Stainless Steel Square Tank Manway

Stainless Steel Oval Tank Manway Inward Opening

  • Work pressure 0.5- 3bar
  • Inward opening manhole cover
  • Material: AISI304(1.4301)/316L(1.4404)
  • Internal surface Ra 0.5 μm-0.8μm
  • External surface polishing finish, matt finish or sand-blasting finish
  • Seal: EPDM, NBR, Silicone, FPM in accordance with FDA 177.1600
  • Height: 75, 100, 120, 150mm

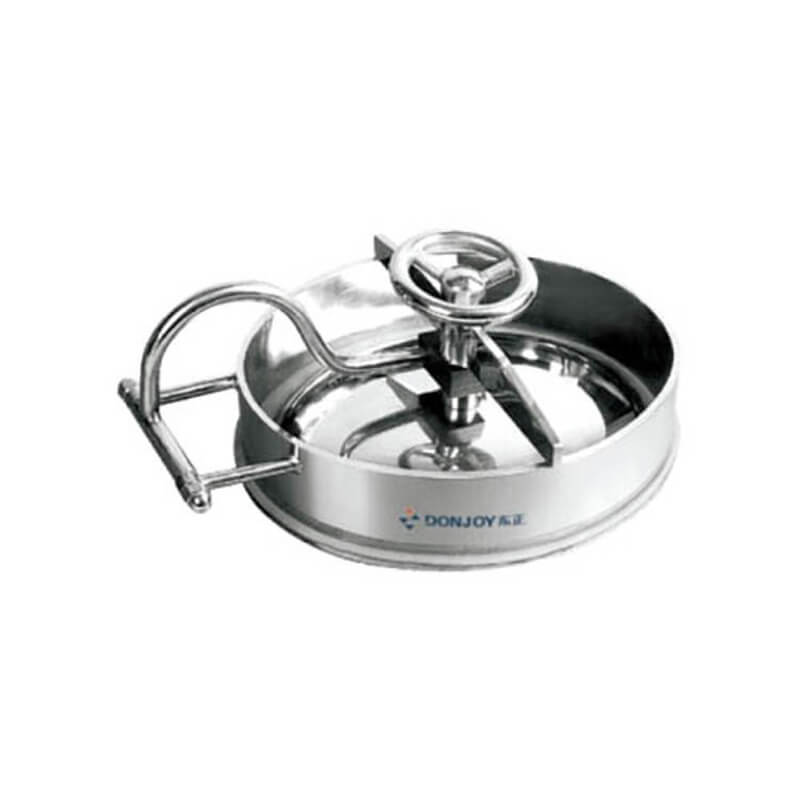

Stainless Steel Oval Tank Manway Inward Opening







Stainless Steel Non-pressure Tank Manway

  • Outward opening manhole cover
  • Plastic  wheel or stainless steel wheel
  • Material: AISI304(1.4301)/316L(1.4404)
  • Internal surface Ra 0.5 μm-0.8μm
  • External surface polishing finish, matt finish or sand-blasting finish
  • Seal: EPDM, NBR, Silicone, FPM in accordance with FDA 177.1600
  • Height:  100, 120, 150mm

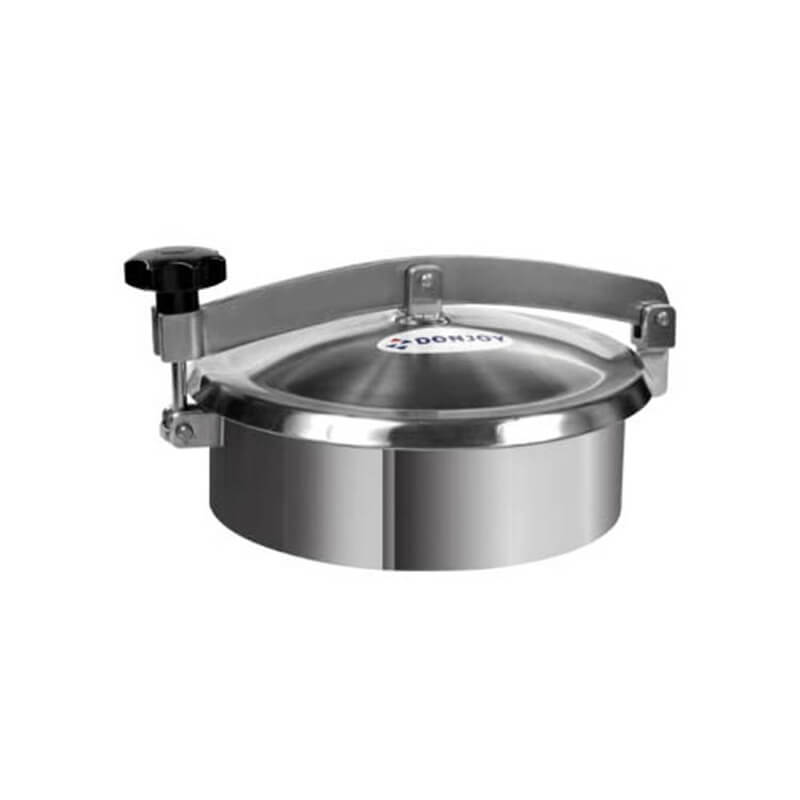

Stainless Steel Non pressure Tank Manway



Material

AISI304(1.4301)/316L(1.4404)

Woring pressure

Working Pressure tank manway up to 10 bar

Opening

Outward opening and inward opening

Seal

EPDM, NBR, Silicone, FPM in accordance with FDA 177.1600
