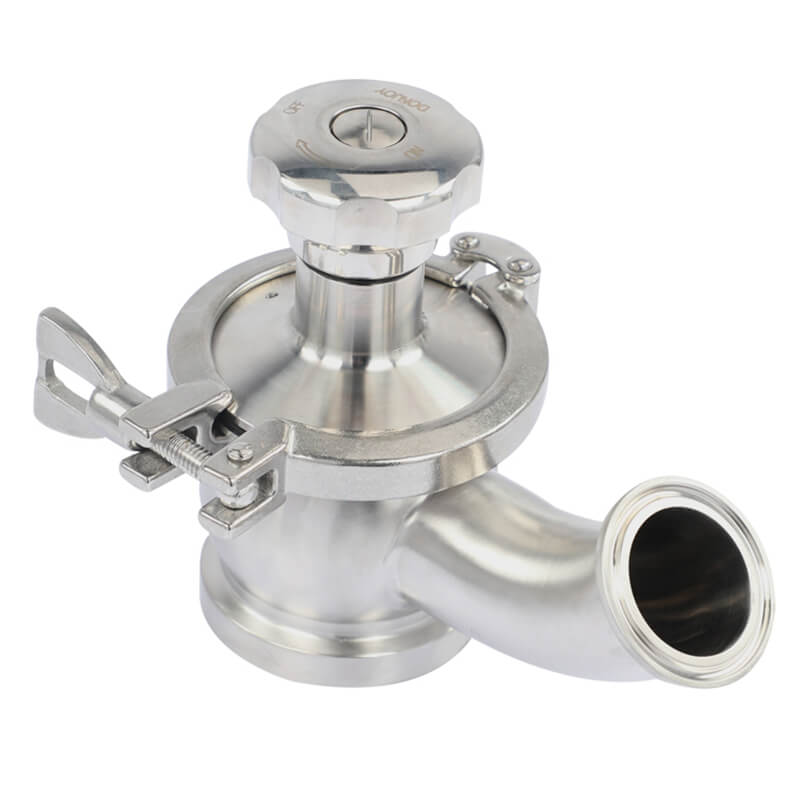

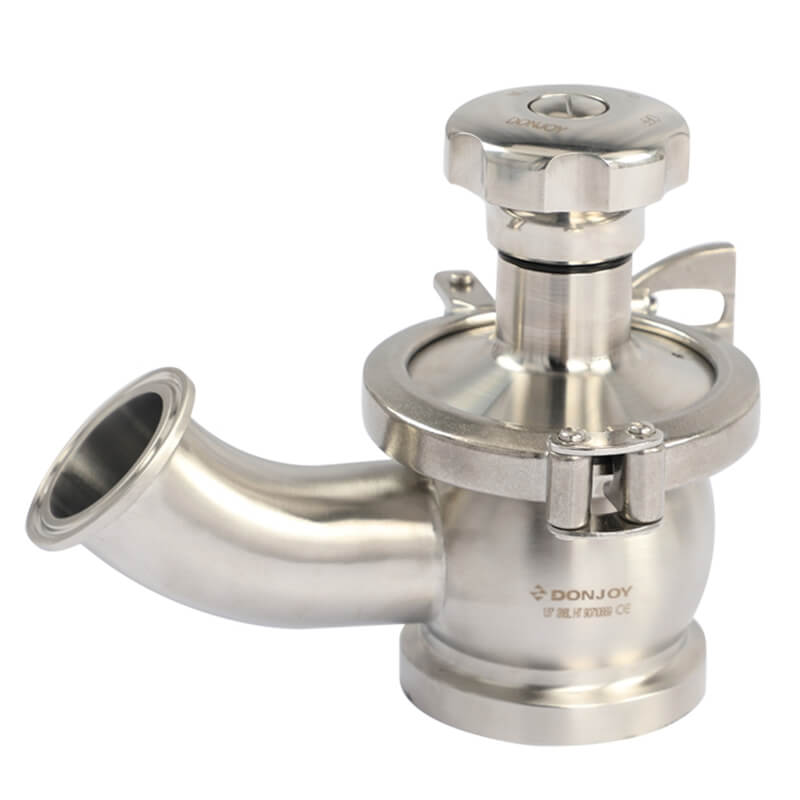

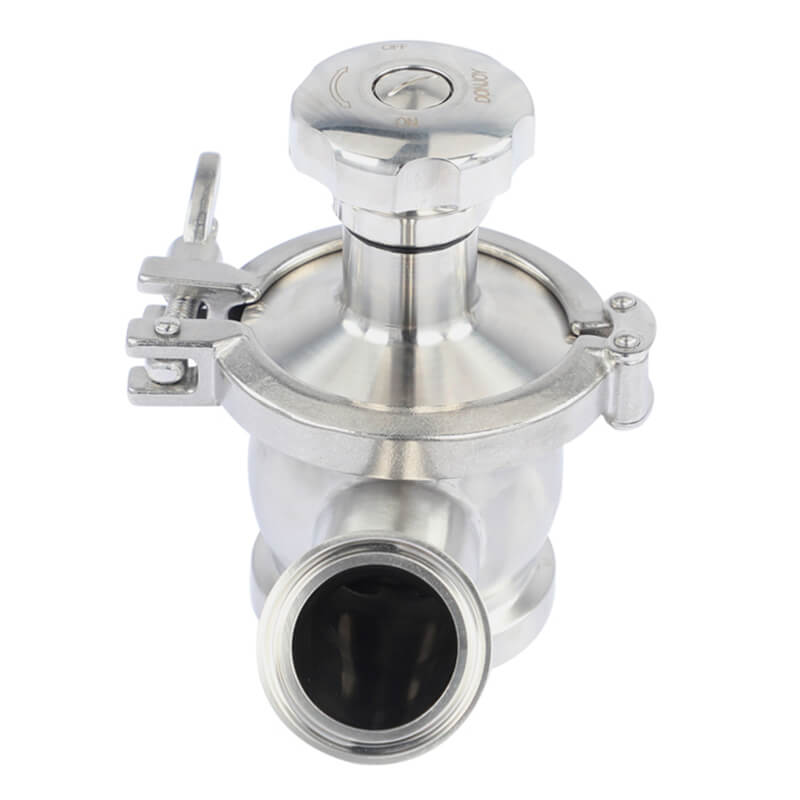

Tank Outlet Radial Diaphragm Valve
Donjoy Tank Outlet Radial Diaphragm Valve used as a tank outlet valve for aseptic applications, mainly used in pharmaceutical, biotech, health care, cosmetic and food industries. In the pharmaceutical industry, the valve can be used as a process control valve, dosing valve, sampling valve and aseptic drain valve etc. It has the manual type and pneumatic type.
Details about Tank Outlet Radial Diaphragm Valve
Specification
| Size | DN10-DN65, 1/2" to 3" |
|---|---|
| Body Material | AISI 316L, (EN1.4301/EN1.4404).ASME BPE 316L |
| Temperature | -20℃ to +150 ℃ |
| Max pressure | 145psi (10bar) |
| Seal | EPDM, FKM, PTFE |
| Operation | Manual, pneumatic |
| Certification | US 3-A, FDA, CE PED/2014/68/EC, Certification |
| Connection type | Tri-Clover/ Clamp End, Thread End, Butt Weld End |
Tank Outlet Radial Diaphragm Valve
Donjoy Tank Outlet Radial Diaphragm Valve used as a tank outlet valve for aseptic applications, mainly used in pharmaceutical, biotech, health care, cosmetic and food industries. In the pharmaceutical industry, the valve can be used as a process control valve, dosing valve, sampling valve and aseptic drain valve etc. It has the manual type and pneumatic type.
Tank Bottom Radial Diaphragm Valve Feature:
● New diaphragm design
● Simple maintenance, easy to operate.
● Self-emptying function.
● Dead leg minimization
● Excellent KV value
● CIP/SIP sterilization and cleaning
● There are more than 20 types of valve body combinations.
● Diaphragm seal complies with FDA certification.
Operation:
● Stainless handwheel

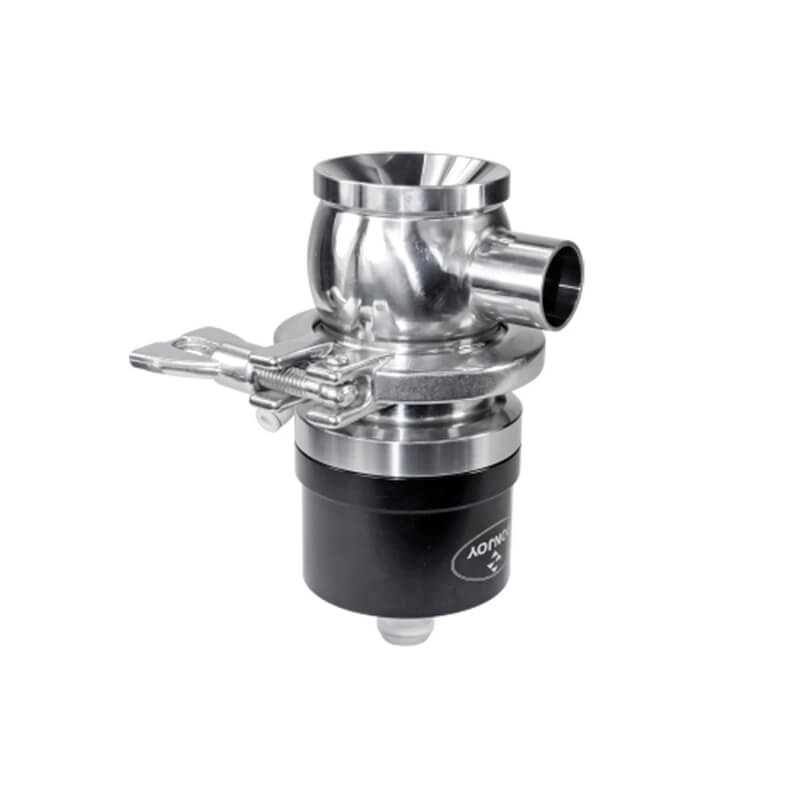

● Pneumatic actuator
Hygienic Radial Diaphragm Valve Body Combination
DONJOY Radial Diaphragm Valve Dimension
Hygienic valve packing
Our sanitary diaphragm valve use for customer’s pharmaceutical project
