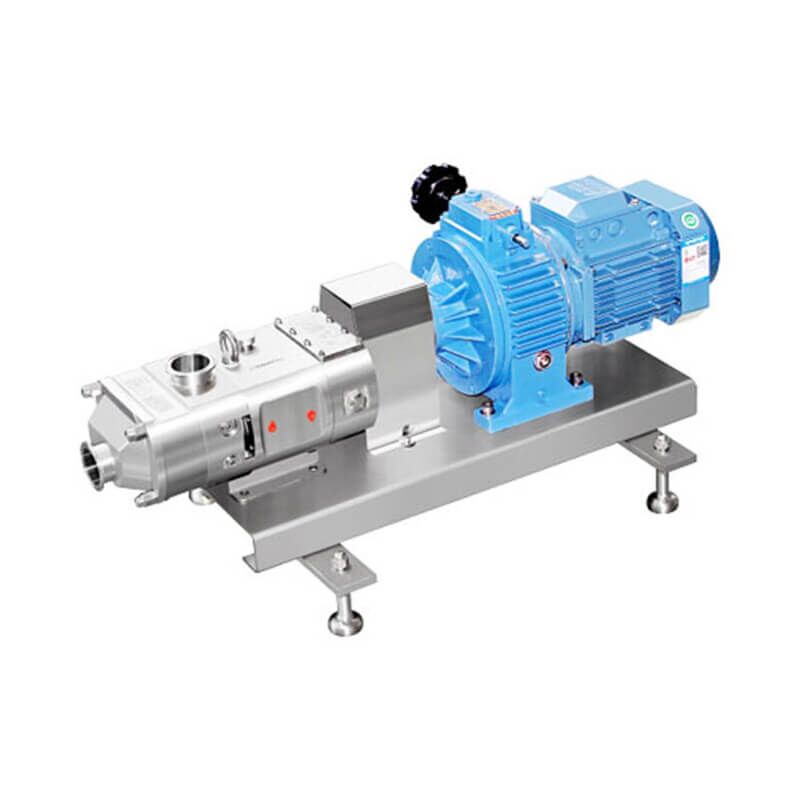

Sanitary Twin Screw Pump

Donjoy Sanitary Twin Screw Pump is a positive displacement pump, robust construction, offers gentle product handling,pulse-free, quite and smooth, ideal for use to transfer high and low viscosity fluids or with solid. Hygienic design complied with US 3-A, FDA hygienic standard, widely used in the food processing, dairy, beverage, daily chemical and pharmaceutical industries…

Details about Sanitary Twin Screw Pump

Specification

Maximum Flow Rate

110m3/h

Maximum pressure

20 bar

Max Particles

23mm

Speed range

10-3500 R.P.M

Body Material

AISI SS316L (1.4404)

Body Types

Horizontal Type (TUL) & Vertical Type (TUR)

Temperature

-40 ° C to 150 ° C

Mechanical Seal

single seal SIC/SIC/EPDM (standard), double mechanical seal (option)

Motor Power Supply

1.1KW-11KW, Wide voltage

Motor Brand

ABB motor, Simens Beide motor ,standard IEC

Surface treatment

Ra≤0.6μm; EP=Ra0.4μm

Certification

US 3-A 02-11, FDA21 CFR 177.2600, CE EN809:1998/A1 2009, EN60204-1:2006/A1:2009

Connection type

Tri-Clamp End, Butt Weld End, Thread, Flange

Sanitary Twin Screw Pump

Donjoy Sanitary Twin Screw Pump is a positive displacement pump, robust construction, offers gentle product handling,pulse-free, quiet and smooth, ideal for use to transfer high and low viscosity fluids or with solid. Hygienic design complied with US 3-A, FDA hygienic standard, widely used in the food processing, dairy, beverage, daily chemical and pharmaceutical industries…



Sanitary Double Screw Pump Description

Donjoy double screw pump not only used for fluid extraction and transportation but also applicable of CIP and SIP systems, it reduces pipeline, valve control, CIP dedicated pumps, improve efficiency and reduce costs. The pump features other positive displacement pumps does not have, such as pulse-free, no damage to particles, high pressure, large speed and flow range.



Choose the right screw spacing for your process

sanitary double screw pump screw space 1
sanitary double screw pump screw space 1

Option1: Large screw spacing, larger flow rate, ability to deliver larger particles, but the pressure will be lower compared with the small spacing screw.

Option2: Small screw spacing, lower flow rate, but higher pressure, the particles that can be delivered will also be smaller.

Sanitary Twin Screw Pump Structure

sanitary double screw pump construction

Sanitary double screw pump mechanical seal

sanitary double screw pump mechanical seal

Sanitary Twin Screw Pump Feature:

● Pulse-free, Low Noise
● High pressure to 300psi (20 bar)
● Special screw lock nut designed to extend service life.
● There are no bearings and screws at the area contacting with the medium.
● Large-diameter 17-4PH shaft for higher strength and stiffness, helping to reduce vibration and extend seal life.
● High precision heavy duty needle roller bearings.
● Oil-lubricated bearings can be forward lubrication over the entire speed, temperature and pressure range.
● Hygienic designed according to 3A, FDA standard.
●Sanitary mechanical seal, easy cleaning and maintenance
● Applied to CIP cleaning and SIP sterilization
● Different drives and devices
1) Manual adjustment, continuously variable transmission
2) Variable – frequency motor adjustment
3) Fixed speed output transmission
● The motor utilizes the IEC EN IE2, PTC thermistor.



Sanitary Twin Screw Pump Various Configurations

sanitary double screw pump different configurations

Sanitary double screw pump connection

sanitary double screw pump connection

Sanitary Twin Screw Pump Curve

sanitary twin screw pump curve

Twin Screw Pump Dimension

sanitary twin screw pump dimension

Sanitary Twin Screw pump used for hygienic applications:

Food and beverage:

soup , stew, ketchup, vegetables, dressings, chocolate, fat and oil , cream,  breweries, wort, soft drink/fruit juice, meat processing.

Dairy:

Cream, milk, cheese curd and whey, cottage cheese, yogurt.

Personal care and/Cosmetics:

Ointment, extraction, serum, face cream and emulsion, hair styling gels and liquids, dyes and alcohol, soap, cosmetics.

Chemicals / Industrial:

Solvents, paints, fuels, resins, polymers and sludges, oil and lubricants.
