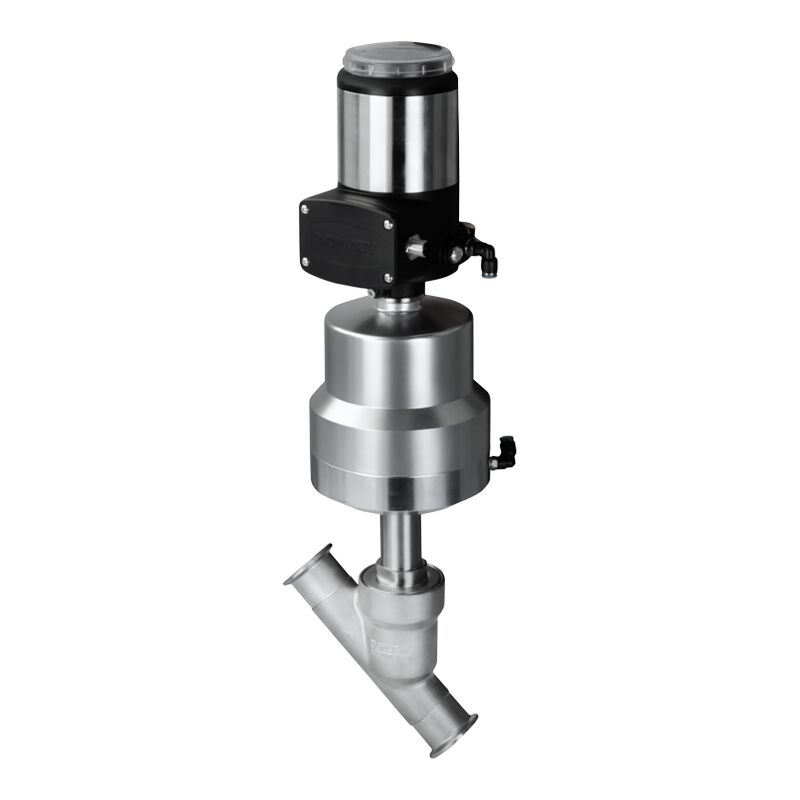

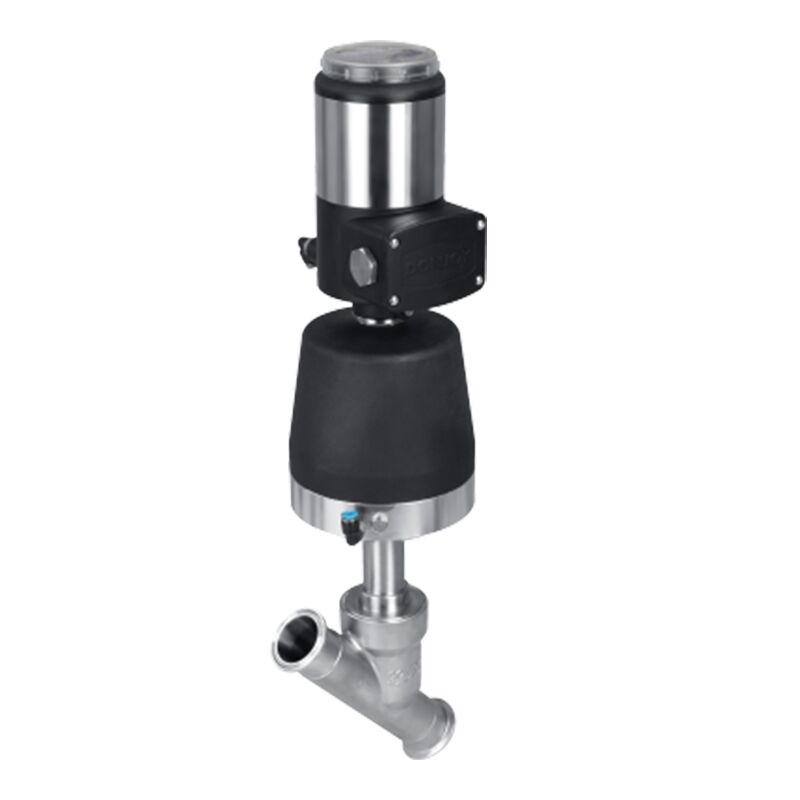

Angle Seat Process Control Valve with Positioner

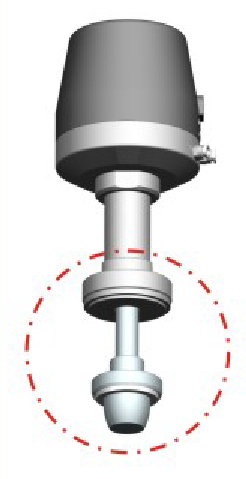

DONJOY pneumatically operated 2/2 way angle seat valve with positioner 0/4-20ma , DC24V, 0-100% proportional control, allows for efficient flow control. We can customize valve’s cone to meet the KV value to suit different opening flow requirements. It has RS-485, PID , IO-LInk version. Angle valve made from high-quality hygienic stainless steel 304 or 316L with durable construction, with PTFE or PEEK for high temperature, 20- 180 degrees, suited for liquids, steam, and gases.
Details about Angle Seat Process Control Valve with Positioner
Specification
| Model Number | VJZ110Q1C |
|---|---|
| Size | DN10-DN100, 1/2"-4" |
| Body Material | SS 316L, ASME BPE |
| Temperature | -20℃ to +150 ℃ (It depends on the seal) |
| Max pressure | 145psi (10bar) |
| Seal | PTFE/TFM, PEEK,FDA approved |
| Manual Operation | Stainless steel handwheel, Plastic handle |
| Pneumatic Operation | Compatible with Single-acting or Double-acting Pneumatic actuator |
| Surface treatment | Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default. |
| Certification | US 3-A, FDA, CE PED/2014/68/EC, Certification |
| Connection type | Tri-Clamp End, Thread End, Butt Weld End, Flange End |
Angle Seat Process Control Valve
DONJOY pneumatically operated 2/2 way angle seat valve with positioner 0/4-20ma , DC24V, 0-100% proportional control, allows for efficient flow control. We can customize valve’s cone to meet the KV value to suit different opening flow requirements. It has RS-485, PID , IO-LInk version. Angle valve made from high-quality hygienic stainless steel 304 or 316L with durable construction, with PTFE or PEEK for high temperature, 20- 180 degrees, suited for liquids, steam, and gases.
Hygienic Stainless Steel Angle Seat Valve Connections
Weld end
Clamp end
Nut
Male thread
Female thread
Aseptic flange
Flange

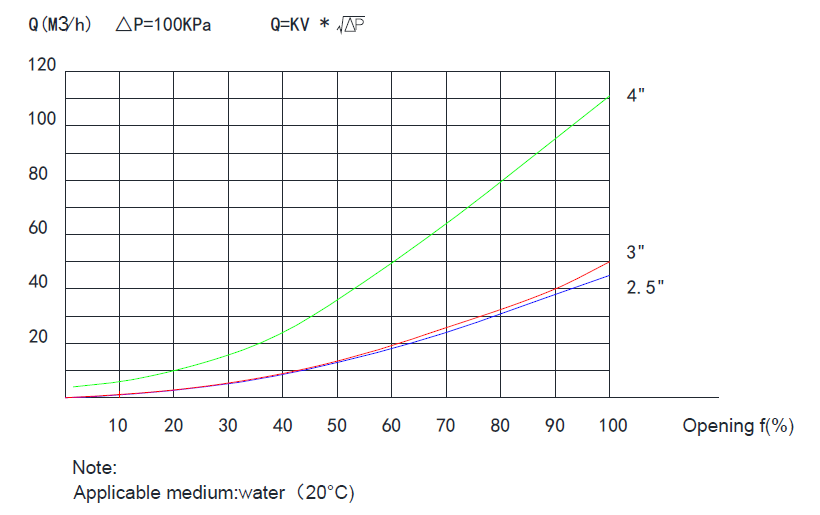

Flow curve of regulating type Angle Seat Valve KV Curve
Angle Seat Valve Construction
Hygienic Valve packing
