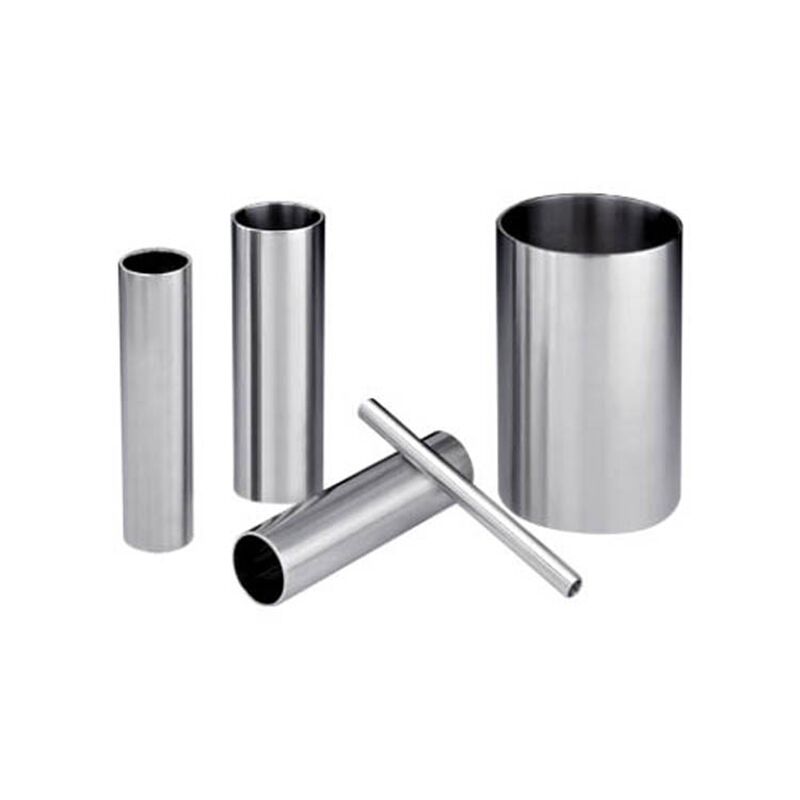

ASME BPE Stainless Steel Tubing

DONJOY BPE Stainless Steel Tubing and fittings compliant with ASME BPE standard, constructed from sanitary stainless steel 316L, provide solid, durability, problem-free for weld or assemble, available in ASME BPE, 3-A, DIN, SMS, ISO, I-line standard. ASME BPE tubing and fittings special used in pharmaceutical and biotech industries.

Details about ASME BPE Stainless Steel Tubing

Specification

Material

1.4404 (316L)

Heat Lot

Marked with Heat Lot Number

Connection type

Butt Weld, Tri-clamp

Connection Size

1/2" to 6"

Certifcation

ASME BPE

ASME BPE Stainless Steel Tubing

DONJOY BPE Stainless Steel Tubing and fittings compliant with ASME BPE standard, constructed from sanitary stainless steel 316L, provide solid, durability, problem-free for weld or assemble, available in ASME BPE, 3-A, DIN, SMS, ISO, I-line standard. ASME BPE tubing and fittings special used in pharmaceutical and biotech industries.



What is ASME BPE?

ASME BPE (American Society of Mechanical Engineers: Bioprocessing Equipment) is an international standard developed as an aid for the design and construction of equipment intended for use in the manufacturing of biopharmaceuticals. The standard is approved as an American National Standard by the American National Standards Institute (ANSI).



ASME BPE standard

Standard provides the requirements applicable to the design of equipment used in the bioprocessing, pharmaceutical, and personal care product industries, including aspects related to sterility and cleanability, materials, dimensions and tolerances, surface finish, material joining, and seals.

Hygienic Stainless Steel Surface Finish

Available in Mechanical polishing and electropolishing finish.

Mechanical polishing with 4 grades from SF0 to SF3, default SF 1 finish is RA 20= 0.51 μm

electropolishing finish with 3 grades from SF4- SF6, default SF4 finish is RA 15=0.38 μm

Finish Code Product Contact Surface (Max Ra)* Product Contact Surface Finish Treatment (ID) Non-Product Contact Surface (Max Ra) Non-Product Contact Surface Finish Treatment (OD)
-PL 20 µ-inch(0.51 µm) Mechanical Polish 32 µ-inch(0.81 µm) Mechanical Polish/As drawn
-PM 15 µ-inch(0.38 µm) Electropolished 32 µ-inch(0.81 µm) Mechanical Polish/As drawn

Sanitary Stainless Steel Surface Finish

ASME BPE Tubing Manufacturer

Donjoy Technology as an ASME BPE Stainless Steel Tubing and Fittings manufacturer in China, manufacture sanitary pipe fittings, sanitary valve, pump for more than 28 years. Meet USA 3-A, ASME BPE, FDA, EU CE standad.



ASME BPE CHEMICAL COMPOSITION
Element 316L (wt%)
Carbon (max) 0.035
Manganese (max) 2.00
Phosphorus (max) 0.040
Sulfur 0.005 – 0.017
Silicon (max) 0.75
Nickel 10.0-15.0
Chromium 16.0-18.0
Molybdenum 2.0-3.0

ASME BPE Tubing Dimensions Tolerances

Size OD  Wall Thickness Outside Diameter Tolerance Length Tolerance Wall Thickness Tolerance
(in) (mm) (in) (mm) (in) (mm) (in) (mm) (%)
½ 12.7 0.065 1.65 +/-0.005 +/-0.13 +⅛, -0 +3.18, -0 +/-10.0%
¾ 19.1 0.065 1.65 +/-0.005 +/-0.13 +⅛, -0 +3.18, -0 +/-10.0%
1 25.4 0.065 1.65 +/-0.005 +/-0.13 +⅛, -0 +3.18, -0 +/-10.0%
38.1 0.065 1.65 +/-0.008 +/-0.20 +⅛, -0 +3.18, -0 +/-10.0%
2 50.8 0.065 1.65 +/-0.008 +/-0.20 +⅛, -0 +3.18, -0 +/-10.0%
63.5 0.065 1.65 +/-0.010 +/-0.25 +⅛, -0 +3.18, -0 +/-10.0%
3 76.2 0.065 1.65 +/-0.010 +/-0.25 +⅛, -0 +3.18, -0 +/-10.0%
4 101.6 0.083 2.11 +/-0.015 +/-0.38 +⅛, -0 +3.18, -0 +/-10.0%
6 152.4 0.109 2.77 +/-0.030 +/-0.76 +1, -0 +25.4, -0 +/-10.0%

Material Test Reports (MTRs) are available in each shipment. A highly trained DONJOY staff member inspects each part before shipment, ensuring that it meets the ASME BPE fittings specifications.

Frequency Ask Question

Please firstly leave message below for product you need and requirement,I will send you quotaion sheet,then choose the transportation way and check cost,we will send you Proforma invoice for confirm,at last make the payment and we will ship the goods to you.

Delivery time depends on quantity and type of products,for valve and pipe fittings regular is about 7-20days. For pump regular is about 15-25days.

We offer 1 year warranty to our products.

For small amount we require 100% before production.For big amount,regularly T/T 30% deposit, 70% before shipment.

By Bank T/T, L/C, By Alibaba Assurance Order accept Credit Card VISA, Mastercard, E-checking, and we could’t accept Paypal.
