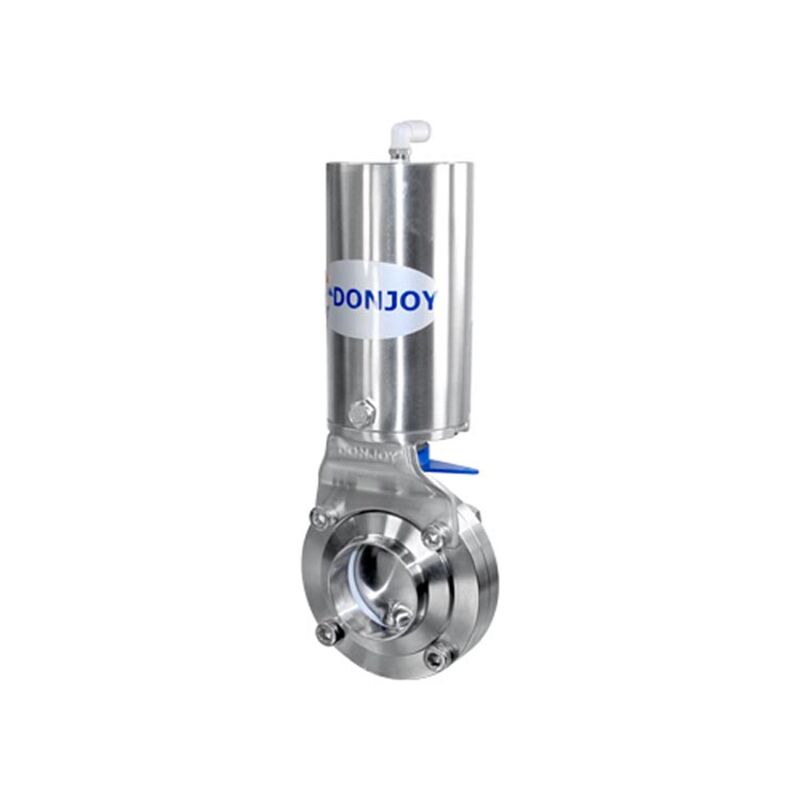

Pneumatic Control Butterfly Valve Hygienic Valve

Donjoy Sanitary Butterfly Valve regulate or isolate the fluid by rotating a disc inside the valve body. It designed for use in a wide range of applications and working pressures. The stem diameter provides especially low flow resistance, ensuring gentle product treatment for low and medium-viscosity products. The FDA-compliant valves provide reliable performance and smooth operation by a manual, pneumatic actuator or automatic by the positioner. Commonly used in food & beverage processing, pharmaceutical and chemical products, industrial fluid applications.

Details about Pneumatic Control Butterfly Valve Hygienic Valve

Specification

Size

DN10-DN300, 1/2"-12"

Body&Disc Material

AISI 304 or 316L, (EN1.4301/EN1.4404).

Temperature

-20℃ to +130 ℃ (It depends on the seal)

Max pressure

145psi (10bar)

Seal

EPDM, Silicone, FKM, FFKM, TEFLON, PTFE, HNBR, NBR, FDA approved

Pipe Joint Systems

DIN SMS RJT 3A ISO IDF

Manual Operation

Pull handle, Multi-position Plastic handle, Multi-position Stainless Steel Handle

Pneumatic Operation

Compatible with Single-acting or Double-acting Pneumatic actuator

Surface treatment

Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.

Certification

CE PED / 97/23 / EC, FDA Certification

Handle type

Pull Handle, Plastic Multi-position Trigger Handle, Stainless Steel Multi-position Trigger Handle

Connection type

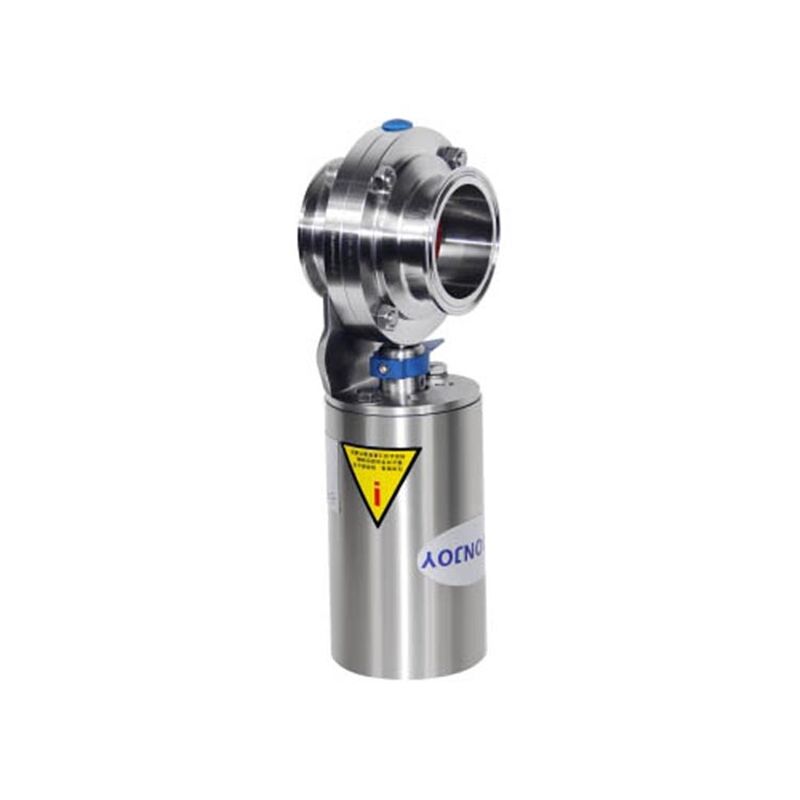

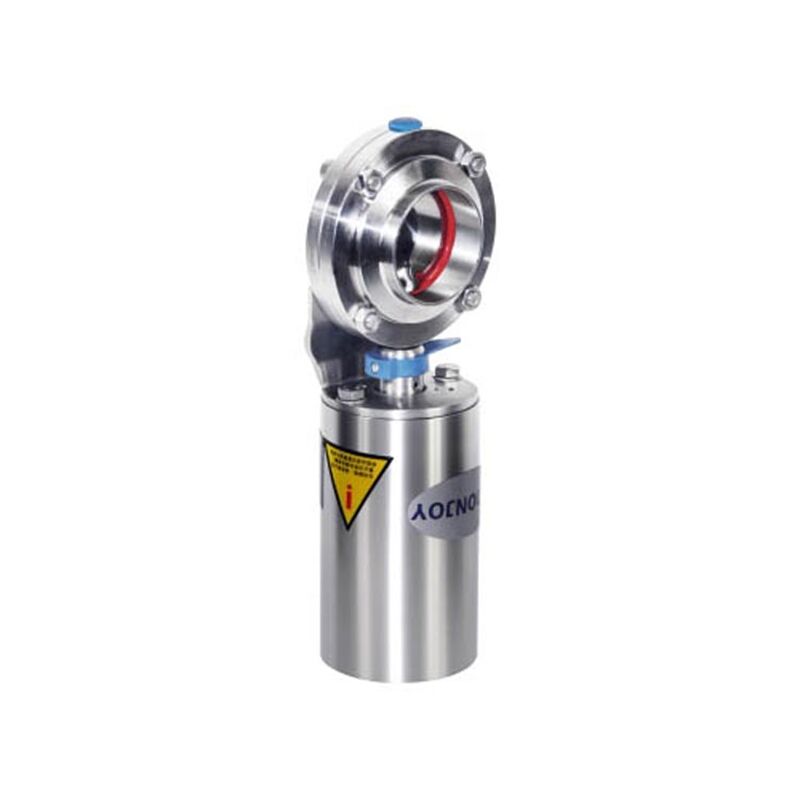

Clamp End, Thread End, Weld End

Pneumatic Control Butterfly Valve Hygienic Valve

Donjoy Sanitary Butterfly Valve regulate or isolate the fluid by rotating a disc inside the valve body. It designed for use in a wide range of applications and working pressures. The stem diameter provides especially low flow resistance, ensuring gentle product treatment for low and medium-viscosity products. The FDA-compliant valves provide reliable performance and smooth operation by a manual, pneumatic actuator or automatic by the positioner. Commonly used in food & beverage processing, pharmaceutical and chemical products, industrial fluid applications.

Butterfly Valve Hygienic Valve Feature:

● Forged Stainless steel body & disc in ASI 304 or 316L.
● CNC one-time machining ensures machining precision
● FDA-certified seal materials imported from European: FDA 21 CFR 177.2600, EPDM, PTFE, Silicone, Viton (FPM).
● Interchangeable of the manual handle, pneumatic actuator and electric actuator.
● Suitable for low and medium viscosity fluids.
● Sanitary surface finish, available with BPE standard Ra < 0.4µm (SF1 and SF4).
● Certificates: 3A, FDA, CE PED 2014/68/EU, ISO9001/2008.
● Standards: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE.



Pneumatic actuator optional
1.Vertical stainless steel pneumatic actuator(Single acting,double acting)
2.Horizontal aluminum pneumatic actuator(Single acting, double acting)
Pneumatic stainless steel actuator single acting means the valve is air to open or close, spring return. Double acting means air to open air to close.

Electric actuator
● Units for intelligent control and indication:
Proximity Switches (position sensor)

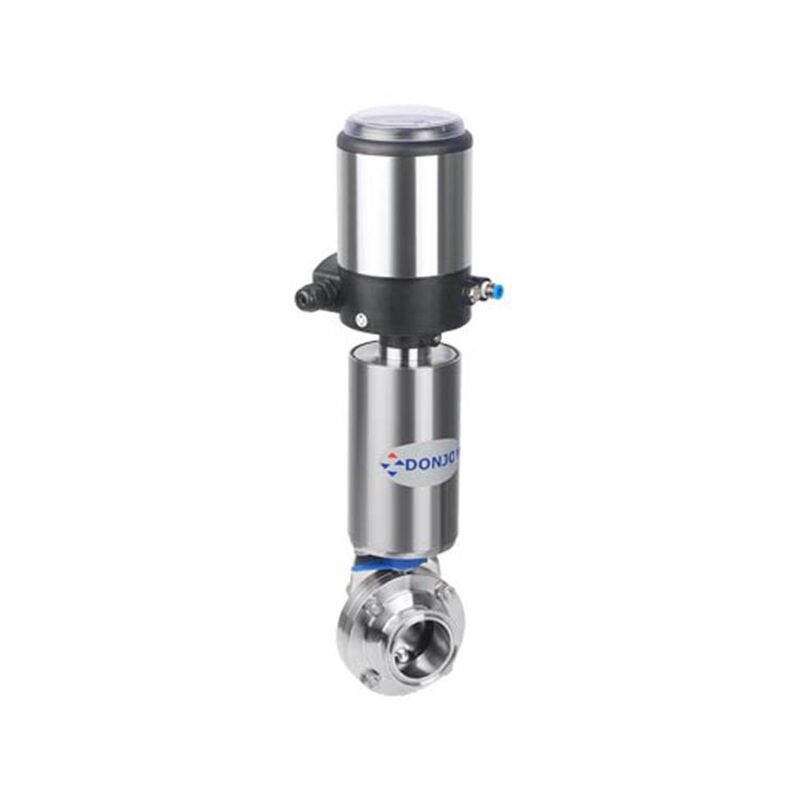

Limit Switch, C-top control,  IL-top control (Positioner)



Pneumatic Control Butterfly Valve Hygienic Valve Dimension

Butterfly Valve Seal gasket performance

butterfly seal gasket

Hygienic butterfly valve packing

Our sanitary butterfly valve use for customer’s brewing project
