Hygienic Leakage Butterfly Valve

Hygienic Leakage Butterfly Valve provides an easy and safe way of separating materials in order to prevent accidental mixing of materials even when the seal is damaged. It is most commonly used to isolate materials that need to be safely separated and for single unit CIP cleaning (not the valve manifold) or at the end of the valve manifold unit(e.g. CIP return) or for CIP solution input into the tank (via a cleaning ball). Usually used in food & beverage processing, dairy, pharmaceutical, daily chemical applications.

Details about Hygienic Leakage Butterfly Valve

Specification

Size

DN40-DN100, 1.5"-4"

Body&Disc Material

AISI 304 or 316L, (EN1.4301/EN1.4404).

Temperature

-20℃ to +130 ℃ (It depends on the seal)

Max pressure

145psi (10bar)

Seal

EPDM, Silicone, FKM, FFKM, TEFLON, PTFE, HNBR, NBR, FDA approved

Pipe Joint Systems

DIN SMS RJT 3A ISO IDF

Pneumatic Operation

Compatible with Single-acting or Double-acting Pneumatic actuator

Surface treatment

Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.

Certification

CE PED / 97/23 / EC, FDA Certification

Connection type

Clamp End, Thread End, Weld End

Hygienic Leakage Butterfly Valve

Donjoy Hygienic Leakage Butterfly Valve provides an easy and safe way of separating materials in order to prevent accidental mixing of materials even when the seal is damaged. It is most commonly used to isolate materials that need to be safely separated and for single unit CIP cleaning (not the valve manifold) or at the end of the valve manifold unit(e.g. CIP return) or for CIP solution input into the tank (via a cleaning ball). Usually used in food & beverage processing, dairy, pharmaceutical, daily chemical applications.



Hygienic Leakage butterfly valve Feature:

● Forged Stainless steel body & disc in ASI 304 or 316L.
● CNC one-time machining ensures machining precision
● FDA-certified seal materials imported from Europe: FDA 21 CFR 177.2600, EPDM, PTFE, Silicone, Viton (FPM).
● Interchangeable of the manual handle, pneumatic actuator and electric actuator.
● Suitable for low and medium viscosity fluids.
● Sanitary surface finish, available with BPE standard Ra < 0.4µm (SF1 and SF4).
● Certificates: 3A, FDA, CE PED 2014/68/EU, ISO9001/2008.
● Standards: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE.

mixproof butterfly valve

Hygienic Double Seat Mix Proof Butterfly Valve

DONJOY mix proof butterfly valve provides two types, type A and type B

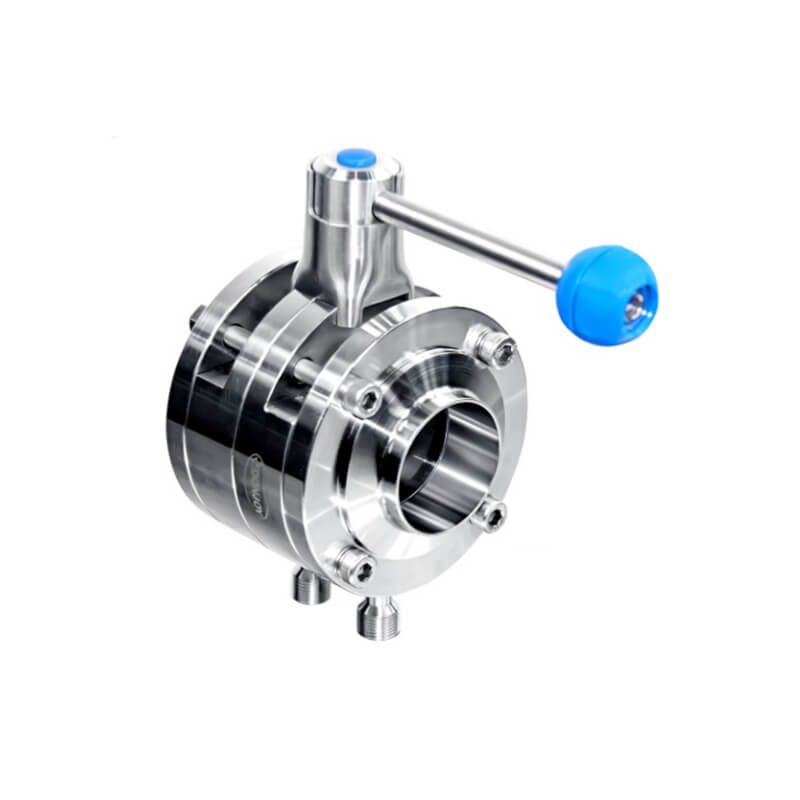

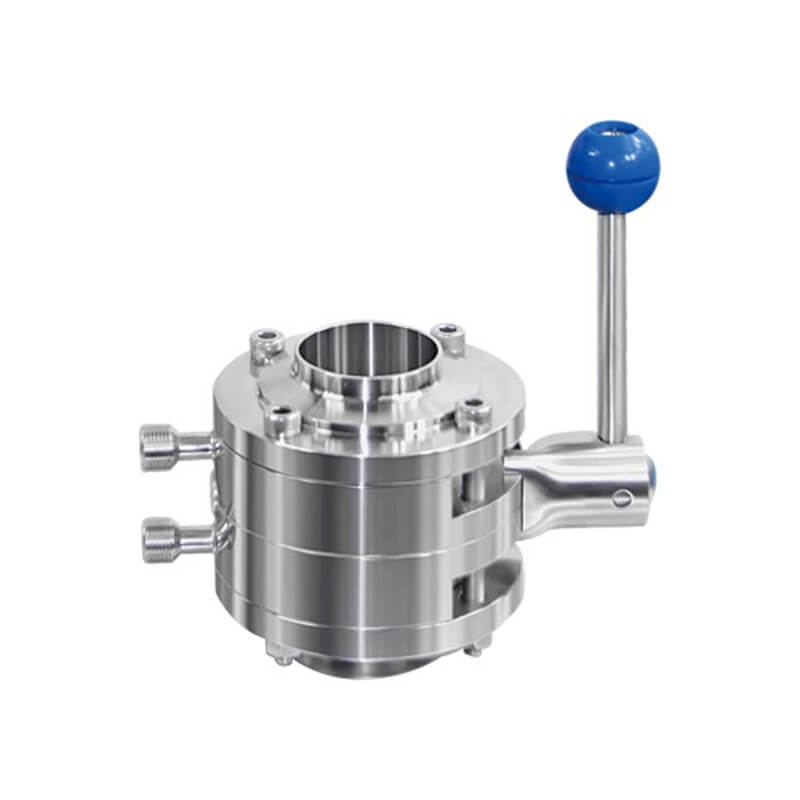

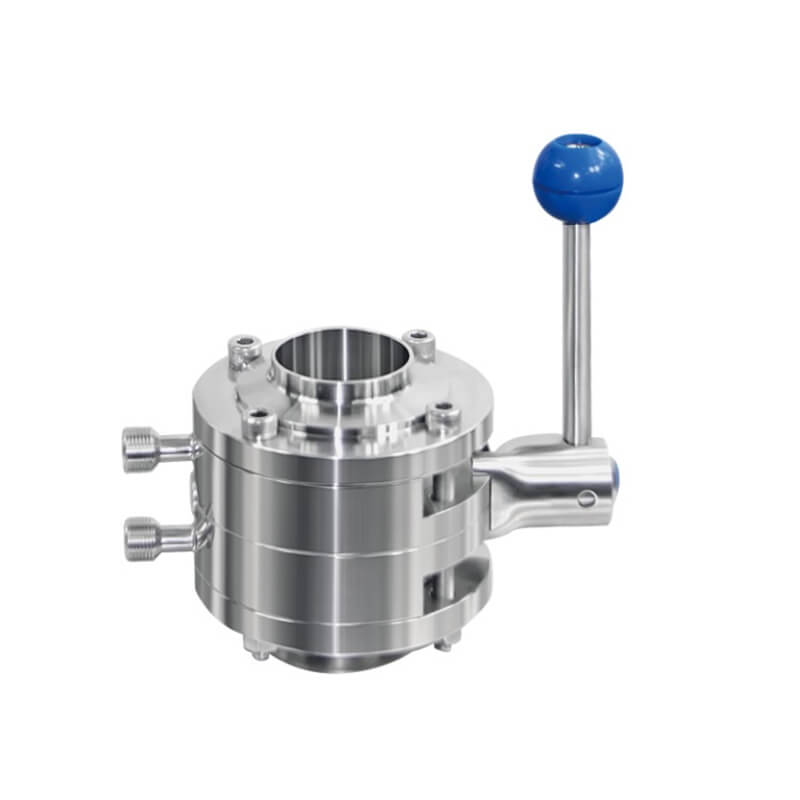

Type A with 2 seals and one disc.

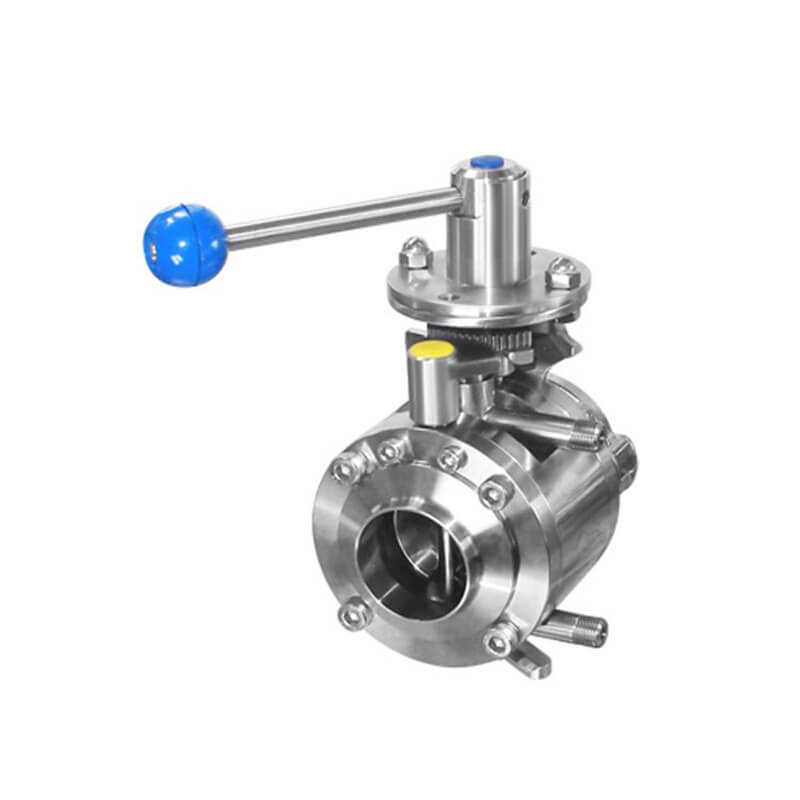

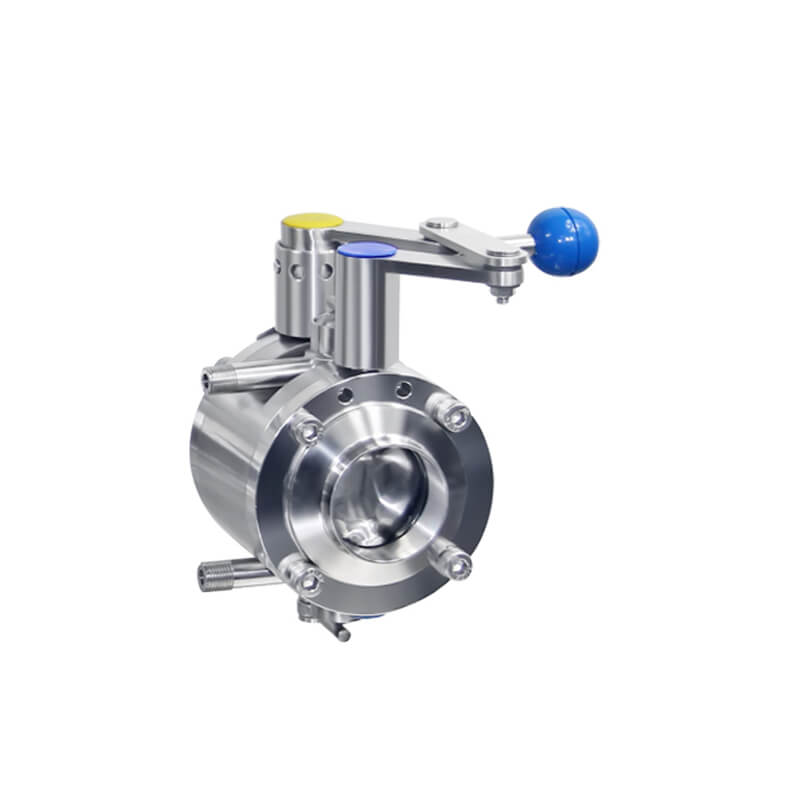

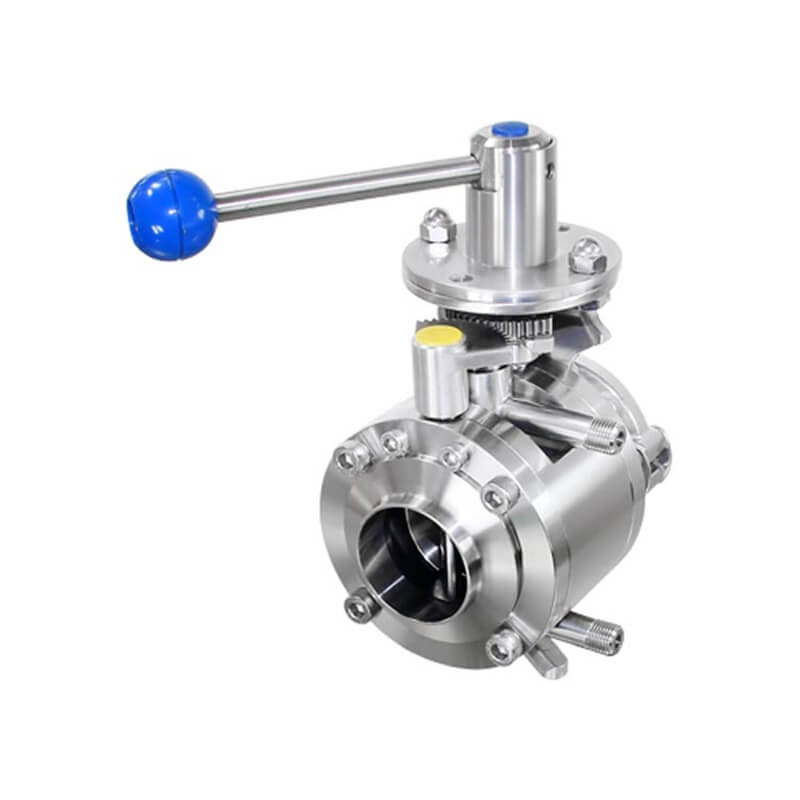

Type B with 2 seals and two discs.



Sanitary Mixproof Butterfly Valve Type A Working Principle

mixproof butterfly valve type A working principle

Sanitary Mixproof Butterfly Valve Type A Dimension

mixproof butterfly valve type A dimension

Sanitary Mixproof Butterfly Valve Type B Working Principle



mixproof butterfly valve type B working principle

Mixproof Butterfly Valve Type B Dimension

mixproof butterfly valve type b dimension

Butterfly Valve Seal gasket performance

butterfly seal gasket

Hygienic Butterfly Valve Manufacturer in China

Donjoy Technology is a hygienic butterfly valve manufacturer in china, manufacture sanitary valve, pump and pipe fittings for more than Meet 27years. Meet USA 3-A, FDA, CE PED, MD BPE standard.



Pneumatic Actuated Sanitary Butterfly Valve

If you are looking for a Pneumatic Control Butterfly Valve Hygienic Valve, please the check product below

Pneumatic Control Butterfly Valve Hygienic Valve

If you are looking for a Sanitary Tri-Clamp Butterfly Valve, please check the product below

Clamp End Butterfly Valve with Pull Handle

If you are looking for a Unique Mixproof Valve Matrix, please check the product below

DONJOY Unique Mixproof Valve Matrix

For more butterfly valve information, please check this article Sanitary Butterfly Valve Complete Buying Guide

Hygienic butterfly valve packing

Our sanitary butterfly valve for customer’s brewing project
