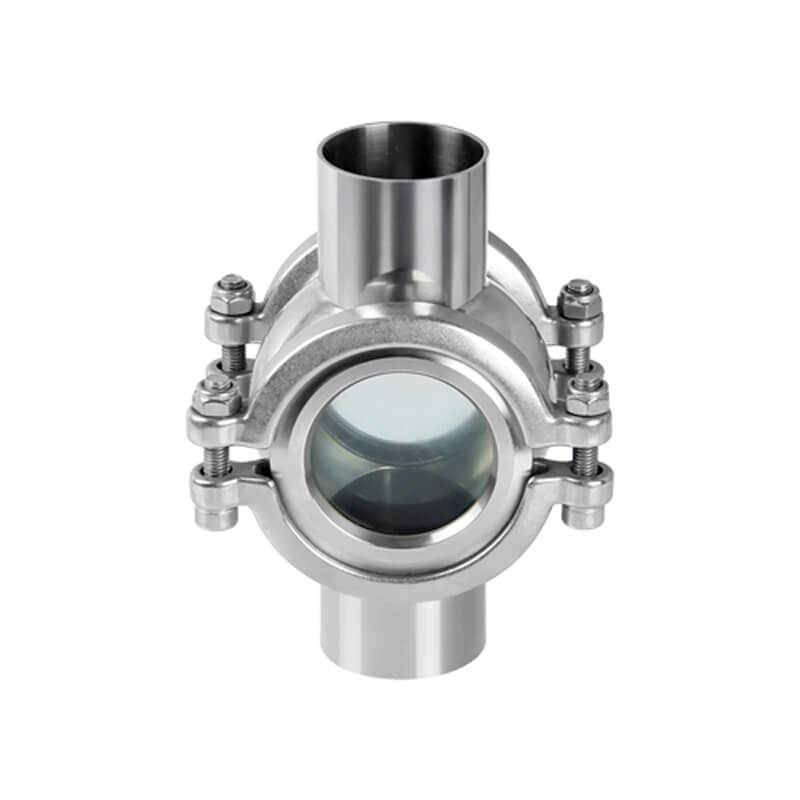

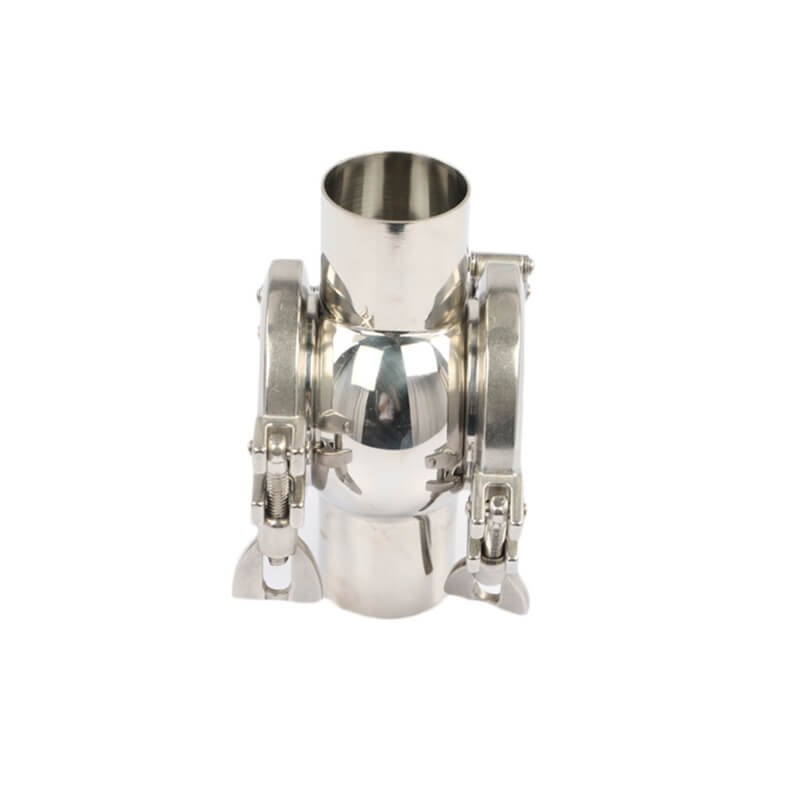

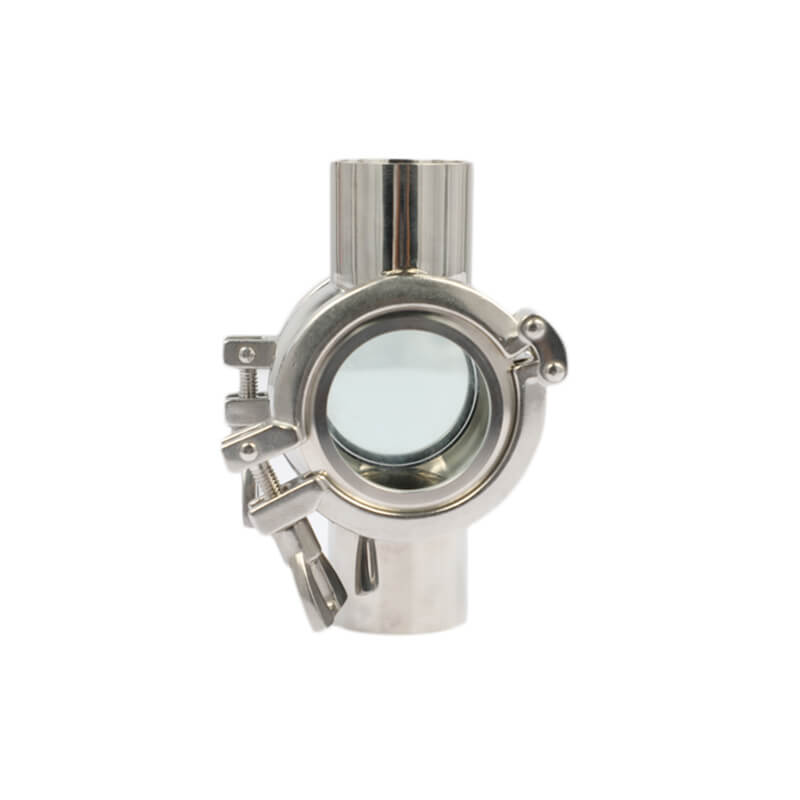

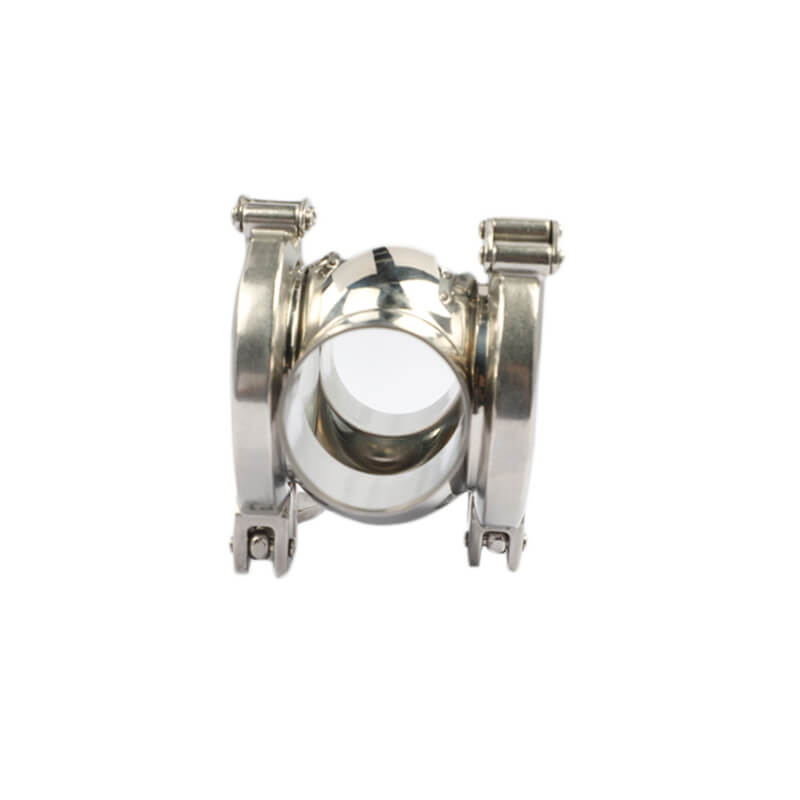

Sanitary Four-way Sight Glass
Donjoy designed many types of Sanitary Sight Glasses, include straight sight glass, union sight glass, tri-clamp sight glass, four-way sight glass, flange sight glass. Constructed from hygienic stainless steel, borosilicate glass for work temperature up to 130-celsius degree, resistant pressure up to 10bar, with FDA-approved gasket, full bore hygienic design, sight glass commonly used in the piping system, tank or vessel, food processing, dairy, daily chemical, pharmaceutical industries.
Details about Sanitary Four-way Sight Glass
Specification
| Connection Size | 1" to 4"(DN25- DN100) |
|---|---|
| Body Material | AISI 304 or 316L, (EN1.4301/EN1.4404). |
| Glass Material | borosilicate |
| Temperature | -10°C to 150°C It depends on the seal |
| Max pressure | 145psi (10bar) |
| Seal | EPDM standard FDA approved |
| Certification | US FDA Certification |
Sanitary Four-way Sight Glass
Donjoy designed many types of Sanitary Sight Glasses, include straight sight glass, union sight glass, tri-clamp sight glass, four-way sight glass, flange sight glass. Constructed from hygienic stainless steel, borosilicate glass for work temperature up to 130-celsius degree, resistant pressure up to 10bar, with FDA-approved gasket, full bore hygienic design, sight glass commonly used in the piping system, tank or vessel, food processing, dairy, daily chemical, pharmaceutical industries.
Sanitary Four-way Sight Glass Manufacturer
Donjoy Technology as Sanitary Four-way Sight Glass manufacturer in China, manufacture sanitary sight glass, sanitary valve, pump, pipe fittings for more than 27 years. With USA 3-A, FDA, EU CE certification.

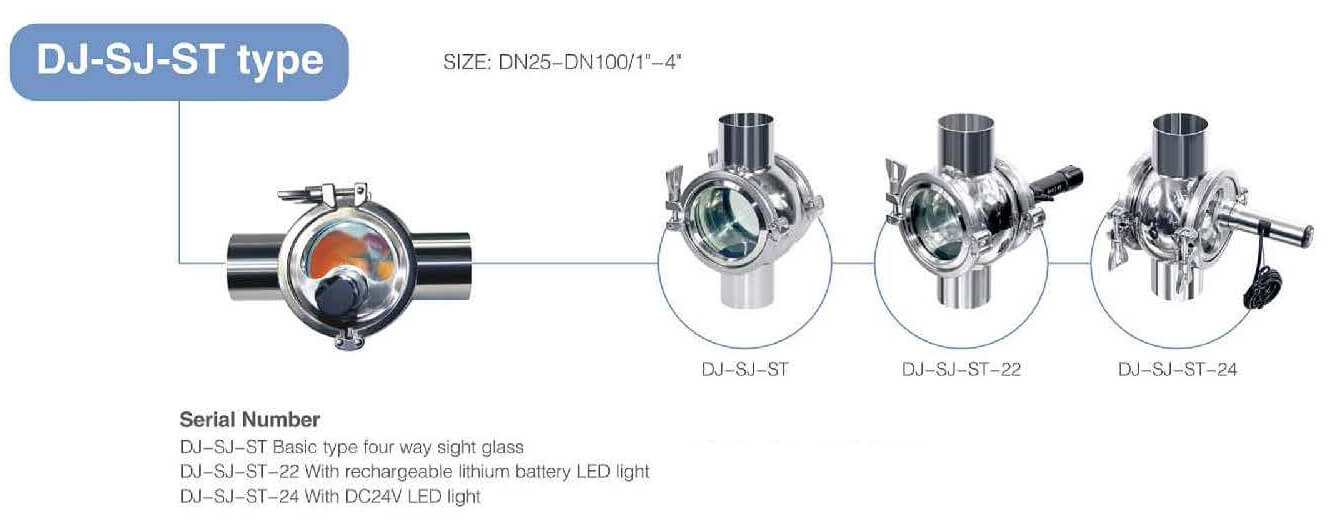

Sanitary Four-way Sight Glass Configuration
Basic type four-way sight glass

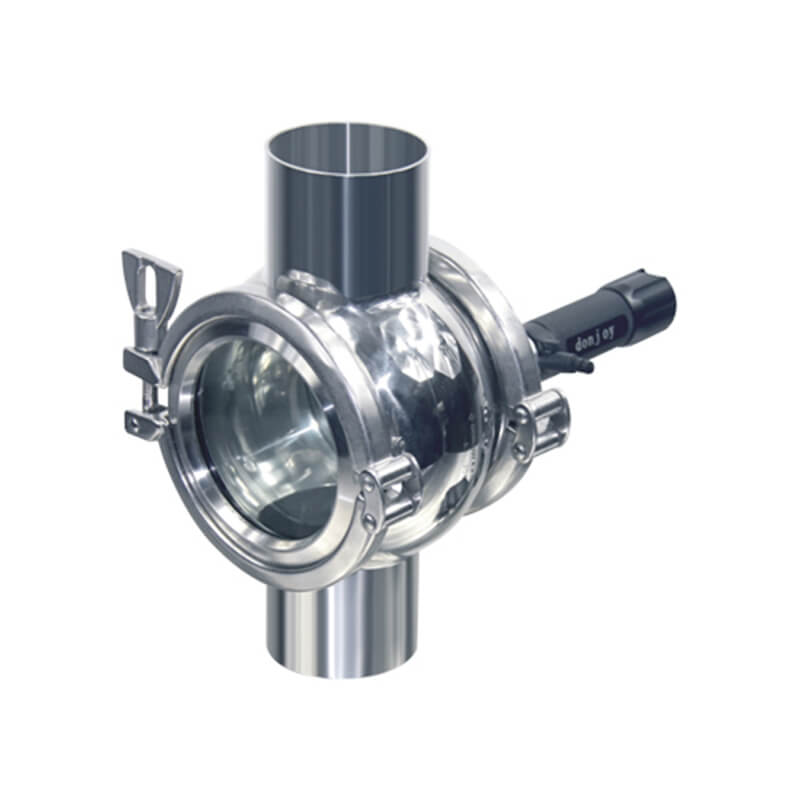

Four-way sight glass with rechargeable lithium battery LED light
Four-way sight glass with line supply by DC24 or AC 110V/220V LED light
Four-way sight glass with wireless light, one charging can use 2-3 months (Depending on the frequency)
Sanitary Four-way Sight Glass Feature
- Non-retention, no dead angles.
- With high light, white cold light source.
- Work temperature -10 to 150-celsius degree for basic type
- Waterproof
- Explosion-proof
Sanitary Four-way Sight Glass Dimension
