Sanitary Pneumatic Angle Seat Valve with Control Top

A sanitary angle seat valve is a pneumatically controlled valve with a piston actuator providing linear actuation to lift a seal off its seat. The seat is set at an angle to provide the maximum possible flow when unseated. Angle seat piston valves are particularly suited to applications where high temperatures and large flow rates are required, such as steam or water, air or gases. When used in reverse some models of angle seat valve will eliminate water hammer when operated.

Sanitary Pneumatic Angle Seat Valve with Control Top

A sanitary angle seat valve is a pneumatically controlled valve with a piston actuator providing linear actuation to lift a seal off its seat. The seat is set at an angle to provide the maximum possible flow when unseated. Angle seat piston valves are particularly suited to applications where high temperatures and large flow rates are required, such as steam or water, air or gases. When used in reverse some models of angle seat valve will eliminate water hammer when operated. (Refer to Wikipedia)



Sanitary Angle Seat Valve Feature:

● Water hammer resistance.
● Without noise when opening or closing.
● No dead angle, non-retention.
● Suitable use for high-temperature fluid, gas, vacuum.
● Small flow resistance.
● Great sealing.



Hygienic Stainless Steel Globe Valve Connections

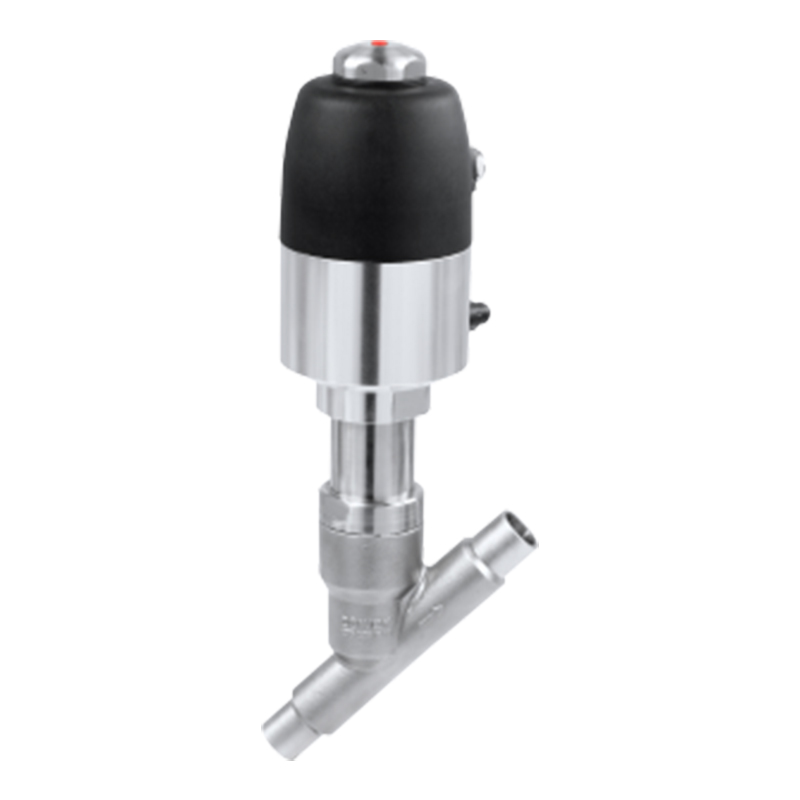

Weld end

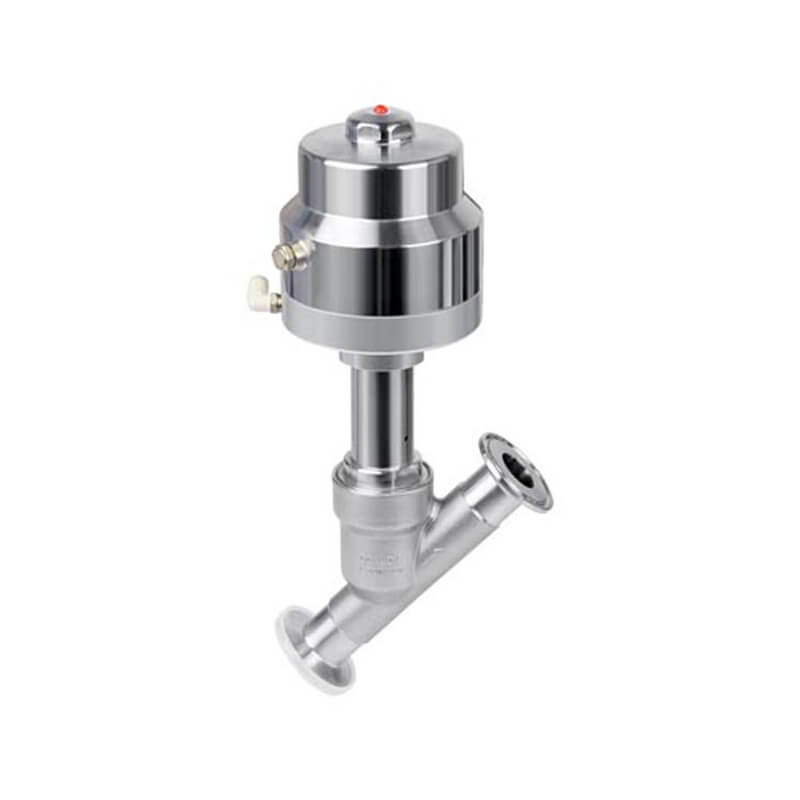

Clamp end
Nut
Male thread

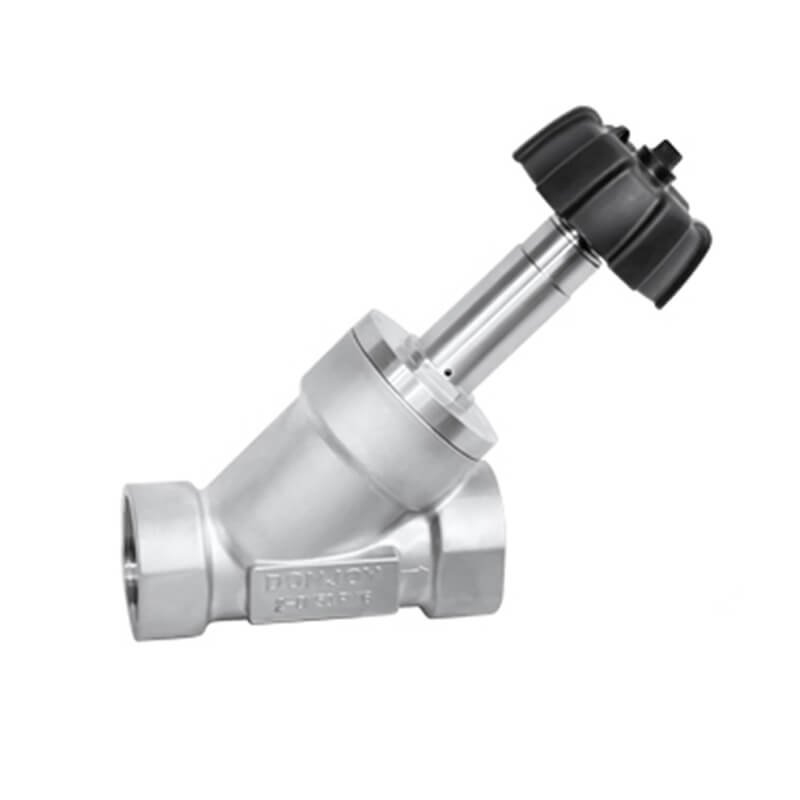

Female thread
Aseptic flange
Flange

sanitary angle seat valve different connections

DONJOY Stainless Steel Angle Seat Valve Different Configuration

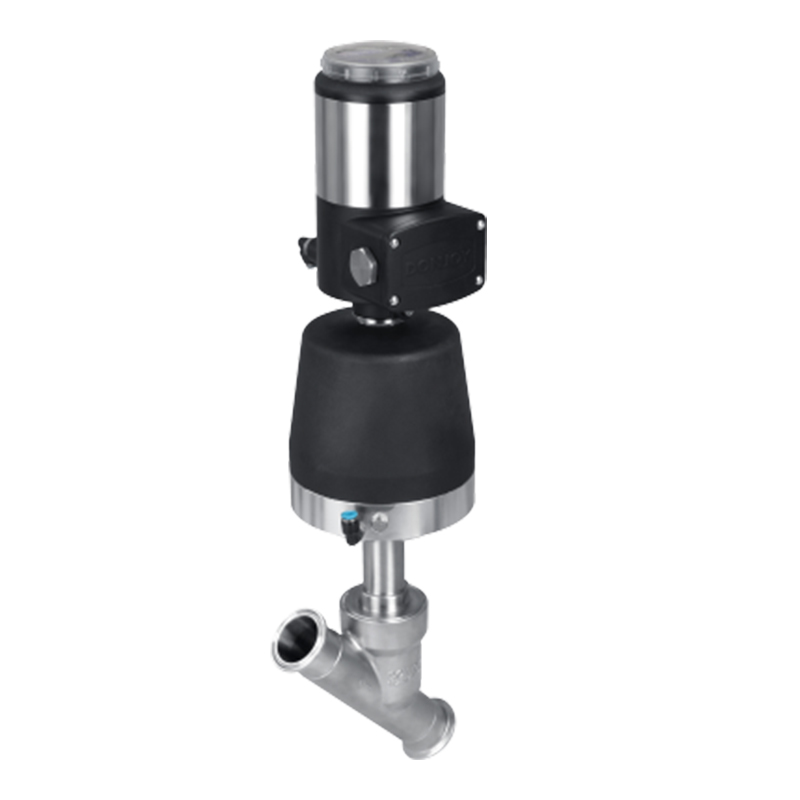

Hygienic Angle seat valve with stainless steel actuator and Positioner

Positioner model is IL-TOP-1831

Input 0/4-20mA, Mode Bus RS485, DC24V

Positioner IL-TOP1831-P

Input 0/4-20mA, feedback 0/4-20mA,0-5/10V

Hygienic Angle seat valve with stainless steel actuator and Control Top on/off

Control top model is C-TOP-1721

PNP 4-20mA,DC24V,

For single-acting actuator C-TOP 1721 with one solenoid valve

For double-acting actuator C-TOP 1721 with two solenoid valves

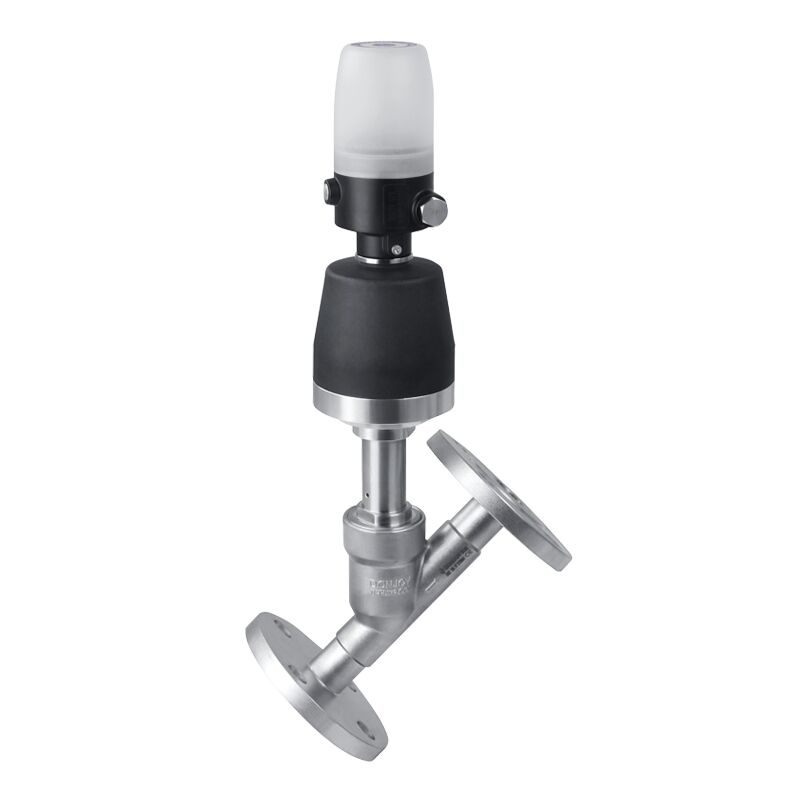

Hygienic Angle seat valve with stainless steel actuator and Position Feedback

Position feedback model is F-TOP-1553

PNP 3 position, 4-20mA,DC24V

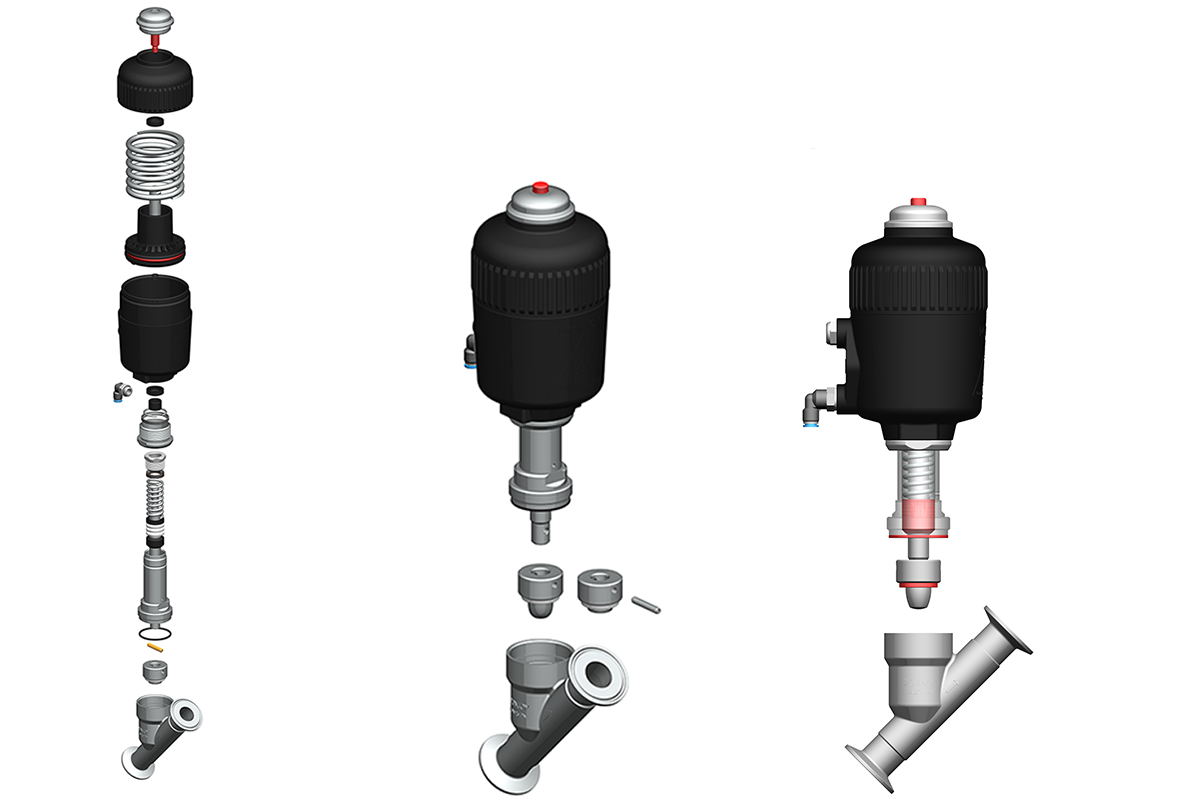

Sanitary Pneumatic Angle Seat Valve with Control Top configuration
Sanitary Pneumatic Angle Seat Valve with Control Top configuration

DONJOY Sanitary Angle Seat Valve KV Curve

sanitary angle seat valve KV
sanitary angle seat valve KV

Hygienic Valve packing



Size

DN10-DN100, 1/2"-4"

Body Material

SS 316L, ASME BPE

Temperature

-20℃ to +150 ℃ (It depends on the seal)

Max pressure

145psi (10bar)

Seal

PTFE/TFM, FDA approved

Pipe Joint Systems

DIN 11864,SMS, RJT, 3A, ISO, IDF

Manual Operation

Stainless steel handwheel, Plastic handle

Pneumatic Operation

Compatible with Single-acting or Double-acting Pneumatic actuator

Surface treatment

Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.

Certification

US 3-A, FDA, CE PED/2014/68/EC, Certification

Connection type

Tri-Clamp End, Thread End, Butt Weld End, Flange End
