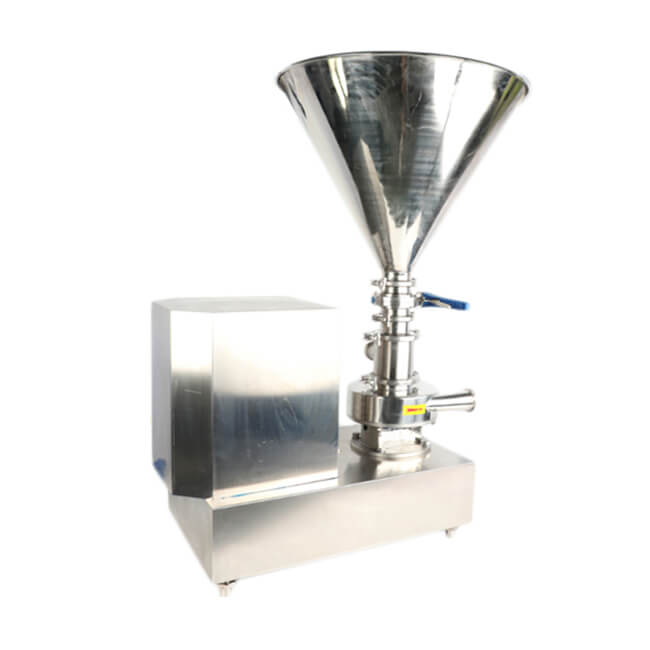

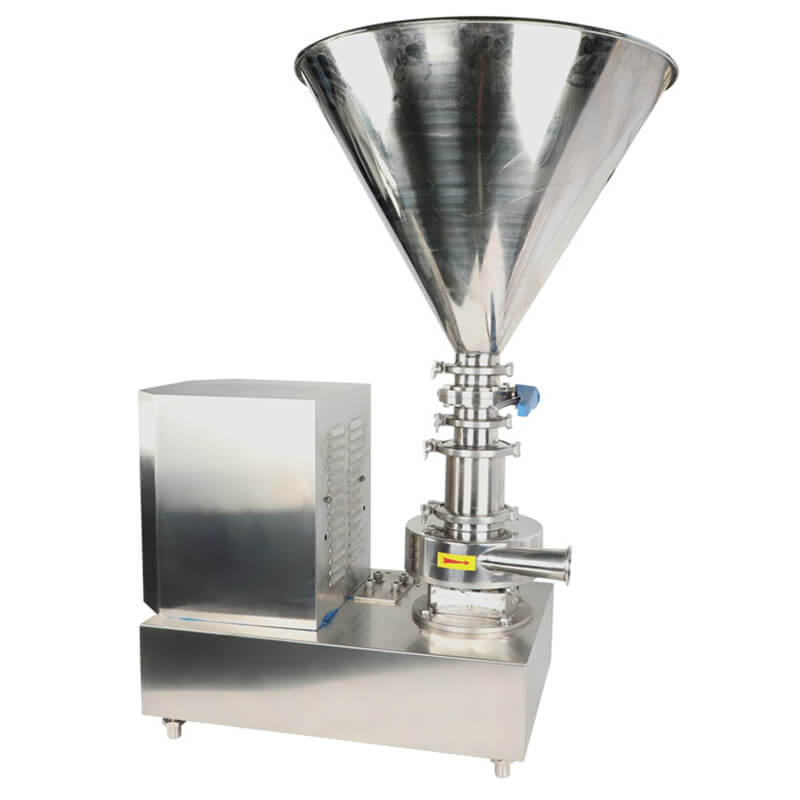

Sanitary Powder/Liquid Mixers

Sanitary Powder/Liquid Mixers used to mix the dry powder with liquid, hygienic stainless steel design, the surface of parts are finely polished, the mechanical seal complied with FDA standard. With an absorption capacity of 9000kg/h dry powders and with a 65-litre liquid hopper, It commonly used in dairy, food and beverage, pharmaceutical, cosmetic and fine-chemical industries…

Details about Sanitary Powder/Liquid Mixers

Specification

Powder max capacity

9000kg/h

Body Material

SS304 OR SS316L

Mechanical Seal

single mechanical seal or double mechanical seal

Max Temperature

130 Celcius degree

Motor Brand

ABB motor

Surface treatment

Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.

Certification

US 3-A 02-11, FDA21 CFR 177.2600

Connection type

Tri-Clamp End, Butt Weld End, Thread, Flange

Sanitary Powder/Liquid Mixers

Donjoy Sanitary Tri-Blender used to mix the dry powder with liquid, hygienic stainless steel design, the surface of parts are finely polished, the mechanical seal complied with FDA standard. With an absorption capacity of 9000kg/h dry powders and with a 65-litre liquid hopper, It commonly used in dairy, food and beverage, pharmaceutical, cosmetic and fine-chemicals industries…



Tri-Blender High Shear Mixer Optimization

Upgraded and optimized in 2019: with protective motor cover; optimized inlet flow channel; optimized support structure (integrated design); optimized belt pulley fixing method, etc.



Sanitary Powder/Liquid Mixers Structure

Sanitary Tri Blender Liquid Powder Mixer structure
Sanitary Tri Blender Liquid Powder Mixer structure

Tri-Blender Powder/Liquid Mixers Feature:

  • Multiple tasks can be handled simultaneously
  • The ratio of liquid and powder is adjustable
  • The powder inlet is designed with a valve, which can control the amount of powder inhaled through the valve. The valve can be manual or pneumatic.
  • The liquid inlet is designed with a valve, and the liquid can be sucked through the valve to control the flow rate.
  • A vibrator is designed on the side of the hopper to prevent powder accumulation
  • The hopper can be equipped with a tuning fork sensor, which can prevent the powder from overflowing the hopper and the powder amount is too low to cause the mixture ratio to be inconsistent during automatic operation
Stainless Steel Tri blender working
Stainless Steel Tri blender working

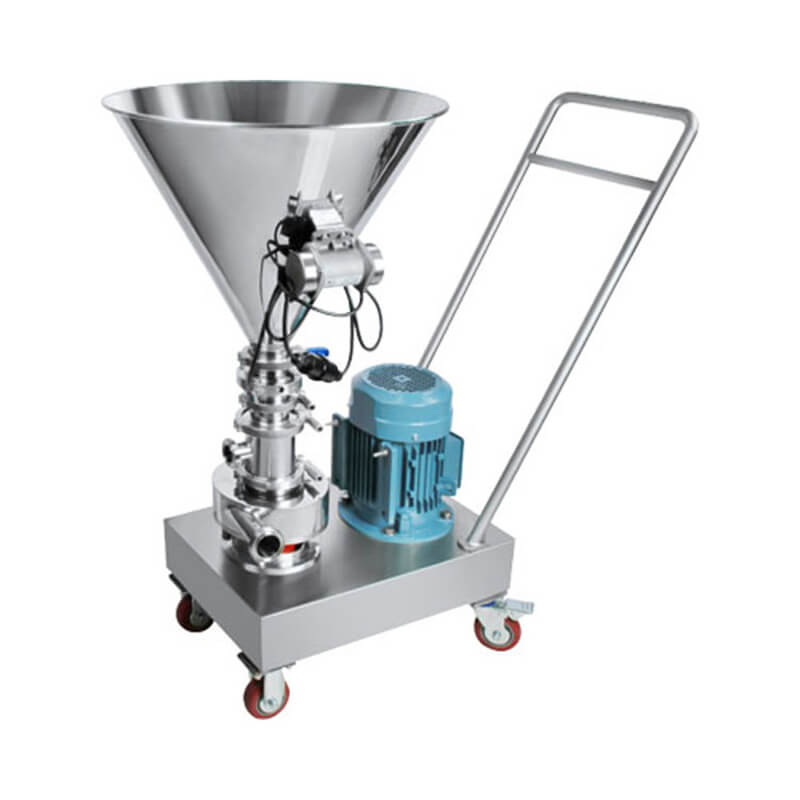

DONJOY Powder/Liquid Tri-blender different configurations and combinations



Tri blender different configurations and combinations

Sanitary Tri-Blender Liquid-Powder Mixer Selection table

Sanitary Tri Blender Liquid Powder Mixer Selection table

DONJOY Liquid-Powder Mixer Specification

Sanitary Tri Blender Liquid Powder Mixer Specification



Sanitary Tri-Blender Mixer applications

Sanitary Tri Blender Liquid Powder Mixer applications

Hygienic centrifugal pump packing
