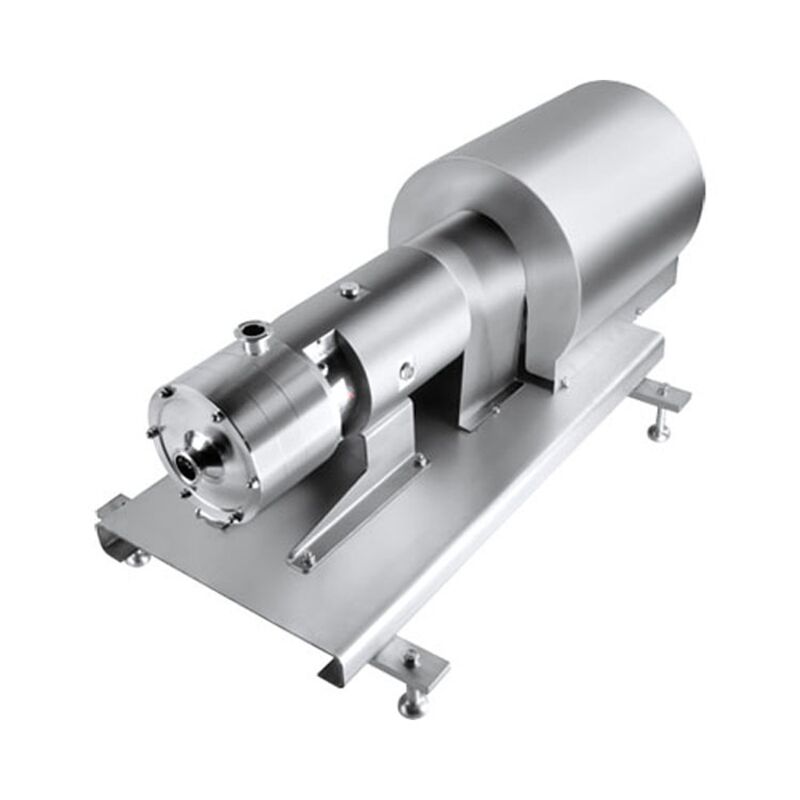

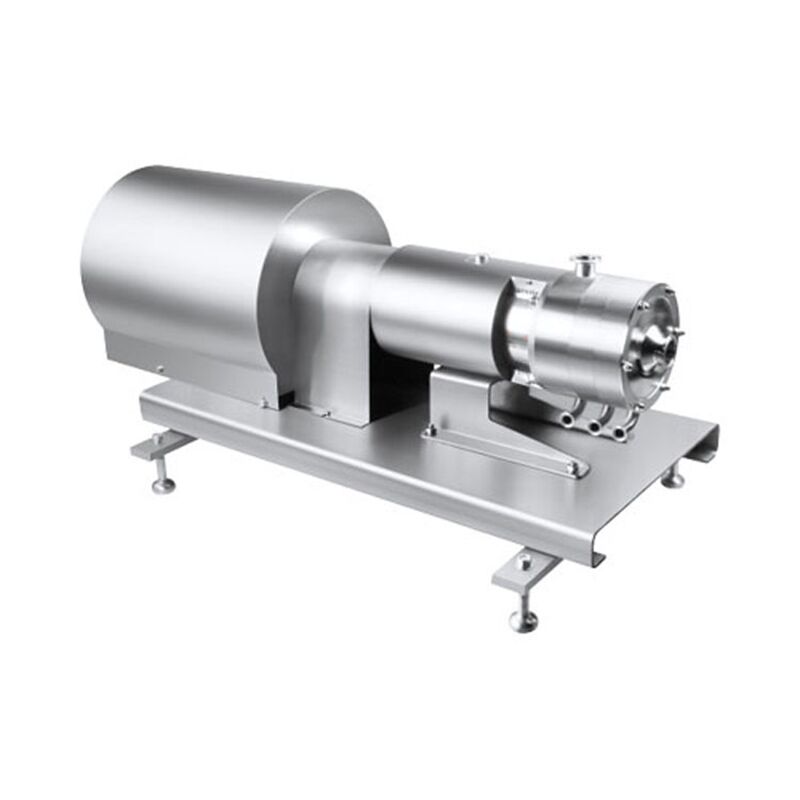

Emulsifying Homogenizer Pump Three-stage

Emulsifying Homogenizer Pump Three-stage is consist of stator and rotor, It’s three-stage inline dispersing emulsification equipment. The materials are dispersed, sheared, refined, crushed, emulsified, mixed and homogenized by 6-10 layers of rotor and stator. The material refinement to 60 GRIT about 300μm. Hygienic design, the surface of parts are finely polished, the mechanical seal complied with FDA standard. It is commonly used in dairy, food processing, beverage, pharmaceutical, cosmetic and fine-chemicals industries…

Details about Emulsifying Homogenizer Pump Three-stage

Specification

Flow rate

40 m³/h

Body Material

AISI 316L (1.4404)

Mechanical Seal

single mechanical seal SIC/C/EPDM, double mechanical seal (recommend),

Max Power

45KW wide voltage 2P

Motor Brand

ABB motor, Simens Beide motor ,standard B35, IEC

Temperature

-20 to 140°C

Inlet & Outlet Sizes

1 1/2"-3" (DN40-DN80)

Surface treatment

Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.

Certification

US 3-A 02-11, FDA21 CFR 177.2600

Connection type

Tri-Clamp End, Butt Weld End, Thread, Flange

Emulsifying Homogenizer Pump Three-stage

Emulsifying Homogenizer Pump Three-stage is consist of stator and rotor, It’s three-stage inline dispersing emulsification equipment. The materials are dispersed, sheared, refined, crushed, emulsified, mixed and homogenized by 6-10 layers of rotor and stator. The material refinement to 60 GRIT about 300μm. Hygienic design, the surface of parts are finely polished, the mechanical seal complied with FDA standard. It is commonly used in dairy, food processing, beverage, pharmaceutical, cosmetic and fine-chemicals industries…



Inline Homogenizer Mixer Structure

Emulsifying Homogenizer Pump Three stage Structure
Emulsifying Homogenizer Pump Three stage Structure
Emulsifying Homogenizer Pump Three stage Parts
Emulsifying Homogenizer Pump Three stage Parts

Inline Homogenizer Emulsification Pump Feature:

● Continuous large production capacity, materials 100% through the dispersing and shearing.
● Hygienic stainless steel design
● 3A sanitary standards, IEC B35 motors, IP55, F-class insulation, 50HZ/60HZ.
● Easily maintenance, no need special tools and staff.
● No damage when starting the test, even if there is a brief reverse rotation
● Compatible with single and double mechanical seal, easy to change.



Inline Emulsifying Homogenizer Pump Mechanical Seal

Emulsifying Homogenizer Pump Three stage Mechanical Seal
Emulsifying Homogenizer Pump Three-stage Mechanical Seal



Mechanical seal configurations:

  1. SIC/C/EPDM  Standard others are options
  2. SIC/C/FKM
  3. SIC/C/HNBR
  4. SIC/SIC/EPDM
  5. SIC/SIC/FKM
  6. SIC/SIC/HNBR
  7. TC/TC/EPDM
  8. TC/TC/FKM
  9. TC/TC/HNBR

Homogenizer Mixer Manufacturer

Donjoy Technology is a Homogenizer Mixer manufacturer in China, manufactured sanitary pumps and valves for more than 28years. The Inline Homogenizer Emulsification Pump mechanical seal is cooperative researched and developed with the European Swedish company. The mechanical seal is designed with pressure balance and super long working life, easily disassemble and maintenance without special tools. Complied with EU EHEDG, USA 3-A-02-11, FDA1772600.



Emulsifying Homogenizer Three-stage

Emulsifying Homogenizer Pump Three stage Working Diaphragm
Emulsifying Homogenizer Pump Three-stage Working Diaphragm



Inline emulsifying homogenizer pump Connection

Inline High Shear Homogenizer Pump Connection

Emulsifying homogenizer pump Data

Emulsifying Homogenizer Pump Three stage Data
Emulsifying Homogenizer Pump Three stage Data

Hygienic centrifugal pump packing

Frequency Ask Question

Please firstly leave message below for product you need and requirement,I will send you quotaion sheet,then choose the transportation way and check cost,we will send you Proforma invoice for confirm,at last make the payment and we will ship the goods to you.

Delivery time depends on quantity and type of products,for valve and pipe fittings regular is about 7-20days. For pump regular is about 15-25days.

We offer 1 year warranty to our products.

For small amount we require 100% before production.For big amount,regularly T/T 30% deposit, 70% before shipment.

By Bank T/T, L/C, By Alibaba Assurance Order accept Credit Card VISA, Mastercard, E-checking, and we could’t accept Paypal.
