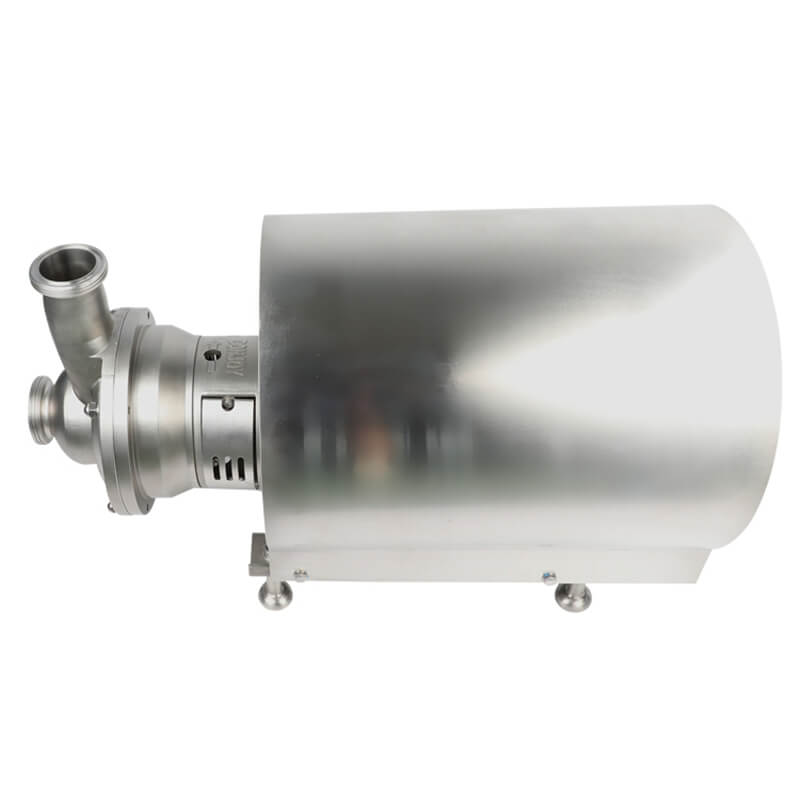

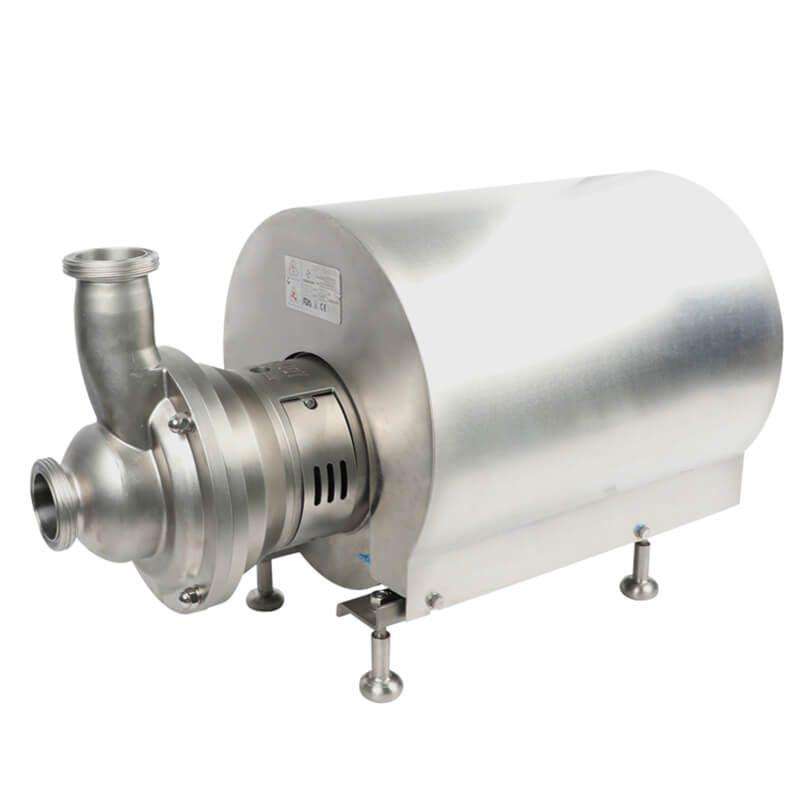

Sanitary Self-priming Stainless Steel CIP Pump

Donjoy Sanitary Self-priming Pump is carefully engineered with high performance, superior self-priming suction force up to 8 meters, negative pressure -0.8bar, could pump beneath the level of the liquid. The outlet angle could be adjustable from 0 to 135 degree. Constructed from SS304 or SS316L. Hygienic design, comply with US 3-A, FDA standard. It commonly used in CIP solution, beverage, dairy, water, pharmaceutical and fine-chemicals industries…

Details about Sanitary Self-priming Stainless Steel CIP Pump

Specification

Flow rate

40 m³/h

Maximum lift head

42M(4.2bar)

Max suction

8meters (-0.8bar)

Body Material

AISI 304 (1.4301), AISI 316L (1.4404)

Seal

single mechanical seal SIC/C/EPDM (standard), double mechanical seal (option),

Motor Power Supply

1.1KW-45KW wide voltage 2P

Motor Brand

ABB motor, Simens Beide motor ,standard B35, IEC

Temperature

-20 to 130°C

Inlet & Outlet Sizes

2"-3" (DN40-DN80)

Surface treatment

Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.

Certification

US 3-A 02-11, FDA21 CFR 177.2600, CE EN809:1998/A1 2009, EN60204-1:2006/A1:2009

Connection type

Tri-Clamp End, Butt Weld End, Thread, Flange

Sanitary Self-priming Stainless Steel CIP Pump

Donjoy Stainless Steel Sanitary CIP Pump is carefully engineered with high performance, superior self-priming suction ability up to 8 meters, negative pressure -0.8bar, could pump beneath the level of the liquid. The outlet angle could be adjustable from 0 to 135 degrees. Constructed from SS304 or SS316L. Hygienic design, comply with US 3-A, FDA standard. It is commonly used in CIP solutions as CIP pumps, beverage, dairy, hot water, pharmaceutical and fine-chemicals industries…



Sanitary Stainless Steel Self-priming Pump Structure

We have two types of self-priming pump, CIP-L and CIP-U self-priming pump.

Sanitary Self priming Pump CIP L

Sanitary Self priming Pump Construction2



Hygienic Self-priming CIP Pump Feature:

● Superior self-priming suction force up to 8 meters, negative pressure -0.8bar, could pump beneath the level of the liquid
● High efficiency and low nose.
● The outlet angle could be adjustable from 0 to 135 degree.
● Pure stainless steel design, complied with ASME BPE and EHEDG standards.
● 3A sanitary standards, IEC B35 motors, IP55, F-class insulation, 50HZ/60HZ.
● Easily maintenance, no need special tools.
● Compatible with single and double mechanical seal, easy to change.
● With stainless steel base plate & adjustable feet.



Sanitary Self-priming CIP Pump Mechanical Seal



Sanitary Self priming Pump Mechanical Seal

Sanitary Self priming Pump Construction

Donjoy Technology is Sanitary Self-priming Pump manufacturer in China, manufacture sanitary pump and valve more than 27years. The Sanitary Self-priming Pump mechanical seal is cooperative researched and developed with the European Swedish company. The mechanical seal is designed with pressure balance and super long working life, easily disassemble and maintenance without special tools. Complied with EU EHEDG, USA 3-A-02-11, FDA1772600.

Mechanical seal configurations:

  1. SIC/C/EPDM  Standard others are options
  2. SIC/C/FKM
  3. SIC/C/HNBR
  4. SIC/SIC/EPDM
  5. SIC/SIC/FKM
  6. SIC/SIC/HNBR
  7. TC/TC/EPDM
  8. TC/TC/FKM
  9. TC/TC/HNBR



Sanitary Multi-stage Centrifugal Pump Curve

Sanitary Self priming Pump Curve 1

Sanitary Self priming Pump Curve 2



Hygienic centrifugal pump packing

Sanitary Centrifugal Pump use for customer’s project

Sanitary Centrifugal Pump use for customers project20190423 174501
