DONJOY Pump Food Grade Lobe Pump

DONJOY Pump Food Grade Lobe Pump is a positive displacement pump, Robust construction, low maintenance, cost-effective. Hygienic design complied with ASME BPE, EHEDG standards, US 3-A, FDA hygienic standard, the most common pump used to transfer high viscosity fluids solid and particle,  It offers a comprehensive range of pumps intended for hygienic applications in the food processing, dairy, beverage, home care and personal care and pharmaceutical industries…

Details about DONJOY Pump Food Grade Lobe Pump

Specification

Maximum Flow Rate

50 m³/h

Maximum pressure

150M(15bar)

Max speed

750 rpm

Body Material

AISI 304 (1.4301), AISI 316L (1.4404)

Body Types

Horizontal Type (TUL) & Vertical Type (TUR)

Mechanical Seal

single seal SIC/SIC/EPDM (standard), double mechanical seal (option)

Motor Power Supply

0.75KW-18.5KW wide voltage

Motor Brand

ABB motor, Simens Beide motor ,standard IEC

Inlet & Outlet Sizes

1"-4" (DN25-DN100)

Max Temperature

150℃/302°F

Surface treatment

Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.

Certification

US 3-A 02-11, FDA21 CFR 177.2600, CE EN809:1998/A1 2009, EN60204-1:2006/A1:2009

Connection type

Tri-Clamp End, Butt Weld End, Thread, Flange

DONJOY Pump Food Grade Lobe Pump

DONJOY Pump Food Grade Lobe Pump is a positive displacement pump, Robust construction, low maintenance, cost-effective. Hygienic design complied with ASME BPE, EHEDG standards, US 3-A, FDA hygienic standard, the most common pump used to transfer high viscosity fluids solid and particle,  It offers a comprehensive range of pumps intended for hygienic applications in the food processing, dairy, beverage, home care and personal care and pharmaceutical industries…



Sanitary TU-L/R Lobe Pump Description

Donjoy rotary lobe pumps provide reliable performance, trouble-free operation and superior energy efficiency for demanding applications. Donjoy lobe pump has many configurations, TU-series is standard configuration, STU-series is all stainless steel. It is an excellent choice for duties that require contamination-proof pumps to meet high standards of hygiene, low-shear and low-pulsation operation. This 3-A approved pump handles both Cleanings in Place and Sterilization in place and can be supplied with thorough documentation to support rigorous validation requirements.



Food Grade TU L/R Rotary Lobe Pump Structure

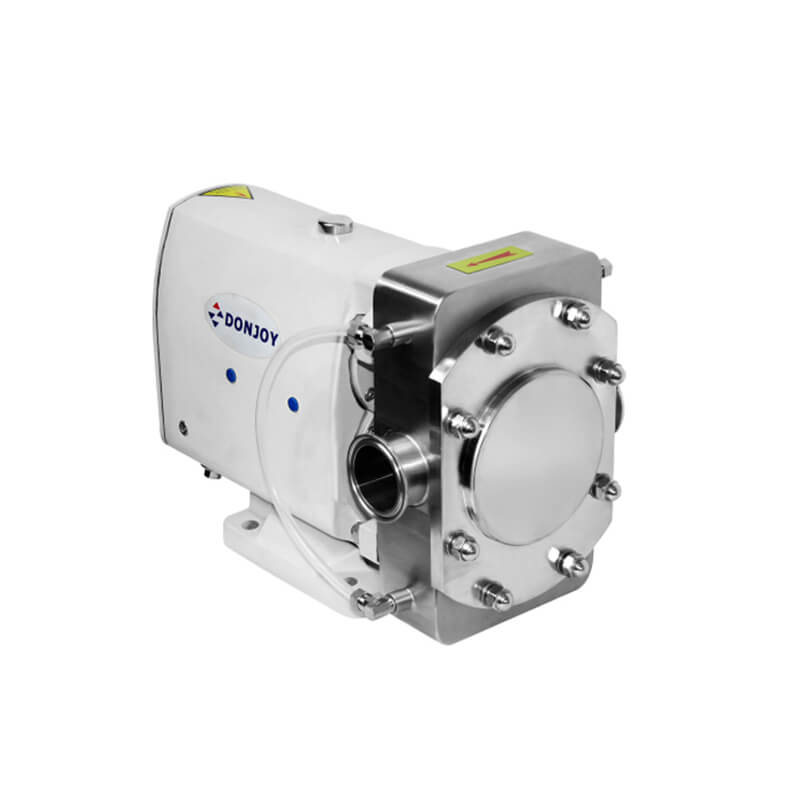

TUL standard for horizontal inlet and outlet.

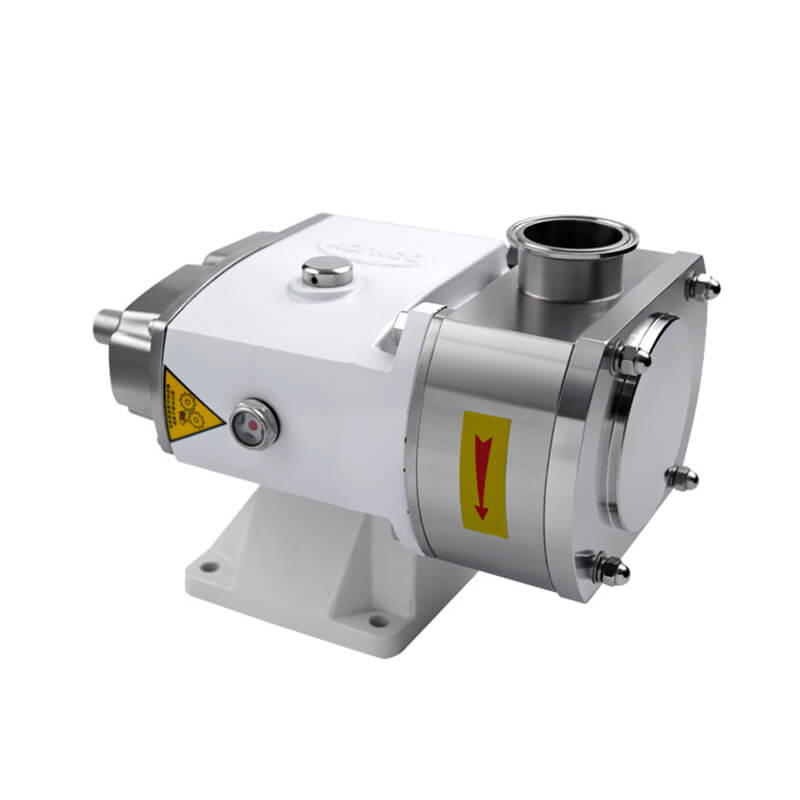

TUR standard for vertical inlet and outlet.

Sanitary Rotary Lobe Pump Configuration



Hygienic Rotary Lobe Pump Feature:

● High Purity, Low Noise
● High pressure to 20 bar
● Variety of lobe options: butterfly, single, bi-wing, and tri-lobe.
● Hygienic designed according to 3A FDA standard
●Sanitary mechanical seal, easy cleaning and maintenance
● Applied to CIP cleaning and SIP sterilization

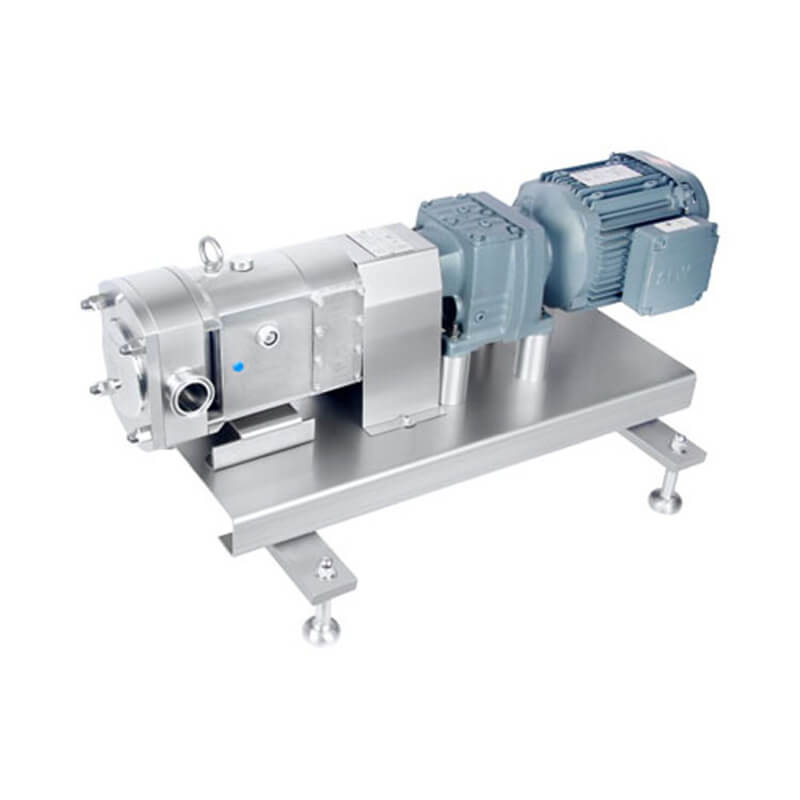

● Different drives and devices

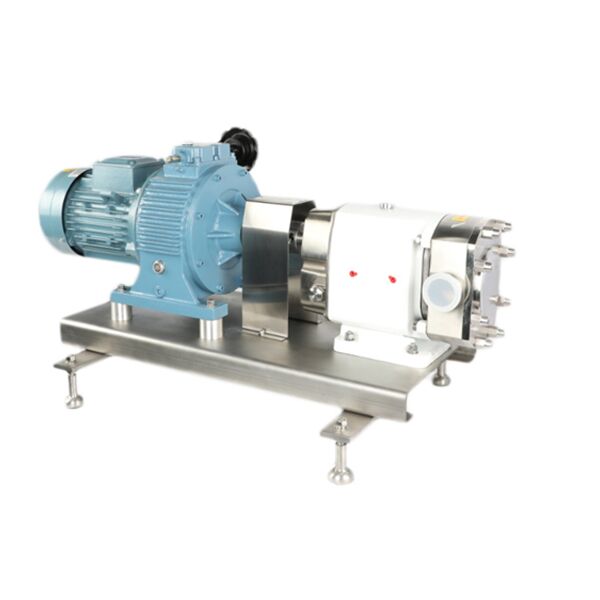

1) Manual adjustment, continuously variable transmission
2) Variable–frequency motor adjustment
3) Fixed speed output transmission
● Motor utilizes the IEC EN IE2, PTC thermistor.

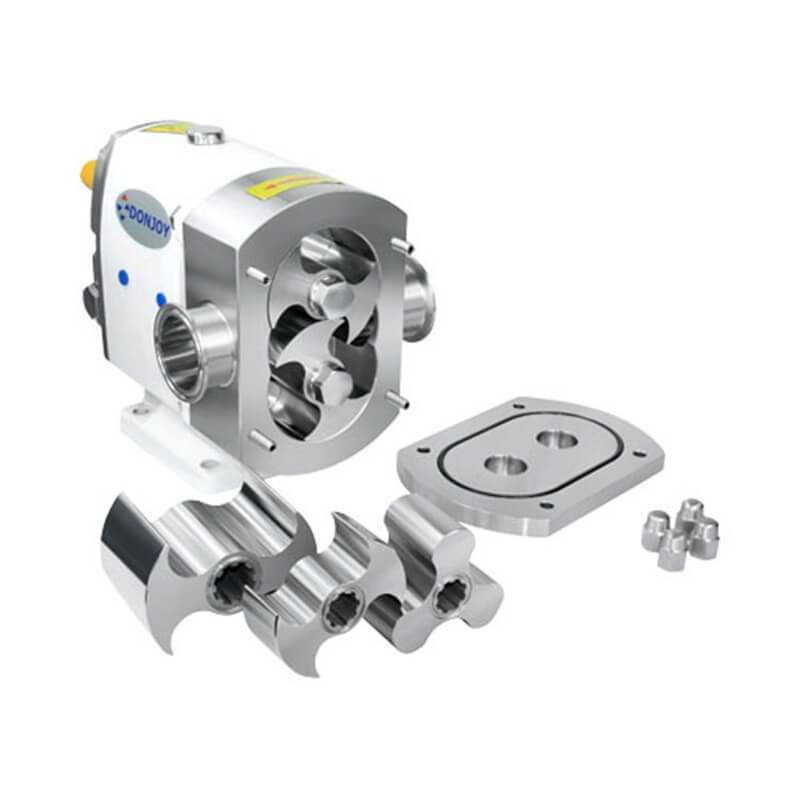

Rotor Selections for rotary lobe pump

  1. Butterfly Rotor: Suitable for transporting material, with low particle breakage rate and small pulse. (Recommend)
  2. 3-Leaves Rotor: Suitable for transporting all kinds of material, with particle breakage rate and smaller pulse than butterfly rotor
  3. Spiral Self-priming Rotor: With strong self-priming capability could transport with particle, gas-liquid, mixture, oil, dairy products, etc. It also extracts and transports all kinds of sewage, sludge, cow dung.
  4. Single Butterfly Rotor: Suitable for transporting material with large particles, with low particle breakage rate for large particle, large pulse, low pressure and small volume.
  5. 2-Leaves Rotor: Suitable for transporting all kinds of material, with particle breakage rate, large pulse, low pressure and small volume.
  6. 5-Leaves Rotor: Suitable for transporting all kinds of material, with high particle breakage rate, very small pulse and smaller flow.

Sanitary Rotary Lobe Pump Rotors2

Lobe Pump Various Configurations

Sanitary Rotary Lobe Pump Configuration1

Sanitary Rotary Lobe Pump Configuration2

Sanitary Rotary Lobe Pump Configuration3

Sanitary Rotary Cam Pump Curve

Sanitary Rotary Lobe Pump Curve

Sanitary Rotary Rotor Pump Dimension

Sanitary Rotary Lobe Pump TUL Dimension

DONJOY Lobe pump Manufacturer

DONJOY Technology as a sanitary lobe pump manufacturer in China, with more than 12 years of experience, offers the best quality lobe pump and direct sale factory price. Donjoy supports famous world brands e.g. Unilever, P&G, Colgate, Budweiser, Coca Cola, Nestle, Johnson&Johnson, Pfizer… our quality is approved by our customers.
