Single Seat Divert Valve
Donjoy Technology offers a variety of hygienic shutoff diverter valves. Manually, Pneumatically, can work with Control Top or Positioner. Hygienic design meets US 3-A standard. It is widely used in food processing, dairy, beverage, pharmaceutical and fine chemicals industries, etc. Valves are operated automatically by a single-acting or a double-acting pneumatic actuator. By supplying compressed air, the shaft is moved to place the valve in “open” or “closed” position. The interchange of normally open and normally closed function can be realized by rotating 180° of the cylinder.
Details about Single Seat Divert Valve
Specification
| Size | DN25-DN100, 1"-4" |
|---|---|
| Body Material | AISI 304 or 316L, (EN1.4301/EN1.4404). |
| Temperature | -30℃ to +150 ℃ (It depends on the seal) |
| Max pressure | 145psi (10bar) |
| Seal | EPDM, Silicone, FKM, FFKM, TEFLON, PTFE, HNBR, NBR, FDA approved |
| Pipe Joint Systems | DIN SMS RJT 3A ISO IDF |
| Manual Operation | Stainless steel handwheel, Stainless steel actuator, Positioner |
| Pneumatic Operation | Compatible with Single-acting or Double-acting Pneumatic actuator |
| Surface treatment | Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default. |
| Certification | US 3-A, FDA, CE PED/2014/68/EC, Certification |
| Connection type | Tri-Clamp End, Thread End, Butt Weld End |
Single Seat Divert Valve
Donjoy Technology offers a variety of hygienic shutoff diverter valves. Manually, Pneumatically, can work with Control Top or Positioner. Hygienic design meets US 3-A standard. It is widely used in food processing, milk, dairy, beverage, pharmaceutical industries, etc. Valves are operated automatically by a single-acting or a double-acting pneumatic actuator. By supplying compressed air, the shaft is moved to place the valve in “open” or “closed” position. The interchange of normally open and normally closed function can be realized by rotating 180° of the cylinder.
Hygienic Shutoff and Diverter Valve Feature:
● Unique design, sterile, no dead angle
● Compact and robust design, 360° adjustable body.
● Normally closed (NC) as the default, the NC and NO functions are interchangeable by rotating 180° of the cylinder.
● Easy assembly/disassembly by loosening clamp in the middle of the valve body
● Hygienic design according to 3A standard, CE, FDA certified.
● The manual handwheel, pneumatic actuator are interchangeable.
● 100% hydraulic tested / 100% inspected
Pneumatic Sanitary Shutoff Diverter Valve Specification:
| Item | Pneumatic Stainless Steel Sanitary Diverter Valve |
| Size | DN25-DN100,1″-4″ |
| Working temperature | -10ºC to 120ºC EPDM, (140ºC for SIP,max 30min) |
| Working pressure | 10 bar, 145 psi |
| Compressed air pressure | 5.0-7.0 bar |
| Air connection | G1/8″ (BSP) |
| Internal surface finish | Ra<0.8um |
| External surface finish | Sandblast or mirror polish |
| Material | AISI316L/AISI304 |
| Gasket (standard) | EPDM in compliance with FDA 177.2600 |
| Gasket (option) | FPM in compliance with FDA 177.2600 |
| Connections | DIN, SMS, RJT, IDF |
| Normal pneumatic operation | Single-acting pneumatic actuator |
| Optional pneumatic operation | Double-acting pneumatic actuator |
| Option 2 | External position sensor |
| Option 3 | Steam barrier (if shaft sterilisation is required) |
| Option 4 | Body jacket insulation |
| Option 5 | Valve position regulator |
| Option 6 | Double stop actuator |
| Option 7 | Diaphragm type valve cavity |
| Option 8 | C-TOP control unit. |
Hygienic Diverter Valve Dimension
Sanitary Diverter Valve Price
DONJOY as a sanitary diverter valve manufacturer in China offers directly sale factory prices for hygienic diverter valves. More than 27 years experience in design and manufacturing sanitary valves, with US 3A, FDA certificate.
Great quality sanitary diverter valve, It’s trustable, support brands e.g. Unilever, P&G, Colgate, Budweiser, Coca Cola, Nestle…
Please send an email for the best sanitary diverter valve price, reply within 24 hours.

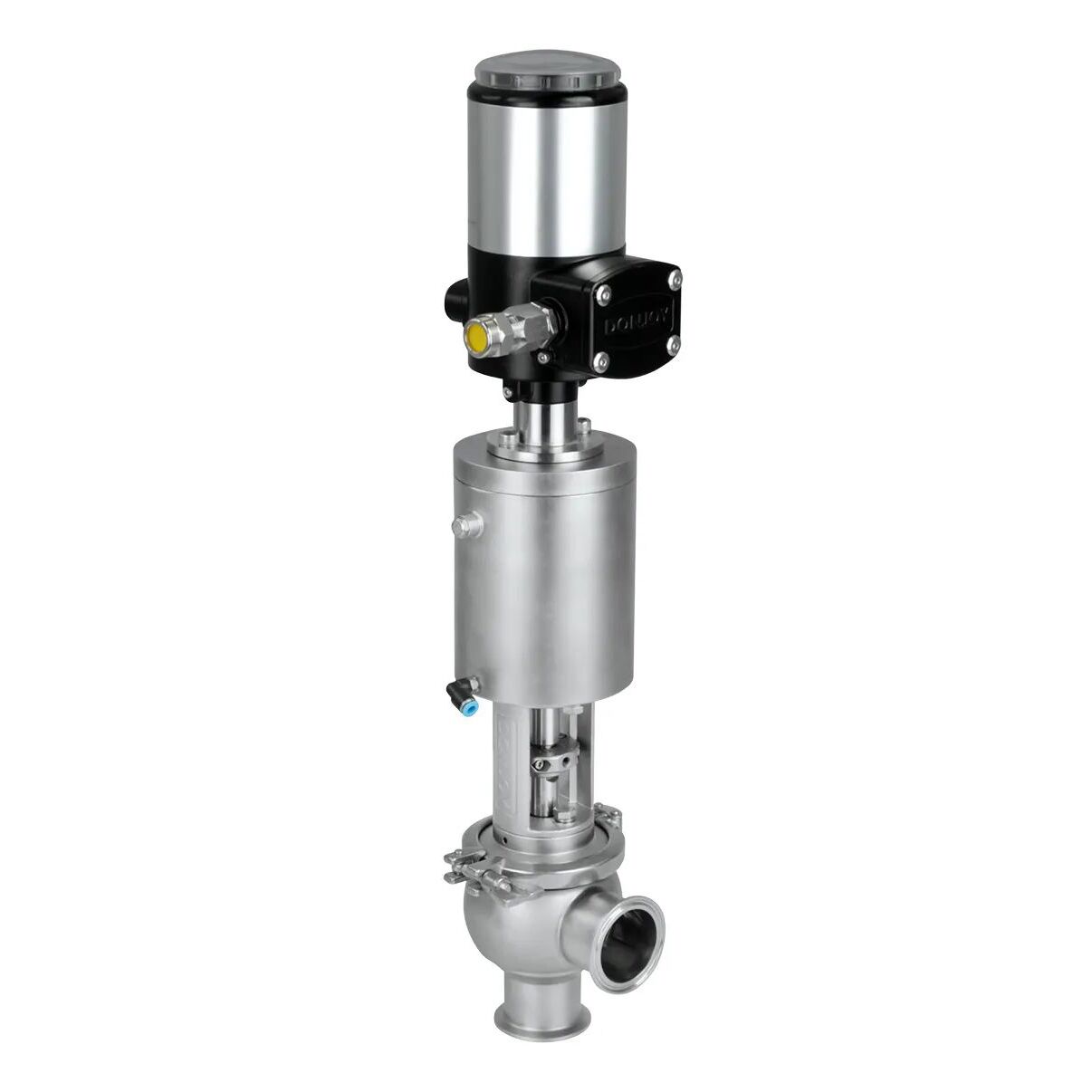

Single Seat Divert Valve with Control Top
It can be with many control tops,
C-TOP-1721-PNP, input and output PNP signal
C-TOP-1721-ASI, supports AS-I communication
C-TOP-1721-IO-Link, supports IO-Link communication
If you looking for a sanitary regulating valve, please kindly check the below
If you looking for a Pneumatic Stainless Steel Sanitary Diverter Valve, please kindly check the below
Hygienic Double Seat Diverter Valve Packing
Our sanitary Pneumatic Shut-Off Diverter Valve used for customer’s project
