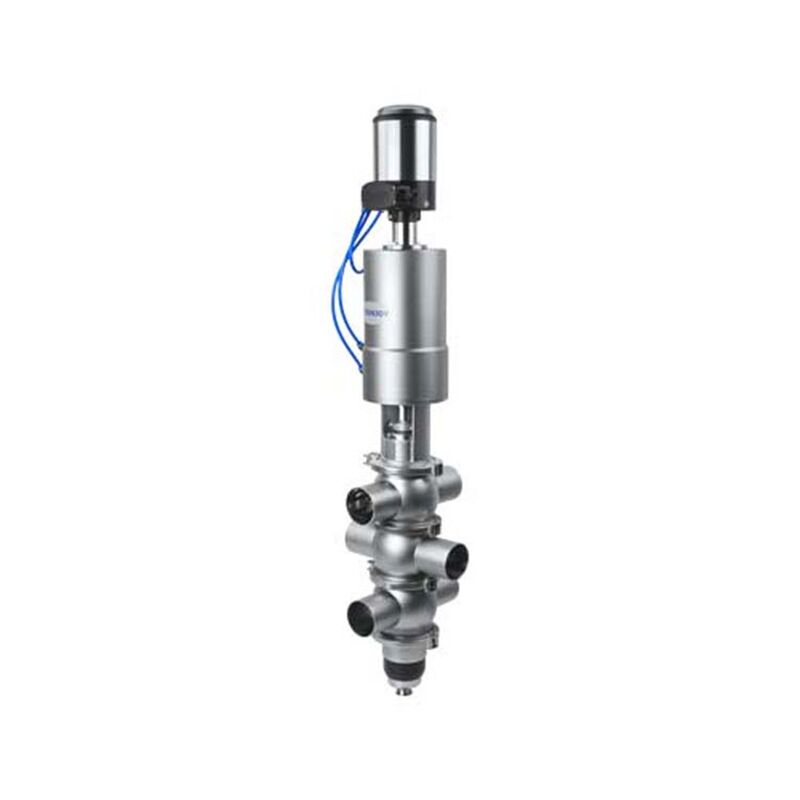

Double Seat Mixproof Valve Array

Double Seat Mixproof Valve Array is designed to allow two different products to flow through the valve at one time without risking cross-contamination, providing separation, CIP capable and leakage detection. Hygienic design meets US 3-A standard. It is widely used in food processing industries, mostly in dairy and beverage. Mix Proof Valve can work with think top.

Details about Double Seat Mixproof Valve Array

Specification

Size

1 1/2" to 4" (DN40-DN100)

Body Material

AISI 316L

Temperature

14°F to 266°F (-10 to 130°C)

Max pressure

145psi (10bar)

Seal

EPDM, Silicone, FKM, FFKM, TEFLON, PTFE, HNBR, NBR, FDA approved

Pipe Joint Systems

DIN 3A

Operation

pneumatic actuator + Control-TOP

Surface treatment

Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.

Certification

US 3-A, FDA, CE PED/2014/68/EC, Certification

Connection type

Tri-Clamp End, Butt Weld End

Double Seat Mixproof Valve Array

Double Seat Mixproof Valve Array is designed to allow two different fluids to flow through the valve at one time without risking cross-contamination, providing separation, CIP capable and leakage detection. Hygienic design meets US 3-A standard. It is widely used in food processing, dairy and beverage, pharmaceutical industries. Mix Proof Valve can work with think top.

Sanitary Double Seat Mixproof Valve

Hygenic Double Seat Mixproof  Valve Matrix Feature:

● Continuous production capabilities, CIP cleaning and liquid processing at the same time.
●  leakage chamber and the leakage detector could be self-cleaned by lifting off the seat
● Two independent plug seals
● One-piece Body & Clamped Body for choose from
● A wide selection of different body combinations.
● Easy disassembly by releasing the clamp
● Cleaning/Sterilization Parts for Options
● Ease of maintenance and service
● 100% hydraulic tested / 100% inspected

Operations

● Actuators
Stainless steel actuator
● Units for intelligent control and indication:
C-top control (on/off control unit)
IL-top control (Positioner)
Electric connection
AS-I bus connection

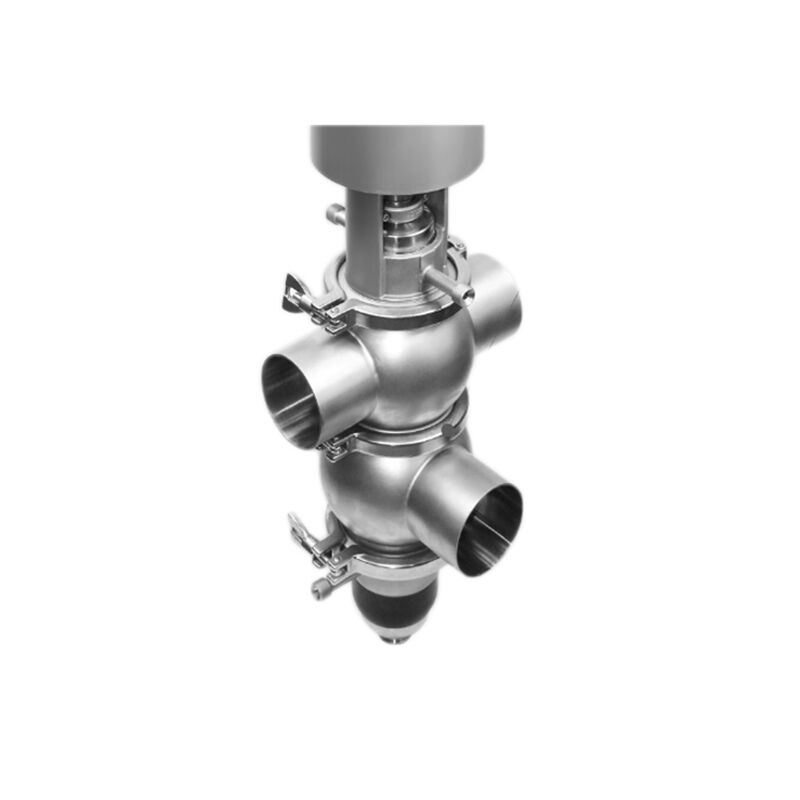

DONJOY Double Seat Mixproof  Valve Body

Sanitary Double Seat Mixproof Valve Different Body
Sanitary Double Seat Mixproof Valve Different Body

Sanitary Double Seat Mixproof Valve Body

Double Seat Mixproof Valve Working Principle

● Lift type mixing proof valve is remotely operated by compressed air. It is normally closed before running.
● The mixing proof valve is constructed with two independent plugs, which will form a leakage chamber to atmosphere under normal working status. When occasional failure causes leakage happens, the medium will flow into the chamber and be discharged at the outlet port.
● The leakage chamber is closed when the valve is operating, the medium can flow through one pipeline to another. This valve can be clean in place. Many options of CIP and SIP combination are available to users. (Refer to cleaning sterilization function options)
● Clean system can clean the upper, lower stem and leakage chamber, which ensure the valve to be high hygienic. Effectively cleaning system makes the fluid that special for (CIP) clean in place directly wash all the inside calve body, it takes shorter time than common cleaning system.
● Another benefit of the high cleaning system is that the lift type mixing proof valve can be applied to aseptic processing. If user’s steam into CIP pipeline, the system will constitute a shield that can isolate air.

Sanitary Double Seat Mixproof Valve working principle

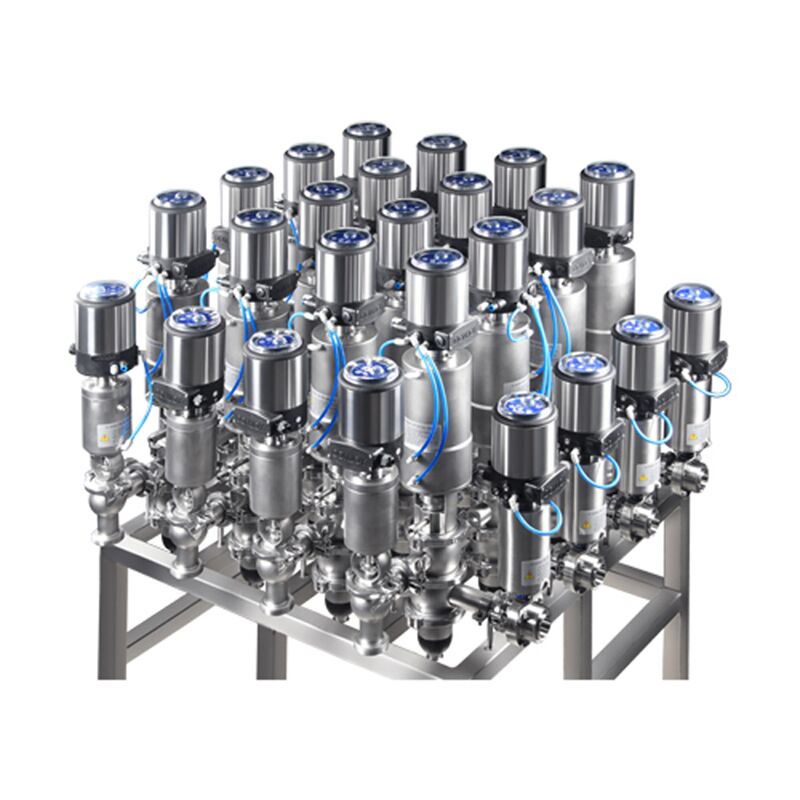

Mixproof Valve Matrix 4×4

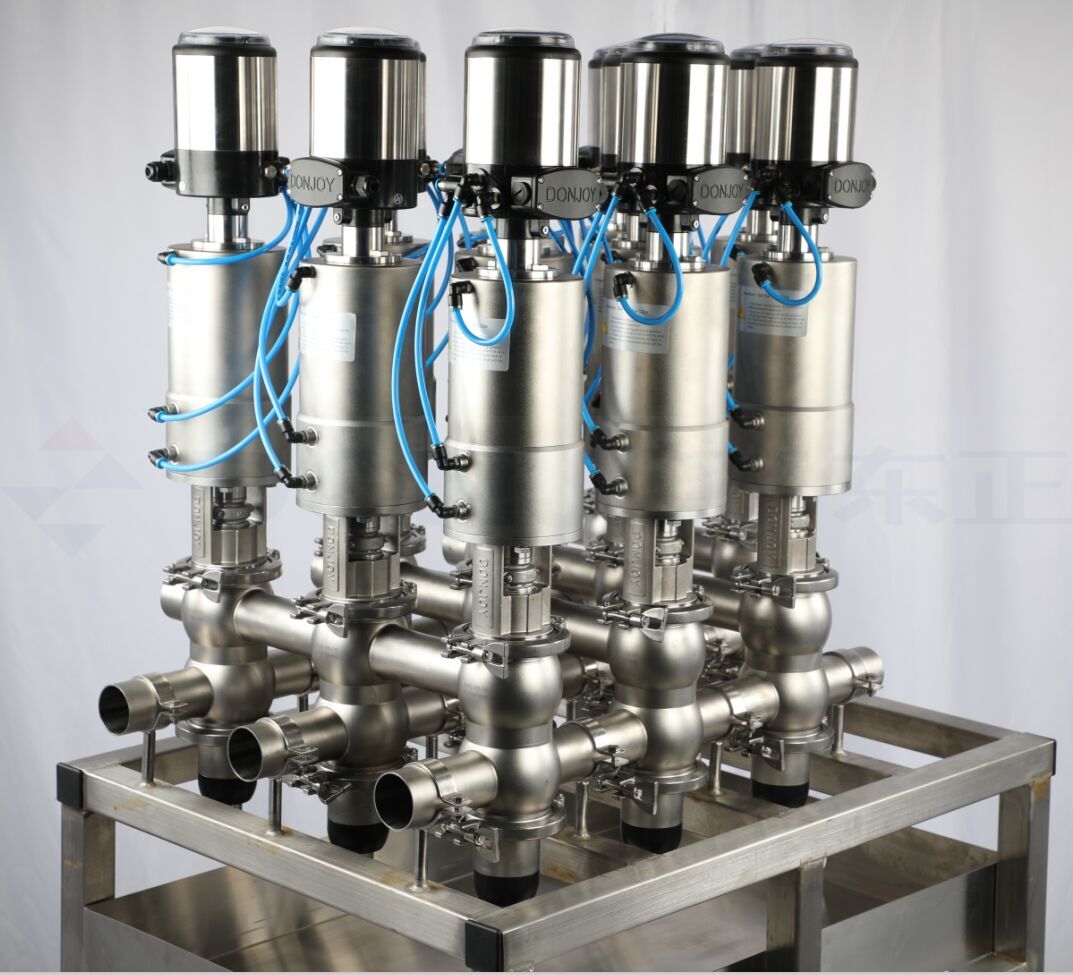

DONJOY Unique Mixproof Valve Matrix 1

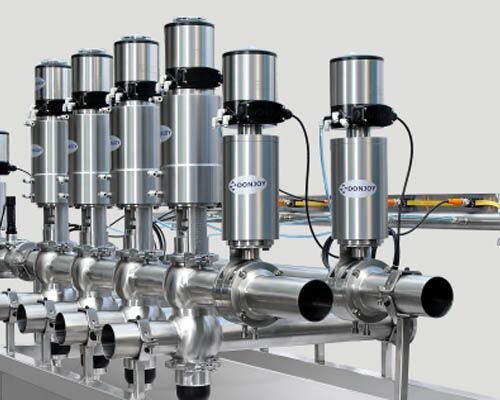

Mixproof Valve manifold control system

DONJOY offers Control Top, C-TOP 1721 PNP signal 3 solenoids

with C-TOP 1721 3 solenoid control with ASI communication can control 62 units.

with Feedback F-TOP-1553

Unique Mixproof Valve Matrix

Valve Matrix 8×6

Valve Matrix can consist of mix proof valve with butterfly valves, divert valve, ball valve, angle seat valve, safety valve or filters.

DONJOY Unique Valve Matrix
DONJOY Unique Valve Matrix

Double Seat Mixproof Valve Dimension

Sanitary Double Seat Mixproof Valve Dimension

Hygienic Valve packing

DONJOY Mixproof Valve used for customer’s project

DONJOY valve manifold
