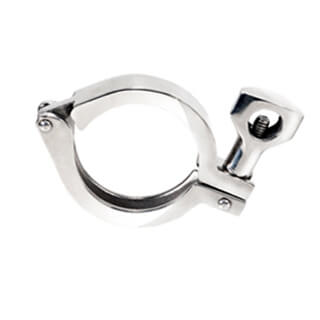

Double Pin Heavy Duty Clamp

Donjoy Double Pin Heavy Duty Clamp and fittings compliant with USA 3-A sanitary standard, constructed from sanitary stainless steel, provide solid, durability, fit to assemble with the ferrule, high-pressure rating, available in ASME BPE, 3-A, DIN, ISO standard. Double Pin Clamp widely used in food and beverage, brewing, pharmaceutical industries.

Details about Double Pin Heavy Duty Clamp

Specification

Material

Stainless Steel 304

Connection type

Butt Weld, Tri-clamp

Size

0.5" to 12"

Certifcation

USA 3-A Sanitary Fittings Number 63-04

Double Pin Heavy Duty Clamp (13MHHM-DP)

Donjoy Double Pin Heavy Duty Clamp and fittings compliant with USA 3-A sanitary standard, constructed from sanitary stainless steel, provide solid, durability, fit to assemble with the ferrule, high-pressure rating, available in ASME BPE, 3-A, DIN, ISO standard. Double Pin Clamp widely used in food and beverage, brewing, pharmaceutical industries.

The Double Pin Heavy Duty Clamp doesn’t contact with processing media, thus we not offered in SS316L option.

Double Pin Heavy Duty Clamp Manufacturer

Donjoy Technology as Double Pin Heavy Duty Clamp Manufacturer in China, manufacture sanitary pipe fittings, sanitary valve for more than 27 years. With USA 3-A, FDA, EU CE certification.

Double Pin Heavy Duty Clamp

Double Pin Heavy Duty Clamp (13MHHM-DP) Dimensions

Size Dimension (A) Pressure Rating at 70°F Pressure Rating at 250°F
1/2″ – 3/4″ 1.125 1,500 1,200
1″ – 1 1/2″ 2.122 500 300
2″ 2.654 450 250
2-1/2″ 3.185 400 200
3″ 3.717 350 175
4″ 4.82 300 150
6″ 6.695 150 75
8″ 8.695 100 50
10″ 10.695 75 40

Frequency Ask Question

Please firstly leave message below for product you need and requirement,I will send you quotaion sheet,then choose the transportation way and check cost,we will send you Proforma invoice for confirm,at last make the payment and we will ship the goods to you.

Delivery time depends on quantity and type of products,for valve and pipe fittings regular is about 7-20days. For pump regular is about 15-25days.

We offer 1 year warranty to our products.

For small amount we require 100% before production.For big amount,regularly T/T 30% deposit, 70% before shipment.

By Bank T/T, L/C, By Alibaba Assurance Order accept Credit Card VISA, Mastercard, E-checking, and we could’t accept Paypal.
