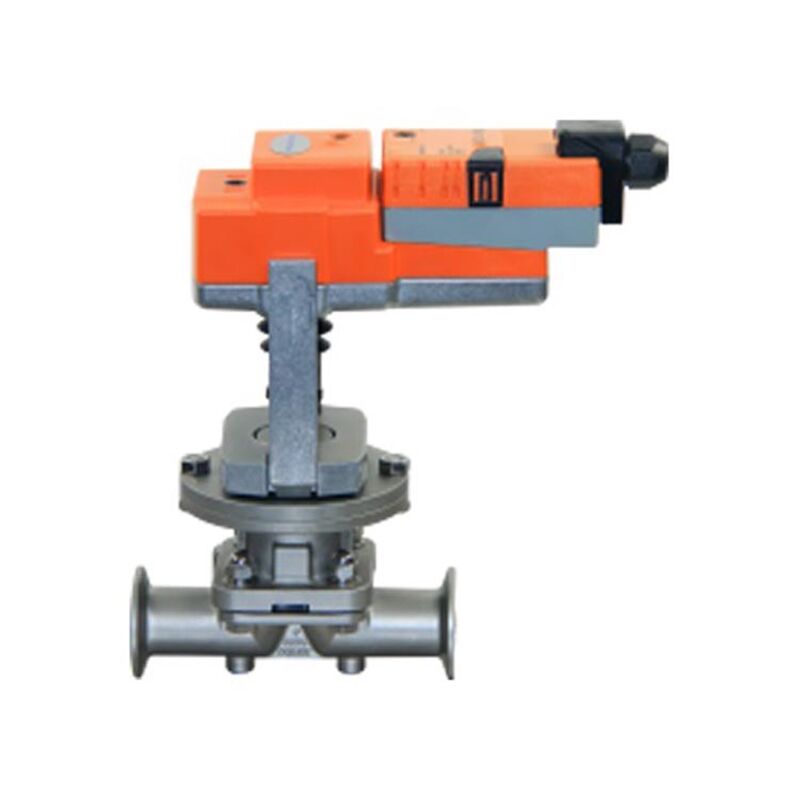

Electric Diaphragm Valve

Donjoy Technology offers a variety of Electric Diaphragm Valves, electrically actuator with on/off type or modulating type, with DC24V, AC220-230V, suit to install two-way or three-way point of use (Zero Static)  diaphragm valves, T-block valves.

Details about Electric Diaphragm Valve

Specification

Size

DN6-DN100, 1/4" to 4"

Body Material

AISI 316L, (EN1.4301/EN1.4404).ASME BPE 316L, or 1.4435-BN2 (316L) Fe<0.5% Forged Body

Temperature

-20℃ to +150 ℃

Max pressure

145psi (10bar)

Seal

EPDM+PTFE double seal, EPDM, Teflon PTFE, FPM, Silicon

Pipe Joint Systems

DIN SMS RJT 3A ISO IDF

Operation

Manual, pneumatic, electric all interchange

Surface treatment

Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.

Certification

US 3-A, FDA, CE PED/2014/68/EC, Certification

Connection type

Tri-Clover/ Clamp End, Thread End, Butt Weld End

Electric Diaphragm Valve

Donjoy Technology offers a variety of Electric Diaphragm Valves, electrically actuator with on/off type or modulating type, with DC24V, AC220-230V, suit to install two-way or three-way point of use (Zero Static)  diaphragm valves, T-block valves.



DONJOY Electrically Actuated Diaphragm Valve Surface finish:

  • Wetted interior:
    – 32 Ra µin (0,81 Ra µm)
    – ASME BPE SF1 20 Ra µin (0,5 um)
    – ASME BPE SF4 15 Ra µin (0,38 um) electropolish
  • Exterior: as cast, electropolished



Sanitary Diaphragm Valve Feature:

● Unique seal design, no dead angles
● FDA-approved seat materials: FDA 21 CFR 177.2600, EPDM+PTFE double seal, EPDM, Teflon PTFE, FPM, Silicon
● Sanitary surface finish, available with Ra < 0.4µm or EP (SF1 and SF4).Meet ASME BPE standard
● Manual handle, pneumatic actuator, electric actuator are interchangeable.
● A wide selection of body types for choose from,2 way,3 way U type/T type/Multiport/Tank Bottom
● Certificates: 3A, FDA, PED 2014/68/EU, ISO9001/2008.
● Standards: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
● 100% hydraulic tested / 100% inspected.

Electric actuator

• Actuating force 1500 N or 2500N
• Nominal voltage AC 230 V
• Control Open/close, 3-point
• Stroke 20 mm
• Speed is 150/S

Electric Diaphragm Valve Actuator
Electric Diaphragm Valve Actuator

AC230V Electric Actuator Features

Simple direct mounting Simple direct mounting on the globe valve by means of form-fit hollow clamping jaws. The actuator can be rotated by 360° on the valve neck.
Manual override Manual override with push-button possible (the gear is disengaged for as long as the button is pressed or remains locked).
The stroke can be adjusted by using a hexagon socket screw key (4 mm), which is inserted into the top of the actuator. The stroke shaft extends when the key is rotated clockwise.
High functional reliability The actuator is overload protected, requires no limit switches and automatically stops when the end stop is reached.
Combination valve/actuator Refer to the valve documentation for suitable valves, their permitted fluid temperatures and closing pressures.
Position indication The stroke is indicated mechanically on the bracket with tabs. The stroke range adjusts itself automatically during operation.
Home position Factory setting: Actuator spindle is retracted.
When valve-actuator combinations are shipped, the direction of motion is set in accordance with the closing point of the valve.
Setting direction of stroke When actuated, the stroke direction switch changes the running direction in normal operation.

AC230V Electric Actuator Electrical Installation

AC230V Electric Actuator Electrical Installation

AC230V Electric Actuator Dimension
AC230V Electric Actuator Dimension

Diaphragm Valve

Size from 1/4” to 4” , (DN6-DN100)

Connection weld, clamp, thread male/female BSPT, BSPP, flange, aseptic flange



Buy DONJOY Diaphragm Valve Advantage

1. Manufacture diaphragm valves for more than 20 years, manufactured more than 600,000 pcs.

2. This means we updated and optimized the diaphragm valve many times, and solve the problem in advance, more stable quality.

3. No dead angle.

4. Seal imported from Denmark.



Donjoy Valve Advantage

ASME BPE Diaphragm Valve body surface

Hygienic Manual Diaphragm Valve Part List

Diaphragm Valve Part List

For more about O-ring Seal, please check this article How to select O-ring Seal for Sanitary Valve



If you looking for a pneumatic diaphragm valve, please kindly check below product link.

Pneumatic Sanitary Diaphragm Valve

Hygienic valve packing

Our sanitary diaphragm valve used for customer’s pharmaceutical project

Diaphragm Valve Use for Customers ProjectDiaphragm Valve Use for Customers Project 2
