Multi-port Diaphragm Valve

Multi-port Diaphragm Valve is the latest design, customized design is available, we provide more than 100 types of multi-port diaphragm valves. Custom diaphragm valve in order to improve the large welded multiple valves and tubing assemblies to a smaller compact diaphragm valve. Optimized the self-emptying ability, reduce the contract area, deal leg, prevent medium retention. Meet the ultra-clean demand in the pharmaceutical industry. Donjoy will custom design valves specifically for your process requirements.

Details about Multi-port Diaphragm Valve

Specification

Size

D25-DN100, 1" to 4"

Body Material

AISI 316L, (EN1.4301/EN1.4404).ASME BPE 316L

Temperature

-20℃ to +150 ℃

Pressure

Regular 6bar

Seal

EPDM+PTFE double seal, EPDM, Teflon PTFE, FPM, Silicon

Pipe Joint Systems

DIN SMS RJT 3A ISO IDF

Operation

Manual, pneumatic actuator

Certification

US 3-A, FDA, CE PED/2014/68/EC, Certification

Connection type

Tri-Clover/ Clamp End, Thread End, Butt Weld End

Multi-port Diaphragm Valve description:

Multi-port Diaphragm Valve is the latest design, customized design is available, we provide more than 100 types of multi-port diaphragm valves. Custom diaphragm valve in order to improve the large welded multiple valves and tubing assemblies to a smaller compact diaphragm valve. Optimized the self-emptying ability, reduce the contract area, deal leg, prevent medium retention. Meet the ultra-clean demand ASME BPE standard in the pharmaceutical industry. Donjoy will custom design valves specifically for your process requirements.



Custom Block Body Diaphragm Valve

● Zero dead legs.
● Compact structure and small installation space.
● Sanitary surface finish, available with Ra < 0.4µm or EP (SF1 and SF4). Meet ASME BPE standard
● Different size path combinations are available.
● Save joint, pipe welding work.
● Manual type, Air actuator, Control TOP and Positioner are available.
● Certificates: 3A, FDA, PED 2014/68/EU, ISO9001/2008.
● Standards: DIN, 3A, SMS, ASME BPE.
● 100% hydraulic tested / 100% inspected.



Surface Finish:

» Wetted Interior:
– Standard:
• ASME BPE SF1, 20 Ra μin (0,5 Ra μm)
• ASME BPE SF5, 20 Ra μin (0,5 Ra μm) Electropolish
– Optional:
• ASME BPE SF4, 15 Ra μin (0,4 Ra μm)
Electropolish. Better finish upon request.
» Exterior:
– Standard: 40 Ra μin (1,0 Ra μm) and better upon request



Custom Block Multi-port Diaphragm Valve

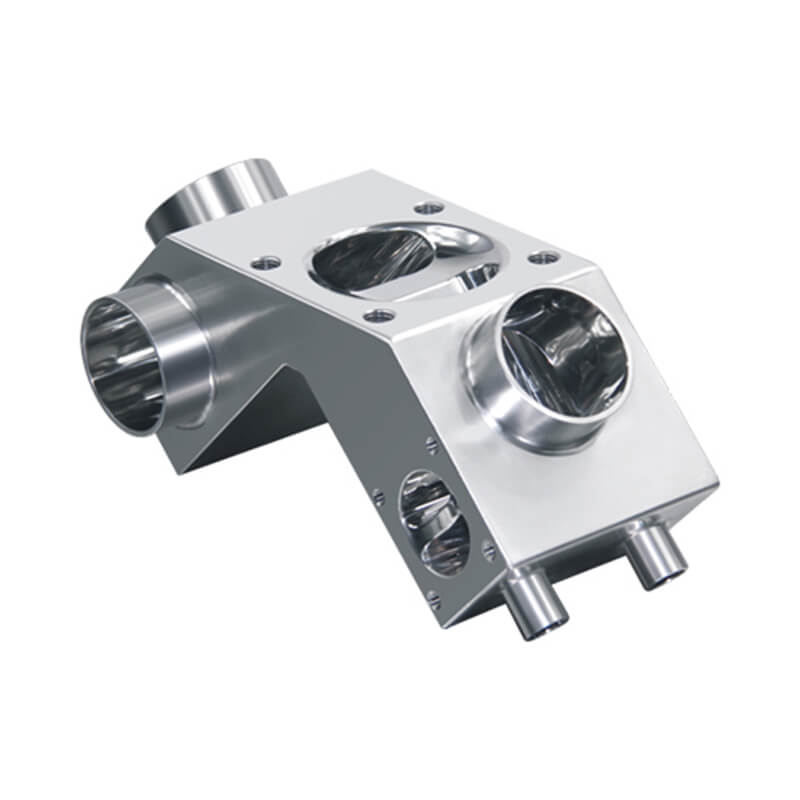

Custom Block Body Diaphragm Valve 1

Custom Block Body Diaphragm Valve 2

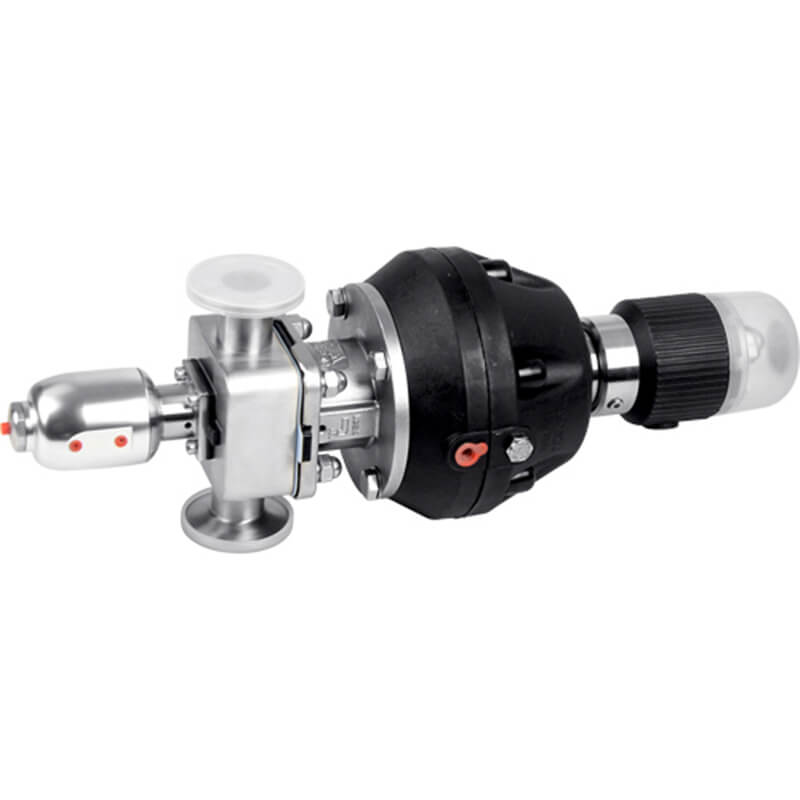

Sanitary Multi-port Diaphragm Valve Various Models

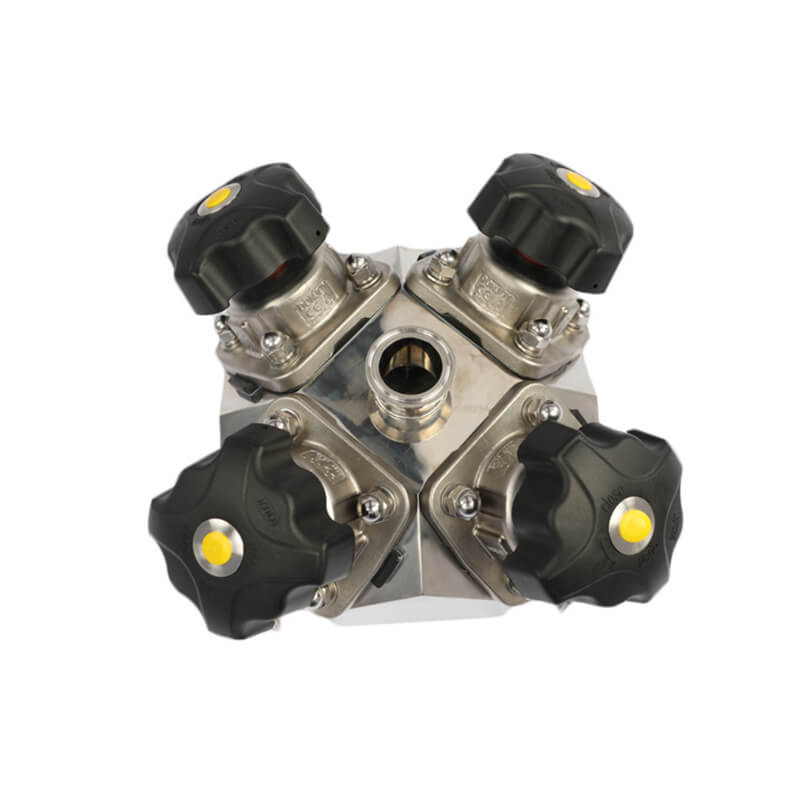

Custom Block Body Diaphragm Valve 3

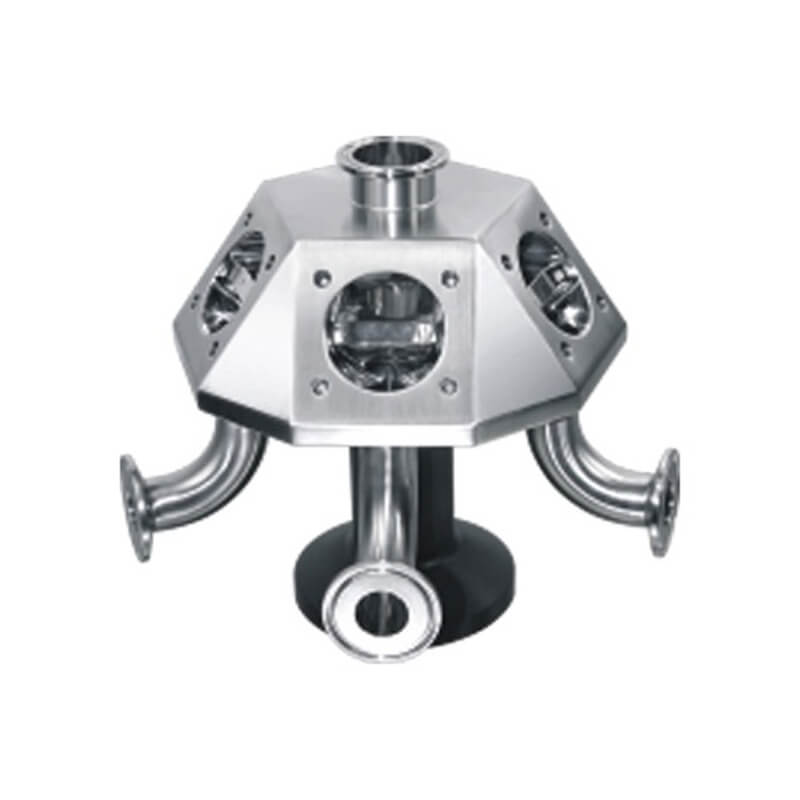

Custom Block Body Diaphragm Valve 4

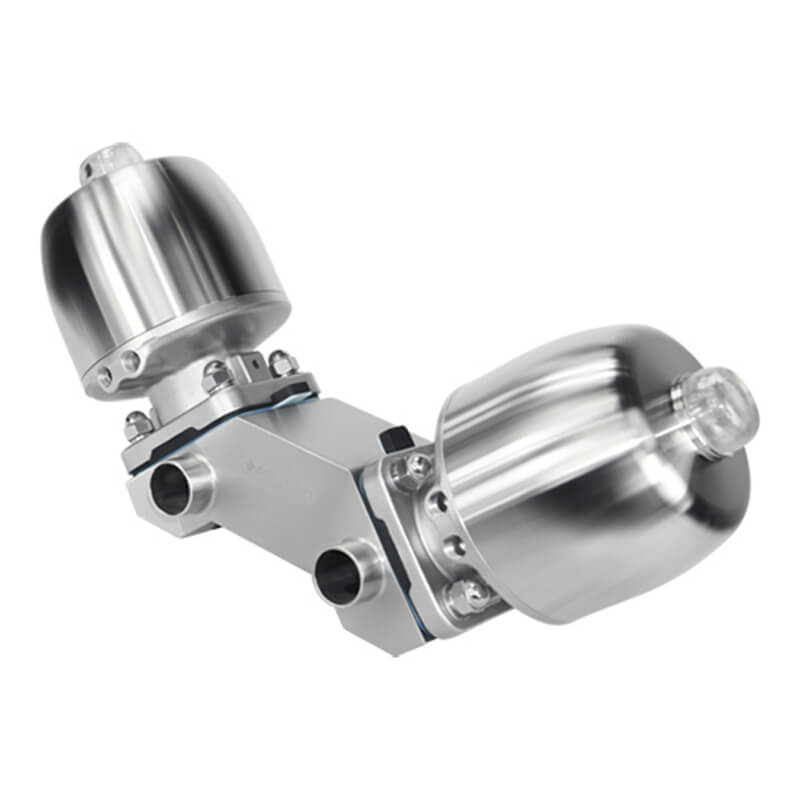

Custom Block Body Diaphragm Valve 5
Custom Block Body Diaphragm Valve 5

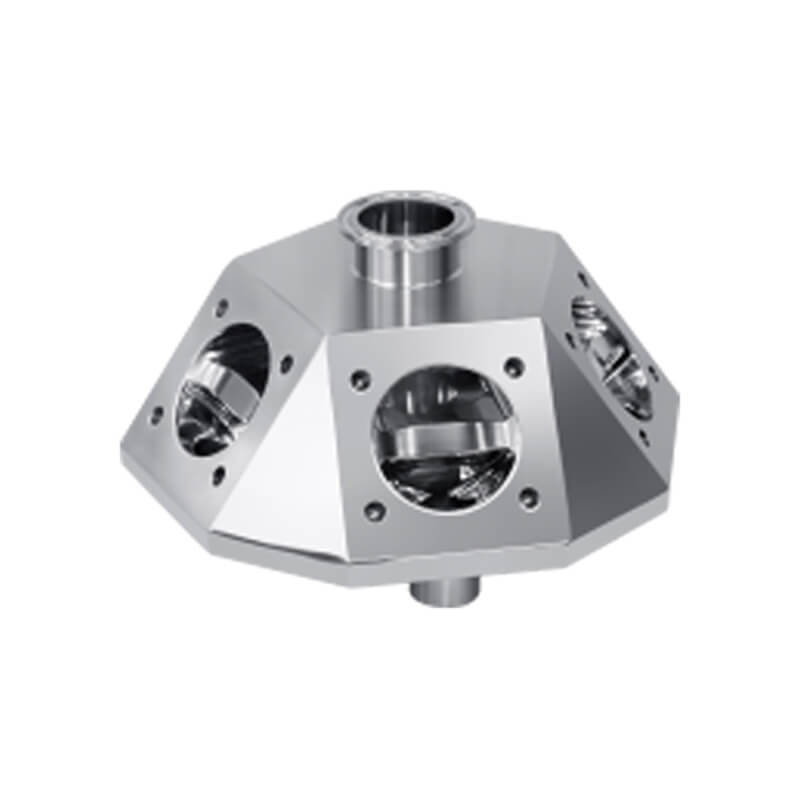

Custom Block Body Diaphragm Valve 6
