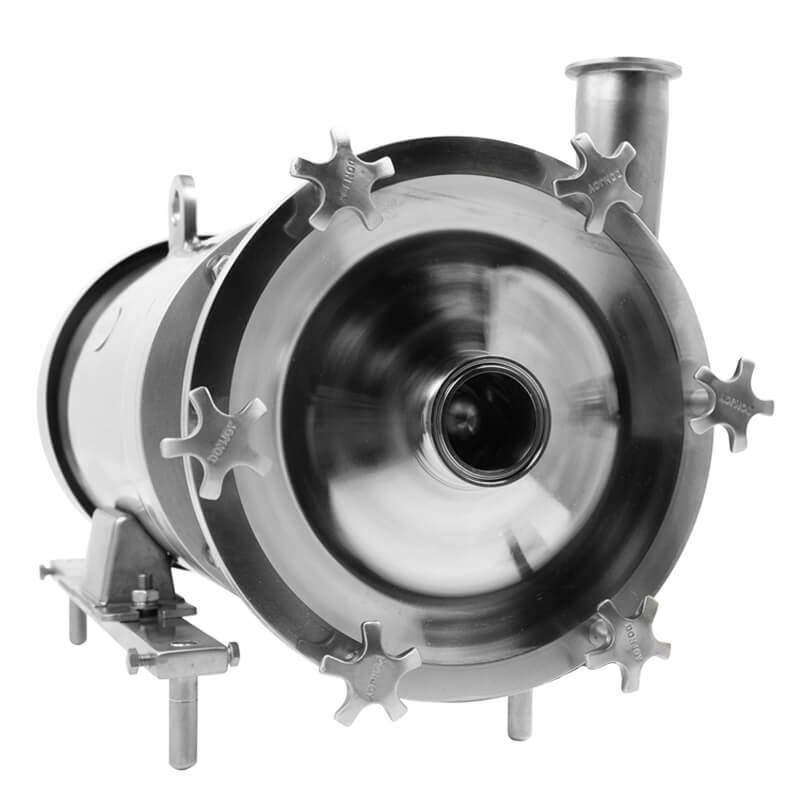

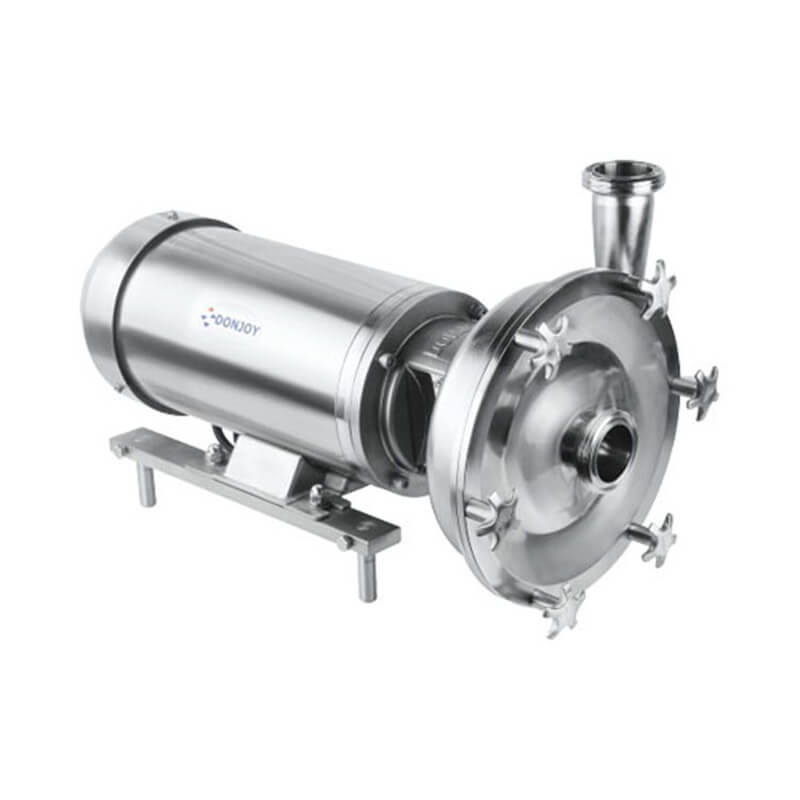

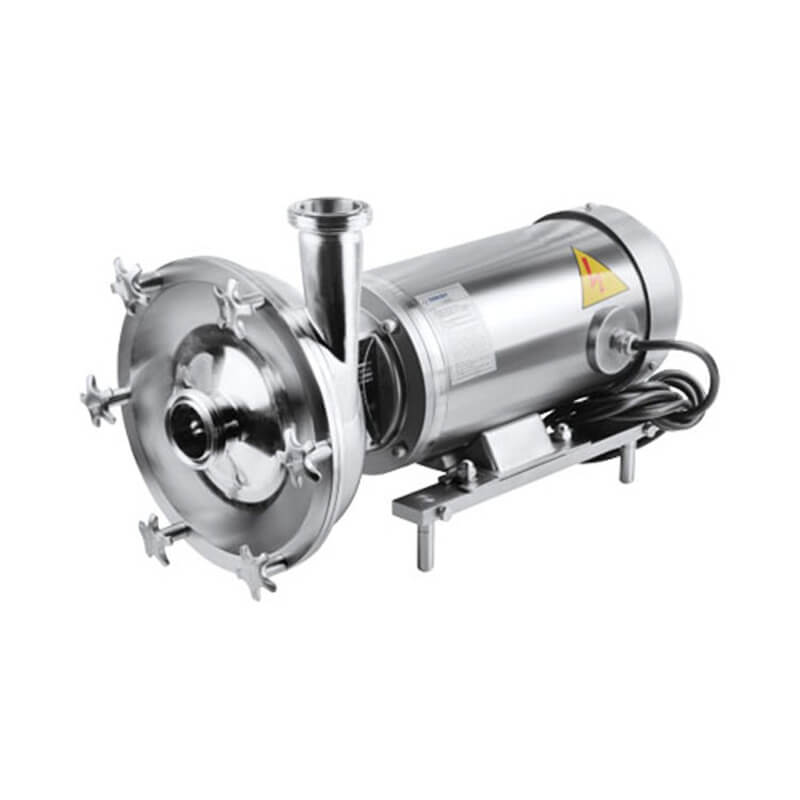

Stainless Steel Centrifugal Pump with Handwheel

Donjoy Sanitary Centrifugal Pumps are a relatively low price and the most common pump used to transfer low viscosity fluids at a high flow rate and low pressure. Easily maintenance disassembly by handwheel, Pure stainless steel design, complied with ASME BPE and EHEDG standards, US 3-A standard. It widely used in food processing dairies, beverages, pharmaceutical and fine-chemicals industries…

Details about Stainless Steel Centrifugal Pump with Handwheel

Specification

Flow rate

1 to 120 m³/h

Maximum lift head

70M(7bar)

Body Material

AISI 304 (1.4301), AISI 316L (1.4404)

Seal

single seal (standard), double mechanical seal (option), SIC/C, SIC/SIC

Motor Power Supply

0.75KW-22KW wide voltage 2P

Motor Brand

ABB motor, Simens Beide motor ,standard B35, IEC

Temperature

-20 to 140°C

Inlet & Outlet Sizes

1 1/2"-3" (DN40-DN80)

Surface treatment

Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.

Certification

US 3-A 02-11, FDA21 CFR 177.2600, CE EN809:1998/A1 2009, EN60204-1:2006/A1:2009

Connection type

Tri-Clamp End, Butt Weld End, Thread, Flange

Stainless Steel Centrifugal Pump with Handwheel

Donjoy Sanitary Centrifugal Pumps are a relatively low price and the most common pump used to transfer low viscosity fluids at a high flow rate and low pressure. Easily maintenance disassembly by handwheel, Pure stainless steel design, complied with ASME BPE and EHEDG standards, US 3-A standard. It widely used in food processing dairies, beverages, pharmaceutical and fine-chemicals industries…



Stainless Steel Centrifugal Pump with Handwheel Description

Donjoy DJ-KLX series centrifugal pump is upgraded from KS centrifugal pump optimized the internal structure: impeller design, dead angle treatment, mechanical seal balance design, the mechanical seal could be completely flushed. And optimized the external hygienic design: reduce the dead angle, easily cleaned by CIP and sterilized by SIP. In addition, DJ-KLX series pump keeps maximum flexibility of combined applications, for example, the pump outlet angle could be adjusted from 0 to 135 degree at will. The pump cover connection is handwheel nut, which is easy for maintenance and replacement of mechanical seal, no need special tools.

stainless steel centrifugal pump with handwheel construction

Sanitary Stainless Steel Centrifugal Pump with Handwheel Structure

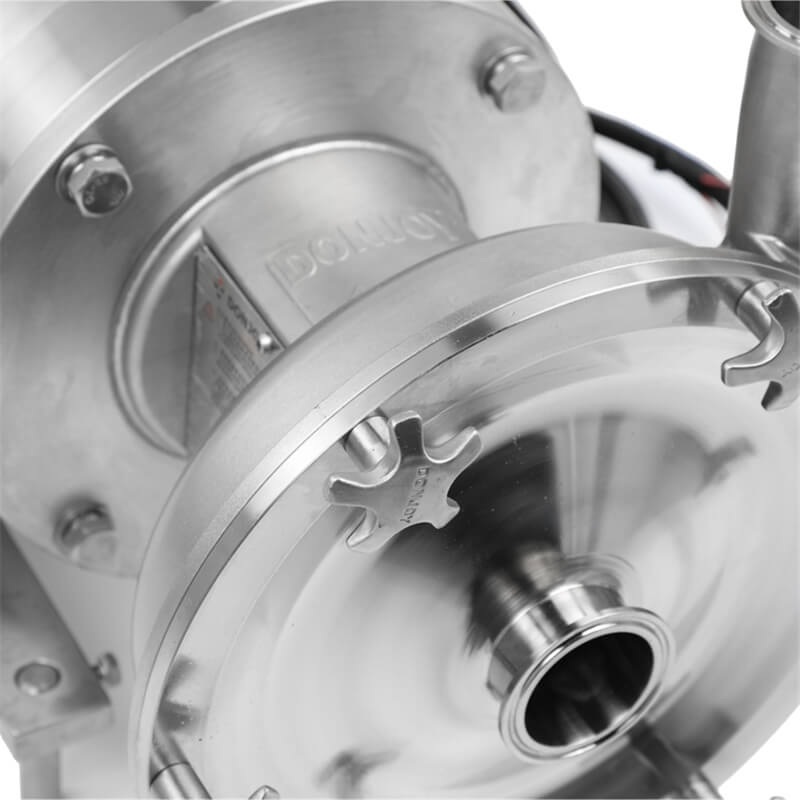

stainless steel centrifugal pump with handwheel construction details

Sanitary Stainless Steel Centrifugal Pump with Handwheel Feature:

● Easily maintenance disassembly by handwheel nut
● High-lift, low noise, high flow, no dead ends, high-performance characteristics
● Pure stainless steel design, complied with ASME BPE and EHEDG standards.
● 3A sanitary standards, IEC B35 motors, IP55, F-class insulation, 50HZ/60HZ.
● Flushed single or double mechanical seal
● Pressure relief valve available internal or external
● Surface heat jacket; complete heat jacket.
● Horizontal or vertical direction
● With stainless steel base plate & adjustable feet
● Motor utilizes the IEC EN IE2, PTC thermistor.



Stainless Steel Centrifugal Pump with Handwheel Mechanical Seal

stainless steel centrifugal pump with handwheel mechanical seal

Sanitary Centrifugal Pump Curve

stainless steel centrifugal pump with handwheel curve

stainless steel centrifugal pump with handwheel curve2



Hygienic centrifugal pump packing

Sanitary Centrifugal Pump use for customer’s project

Sanitary Centrifugal Pump use for customers project20190423 174501
