Stainless Steel Four-Way Ball Valve

Donjoy Non-retention Four-Way Ball Valve constructed from sanitary stainless steel meet high requirement of the United States 3-A-68-00 standard, offers small torque, full degreasing, PTFE seat can work at high temperature, no retention, no dead angle, easily maintain, with very flexible combination configuration. Suited to use in water treatment, food & beverage processing, pharmaceutical, daily chemical, industrial fluid applications. Connection End with tri-clover/clamp, weld or thread.

Details about Stainless Steel Four-Way Ball Valve

Specification

Size

DN25-DN100, 1" to 4"

Body Material

AISI 304 or 316L, (EN1.4301/EN1.4404).

Temperature

-20℃ to +150 ℃

Max pressure

10bar

Seal

Teflon PTFE approved FKM(option)

Pipe Joint Systems

DIN SMS RJT 3A ISO IDF

Operation

Manual, pneumatic, electric all interchange

Surface treatment

Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.

Certification

US 3-A, FDA, CE PED/2014/68/EC, Certification

Connection type

Clamp End, Thread End, Weld End

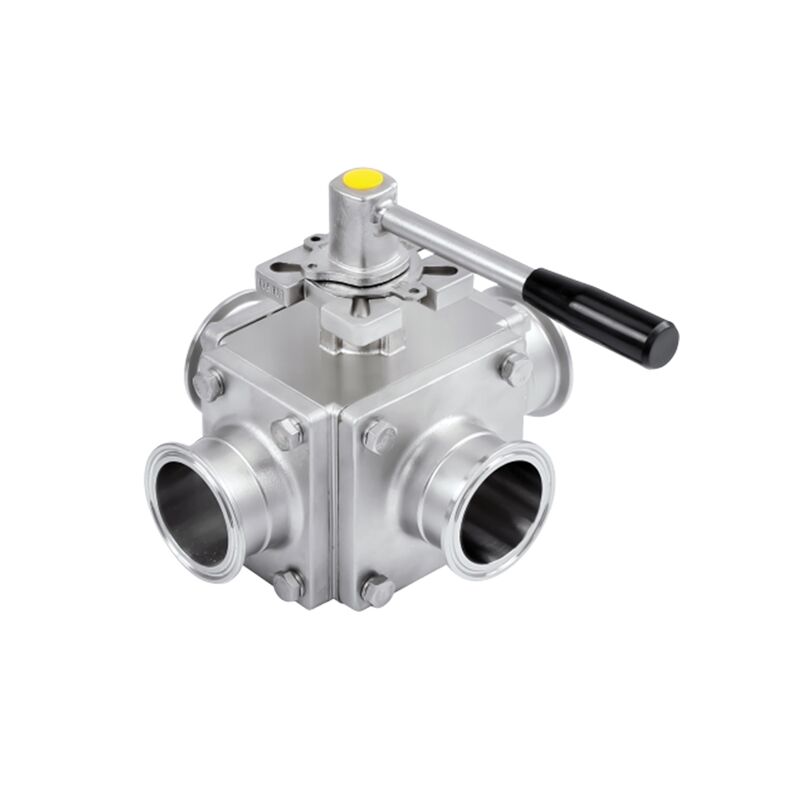

Stainless Steel Four-Way Ball Valve

Donjoy Non-retention double L Four-Way Ball Valve constructed from sanitary stainless steel meet high requirement of the United States 3-A-68-00 standard, offers small torque, full degreasing, PTFE seat can work at high temperature, no retention, no dead angle, easily maintain, with very flexible combination configuration. Suited to use in water treatment, food & beverage processing, pharmaceutical, daily chemical, and industrial fluid applications. Connection End with tri-clover/clamp, weld or thread.

The 4-way double L ball valve structure

Four Way Ball Valve

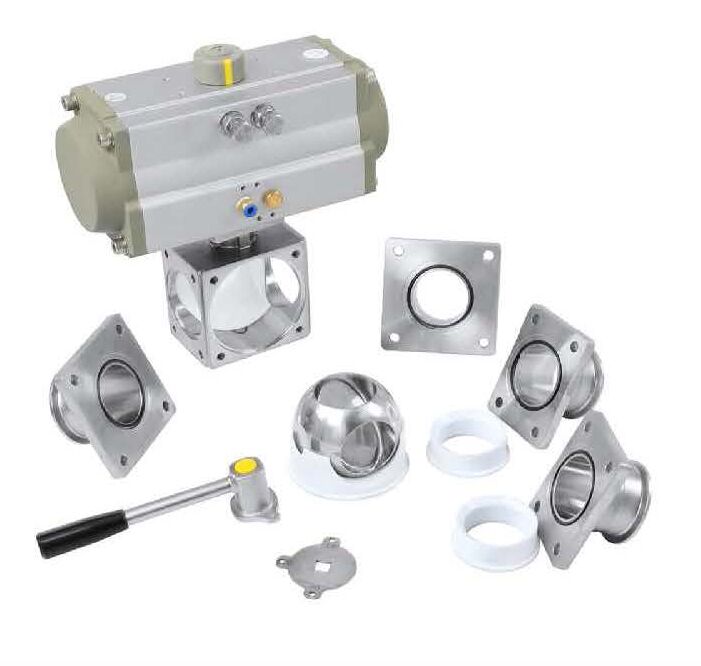

Stainless Steel Four Way Ball Valve Structure

Sanitary Ball Valve Manufacturer in China

Donjoy Technology Co.LTD as a sanitary ball valve manufacturer in China, produced more than 1 million pcs hygienic ball valves, Donjoy Technology established in 1993, covers an area of 29000 square meters, with more than 300 employers, 30+ R&D staff, 200 patent, bring in international leading technology and production equipment e.g. Mazak CNC four-axis, five-axis machine, compound cutting machine, FANUC robot production line etc. Depending on our high technology, cost-effective price, good after-sale service, we earn customers from worldwide.



DONJOY Four-way Ball Valve Working Diagram

Donjoy offers T-type ball and L-type ball designs as below picture

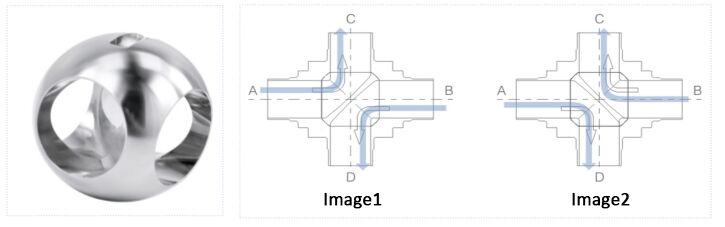

Double L four-way ball valve flow, image 2 is image 1 rotate 90 degrees. flow direction is the arrow below.

double L ball flow



Feature

● Manufactured 304 or 316L grade stainless steel body.
● FDA-approved seat materials: FDA 21 CFR 177.2600, Teflon PTFE, FKM(optional)
● Sanitary surface finish, available with Ra < 0.4µm or EP (SF1 and SF4).
● The manual handle, pneumatic actuator and electric actuator are interchangeable.
● A wide selection of different end connections.
● Suitable for low and medium viscosity fluids.
● Certificates: 3A, FDA, PED 2014/68/EU, ISO9001/2008.
● Standards: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
● 100% hydraulic tested / 100% inspected.

Sanitary Ball Valve Advantage

1. Manufacture ball valve for more than 20years, manufactured more than 1million pcs of the ball valve.

2. Updated and optimized ball valve many times, which means we solve the problem in advance, more stable quality, All sealed Non-retention, high precision CNC machined.

3. Super small torque, long lifetime

4. Seal imported from Denmark



Hygienic Four-Way Ball Valve configuration same as three-way ball valve.

non retention three way ball valve

If you looking for a sanitary-three-way-ball-valve, please check below

Pneumatic Ball Valve

If you looking for a sanitary two-way three-piece ball valve, please check below

Non retention 3PCS Ball Valve2

If you looking for a sanitary pneumatically actuated full cavity ball valve, please check below

Sanitary Pneumatic Three piece Ball Valve
