Hygienic Angle Seat Valve Wholesale
A sanitary angle seat valve is a pneumatically controlled valve with a piston actuator providing linear actuation to lift a seal off its seat. The seat is set at an angle to provide the maximum possible flow when unseated. Angle seat piston valves are particularly suited to applications where high temperatures and large flow rates are required, such as steam or water, air or gases. When used in reverse some models of angle seat valve will eliminate water hammer when operated.
Details about Hygienic Angle Seat Valve Wholesale
Specification
| Model Number | VJZ110Q1C |
|---|---|
| Size | DN10-DN100, 1/2"-4" |
| Body Material | SS 316L, ASME BPE |
| Temperature | -20℃ to +150 ℃ (It depends on the seal) |
| Max pressure | 145psi (10bar) |
| Seal | PTFE/TFM, FDA approved |
| Manual Operation | Stainless steel handwheel, Plastic handle |
| Pneumatic Operation | Compatible with Single-acting or Double-acting Pneumatic actuator |
| Surface treatment | Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default. |
| Certification | US 3-A, FDA, CE PED/2014/68/EC, Certification |
Hygienic Angle Seat Valve Wholesale
A hygienic angle seat valve is a pneumatically controlled valve with a piston actuator providing linear actuation to lift a seal off its seat. The seat is set at an angle to provide the maximum possible flow when unseated. Angle seat piston valves are particularly suited to applications where high temperatures and large flow rates are required, such as steam or water, air or gases. When used in reverse some models of angle seat valve will eliminate water hammer when operated. (Refer to Wikipedia) Hygienic regulating angle seat valve with valve positioner for quick, accurate control of process flow and pressure.
Sanitary Angle Seat Valve Feature:
● Water hammer resistance.
● Without noise when opening or closing.
● No dead angle, non-retention.
● Suitable use for high-temperature fluid, gas, vacuum.
● Small flow resistance.
● Great sealing.
Hygienic Stainless Steel Angle Seat Valve Connections
Available in
Weld end
Clamp end
Nut
Male thread
Female thread
Aseptic flange
Flange

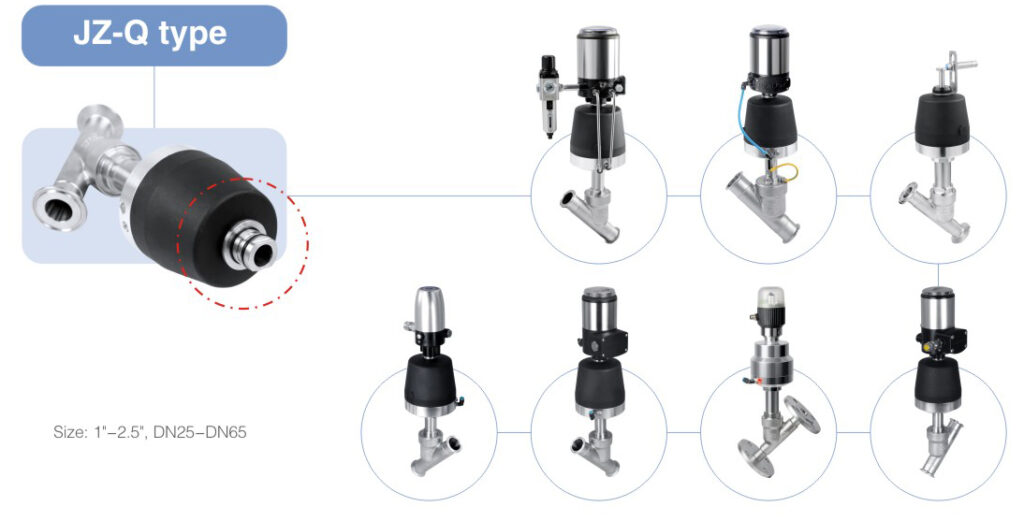

DONJOY Angle Seat Valve Different Configuration

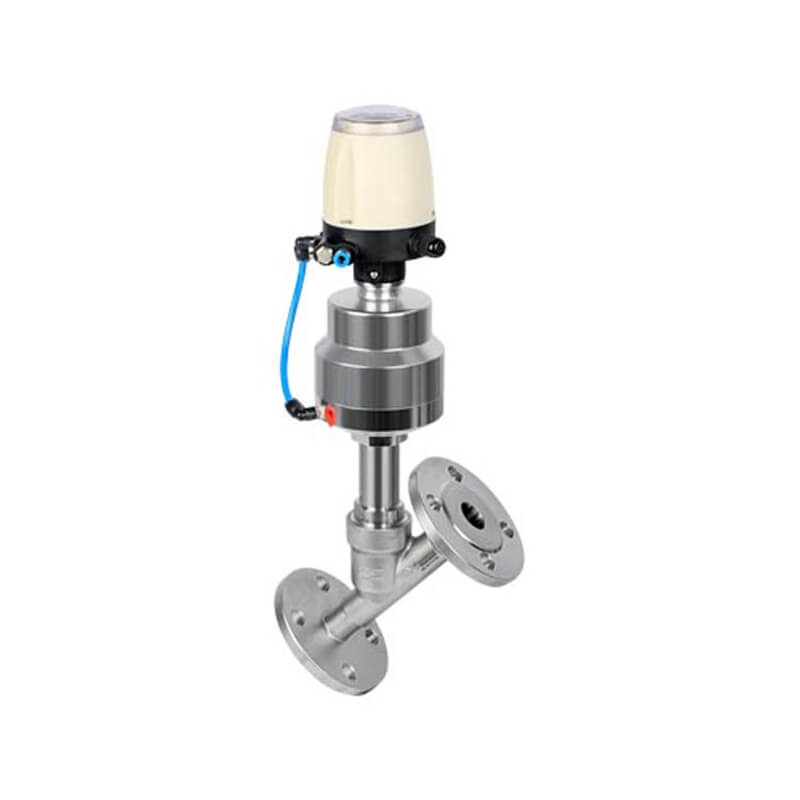

Hygienic Angle seat valve with stainless steel actuator and Positioner
Positioner model is IL-TOP-2231/IL-TOP-2232
IL-TOP-2231 is used for small valve size and small flow rate.
IL-TOP-2232 is used for big valve size and large flow rate.
Input 0/4-20mA, Mode Bus RS485, DC24V
Positioner IL-TOP2231-P /IL-TOP2232-P
Input 0/4-20mA, feedback 0/4-20mA,0-5/10V

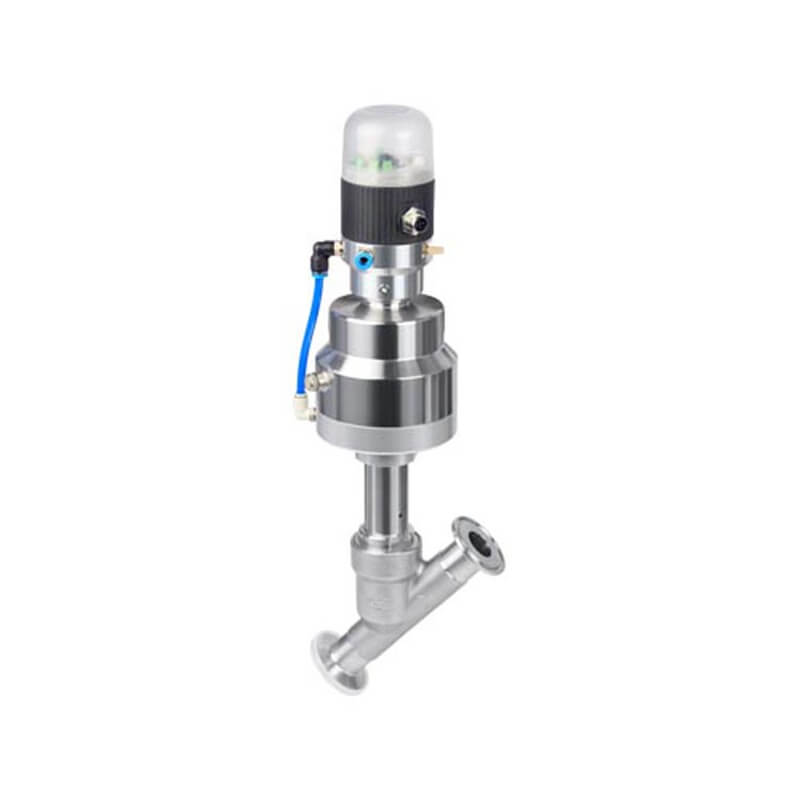

Hygienic Angle seat valve with stainless steel actuator and Control Top on/off
Control top model is C-TOP-2221
PNP 4-20mA,DC24V,
For single-acting actuator C-TOP 1721 with one solenoid valve
For double-acting actuator C-TOP 1721 with two solenoid valves
Hygienic Angle seat valve with stainless steel actuator and Position Feedback
Position feedback model is F-TOP-2253
F-TOP-2253 with feedback output PNP& 4-20mA
Sanitary Angle Seat Valve KV Curve
DONJOY Angle Seat Valve Wholesale
DONJOY Technology as a hygienic angle seat valve manufacturer offers a variety of valve options, with manual, pneumatic actuator and with think top on/off control or positioner for accurate control. Provide hygienic angle seat valve best wholesale price, please send your inquiry to get.
Angle Seat Valve Construction
Hygienic Valve packing
