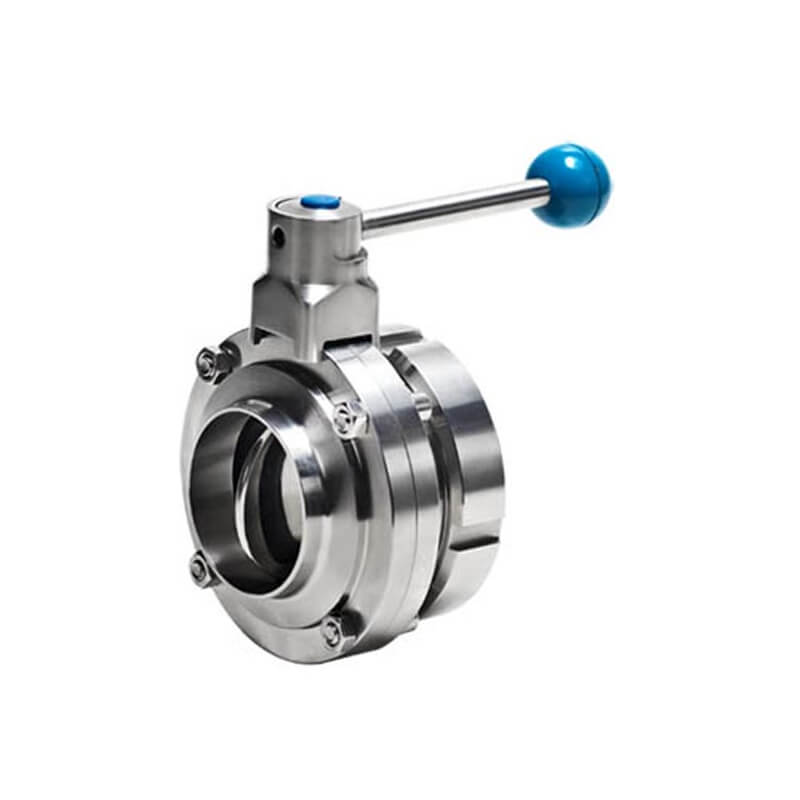

Sanitary 3 Pieces Butterfly Valve
Donjoy Sanitary Butterfly Valve regulate or isolate the fluid by rotating a disc inside the valve body. It designed for use in a wide range of applications and working pressures. The stem diameter provides especially low flow resistance, ensuring gentle product treatment for low and medium-viscosity products. The FDA-compliant valves provide reliable performance and smooth operation by a manual, pneumatic actuator or automatic by the positioner. Commonly used in food & beverage processing, pharmaceutical and chemical products, industrial fluid applications.
Details about Sanitary 3 Pieces Butterfly Valve
Specification
| Size | DN10-DN300, 1/2"-12" |
|---|---|
| Body&Disc Material | AISI 304 or 316L, (EN1.4301/EN1.4404). |
| Temperature | -20℃ to +130 ℃ (It depends on the seal) |
| Max pressure | 145psi (10bar) |
| Seal | EPDM, Silicone, FKM, FFKM, TEFLON, PTFE, HNBR, NBR, FDA approved |
| Pipe Joint Systems | DIN SMS RJT 3A ISO IDF |
| Manual Operation | Pull handle, Multi-position Plastic handle, Multi-position Stainless Steel Handle |
| Pneumatic Operation | Compatible with Single-acting or Double-acting Pneumatic actuator |
| Surface treatment | Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default. |
| Certification | CE PED / 97/23 / EC, FDA Certification |
| Handle type | Pull Handle, Plastic Multi-position Trigger Handle, Stainless Steel Multi-position Trigger Handle |
| Connection type | Clamp End, Thread End, Weld End |
Sanitary 3 Pieces Butterfly Valve
Donjoy Sanitary Butterfly Valve regulate or isolate the fluid by rotating a disc inside the valve body. It is designed for use in a wide range of applications and working pressures. The stem diameter provides especially low flow resistance, ensuring gentle product treatment for low and medium-viscosity products. The FDA-compliant valves provide reliable performance and smooth operation by a manual, pneumatic actuator or automatic by the positioner. Commonly used in food & beverage processing, pharmaceutical and chemical products, industrial fluid applications.
Sanitary Three Pieces Butterfly Valve Feature:
● Forged Stainless steel body & disc in ASI 304 or 316L.
● CNC one-time machining ensures machining precision
● FDA-certified seal materials imported from Europe: FDA 21 CFR 177.2600, EPDM, PTFE, Silicone, Viton (FPM).
● Interchangeable of the manual handle, pneumatic actuator and electric actuator.
● Sanitary surface finish, available with BPE standard Ra < 0.4µm (SF1 and SF4).
● Certificates: 3A, FDA, CE PED 2014/68/EU, ISO9001/2008.
● Standards: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE.

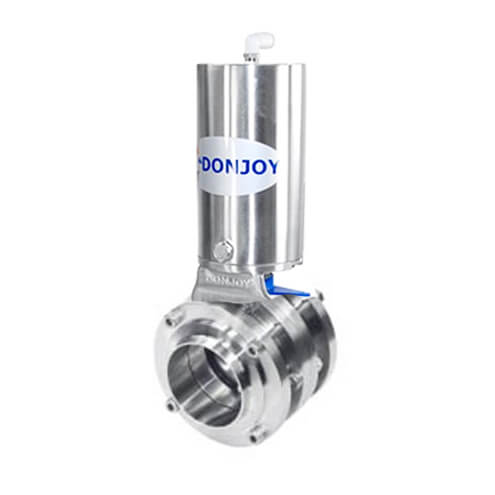

Pneumatic 3pcs Butterfly valve with vertical stainless steel actuator

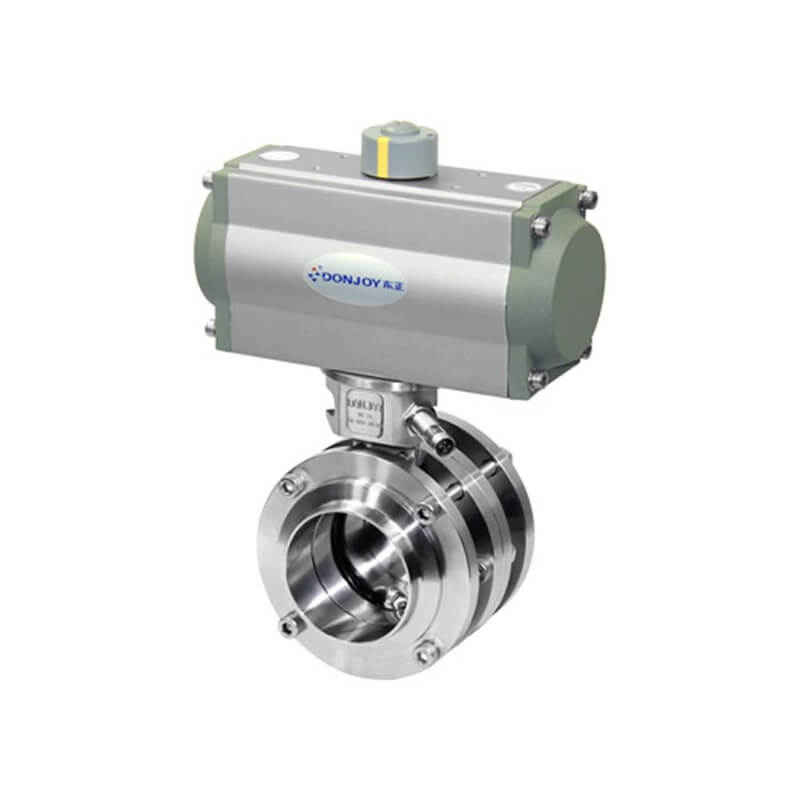

Pneumatic 3pcs Butterfly valve with horizontal aluminium actuator

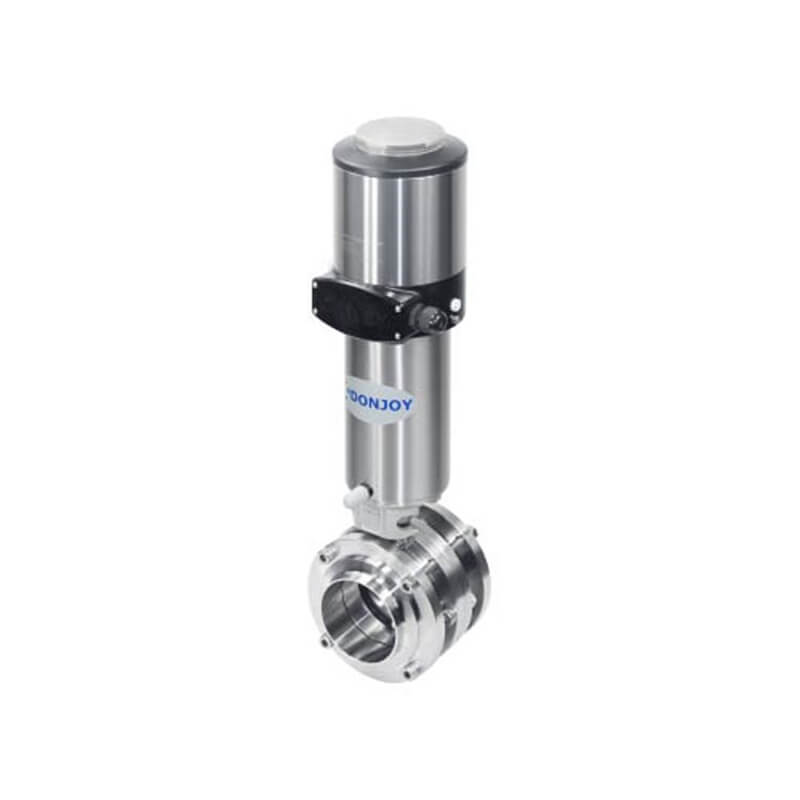

Pneumatic 3pcs Butterfly valve with vertical stainless steel actuator and with on/off control top or with positioner
Butterfly Valve Seal gasket performance
Sanitary Butterfly Valve Manufacturer in China
Donjoy Technology is sanitary butterfly valve manufacturer in china, manufacture sanitary valves, pumps and pipe fittings for more than Meet 27years. Meet USA 3-A, FDA, CE PED, MD BPE standard.
Actuated Sanitary Butterfly Valve
Single action or double action actuated butterfly valve please check this item.
Hygienic butterfly valve packing
Our sanitary butterfly valve use for customer’s brewing project
