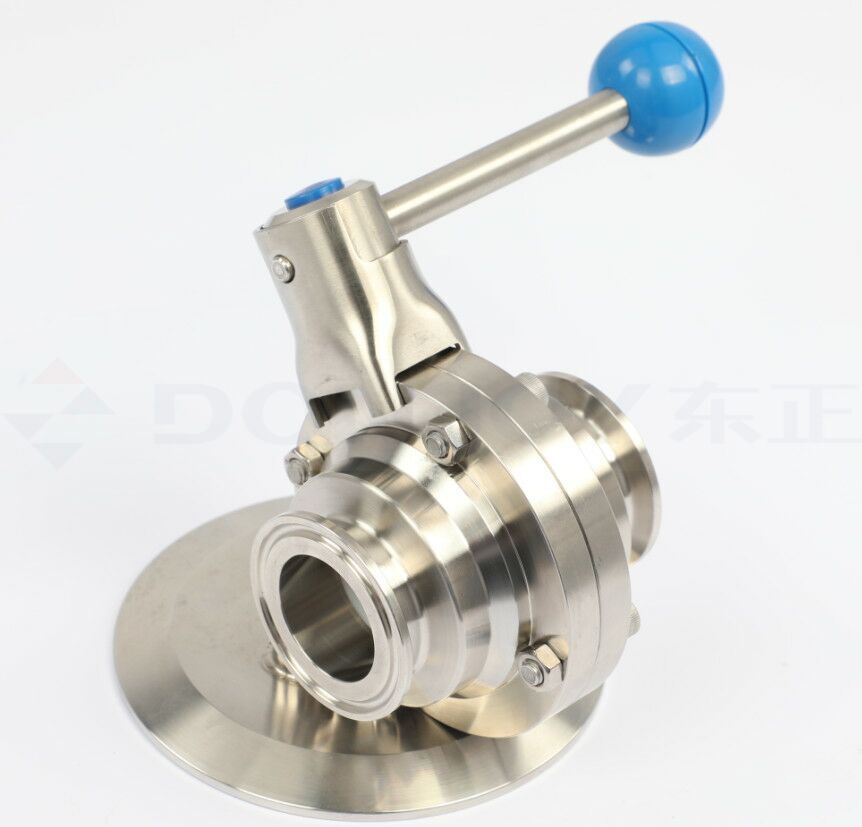

Sanitary Butterfly Type Ball Valve

Donjoy Sanitary Butterfly Type Ball Valve with butterfly valve shape and ball core inside, with EPDM seal, small torque, long lifetime. Body Material available in Stainless 304 or 316L. Donjoy offers a variety of actuators, with manual, horizontal actuator and vertical actuator, electric actuator, can work with automated control top and positioner. Used in water treatment, food & beverage processing, dairy, pharmaceutical and cosmetic applications.

Details about Sanitary Butterfly Type Ball Valve

Specification

Size

DN10-DN100, 1/2" to 4"

Body Material

AISI 304 or 316L, (EN1.4301/EN1.4404).

Temperature

-30℃ to +150 ℃

Max pressure

145psi (10bar)

Seal

Teflon PTFE approved FKM(option)

Pipe Joint Systems

DIN SMS RJT 3A ISO IDF

Operation

Manual, pneumatic, electric all interchange

Surface treatment

Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.

Certification

US 3-A, FDA, CE PED/2014/68/EC, Certification

Connection type

Clamp End, Thread End, Weld End

Sanitary Butterfly Type Ball Valve

Donjoy Sanitary Butterfly Type Ball Valve with butterfly valve shape and ball core inside, with EPDM seal, small torque, long lifetime. Body Material available in Stainless 304 or 316L. Donjoy offers a variety of actuators, with manual, horizontal actuator and vertical actuator, electric actuator, can work with automated control top and positioner. Used in water treatment, food & beverage processing, dairy, pharmaceutical and cosmetic applications.



Sanitary Butterfly Type Ball Valve configuration

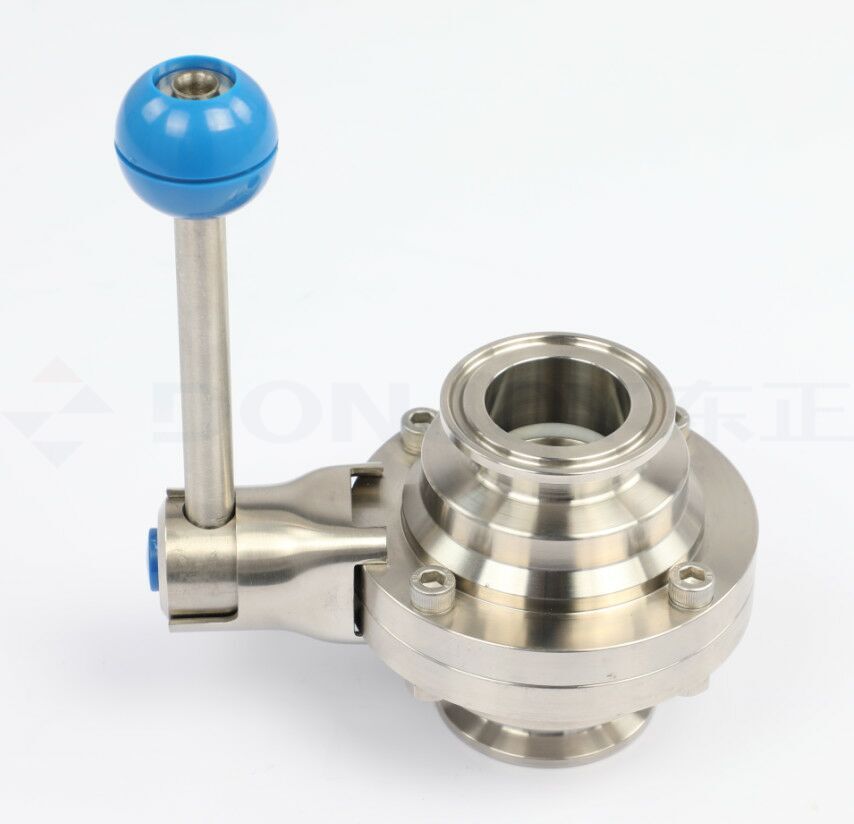

Sanitary Butterfly Type Ball Valve

Size from 1” to 4” (DN15-DN100)

Connection thread, weld, tri-clamp, flange

Connection standard: 3A, SMS, DIN, ISO, BS4825, IDF



Sanitary Butterfly Type Ball Valve

Butterfly valve shape, ball core, handle and EPDM seal.

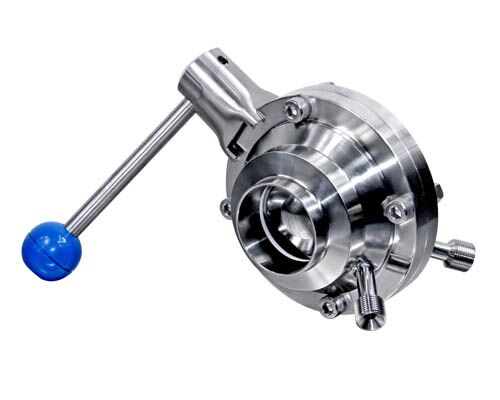

It available with CIP port
Pull handle, multi-position handle
Stainless steel vertical actuator
Aluminium alloy horizontal actuator
Electric actuator
Control top 1721,
Positioner
Position feedback



Donjoy Butterfly Shape Ball Valve Manufacturer in China

Donjoy as Sanitary Ball Valve Manufacturer in China, produced more than 1 million pcs ball valve. Founded in 1993, more than 27 years of experience manufacturing sanitary valves.
