Three Way Non-retention Ball Valve

Donjoy Sanitary Three Way Non-retention Ball Valve with hygienic design meet high requirement of the United States 3-A-68-00 standard, offers small torque, full degreasing, sealing elastic compensation, no retention, no dead angle, easily maintain, with very flexible combination configuration. Body Material is Stainless 304 or 316L, suited to use in water treatment, food & beverage processing, pharmaceutical, daily chemical, industrial fluid applications. Connection End with tri-clover/clamp, weld or thread.

Details about Three Way Non-retention Ball Valve

Specification

Size

DN25-DN100, 1" to 4"

Body Material

AISI 304 or 316L, (EN1.4301/EN1.4404).

Temperature

-20℃ to +150 ℃

Max pressure

10-30bar

Seal

Teflon PTFE approved FKM(option)

Pipe Joint Systems

DIN SMS RJT 3A ISO IDF

Operation

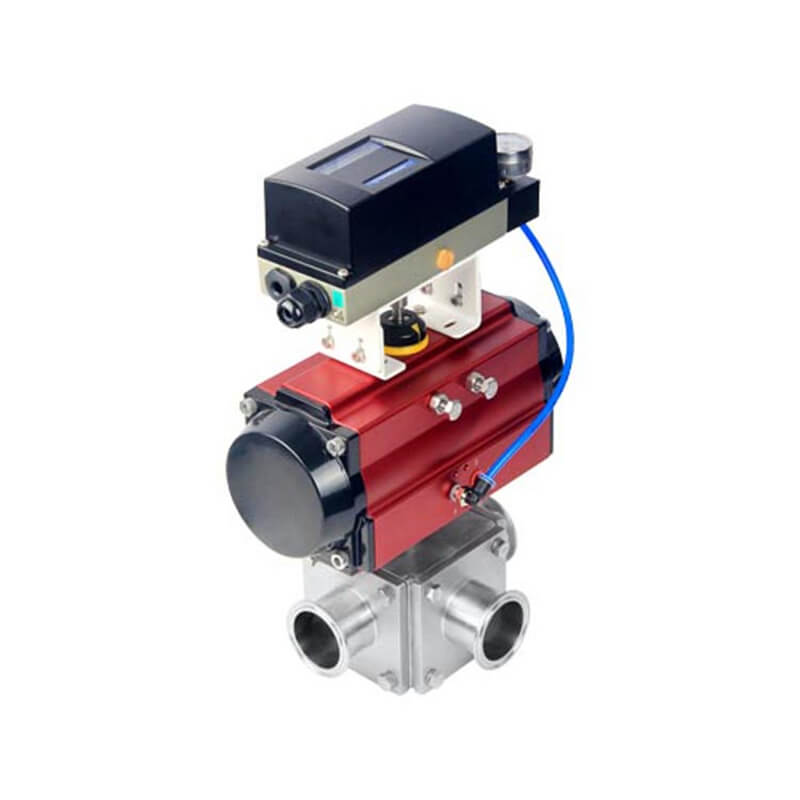

Manual, pneumatic, electric all interchange

Surface treatment

Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.

Certification

US 3-A, FDA, CE PED/2014/68/EC, Certification

Connection type

Clamp End, Thread End, Weld End

Three-Way Non-retention Ball Valve

Donjoy Sanitary Three Way Non-retention Ball Valve with hygienic design meet high requirement of the United States 3-A-68-00 standard, offers small torque, full degreasing, sealing elastic compensation, no retention, no dead angle, easily maintain, with very flexible combination configuration. Body Material is Stainless 304 or 316L, suited to use in water treatment, food & beverage processing, pharmaceutical, daily chemical, industrial fluid applications. Connection End with tri-clover/clamp, weld or thread.

Full encapsulated 3-way ball valve construction

three ball valve

Donjoy Sanitary Ball Valve Manufacturer in China

Donjoy Technology Co.LTD as sanitary ball valve manufacturer in China, produced more than 1 million pcs hygienic ball valves, Donjoy Technology established in 1993, covers an area of 29000 square meters, with more than 300 employers, 30+ R&D staffs, 200 patent, bring in international leading technology and production equipment e.g. Mazak CNC four-axis, five-axis machine, compound cutting machine, FANUC robot production line etc. Depend on our high technology, cost-effective price, good after-sale service, we earn customers from worldwide.

Hygienic non-retention three-way ball valve working diagram

Donjoy hygienic non-retention three-way ball valve has a T-type ball and an L-type ball design.

ball types



Feature

● Manufactured 304 or 316L grade stainless steel body.
● FDA-approved seat materials: FDA 21 CFR 177.2600, Teflon PTFE, FKM(optional)
● Sanitary surface finish, available with Ra < 0.4µm or EP (SF1 and SF4).
● Manual handle, pneumatic actuator and electric actuator are interchangeable.
● A wide selection of different end connections.
● Suitable for low and medium viscosity fluids.
● Certificates: 3A, FDA, PED 2014/68/EU, ISO9001/2008.
● Standards: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
● 100% hydraulic tested / 100% inspected.

Sanitary Ball Valve Advantage

1.We manufacture ball valve more than 20years, manufactured more than 1million pcs of the ball valve.

2.Updated and optimized ball valve for many times, which means we solve the problem in advance, more stable quality, All sealed Non-retention, high precision CNC machined.

3. Super small torque, long lifetime

4.Seal imported from Denmark



Hygienic Non-retention Three Way Ball Valve Configuration

non retention three way ball valve

Sanitary Non-retention Three Way Ball Valve Dimension

non retention three way ball valve dimension

Hygienic valve packing

Our sanitary Ball valve use for customer’s project

Sanitary Ball Valve for Customers projectSanitary Ball Valve use for Customers project
