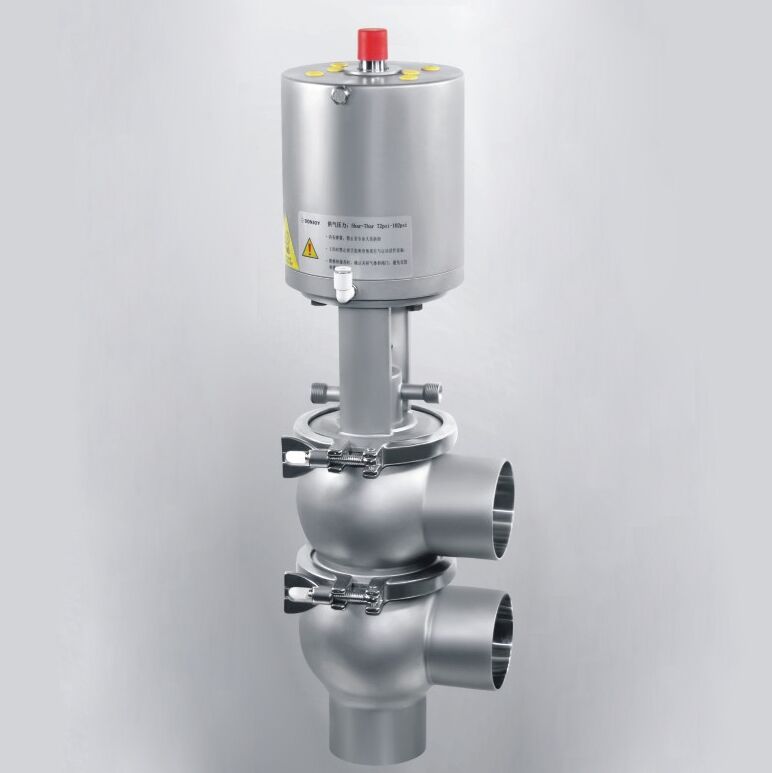

Sanitary Diverter Change Over Valve

Shutoff and diverter valve also called change over valve. Donjoy Technology offers a variety of hygienic diverter valves. Manually, Pneumatically, can work with Control Top or Positioner. Hygienic design meets US 3-A standard. It is widely used in food processing, milk, dairy, beverage, pharmaceutical industries, etc. Valves are operated automatically by a single-acting or a double-acting pneumatic actuator. By supplying compressed air, the shaft is moved to place the valve in “open” or “closed” position. The interchange of normally open and normally closed function can be realized by rotating 180° of the cylinder.

Details about Sanitary Diverter Change Over Valve

Specification

Size

DN25-DN100, 1"-4"

Body Material

AISI 304 or 316L, (EN1.4301/EN1.4404).

Temperature

-30℃ to +150 ℃ (It depends on the seal)

Max pressure

145psi (10bar)

Seal

EPDM, Silicone, FKM, FFKM, TEFLON, PTFE, HNBR, NBR, FDA approved

Pipe Joint Systems

DIN SMS RJT 3A ISO IDF

Manual Operation

Stainless steel handwheel, Stainless steel actuator, Positioner

Pneumatic Operation

Compatible with Single-acting or Double-acting Pneumatic actuator

Surface treatment

Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.

Certification

US 3-A, FDA, CE PED/2014/68/EC, Certification

Connection type

Tri-Clamp End, Thread End, Butt Weld End

Sanitary Diverter Change Over Valve

Shutoff and diverter valve also called change over valve. Donjoy Technology offers a variety of hygienic diverter valves. Manually, Pneumatically, can work with Control Top or Positioner. Hygienic design meets US 3-A standard. It is widely used in food processing, milk, dairy, beverage, pharmaceutical industries, etc. Valves are operated automatically by a single-acting or a double-acting pneumatic actuator. By supplying compressed air, the shaft is moved to place the valve in “open” or “closed” position. The interchange of normally open and normally closed function can be realized by rotating 180° of the cylinder.



Shutoff valves

Hygienic Shutoff and Diverter Valve Feature:

● Unique design, sterile, no dead angle
● Compact and robust design, 360° adjustable body.
● Normally closed (NC) as the default, the NC and NO functions are interchangeable by rotating 180° of the cylinder.
● Easy assembly/disassembly by loosening clamp in the middle of the valve body
● Hygienic design according to 3A standard, CE, FDA certified.
● The manual handwheel, pneumatic actuator are interchangeable.
● 100% hydraulic tested / 100% inspected



Pneumatic Sanitary Diverter Change Over Valve Specification:

Item Pneumatic Sanitary Diverter Change Over Valve
Size DN25-DN100,1″-4″
Working temperature -10ºC to 120ºC EPDM, (140ºC for SIP,max 30min)
Working pressure 10 bar, 145 psi
Compressed air pressure 5.0-7.0 bar
Air connection G1/8″ (BSP)
Internal surface finish Ra<0.8um
External surface finish Sandblast or mirror polish
Material AISI316L/AISI304
Gasket (standard) EPDM in compliance with FDA 177.2600
Gasket (option) FPM in compliance with FDA 177.2600
Connections DIN, SMS, RJT, IDF
Normal pneumatic operation Single-acting pneumatic actuator
Optional pneumatic operation Double-acting pneumatic actuator
Option 2 External position sensor
Option 3 Steam barrier (if shaft sterilisation is required)
Option 4 Body jacket insulation
Option 5 Valve position regulator
Option 6 Double stop actuator
Option 7 Diaphragm type valve cavity
Option 8 C-TOP control unit.

Shutoff valves feature 2

Shutoff valves feature

Shutoff valve configuration

Shutoff valves configuration



Sanitary Diverter Change Over Valve Dimension

single seat shutoff valve dimension

Sanitary Diverter Valve Price

DONJOY as a sanitary diverter valve manufacturer in China offers directly sale factory prices for hygienic diverter valves. More than 27 years experience in design and manufacturing sanitary valves, with US 3A, FDA certificate.

Great quality sanitary diverter valve, It’s trustable, support brands e.g. Unilever, P&G, Colgate, Budweiser, Coca Cola, Nestle…

Please send an email for the best sanitary diverter valve price, reply within 24 hours.



Hygienic Double Seat Diverter Valve Packing

Our sanitary Pneumatic Shut-Off Diverter Valve used for customer’s project

shut off valve for customers projectshut off valve for customers project2
