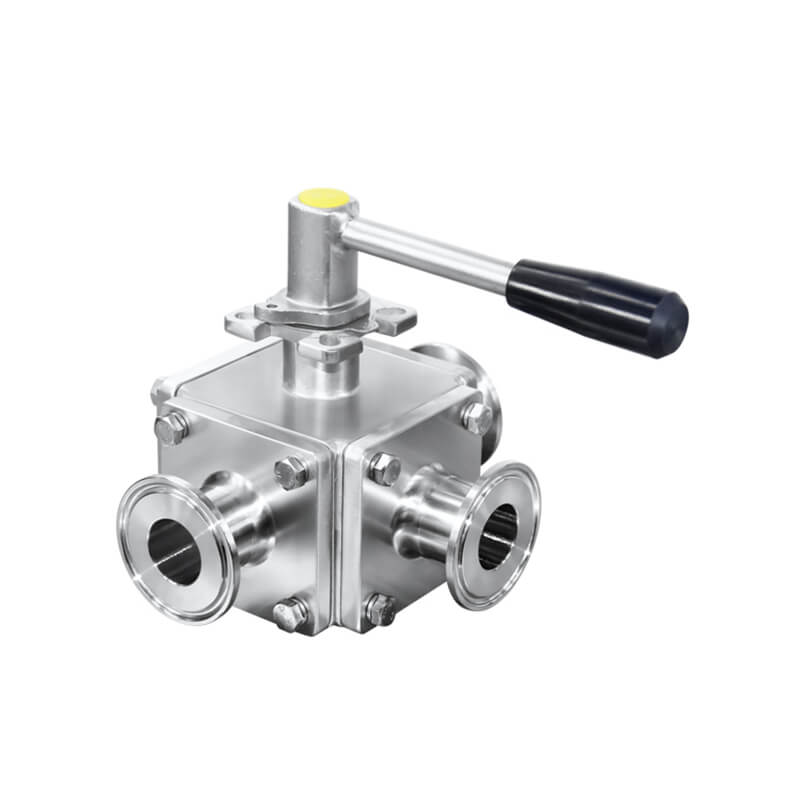

Sanitary Three Way Ball Valve
Donjoy Sanitary Three Way Non-retention Ball Valve with hygienic design meet high requirement of the United States 3-A-68-00 standard, offers small torque, full degreasing, PTFE seat can work at high temperature, no retention, no dead angle, easily maintain, with very flexible combination configuration. Body Material available in Stainless 304 or 316L, suited to use in water treatment, food & beverage processing, pharmaceutical, daily chemical, industrial fluid applications. Connection End with tri-clover/clamp, weld or thread.
Details about Sanitary Three Way Ball Valve
Specification
| Size | DN25-DN100, 1" to 4" |
|---|---|
| Body Material | AISI 304 or 316L, (EN1.4301/EN1.4404). |
| Temperature | -20℃ to +150 ℃ |
| Max pressure | 10bar |
| Seal | Teflon PTFE approved FKM(option) |
| Pipe Joint Systems | DIN SMS RJT 3A ISO IDF |
| Operation | Manual, pneumatic, electric all interchange |
| Surface treatment | Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default. |
| Certification | US 3-A, FDA, CE PED/2014/68/EC, Certification |
| Connection type | Clamp End, Thread End, Weld End |
Sanitary Three Way Ball Valve
Donjoy Sanitary Three Way Non-retention Ball Valve with hygienic design meet high requirement of the United States 3-A-68-00 standard, offers small torque, full degreasing, PTFE seat can work at high temperature, no retention, no dead angle, easily maintain, with very flexible combination configuration. Body Material available in Stainless 304 or 316L, suited to use in water treatment, food & beverage processing, pharmaceutical, daily chemical, industrial fluid applications. Connection End with tri-clover/clamp, weld or thread.
Full encapsulated 3-way ball valve construction
Sanitary Ball Valve Manufacturer in China
Donjoy Technology Co.LTD as a sanitary ball valve manufacturer in China, produced more than 1 million pcs hygienic ball valves, Donjoy Technology established in 1993, covers an area of 29000 square meters, with more than 300 employers, 30+ R&D staff, 200 patent, bring in international leading technology and production equipment e.g. Mazak CNC four-axis, five-axis machine, compound cutting machine, FANUC robot production line etc. Depending on our high technology, cost-effective price, good after-sale service, we earn customers from worldwide.
DONJOY Three-way Ball Valve Working Diagram
Donjoy offers T-type ball and L-type ball design as below picture
Feature
● Manufactured 304 or 316L grade stainless steel body.
● FDA-approved seat materials: FDA 21 CFR 177.2600, Teflon PTFE, FKM(optional)
● Sanitary surface finish, available with Ra < 0.4µm or EP (SF1 and SF4).
● Manual handle, pneumatic actuator and electric actuator are interchangeable.
● A wide selection of different end connections.
● Suitable for low and medium viscosity fluids.
● Certificates: 3A, FDA, PED 2014/68/EU, ISO9001/2008.
● Standards: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
● 100% hydraulic tested / 100% inspected.
Sanitary Ball Valve Advantage
1. Manufacture ball valve for more than 20years, manufactured more than 1million pcs of the ball valve.
2. Updated and optimized ball valve many times, which means we solve the problem in advance, more stable quality, All sealed Non-retention, high precision CNC machined.
3. Super small torque, long lifetime
4. Seal imported from Denmark
Hygienic Three Way Ball Valve Configuration
Sanitary Non-retention Three Way Ball Valve Dimension
If you looking for a sanitary two-way three-piece ball valve, please check below
If you looking for a sanitary pneumatically actuated full cavity ball valve, please check below
Hygienic valve packing
DONJOY sanitary Ball valve used for customer’s project
