Stainless Steel Sanitary Globe Valve

globe valve, different from ball valve, is a type of valve used for regulating flow in a pipeline, consisting of a movable plug or disc element and a stationary ring seat in a generally spherical body.

Globe valves are named for their spherical body shape with the two halves of the body being separated by an internal baffle. This has an opening that forms a seat onto which a movable plug can be screwed in to close (or shut) the valve. The plug is also called a disc. In globe valves, the plug is connected to a stem which is operated by screw action using a handwheel in manual valves. Typically, automated globe valves use smooth stems rather than threaded and are opened and closed by an actuator assembly.

Details about Stainless Steel Sanitary Globe Valve

Specification

Size

DN4-DN150, 1"-6"

Body Material

AISI 304 or 316L, (EN1.4301/EN1.4404).

Temperature

-20℃ to +150 ℃ (It depends on the seal)

Max pressure

145psi (16bar)

Seal

PTFE, FDA approved

Pipe Joint Systems

DIN 11864,SMS, RJT, 3A, ISO, IDF

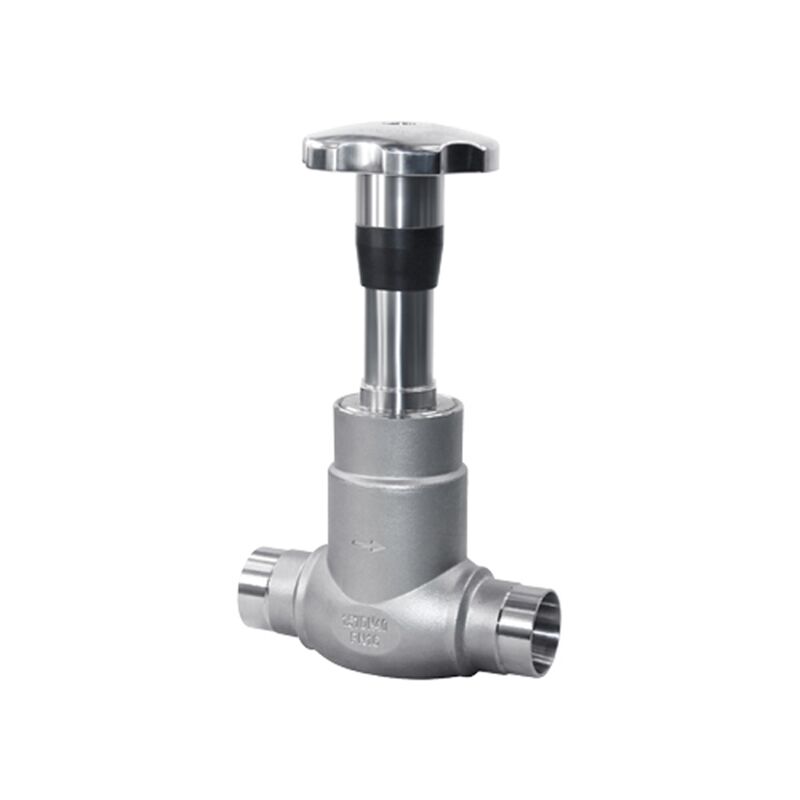

Manual Operation

Stainless steel handwheel, Plastic handle for small size

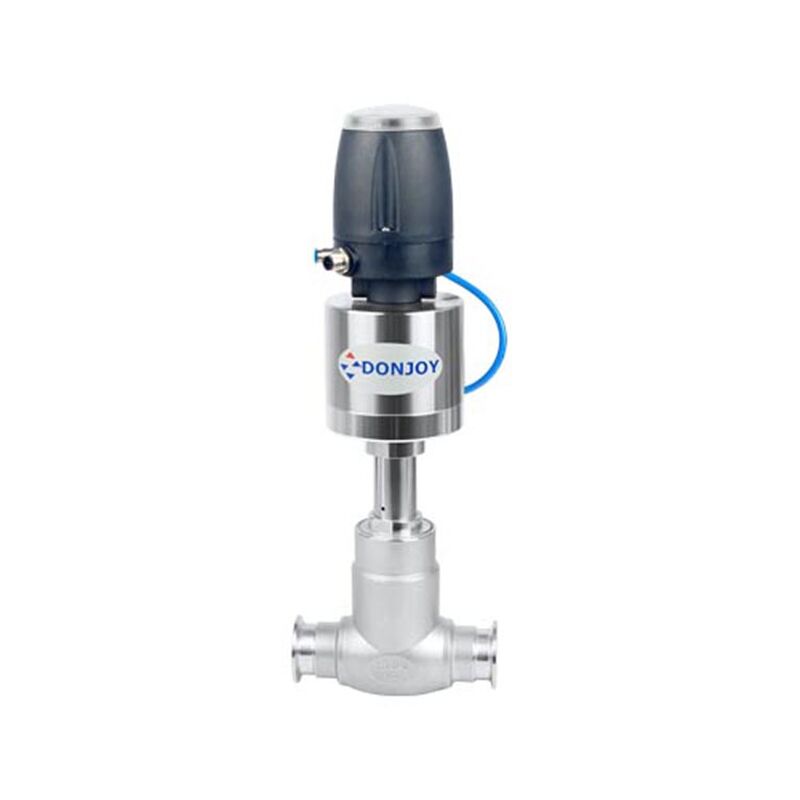

Pneumatic Operation

Compatible with Single-acting or Double-acting Pneumatic actuator

Surface treatment

Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.

Certification

US 3-A, FDA, CE PED/2014/68/EC, Certification

Connection type

Tri-Clamp End, Thread End, Butt Weld End, Flange End

Stainless Steel Sanitary Globe Valve

globe valve, different from ball valve, is a type of valve used for regulating flow in a pipeline, consisting of a movable plug or disc element and a stationary ring seat in a generally spherical body.

Globe valves are named for their spherical body shape with the two halves of the body being separated by an internal baffle. This has an opening that forms a seat onto which a movable plug can be screwed in to close (or shut) the valve. The plug is also called a disc. In globe valves, the plug is connected to a stem which is operated by screw action using a handwheel in manual valves. Typically, automated globe valves use smooth stems rather than threaded and are opened and closed by an actuator assembly.

It is one of the most widely used valves. Its popularity is due to the low friction between the sealing surfaces during the opening and closing process, which is relatively durable, has a small opening height, is easy to manufacture and maintain. Suitable for high pressure and low pressure.

Feature:

● Low flow resistance.
● Opening or Closing no noise.
● No dead angle.
● Suitable use for vacuum environments.
● With good KV curve as a regulating valve.
● Capable of withstand high pressure up to 16 bar.



Hygienic Stainless Steel Globe Valve Connections

Weld end
Clamp end
Nut
Male thread
Female thread
Aseptic flange
Flange

globe seat valve connection

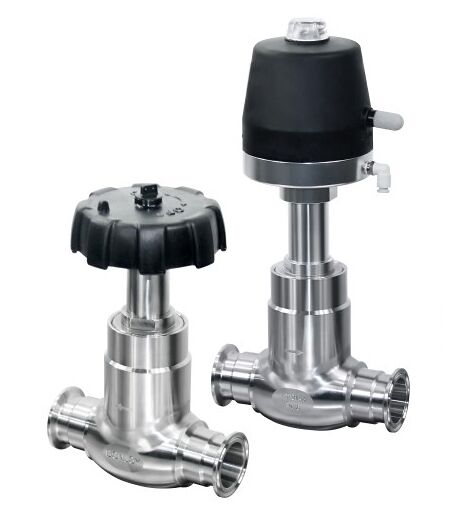

DONJOY Stainless Steel Globe Valve Different Size Pictures

globe seat valve size

globe seat valve size2
globe seat valve big size picture

DONJOY Sanitary Globe Valve Curve

globe seat valve curve
globe seat valve curve

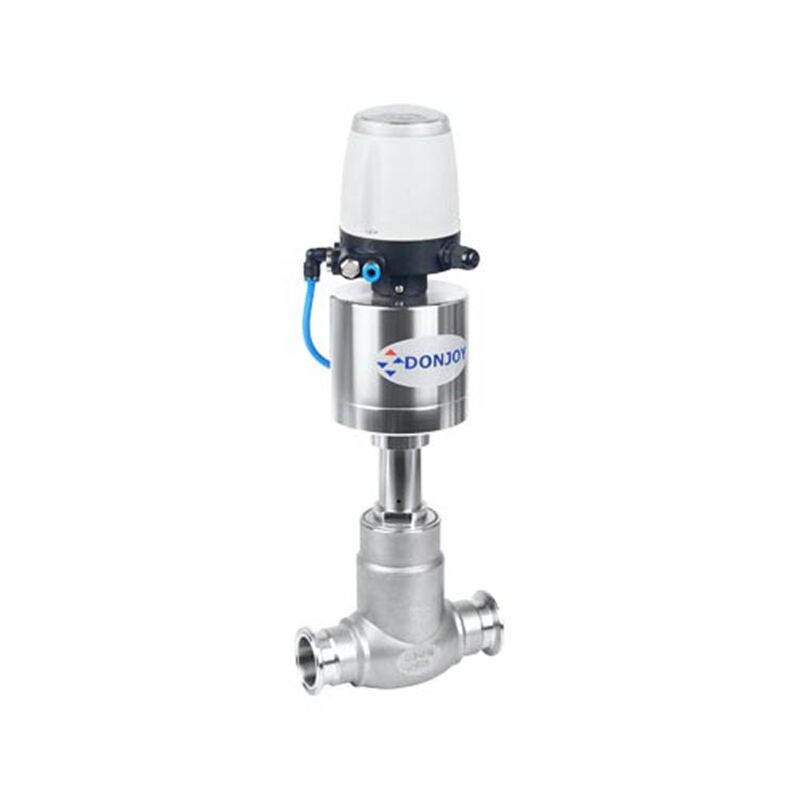

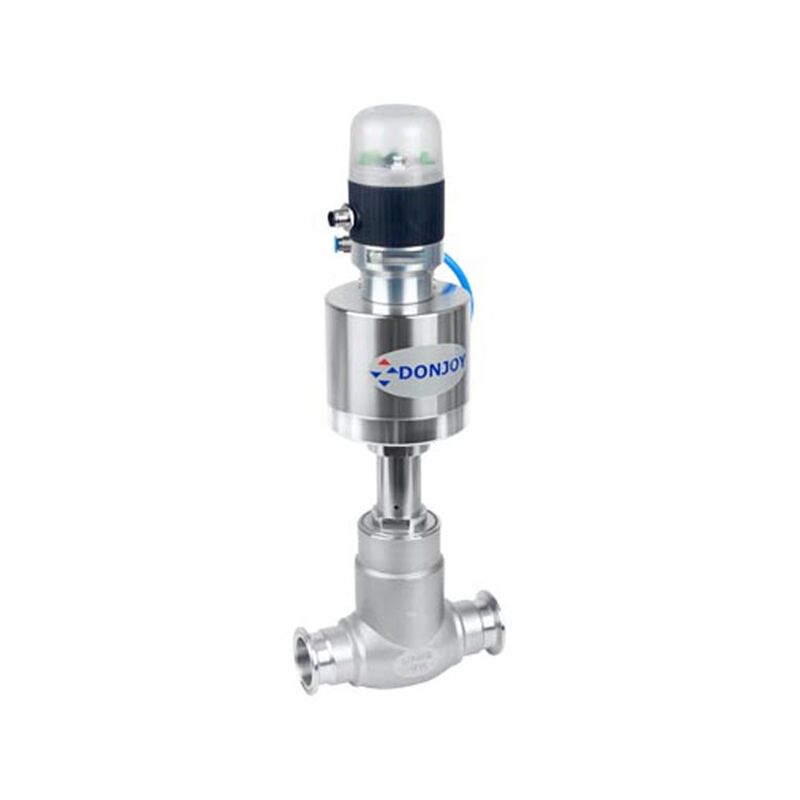

If you looking for a pneumatically hygienic globe valve

Pneumatically Hygienic Globe Valve


Hygienic Valve packing
