Tank Bottom Diaphragm Valve

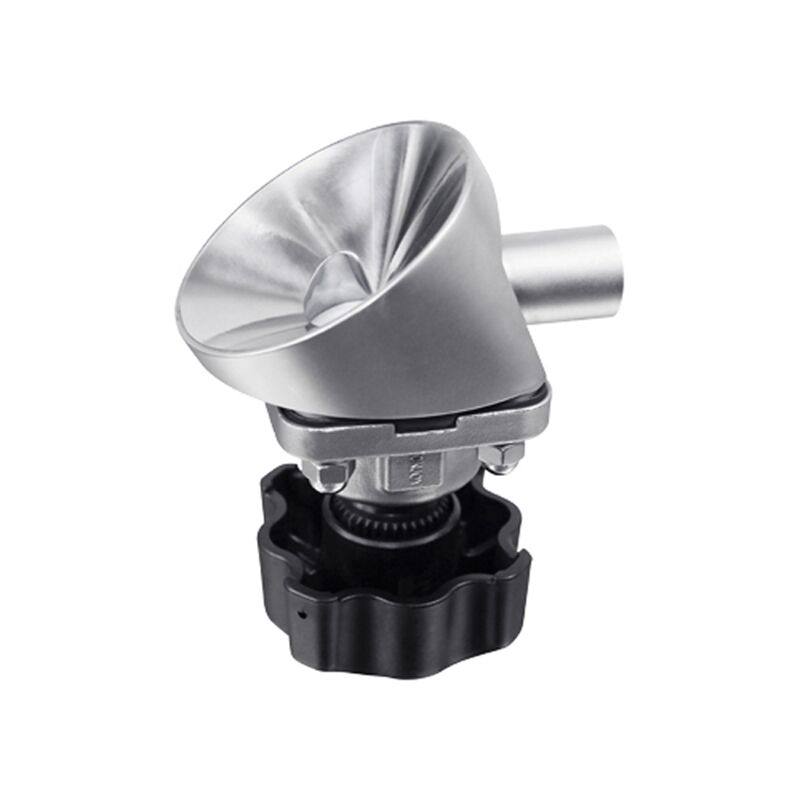

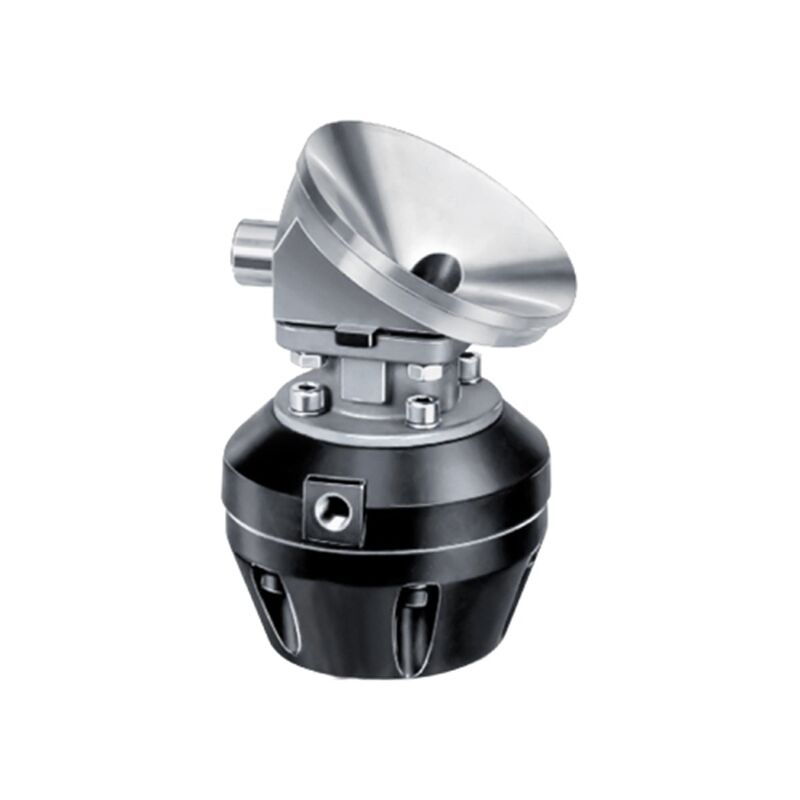

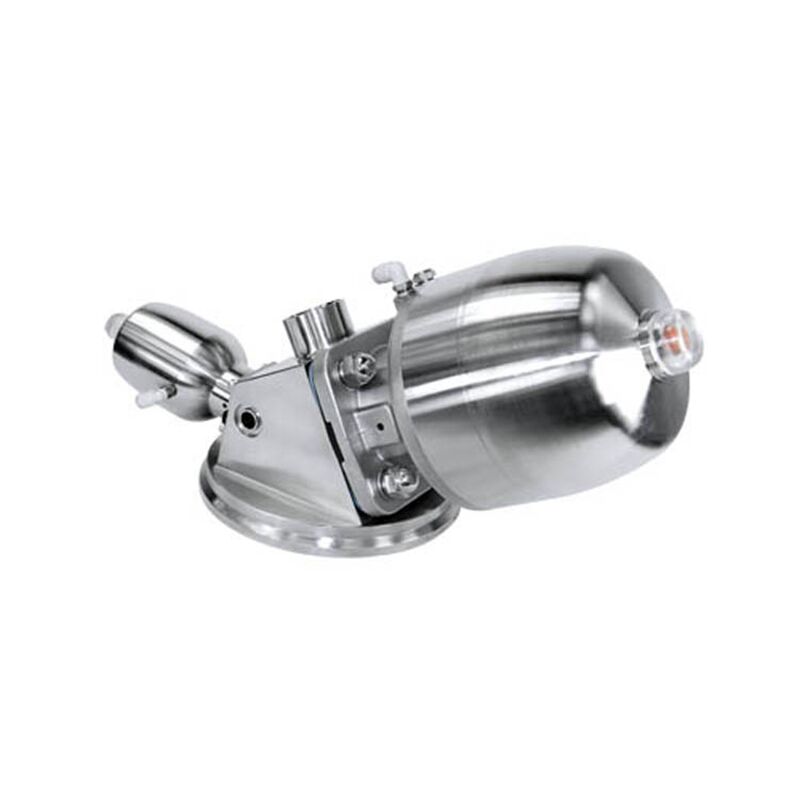

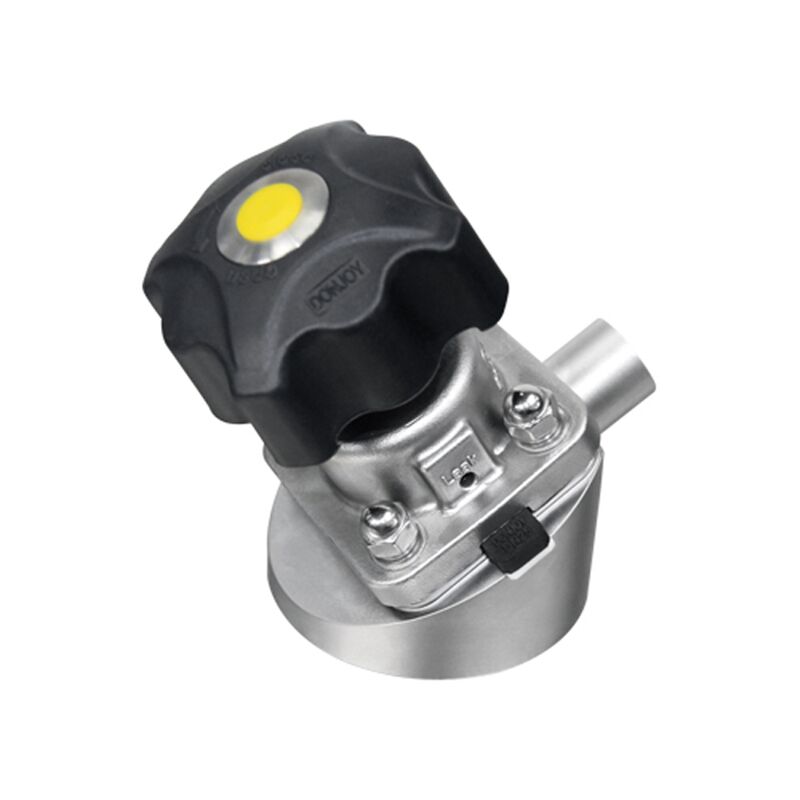

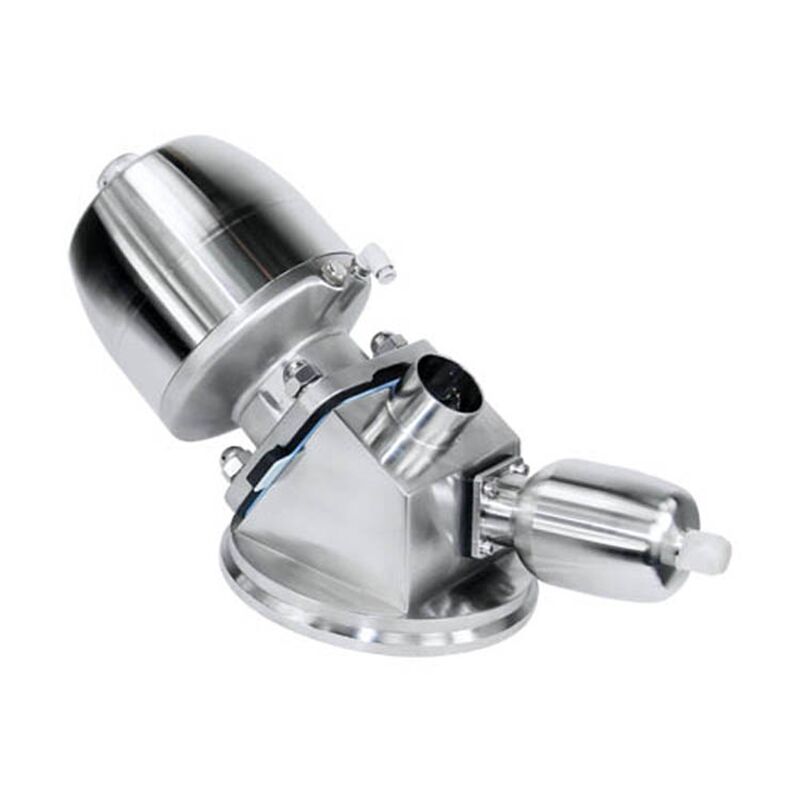

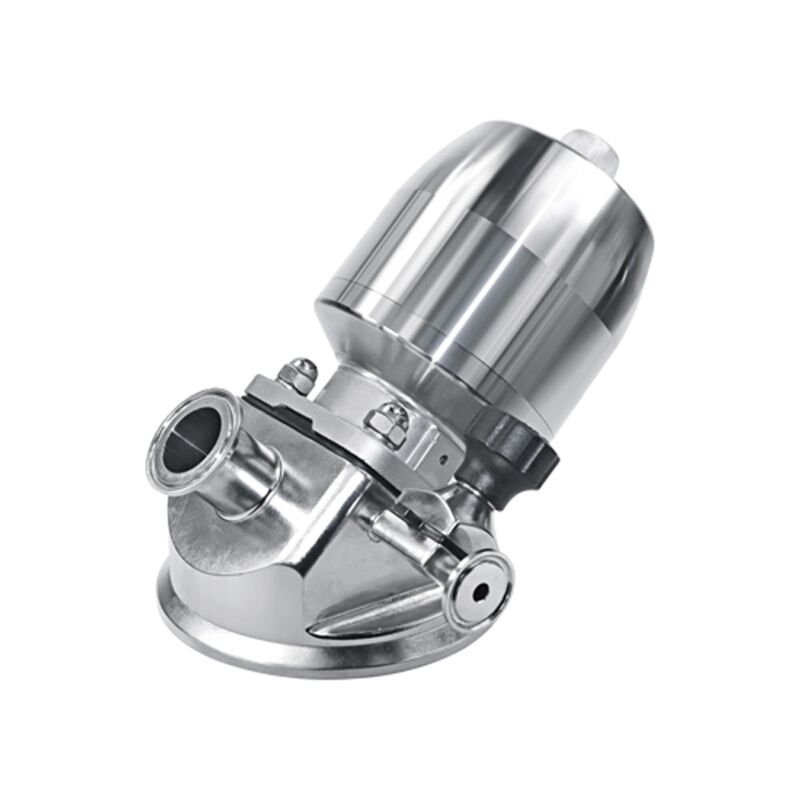

Donjoy Technology offers a variety of Tank bottom Diaphragm Valves including manual or pneumatic actuated with plastic or stainless steel 316L material, pneumatic actuator available to work with Control TOP, Positioner. Designed to use in the aseptic process, pharmaceutical industry.

Details about Tank Bottom Diaphragm Valve

Specification

Size

DN6-DN100, 1/4" to 4"

Body Material

AISI 316L, (EN1.4301/EN1.4404).ASME BPE 316L, or 1.4435-BN2 (316L) Fe<0.5% Forged Body

Temperature

-20℃ to +150 ℃

Max pressure

145psi (10bar)

Seal

EPDM+PTFE double seal, EPDM, Teflon PTFE, FPM, Silicon

Pipe Joint Systems

DIN SMS RJT 3A ISO IDF

Operation

Manual, pneumatic, electric all interchange

Surface treatment

Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.

Certification

US 3-A, FDA, CE PED/2014/68/EC, Certification

Connection type

Tri-Clover/ Clamp End, Thread End, Butt Weld End

Tank Bottom Diaphragm Valve

Donjoy Technology offers a variety of Tank bottom Diaphragm Valves including manual or pneumatic actuated with plastic or stainless steel 316L material, pneumatic actuator available to work with Control TOP, Positioner. Designed to use in the aseptic process, pharmaceutical industry.



Tank bottom Diaphragm Valve

DONJOY Hygienic Diaphragm Valve Surface finish:

  • Wetted interior:
    – 32 Ra µin (0,81 Ra µm)
    – 32 Ra µin (0,81 µm) electropolish
    – ASME BPE SF1 20 Ra µin (0,5 um)
    – ASME BPE SF5 20 Ra µin (0,5 um) electropolish
  • Exterior: as cast, electropolished



Tank outlet Diaphragm Valve Feature:

● Unique seal design, no dead angles
● FDA-approved seat materials: FDA 21 CFR 177.2600, EPDM+PTFE double seal, EPDM, Teflon PTFE, FPM, Silicon
● Sanitary surface finish, available with Ra < 0.4µm or EP (SF1 and SF4).Meet ASME BPE standard
● Manual handle, pneumatic actuator, electric actuator are interchangeable.
● A wide selection of body types for choose from,2 way,3 way U type/T type/Multiport/Tank Bottom
● Certificates: 3A, FDA, PED 2014/68/EU, ISO9001/2008.
● Standards: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
● 100% hydraulic tested / 100% inspected.
