ASME BPE 45 Degree Tri-Clamp Elbow
Donjoy ASME BPE 45 Degree Tri-Clamp Elbow and fittings compliant with ASME BPE standard, constructed from sanitary stainless steel 304 or 316L, provide solid, durability, problem-free for weld or assemble, available in ASME BPE, 3-A, DIN, SMS, ISO, I-line standard. ASME BPE Elbow and fittings special used in pharmaceutical and biotech industries.
Details about ASME BPE 45 Degree Tri-Clamp Elbow
Specification
| Material | 1.4404 (316L) |
|---|---|
| Heat Lot | Marked with Heat Lot Number |
| Connection type | Butt Weld, Tri-clamp |
| Connection Size | 1/2" to 6" |
| Certifcation | ASME BPE Automatic tube weld DT-4.1.1-1 |
ASME BPE 45 Degree Tri-Clamp Elbow
Donjoy ASME BPE 45 Degree Tri-Clamp Elbow and fittings compliant with ASME BPE standard, constructed from sanitary stainless steel 304 or 316L, provide solid, durability, problem-free for weld or assemble, available in ASME BPE, 3-A, DIN, SMS, ISO, I-line standard. ASME BPE Elbow and fittings special used in pharmaceutical and biotech industries.
ASME BPE standard
Sanitary Stainless Steel Surface Finish
Available in Mechanical polishing and electropolishing finish.
Mechanical polishing with 4 grades from SF0 to SF3, default SF 1 finish is RA 20= 0.51 μm
electropolishing finish with 3 grades from SF4- SF6, default SF4 finish is RA 15=0.38 μm
Sanitary Pipe Fittings Elbow Manufacturer
Donjoy Technology as a sanitary pipe fittings elbow manufacturer in China, manufacture sanitary pipe fittings, sanitary valve, pump for more than 28 years. Meet USA 3-A, ASME BPE, FDA, EU CE standad.

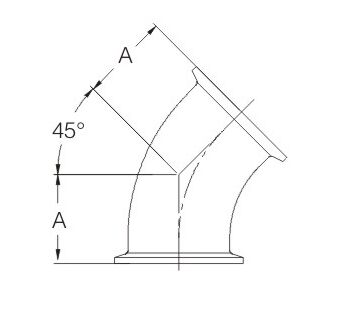

ASME BPE 45 Degree Tri-Clamp Elbow Bend Dimensions
ASME BPE DT-4.1.1-6 hygienic clamp joint 45 bend
| Size (inch) | Dimensions | ||||
| Clamp OD (mm) | A (mm) | ||||
| 1/2″ | 25 | 25.4 | |||
| 3/4″ | 25 | 25.4 | |||
| 1 “ | 50.5 | 28.6 | |||
| 1-1/2″ | 50.5 | 36.5 | |||
| 2 “ | 64 | 44.5 | |||
| 2-1/2″ | 77.5 | 52.4 | |||
| 3 “ | 91 | 60.3 | |||
| 4 “ | 119 | 79.4 | |||
| 6 “ | 167 | 133.4 | |||
Frequency Ask Question
Please firstly leave message below for product you need and requirement,I will send you quotaion sheet,then choose the transportation way and check cost,we will send you Proforma invoice for confirm,at last make the payment and we will ship the goods to you.
Delivery time depends on quantity and type of products,for valve and pipe fittings regular is about 7-20days. For pump regular is about 15-25days.
We offer 1 year warranty to our products.
For small amount we require 100% before production.For big amount,regularly T/T 30% deposit, 70% before shipment.
By Bank T/T, L/C, By Alibaba Assurance Order accept Credit Card VISA, Mastercard, E-checking, and we could’t accept Paypal.
