Flexible Impeller Pump

Donjoy Sanitary Flexible Impeller Pump offers strong self-priming, gentle pumping, pulse-free, quiet and smooth, ideal for use to transfer high and low viscosity fluids or with solid. Sanitary design complied with US 3-A, FDA hygienic standard, commonly used in the food processing, dairy, beverage, daily chemical and pharmaceutical industries…

Details about Flexible Impeller Pump

Specification

Maximum Flow Rate

20m3/h

Maximum pressure

4 bar

Max Particles

12mm

Speed range

960-2900 R.P.M

Body Material

AISI SS316L (1.4404)

Max Temperature

80 ° C

Mechanical Seal

single seal SIC/C/EPDM (standard)

Motor Brand

ABB motor, standard IEC

Surface treatment

Ra≤0.6μm; EP=Ra0.4μm

Connection type

Tri-Clamp End, Butt Weld End, Thread, Flange

Flexible Impeller Pump

Donjoy Flexible Impeller Pump offers strong self-priming, gentle pumping, pulse-free, quiet and smooth, ideal for use to transfer high and low viscosity fluids or with solid. Sanitary design complied with US 3-A, FDA hygienic standard, commonly used in the food processing, dairy, beverage, daily chemical and pharmaceutical industries…



Sanitary Flexible Impeller Pump Description

Donjoy Technology as a sanitary flexible impeller pump manufacturer in China keeps improving the flexible impeller pump. Improvement of pressure resistance, with the innovative design of pump body and shaft seal, and applied new impeller material expanded the application range for flexible impeller pump.

The flexible impeller is the core part of the pump, it offers reliable and excellent performance. The eccentric structure of the impeller and the inner surface of the stator of the pump body makes the pump with self-priming ability. It could transfer liquid containing gas and air. It also could transfer various materials and fluids with solid and brittle particles such as berry doesn’t damage the product. Because of its volumetric pump design, It could also be used as a dosing pump. Provide different material impeller options for different applications. Food grade rubber impeller is certified and used for hygienic applications.



RX Flexible Impeller Pump Construction



Sanitary Flexible Impeller Pump Construction

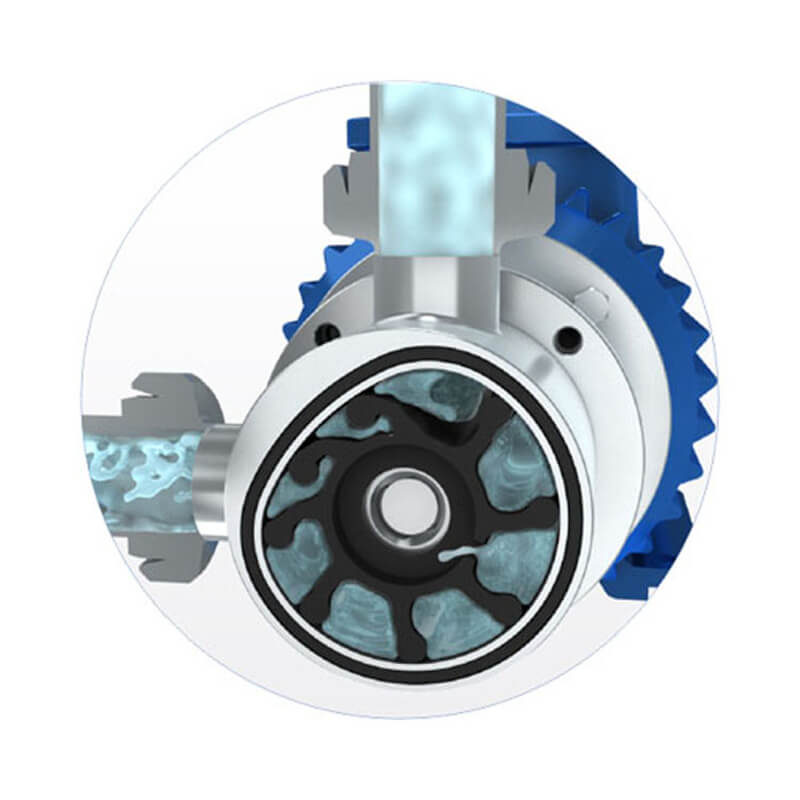

Flexible Impeller Pump Working Principle

At pump inlet end, due to the inner eccentric structure of pump stator, the partial vacuum between the flexible impeller will be formed when the volume is increased. The consequently formed suction will draw liquid into the pump chamber.

The rotating impeller carries the liquid from the inlet to outlet. At this stage, space between impeller actually keeps constant. The gap between impeller allows big solid particles to pass through the pump and without damage.

The impeller contacts with the flat part of the eccentric inner surface in the pump stator. When the impeller is bent, the volume between the impeller will be decreased, so the liquid will be discharged continuously and evenly from the pump.

Sanitary Flexible Impeller Pump Working Principle

Sanitary Flexible Impeller Pump seal

Stainless Steel Impeller Pump Mechanical Seal

Mechanical seal configuration:

1. SIC/C/EPDM

2. SIC/C/FKM

3. SIC/C/HNBR

We adopt single mechanical seal, sealing surface is carbon- metal ceramics, service life is extended. In sanitary food application, mechanical seal are designed to be cleaned easily and to be avoided grooves where may be formed with sediment by liquid.



Feature:

● Pulse-free, Low Noise
● Gentle pumping transfer fluid with particle doesn’t damage it.
● Strong self-priming ability up to 6meters.
● Hygienic designed according to 3A, FDA standard.
●Sanitary mechanical seal, easy cleaning and maintenance

Sanitary Impeller Pump connection

Sanitary Flexible Impeller Pump Connection

Sanitary Flexible Impeller Pump Curve

Sanitary Impeller Pump Curve1

Sanitary Impeller Pump Curve2

Sanitary Impeller Pump Curve3



DONJOY RX Flexible Impeller Pump  Applications:

Food and beverage:

Milk, skimmed milk, cream, curds, yoghurt, whey, lumps, syrups, beverage, wine, beer, fruit and spices.

RX series flexible pump is a positive displacement pump with excellent self-priming performance, its self-priming capacity can reach 5 meters. The efficiency of pumping viscous products almost reaches the effect of pumping water. Therefore, it has a wide application range. The pumping process is very smooth and gentle, and it will never beat or damage the product, even if it is fragile like high-fat milk fat. Large berries can pass through the pump without damage, even half the size of a peach,  the pump operates completely without pulsation. It can also be used as a dosing pump by adjusting the speed of the pump.

The Flexible impeller pump can be workable with a mobile cart .
