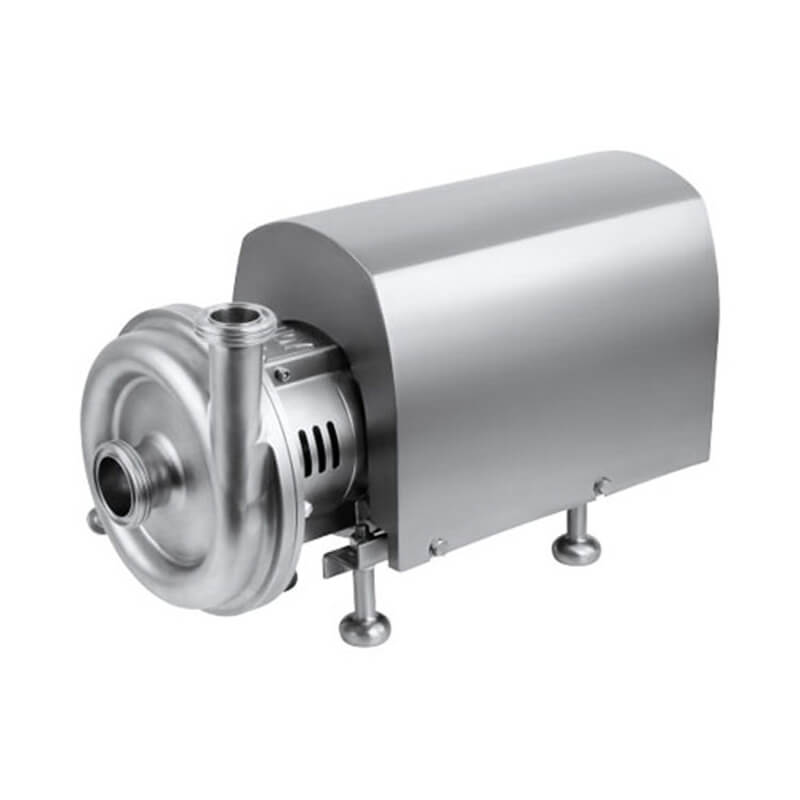

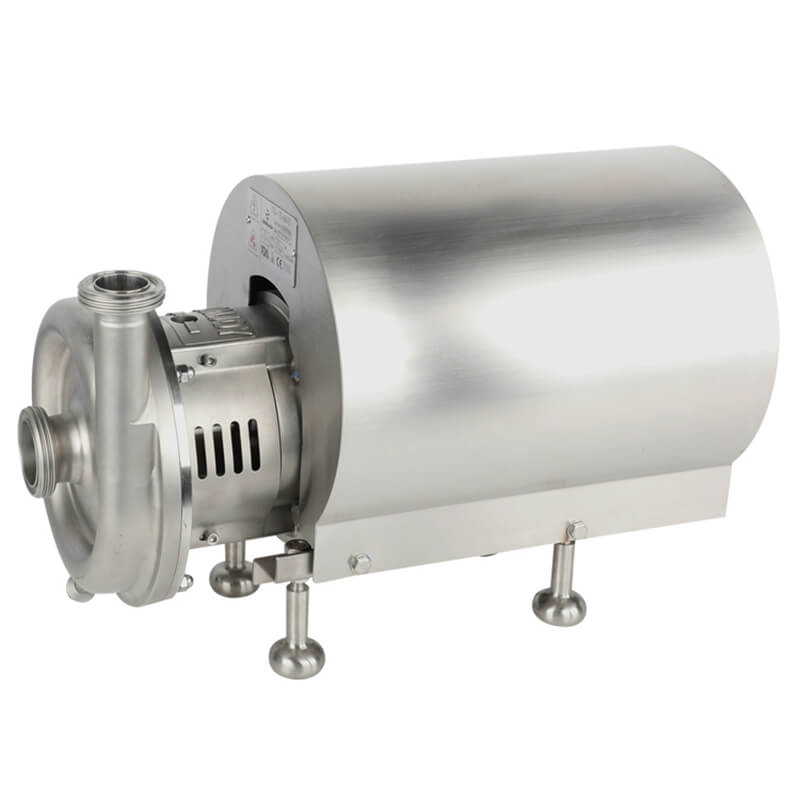

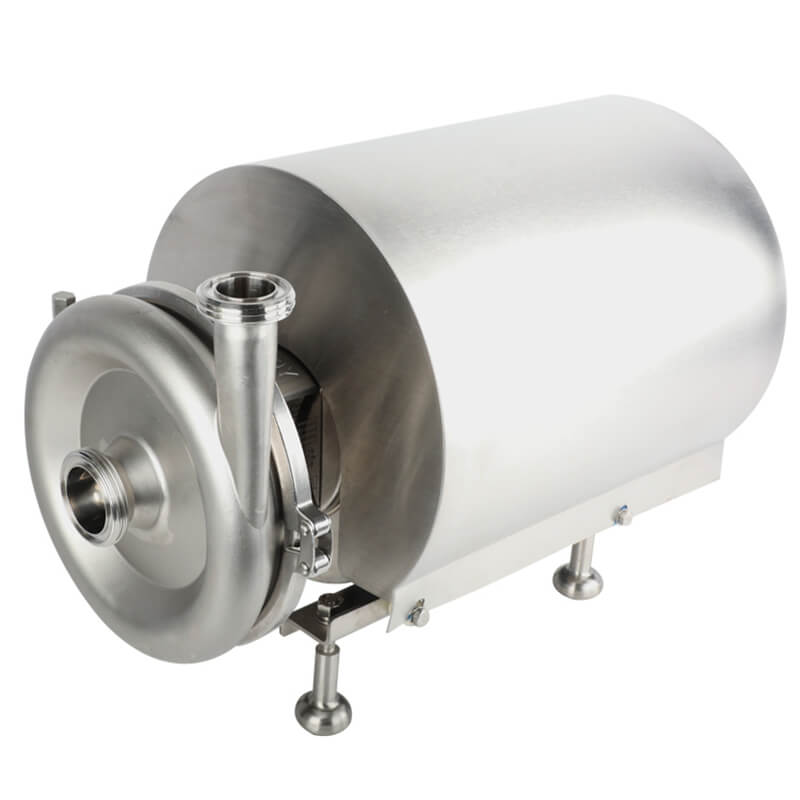

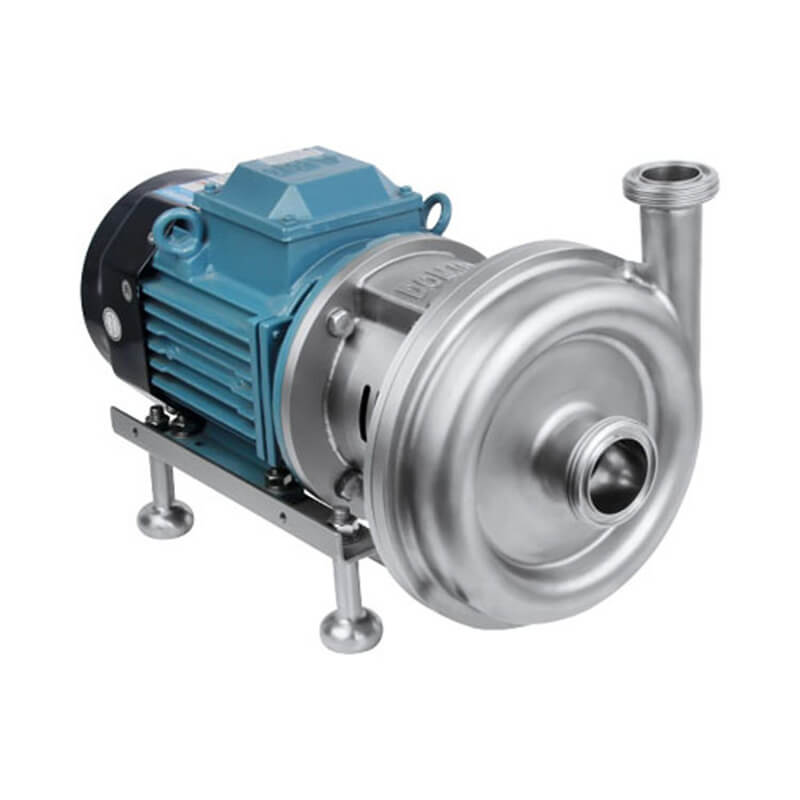

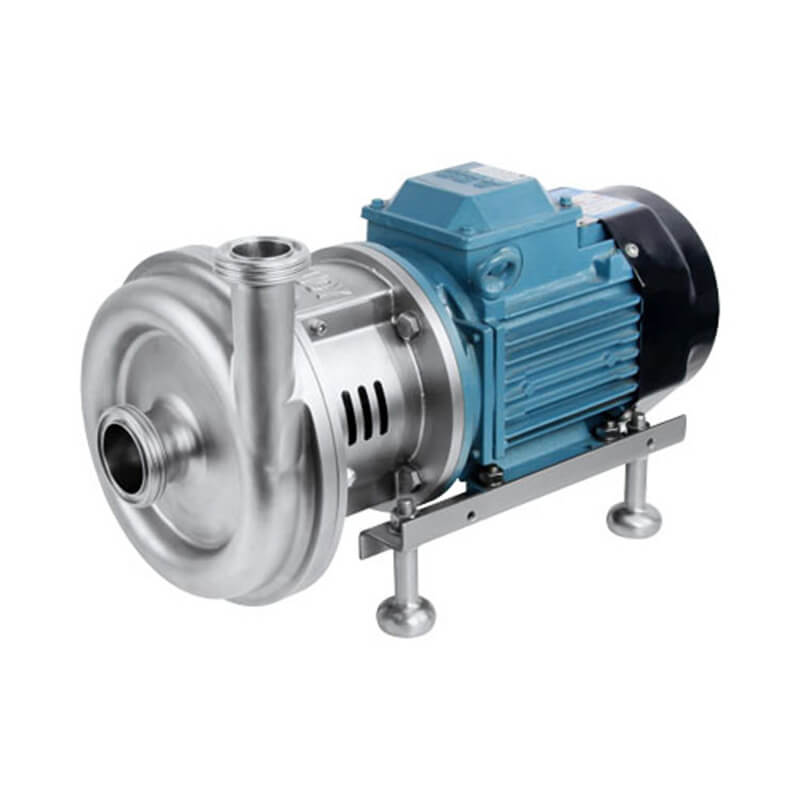

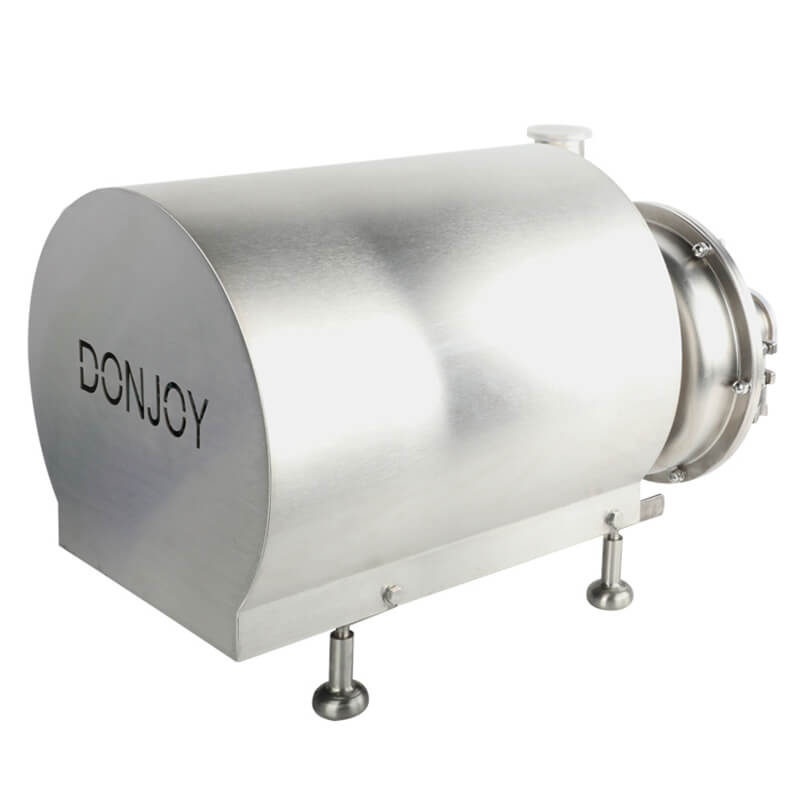

Hygienic Food Grade Centrifugal Pump
Donjoy Sanitary Centrifugal Pumps are a relatively low price and the most common pump used to transfer low viscosity fluids at a high flow rate and low pressure. Pure stainless steel design, complied with ASME BPE and EHEDG standards, US 3-A standard. It widely used in food processing dairies, beverages, pharmaceutical and fine-chemicals industries…
Details about Hygienic Food Grade Centrifugal Pump
Specification
Flow rate | 1 to 140 m³/h |
---|---|
Maximum lift head | 70M(7bar) |
Body Material | AISI 304 (1.4301), AISI 316L (1.4404) |
Seal | single seal (standard), double mechanical seal (option), SIC/C, SIC/SIC |
Motor Power Supply | 0.75KW-30KW wide voltage 2P |
Motor Brand | ABB motor, Simens Beide motor ,standard B35, IEC |
Temperature | -20 to 140°C |
Inlet & Outlet Sizes | 1 1/2"-3" (DN40-DN80) |
Surface treatment | Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default. |
Certification | US 3-A 02-11, FDA21 CFR 177.2600, CE EN809:1998/A1 2009, EN60204-1:2006/A1:2009 |
Connection type | Tri-Clamp End, Butt Weld End, Thread, Flange |
Hygienic Food Grade Centrifugal Pump
DONJOY Food Grade Centrifugal Pumps are a relatively low price and the most common pump used to transfer low viscosity fluids at a high flow rate. Purity hygienic stainless steel design, complied with ASME BPE and EHEDG standards, US 3-A, FDA standard. It is widely used in food processing dairies, beverages, pharmaceutical industries… It is suitable for sanitary applications flows up to 140,000 l/hr, lift head maximum 70 meters. Transfer products viscosity less than 300 cPS.
Sanitary Centrifugal Pump Description
Donjoy DJ-KLX series centrifugal pump is upgraded from KS centrifugal pump optimized the internal structure: impeller design, dead angle treatment, mechanical seal balance design, the mechanical seal could be completely flushed. And optimized the external hygienic design: reduce the dead angle, easily cleaned by CIP and sterilized by SIP. In addition, the DJ-KLX series pump keeps maximum flexibility of combined applications, for example, the pump outlet angle could be adjusted from 0 to 135 degrees.

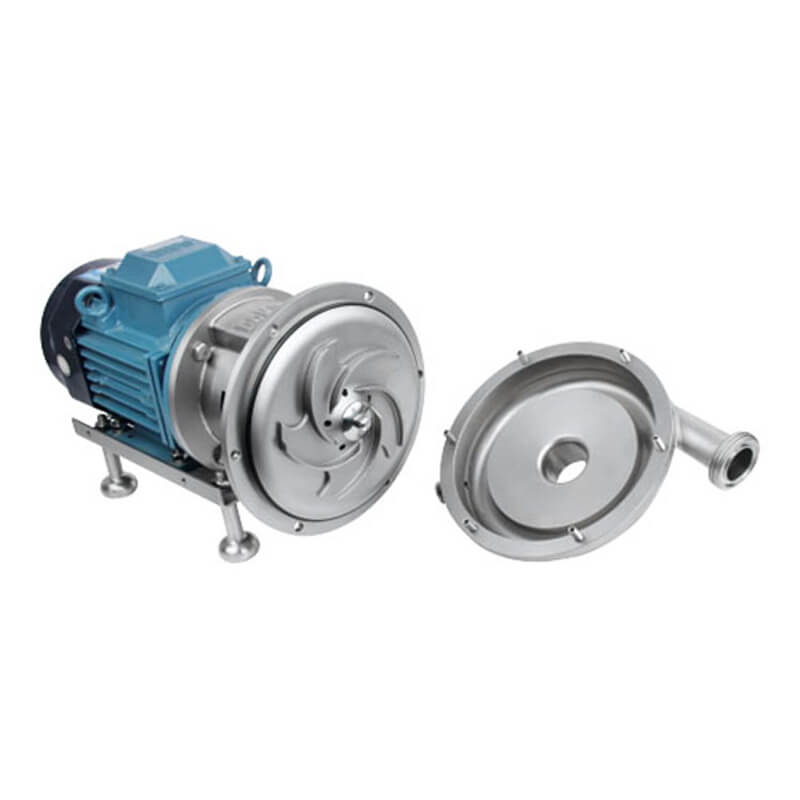

Sanitary Centrifugal Pump Structure
Hygienic Centrifugal Pump Feature:
● High-lift, low noise, high flow, no dead ends, high-performance characteristics
● Pure stainless steel design, complied with ASME BPE and EHEDG standards.
● 3A sanitary standards, IEC B35 motors, IP55, F-class insulation, 50HZ/60HZ.
● Flushed single or double mechanical seal
● Pressure relief valve available internal or external
● Surface heat jacket; complete heat jacket.
● Horizontal or vertical direction
● With stainless steel base plate & adjustable feet
● The motor utilizes the IEC EN IE2, PTC thermistor.
Sanitary DONJOY Centrifugal Pump Curve
Sanitary Centrifugal Pump Dimension
Hygienic Food Grade Centrifugal Pump US-3A Certificate
If you don’t know how to choose the pump, please check this article How to Choose a Right Sanitary Pump
Hygienic centrifugal pump packing
Sanitary Centrifugal Pump use for customer’s project
Frequency Ask Question
Please firstly leave message below for product you need and requirement,I will send you quotaion sheet,then choose the transportation way and check cost,we will send you Proforma invoice for confirm,at last make the payment and we will ship the goods to you.
Delivery time depends on quantity and type of products,for valve and pipe fittings regular is about 7-20days. For pump regular is about 15-25days.
For small amount we require 100% before production.For big amount,regularly T/T 30% deposit, 70% before shipment.
By Bank T/T, L/C, By Alibaba Assurance Order accept Credit Card VISA, Mastercard, E-checking, and we could’t accept Paypal.
