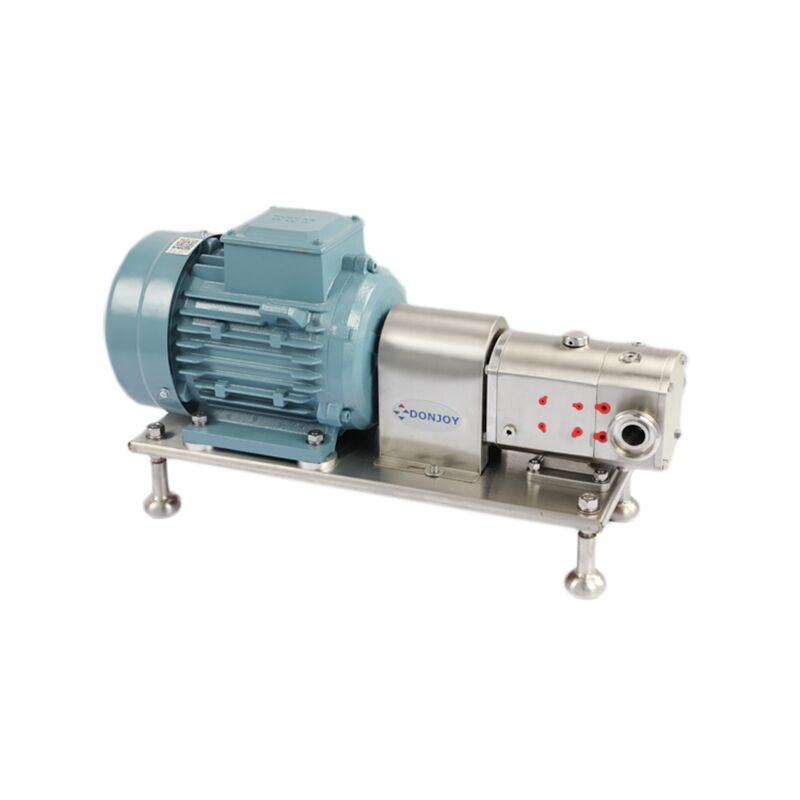

Hygienic Rotor Pump for Cosmetic
Hygienic Rotor Pump for Cosmetic is a positive displacement pump, Robust construction, low maintenance, cost-effective. Hygienic design complied with ASME BPE, EHEDG standards, US 3-A, FDA hygienic standard, the most common pump used to transfer high viscosity fluids solid and particle, It offers a comprehensive range of pumps intended for hygienic applications in the food processing, dairy, beverage, home care and personal care and pharmaceutical industries…
Details about Hygienic Rotor Pump for Cosmetic
Specification
| Maximum Flow Rate | 50 m³/h |
|---|---|
| Maximum pressure | 150M(15bar) |
| Max speed | 750 rpm |
| Body Material | AISI 304 (1.4301), AISI 316L (1.4404) |
| Body Types | Horizontal Type (TUL) & Vertical Type (TUR) |
| Mechanical Seal | single seal SIC/SIC/EPDM (standard), double mechanical seal (option) |
| Motor Power Supply | 0.75KW-18.5KW wide voltage |
| Motor Brand | ABB motor, Simens Beide motor ,standard IEC |
| Inlet & Outlet Sizes | 1"-4" (DN25-DN100) |
| Max Temperature | 150℃/302°F |
| Surface treatment | Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default. |
| Certification | US 3-A 02-11, FDA21 CFR 177.2600, CE EN809:1998/A1 2009, EN60204-1:2006/A1:2009 |
| Connection type | Tri-Clamp End, Butt Weld End, Thread, Flange |
Hygienic Rotor Pump for Cosmetic
Hygienic Rotor Pump for Cosmetic is a positive displacement pump, Robust construction, low maintenance, cost-effective. Hygienic design complied with ASME BPE, EHEDG standards, US 3-A, FDA hygienic standard, the most common pump used to transfer high viscosity fluids solid and particle, It offers a comprehensive range of pumps intended for hygienic applications in the food processing, dairy, beverage, home care and personal care and pharmaceutical industries…
Sanitary Lobe Pump Description
Donjoy rotary lobe pumps provide reliable performance, trouble-free operation and superior energy efficiency for demanding applications. Donjoy lobe pump has many configurations, TU-series is standard configuration, STU-series is all stainless steel. It is an excellent choice for duties that require contamination-proof pumps to meet high standards of hygiene, low-shear and low-pulsation operation. This 3-A approved pump handles both Cleanings in Place and Sterilization in place and can be supplied with thorough documentation to support rigorous validation requirements.
Food Grade Hygienic Rotor Pump Structure
TUL stand for horizontal inlet and outlet.
TUR stand for vertical inlet and outlet.
Hygienic Rotary Lobe Pump Feature:
● High Purity, Low Noise
● High pressure to 20 bar
● Variety of lobe options: butterfly, single, bi-wing, and tri-lobe.
● Hygienic designed according to 3A FDA standard
●Sanitary mechanical seal, easy cleaning and maintenance
● Applied to CIP cleaning and SIP sterilization
● Different drives and devices
1) Manual adjustment, continuously variable transmission
2) Variable–frequency motor adjustment
3) Fixed speed output transmission
● Motor utilizes the IEC EN IE2, PTC thermistor.
Rotor Selections for rotary lobe pump
- Butterfly Rotor: Suitable for transporting material, with low particle breakage rate and small pulse. (Recommend)
- 3-Leaves Rotor: Suitable for transporting all kinds of material, with particle breakage rate and smaller pulse than butterfly rotor
- Spiral Self-priming Rotor: With strong self-priming capability could transport with particle, gas-liquid, mixture, oil, dairy products, etc. It also extracts and transports all kinds of sewage, sludge, cow dung.
- Single Butterfly Rotor: Suitable for transporting material with large particles, with low particle breakage rate for large particle, large pulse, low pressure and small volume.
- 2-Leaves Rotor: Suitable for transporting all kinds of material, with particle breakage rate, large pulse, low pressure and small volume.
- 5-Leaves Rotor: Suitable for transporting all kinds of material, with high particle breakage rate, very small pulse and smaller flow.
Lobe Pump Various Configurations
Sanitary Rotary Cam Pump Curve
Sanitary Rotary Rotor Pump Dimension
Hygienic Rotor Pump Manufacturer
DONJOY Technology as a hygienic rotor pump manufacturer in China, with more than 12 years of experience, offers the best quality lobe pump and direct sale factory price. Donjoy supports famous world brands e.g. Unilever, P&G, Colgate, Budweiser, Coca Cola, Nestle, Johnson&Johnson, Pfizer… our quality is approved by our customers.
For more information please check this article All you need to know about DONJOY Lobe Pump
