Sinusoidal pump
DONJOY Sine Pump- Liquid Handling Equipment with bidirectional reversible operation, food-grade stainless steel design, gentle pumping for transferring high and low-viscosity media, no damage and no pulse during transfer, clean, efficient, durable, safe, and low-cost solutions.

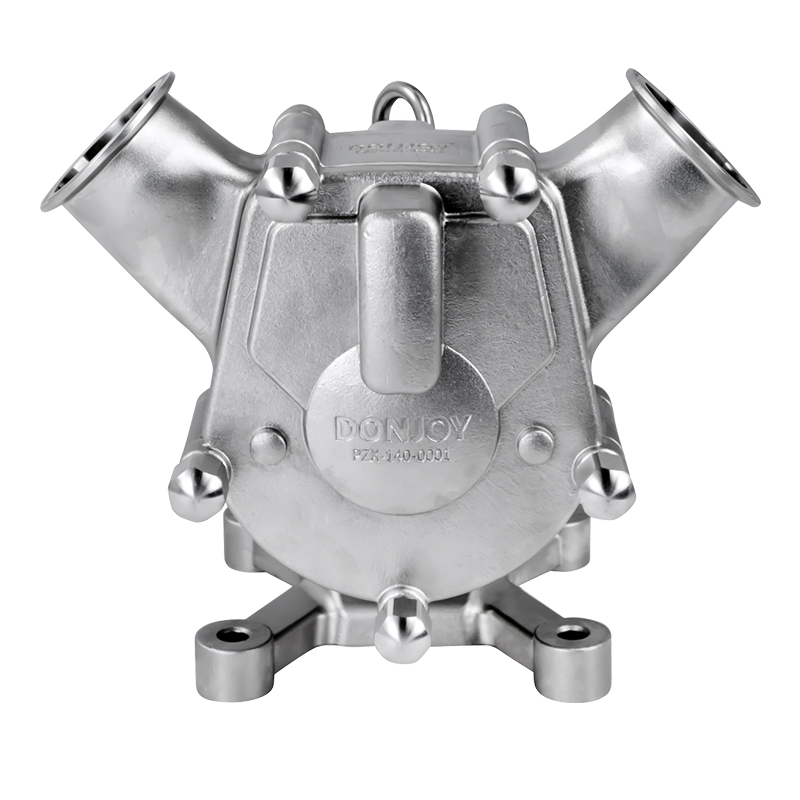

Sine pump design

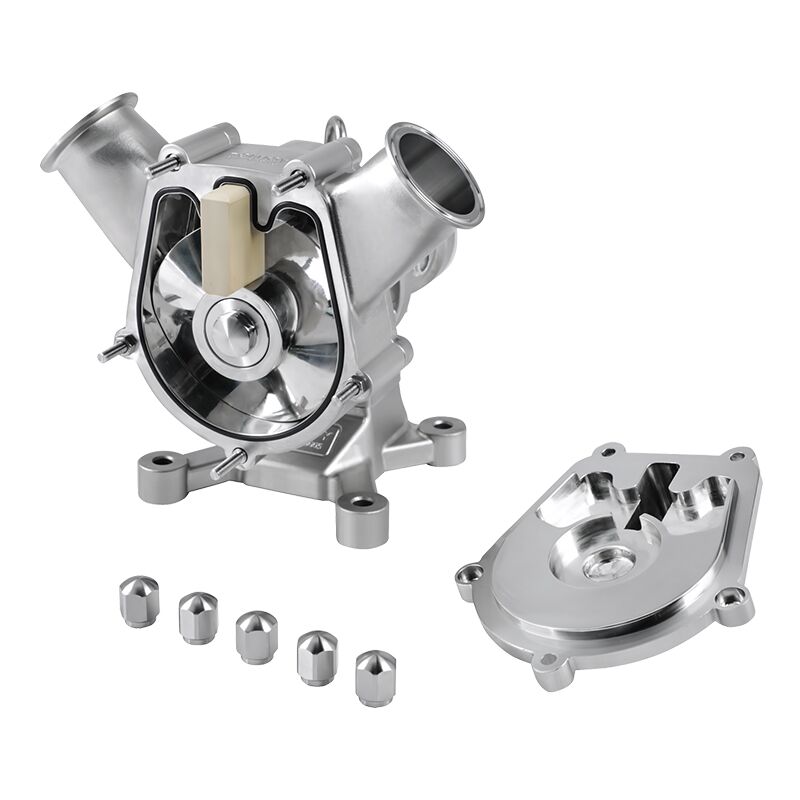

A sinusoidal pump is a type of pump featuring a sine wave-shaped rotor that creates four moving chambers, which gently convey the duty fluid from the inlet port to the higher pressure discharge port. A sine pump is a new type of positive displacement pump, which has the characteristics of a more compact structure, higher conveying efficiency, and wider viscosity range of applicable conveying medium. Can be widely used in food, beverage, dairy, chemical, pharmaceutical and other industries.
DONJOY PZX Sine Pump Configuration
DONJOY provide the below various configurations.
Sine Pump Beverage industry pump with Reducer Gearbox & Motor
1) Variable–frequency motor, speed could be adjusted by frequency converter(VFD), the adjustable range is big 10-90hz. Must need an additional frequency converter, otherwise, the speed couldn’t be adjusted.

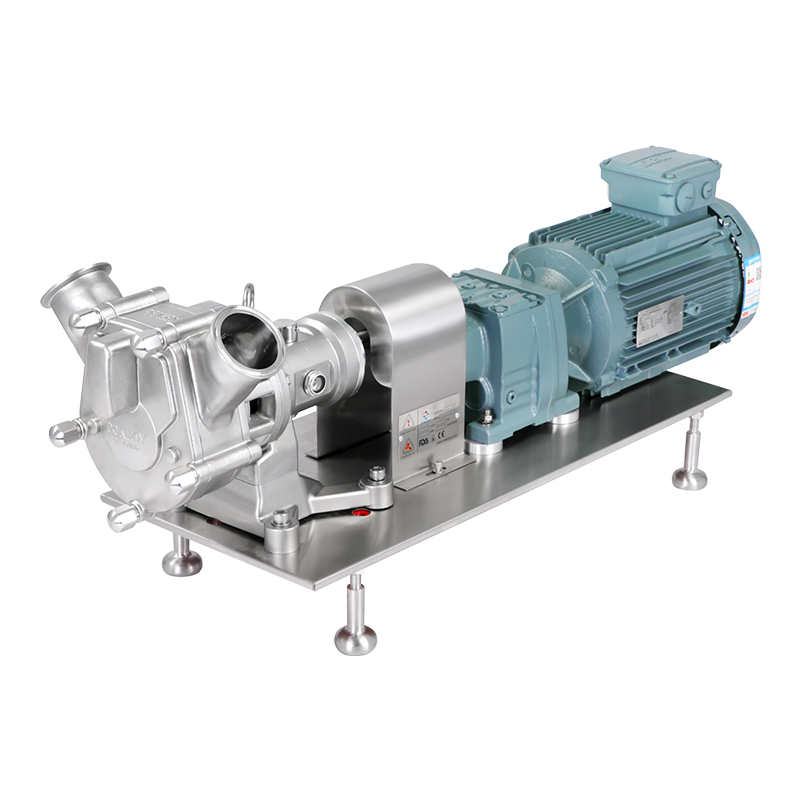

2) Fixed speed reducer and motor, it also can be adjusted by frequency converter(VFD), the default output speed is around 300rpm, but the adjustable range is small, 30-60hz.

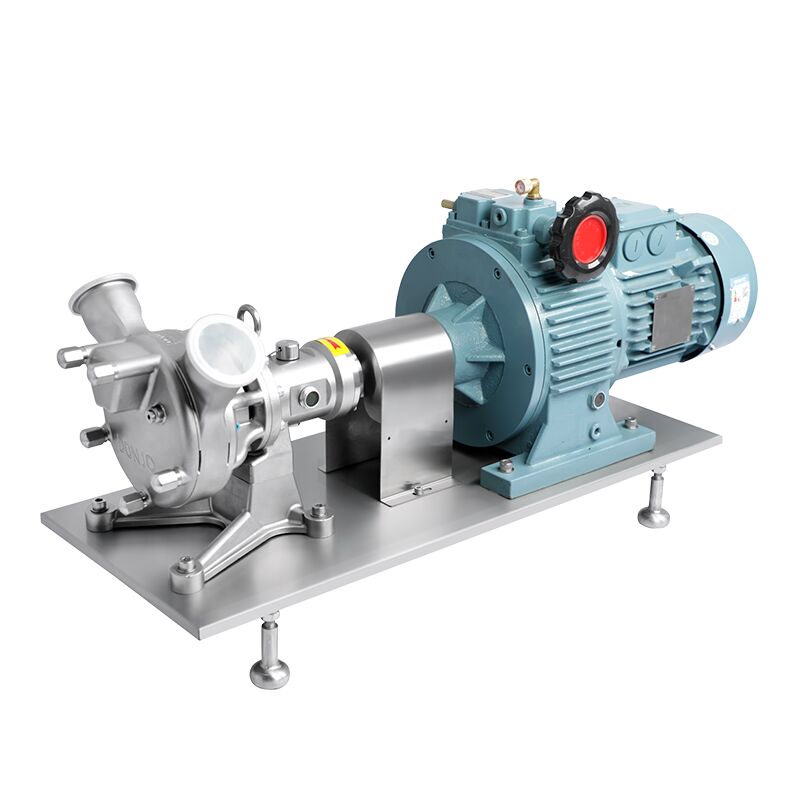

3.) Mechanical stepless speed variator, it no need additional VFD to control speed.

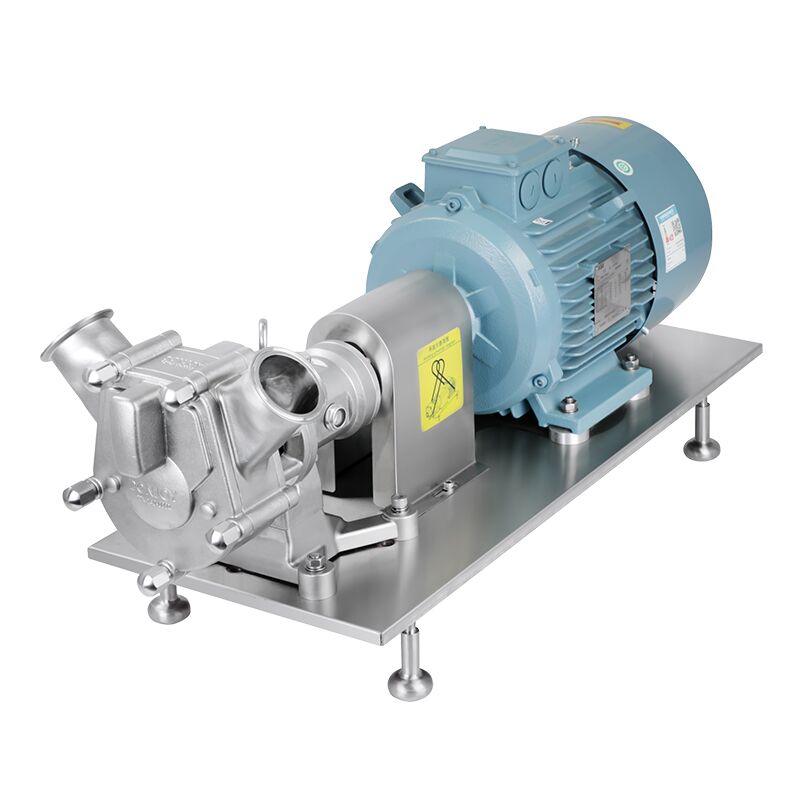

4). Sine pump direct with motor

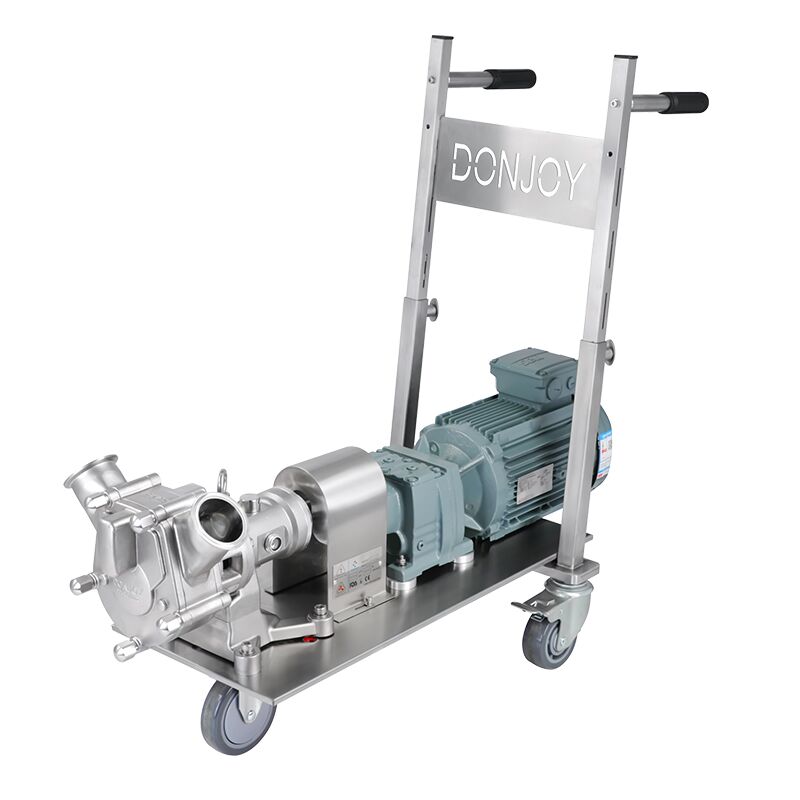

5). Sine pump direct with mobile cart

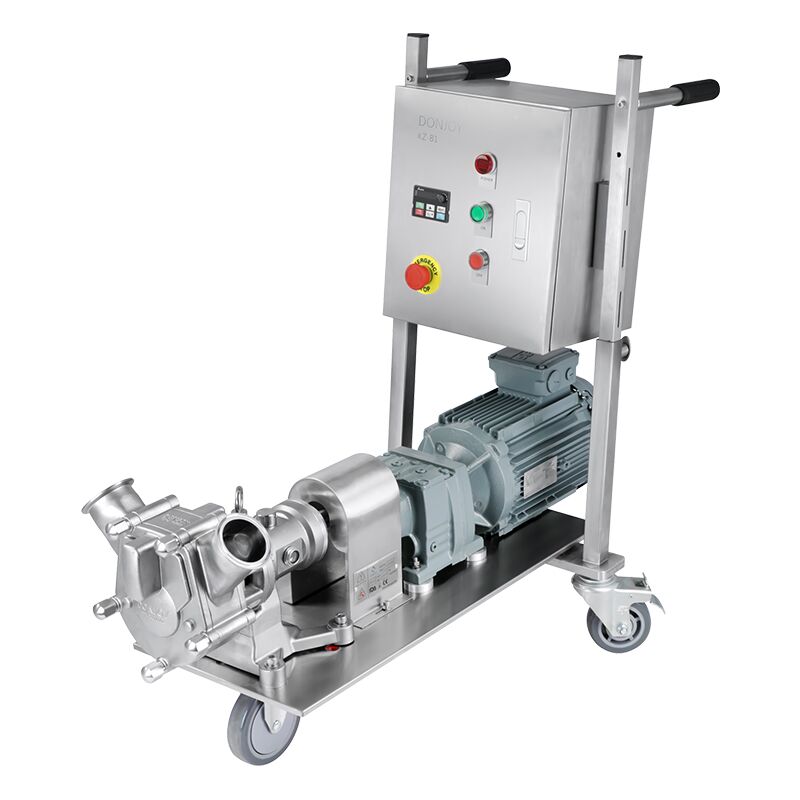

6). Sanitary sine pump with control box and mobile cart
PZX Sine Pump Curve
PZX sine pump selection table
Sine pump optional interface orientation
Hygienic pump packing
