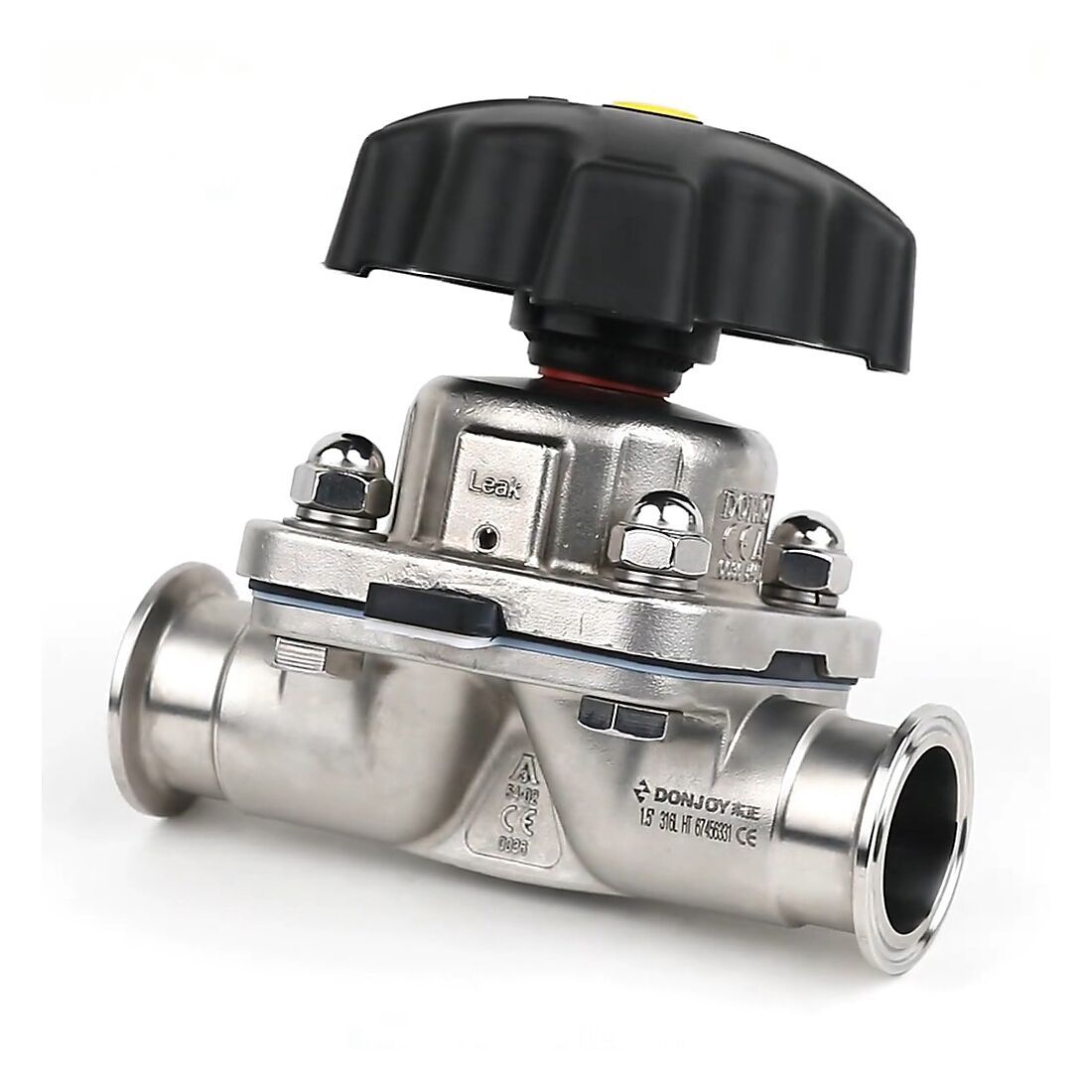

Bio-Pharm Diaphragm Valve

Donjoy Technology offers a variety of ASME BPE Diaphragm Valves including manual, pneumatic or electric actuated 2-way or cast 2-ways, 3-way point of use (Zero Static) valves, T-block, and custom block body valves, can work with Control TOP on/off, positioner for accurate flow control. Suit to be used in aseptic areas or pharmaceutical industries.

Details about Bio-Pharm Diaphragm Valve

Specification

Size

DN6-DN100, 1/4" to 4"

Body Material

AISI 316L, (EN1.4301/EN1.4404).ASME BPE 316L, or 1.4435-BN2 (316L) Fe<0.5% Forged Body

Temperature

-20℃ to +150 ℃

Max pressure

145psi (10bar)

Seal

EPDM+PTFE double seal, EPDM, Teflon PTFE, FPM, Silicon

Pipe Joint Systems

DIN SMS RJT 3A ISO IDF

Operation

Manual, pneumatic, electric all interchange

Surface treatment

Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.

Certification

US 3-A, FDA, CE PED/2014/68/EC, Certification

Connection type

Tri-Clover/ Clamp End, Thread End, Butt Weld End

Bio-Pharm Diaphragm Valve

Donjoy Technology offers a variety of Bio-Pharm Diaphragm Valves including manual, pneumatic or electric actuated 2-way or cast 2-ways, 3-way point of use (Zero Static) valves, T-block, and custom block body valves, can work with Control TOP on/off, positioner for accurate flow control. Meet ASME BPE standard, suit to be used in aseptic areas or pharmaceutical industries.

diaphragm valves



ASME BPE Bio-Pharm Valve Surface finish:

  • Wetted interior:
    – 32 Ra µin (0,81 Ra µm)
    – 32 Ra µin (0,81 µm) electropolish
    – ASME BPE SF1 20 Ra µin (0,5 um)
    – ASME BPE SF5 20 Ra µin (0,5 um) electropolish
  • Exterior: as cast, electropolished



Sanitary Diaphragm Valve Feature:

● Unique seal design, no dead angles
● FDA-approved seat materials: FDA 21 CFR 177.2600, EPDM+PTFE double seal, EPDM, Teflon PTFE, FPM, Silicon
● Sanitary surface finish, available with Ra < 0.4µm or EP (SF1 and SF4).Meet ASME BPE standard
● Manual handle, pneumatic actuator, electric actuator are interchangeable.
● A wide selection of body types for choose from,2 way,3 way U type/T type/Multiport/Tank Bottom
● Certificates: 3A, FDA, PED 2014/68/EU, ISO9001/2008.
● Standards: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
● 100% hydraulic tested / 100% inspected.

Operation:

● Handles
Plastic handwheel
Stainless handwheel
● Actuators
Pneumatic plastic actuator
Pneumatic stainless steel actuator
Electric actuator
● Units for intelligent control and indication:
Proximity Switches (position sensor)
Limit Stroker
C-top control(on/off control)
IL-top control (Positioner)

Buy DONJOY Bio-Pharm Valve Advantage

1. Manufacture diaphragm valves for more than 20 years, manufactured more than 600,000 pcs.

2. This means we updated and optimized the diaphragm valve many times, and solve the problem in advance, more stable quality.

3. No dead angle.

4. Seal imported from Denmark.



Donjoy Valve Advantage

ASME BPE Diaphragm Valve body surface

Hygienic Diaphragm Valve Part List

Diaphragm Valve Part List

Hygienic Diaphragm Valve Dimension

Diaphragm Valve Dimension

Diaphragm Valve Actuator Dimension

More About O-ring please check the article How to select O-ring Seal for Sanitary Valve

Select O ring Seal for Sanitary Valve

If you need an electrically operated diaphragm valve please check this link.

Electric Diaphragm Valve

If you looking for a pneumatic diaphragm valve, please kindly check below product link.

Pneumatic Sanitary Diaphragm Valve



Hygienic valve packing

Our sanitary diaphragm valve used for customer’s pharmaceutical project

Diaphragm Valve Use for Customers ProjectDiaphragm Valve Use for Customers Project 2
