IndiTop Valve Indication Unit

DONJOY IndiTop Valve Indication Unit is used to provide LED indication of the valve’s position and status by means of an electronic signal. It’s compatible with most PLC (programmable logic controller) automation systems. It senses the valve’s position and sends feedback signals to the PLC to indicate whether the valve is open, closed, or outside of those two set positions. Mounted on top of all pneumatic valves e.g. pneumatic butterfly valves, ball valves, diaphragm valves, angle seat valves, globe valves, shut off diverter valves, mixing proof valves, etc.

Details about IndiTop Valve Indication Unit

Specification

Output

Digital signal output DC24V+ (PNP) and analog signal 4-20mA

Display

with 3 colours LED lights

Power supply

DC 24V ± 10%

Protect class

IP67

Application

Mounted on top of all pneumatic valves,e.g. pneumatic butterfly valves, ball valves, diaphragm valves, angle seat valves, globe valves, shut off diverter valves, mix proof valves, etc

IndiTop Valve Indication Unit F-TOP-1553 description:

DONJOY IndiTop Valve Indication Unit is used to provide LED indication of the valve’s position and status by means of an electronic signal. It’s compatible with most PLC (programmable logic controller) automation systems. It senses the valve’s position and sends feedback signals to the PLC to indicate whether the valve is open, closed, or outside of those two set positions. Mounted on top of all pneumatic valves e.g. pneumatic butterfly valves, ball valves, diaphragm valves, angle seat valves, globe valves, shut off diverter valves, mixing proof valves, etc.

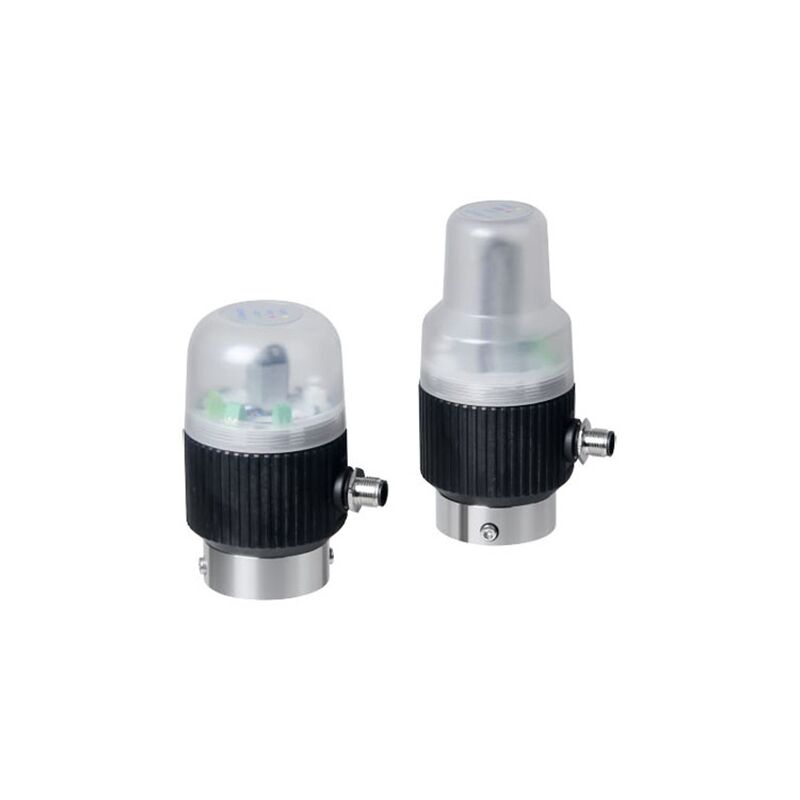

IndiTop Valve Indication F TOP 1553 2

Valve Position Feedback F-TOP-1553 Specification

Feedback Output: Digital signal output DC24V+ (PNP) and analog signal 4-20mA
Power supply: DC24V ± 10%
Positioning accuracy option ±0.2 mm, ±0.5 mm,±1 mm(default), ±2 mm, ±3 mm
Electrical protection rating: IP67
With Easy Setting: One-button auto-tuning function
Display: with 3 colours LED lights
Green LED: indicates that the valve is open
Red LED: indicates that the valve is closed
Yellow LED: indicates the third (middle)( Example Mixproof valve)
Red LED light flickers: indicating it doesn’t reach target position or valve position is deviated by pipeline pressure etc.

F-TOP-1553 Indicator Description

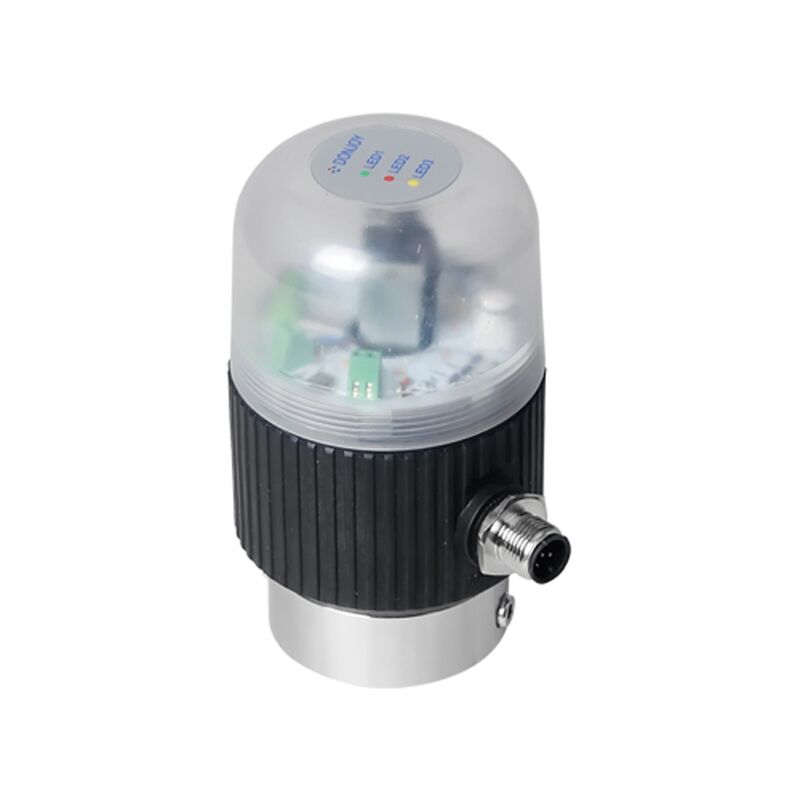

F TOP 1553 Indicator Description
       Note: The red light flashes in three situations :
  1. Not reaching target position/deviation from the position
  2. Actuator during working
  3. Valve position deviated by external or pipeline pressure

F-TOP-1553 Structure

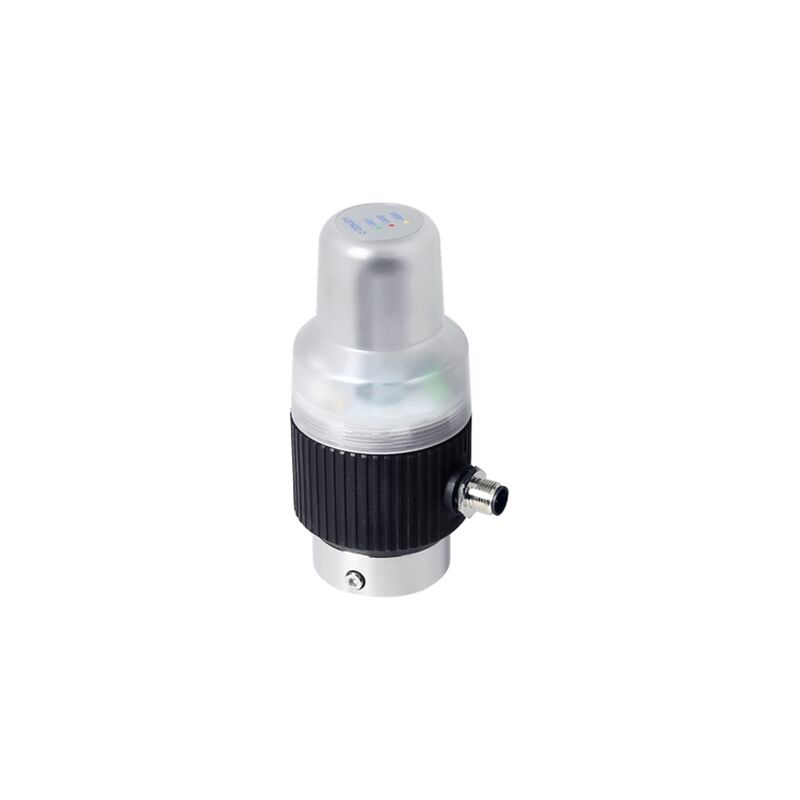

IndiTop Indication Unit F TOP 1553 Structure



F-TOP 1553 dimension

F TOP 1553 dimension

F-TOP 1553 Application

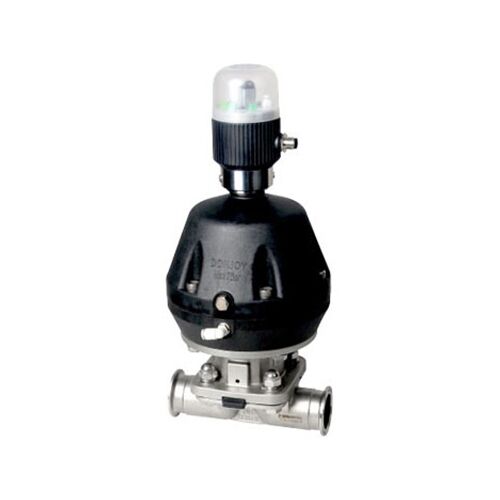

Pneumatic diaphragm valve F TOP 1553
Pneumatic diaphragm valve F TOP 1553

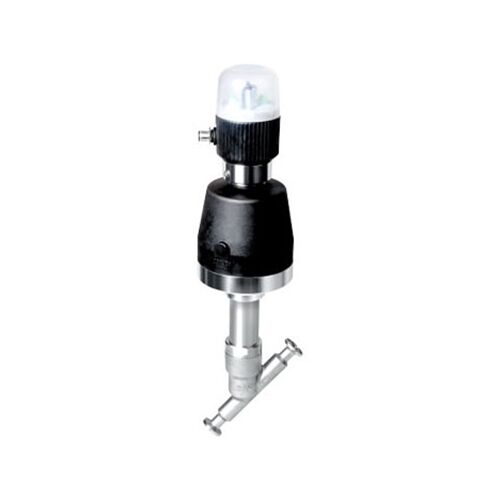

Pneumatic angle seat valve with F TOP 1553
Pneumatic angle seat valve with F TOP 1553

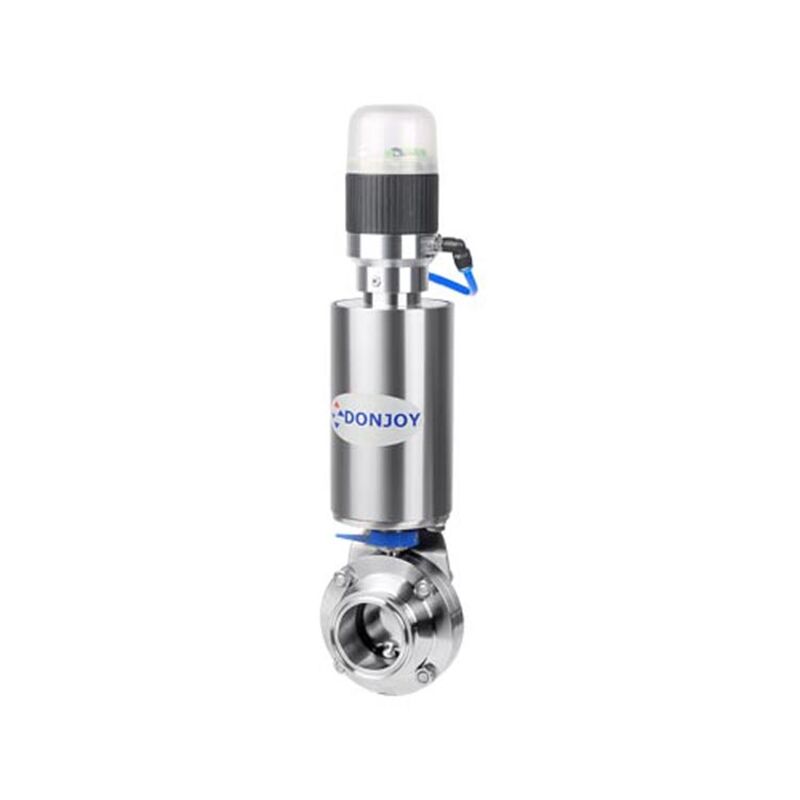

Pneumatic Butterfly Valve with F TOP 1553
Pneumatic Butterfly Valve with F TOP 1553

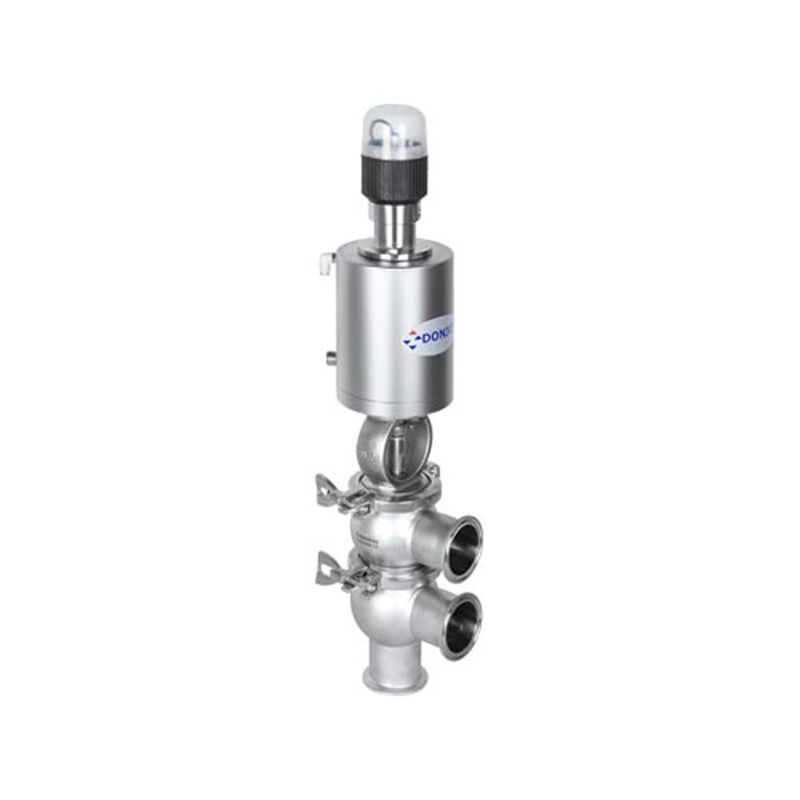

diverter valve with F TOP 1553
diverter valve with F TOP 1553
